Product details

Top highlights

  • Simple one-piece bi-fold design
  • Customizable front display window
  • Requires an outer box or external seal

About this product

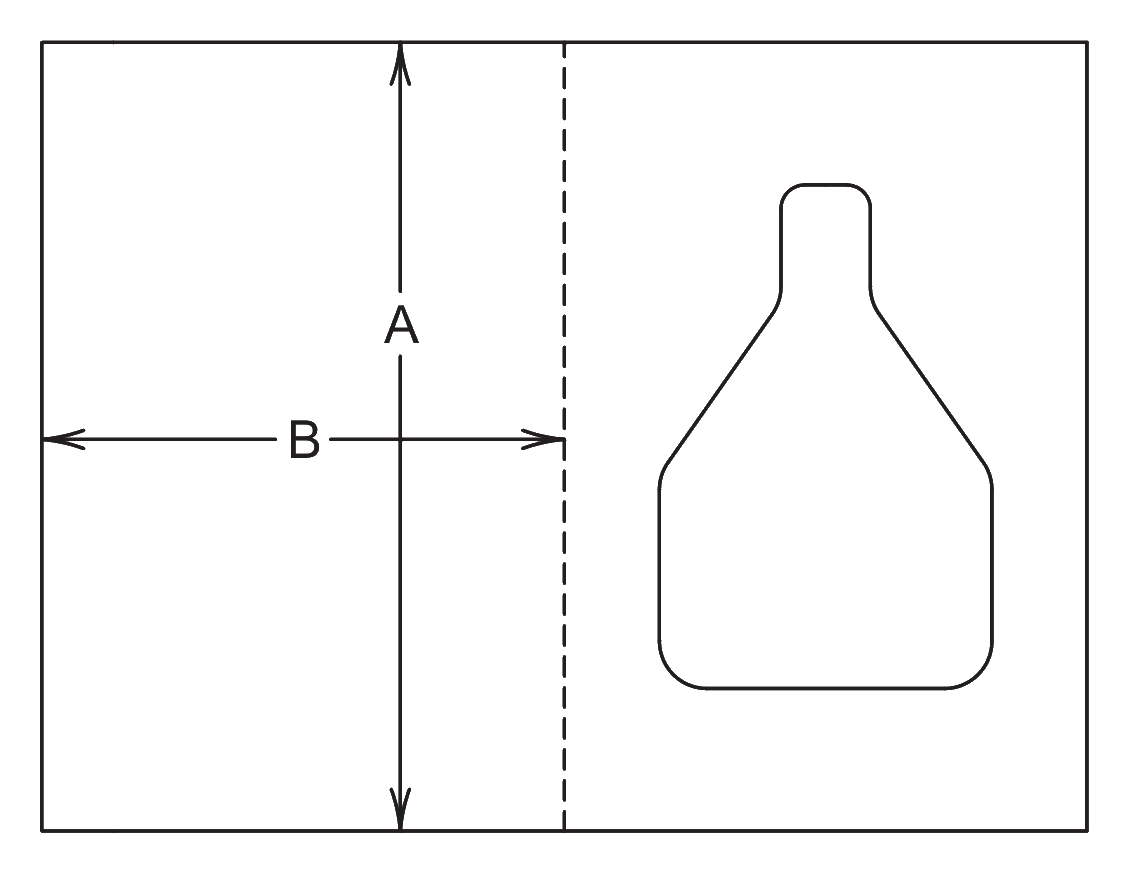

The F80.52.00.00 is a simple bi-fold paperboard folder designed to act as an internal presentation layer or product divider. Featuring a customizable die-cut window on the front panel, it frames flat items, sample pouches, or slim bottles while providing a rigid backing.

Because it has no native locking tabs or glue seams, this folder relies on an outer carton, a wafer seal, or a tied string to stay closed. It is delivered flat and requires only a single 180-degree fold during packing.

Common uses

  • Sample pouch presentation
  • Flat bottle framing
  • Internal box divider
  • Promotional insert or oversized tag

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Common Uses for Bi-Fold Inlays

Internal Product Framing

Used inside a larger primary carton, the folder holds and frames a specific item, such as a sample pouch or flat bottle, keeping it separated from other contents while offering a branded backdrop.

Promotional Inserts and Tags

When punched with a hanging hole or tied with string, the folder acts as a premium oversized tag or informational booklet attached to a product.

Divider for Multi-Item Kits

The folder can separate a primary product from accessories or instruction manuals, keeping the unboxing experience organized and visually appealing.

Base Card for Shrink Wrapping

Provides a rigid, printable backing for soft pouches or flat items that will be shrink-wrapped or placed inside a clear outer sleeve.

Who Uses Windowed Folders

Cosmetics and Sampling

Beauty brands use windowed folders to present sample sachets or slim vials, elevating the unboxing experience within a larger kit.

Apparel and Boutique Retail

Often used as a premium folded tag or care booklet that accompanies high-end garments, relying on a string or ribbon for attachment.

Subscription Boxes and Direct Mail

Adding a branded presentation layer without adding bulk, these folders help organize small items inside crowded monthly mailers.

When to Consider a Different Insert

When you need native closure

If the insert must stay closed on its own without a sticker or outer box, consider a sleeve or a folder with integrated locking tabs.

When holding heavy or bulky items

This folder provides surface presentation, not structural retention. For heavy items, a custom die-cut platform or corrugated insert is more secure.

Key Decisions for Your Folder

External Sealing and Outer Packaging

Decide how the folder will stay closed. It will naturally spring open slightly due to the board memory unless it is restrained by a tight outer carton, a clear wafer seal, or a shrink wrap.

Board Grade and Grain Direction

A common folding box board works well, but the grain direction must run parallel to the central crease to prevent the hinge from cracking during the 180-degree fold.

Two-Sided Printing

Because the inside of the back panel is visible through the front window, consider whether your artwork requires two-sided printing to maximize the presentation.

Packing Line Assembly

Determine whether the folder will be pre-folded and sealed before arriving at the fulfillment center or folded manually during final pack-out.

Customizing the Window and Fit

Window Shape and Size

The default template features a bottle silhouette, but the aperture can be modified to match your specific product. A minimum border width must be maintained to prevent the frame from tearing.

Adding Window Film

If the product needs protection from scuffing or dust, a clear plastic film can be patched over the window opening.

Hanging Holes and Tag Modifications

Adding a punched hole near the fold allows the insert to be tied to a bottle neck or garment, converting it into a premium hangtag.

Board and packing details

Stripping and Production Speed

Large internal cutouts require reliable stripping during die-cutting. Extremely intricate window shapes may slow down production or require specific cutting dies.

Folder Variants

Solid Folder (F80.52.00.00.a)

A plain bi-fold insert without the front window. A practical choice for simple dividers, instruction booklets, or base cards where the product sits on top rather than being framed.

Additional notes

Clearance for outer cartons

When sizing the folder, ensure the final folded dimensions leave enough clearance to slide easily into the primary box without bowing.

Related Inserts and Sleeves

F80.11: Die-Cut Platforms

Review this option if you need an insert that securely holds multiple items in place within a base tray.

F80.01: Flat Inlays

A better choice if you only need a single-ply backing card without a folding cover.

FAQs

Closure and Handling

Will the folder stay closed on its own?

No. The natural memory of the board will cause the folder to spring open slightly. It requires an outer box, a clear wafer seal, or a tied string to remain tightly closed.

Product Fit

Can the window be shaped like my product?

Yes. The die-cut aperture can be customized to match the silhouette of your item, provided there is enough paperboard left around the edges to maintain the shape of the folder.

Print and Finish

Do I need to print on the inside of the folder?

It is highly recommended. The inside of the back panel serves as the backdrop for whatever is displayed in the window, making two-sided printing a common choice.

Production

How is this delivered?

The folders are delivered completely flat. They require a single manual fold during your packing process.

Materials

Can this be made from corrugated board?

It is usually made from paperboard. Using corrugated board for a 180-degree fold creates excessive bulk at the hinge and usually requires a redesigned spine with double scores.

Samples

Should I test a sample before ordering?

Yes. A physical sample helps verify that your product fits the window perfectly and that the folder slides smoothly into your outer carton without catching.

Production

What happens to the cutout waste during production?

The large window cutout is stripped away at the factory. Very intricate window shapes might require specific cutting dies to ensure clean removal.

Protection

Does the folder add structural strength to the outer box?

No. It acts as a presentation layer and divider. It does not provide crush resistance or load-bearing support for the primary package.
