ECMA F60.93.00.00

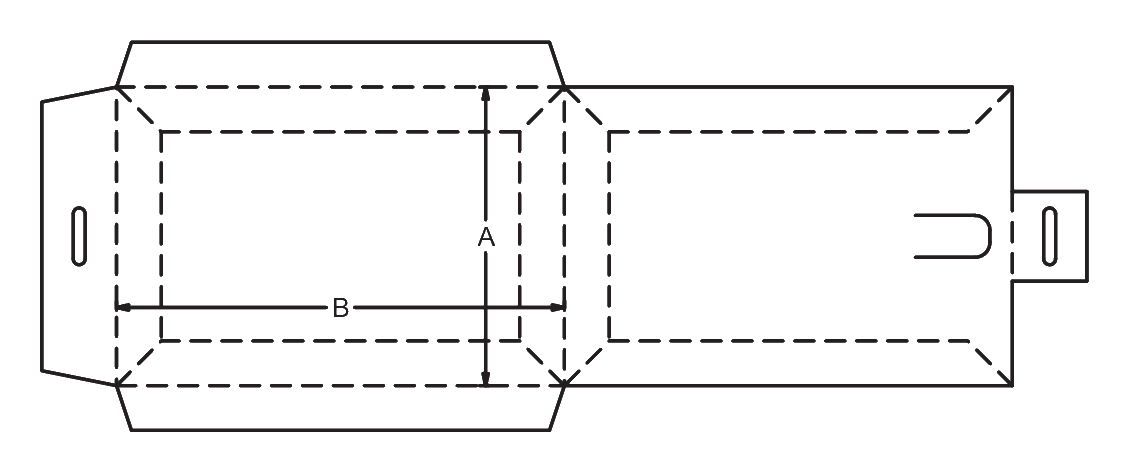

Secured Paperboard Wallet with Tab Closure

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Reusable tab-and-slot mechanical closure
Delivered pre-glued as a flat pocket
Expanding edge scores for shallow capacity

About this product

This one-piece paperboard wallet features a built-in tab-and-slot closure, creating a reusable envelope for documents, certificates, and flat samples. The side seams are pre-glued during production, allowing the wallet to be delivered flat and ready for immediate loading.

Unlike standard mailing envelopes that rely on adhesive strips, this design uses a mechanical paperboard lock. It provides a clean unboxing experience for presentation kits, but requires an outer mailer if shipped through parcel networks.

Common uses

Corporate kits
Certificates
Invitations
Flat product samples

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Width (opening edge)

Length (closed edge to opening)

Maximum thickness of contents

Size notes

Quantity notes

Materials and print

Paperboard preference

Add details for paperboard preference

Paperboard details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will these wallets be distributed?

What will be placed inside the wallet?

Are you planning a high-gloss or heavy protective coating?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Document and Flat Sample Packaging

Corporate documents and certificates

The mechanical closure makes this wallet a strong fit for high-value documents, welcome kits, and certificates. The tab lock keeps the contents contained while allowing the recipient to open and reclose the package without tearing the paperboard.

Flat product samples and material swatches

For thin, flat items like fabric swatches, cards, or low-profile retail goods, the expanding edge scores provide just enough capacity to hold the product securely. The broad front and back panels offer uninterrupted space for branding and product details.

Welcome kits and onboarding folders

Human resources and agency teams use this wallet to bundle introductory materials. The reusable lock allows users to store and reference the documents over time without the envelope degrading quickly.

Retail gift card presentations

Retailers use this wallet for gift card presentations or in-store promotional handouts. The pre-glued pocket allows staff to quickly insert the card and tuck the flap closed at the register.

Corporate, Retail, and Event Distribution

Corporate and agency communications

Firms distributing reports or proposals use this style to elevate the presentation. The mechanical lock feels more deliberate than a standard glued envelope, setting a professional tone before the package is even opened.

Retail and point-of-sale distribution

Stores handing out promotional materials or flat purchases benefit from the pre-glued delivery. Staff can load the wallet and secure the tab quickly without managing tape or peel-and-seal waste.

Event and hospitality distribution

Event organizers use this style to deliver thick invitation suites or welcome packets. The expanding scores accommodate multiple cards, while the tab closure keeps the suite organized.

When to Compare Other Envelope Styles

Direct parcel mailing

If the package will travel through a courier or postal sorting network, the exposed tab can catch on machinery. For direct mailing, compare this to a peel-and-seal rigid mailer, or plan to place this wallet inside a protective outer shipping envelope.

High-speed automated fulfillment

The tab-and-slot closure requires manual dexterity to tuck and lock. If your packing line relies on high-speed automated sealing, a wallet with a pre-applied adhesive strip will be much faster to close.

Board, Finish, and Packing Route Choices

Board thickness and lock friction

The thickness of the paperboard directly affects how the closure performs. If the board is too thick, the tab will be difficult to push through the slot and may tear. If it is too thin, the lock may slip open. Discuss your preferred material early so the slot dimensions can be matched to the board caliper.

Surface coatings and hinge cracking

Because the tab must fold back 180 degrees to lock into the slot, heavy varnishes or laminations can crack at the hinge. If you require a high-gloss finish, the fold lines may need specific scoring adjustments to maintain a clean appearance.

Outer mailing and transit protection

Decide whether this wallet will be handed out in person or shipped. If shipping, you will need to size an outer master mailer or corrugated shipper to protect the paperboard wallet and prevent the tab from catching in transit.

Packing speed and hand assembly

Evaluate your fulfillment labor. While the wallet arrives pre-glued, the final closure requires an operator to manually fold the flap and seat the tab into the slot. This takes slightly longer than pressing a peel-and-seal strip.

Capacity and Closure Adjustments

Expansion score depth

The side and bottom edges feature parallel scores that allow the wallet to expand slightly. This capacity can be adjusted to fit thicker document stacks or slightly deeper samples, though overstuffing will put pressure on the side glue seams.

Locking tab proportions

The width and reach of the locking tab can be modified. A wider tab provides a more secure hold for heavier paper stacks, while a narrower tab is easier for the end user to open quickly.

Slot width and board caliper matching

The receiving slot can be widened or narrowed during the structural design phase. This adjustment ensures the lock functions smoothly based on the exact thickness of the chosen paperboard.

Board and packing details

Pre-glued delivery and storage

These wallets are folded and glued on a straight-line folder-gluer before delivery. They arrive completely flat, taking up minimal warehouse space, and are ready for immediate manual loading without any complex assembly steps.

Locking Tab Variations

Standard vs. Extended Lock (F60.93.00.00.a)

Variations in this template family adjust how the slot and tab scale with the overall width of the wallet, ensuring the lock remains proportional and secure regardless of the final envelope size.

Additional notes

Print panel and scuff risk

The large, flat front and back panels provide excellent space for branding. However, if the wallet will be sliding in and out of outer mailers, consider a protective coating to prevent ink scuffing.

FAQs

Shipping and Route

Can this wallet be mailed on its own?

Direct parcel or postal sorting can cause the mechanical tab to catch on equipment. The wallet performs better as a presentation piece handed out in person or placed inside a larger shipping mailer for transit.

Product Fit and Capacity

How thick of an item can this wallet hold?

It is designed for flat documents, certificates, or very thin samples. While the edges have expansion scores to accommodate small stacks, overstuffing the wallet will prevent the tab from reaching the slot and may pop the side glue seams.

Closure and Assembly

Does this wallet require glue or tape to close?

The side seams are glued during manufacturing, so the pocket is already formed. The top flap closes entirely using the built-in paperboard tab and slot, requiring no additional tape or adhesive.

Is the closure reusable?

The tab can be tucked and untucked multiple times, making the wallet useful for document storage or presentation kits that the recipient will keep and reference later.

Materials and Print

Can this be made from corrugated board?

This design relies on tight 180-degree folds and a precise slot-and-tab lock, which do not work well with thick corrugated flutes. It is intended for folding carton materials like solid bleached sulfate (SBS) or folding box board (FBB).

Prototyping

Why is a physical sample important for this design?

A physical mockup verifies that the tab fits smoothly into the slot using your exact chosen paperboard. It ensures the lock is secure without being so tight that it tears during opening.

Fulfillment

Can the closure be automated on a packing line?

The tongue-and-slot mechanism requires manual dexterity to tuck and lock. It is generally not suited for high-speed automated sealing equipment.

Print and Finish

Will heavy coatings affect the locking tab?

Heavy varnishes or laminations can crack when the tab is folded back 180 degrees to lock. If you require a high-gloss finish, the fold lines may need specific scoring adjustments to prevent cracking.
