ECMA X14

Perforated Tear-Out Strip for Folding Cartons

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Built-in perforated dispensing aperture
Seal-end closure relies on adhesive during packing
Single-use opening; does not reclose

About this product

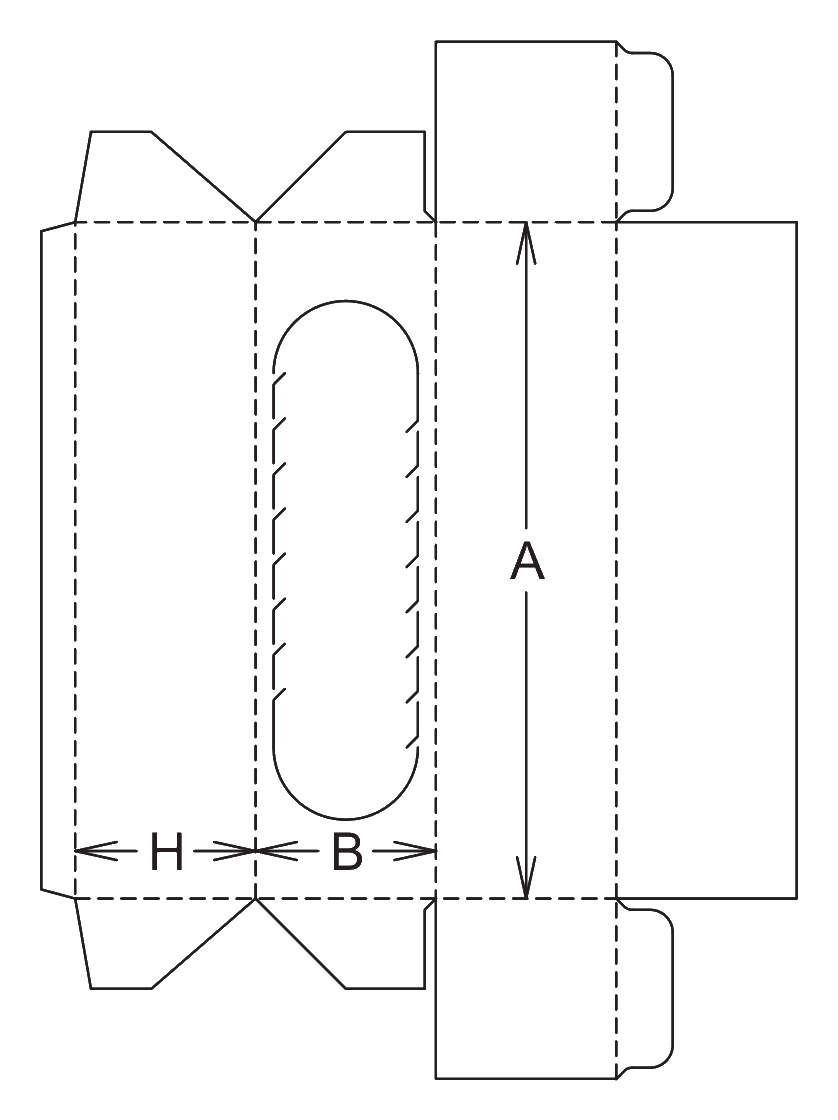

ECMA X14 specifies a perforated tear-out strip. It is a Group X feature used with a folding-carton design. The illustrated seal-end carton uses it to create a large opening for dispensing or access.

The strip is a single-use opening feature. The base carton and any sealing method are selected for the actual product and packing process.

Common uses

Facial tissues and wipes
Disposable medical or food-service gloves
Individually wrapped snacks or candies
Hardware fasteners in bulk
Single-serve beverage pods

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Height

Size notes

Quantity notes

Materials and print

Paperboard preference

Add details for paperboard preference

Paperboard details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What type of product will be dispensed from this box?

How will the box be positioned when in use?

How will these boxes be shipped to the final destination?

What base carton style should use this feature?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Practical Dispensing Jobs

Disposable Gloves and Wipes

The wide aperture allows users to pull single items from a bulk-packed carton without opening the ends. The glued end flaps keep the remaining contents secure.

Individually Wrapped Snacks

Works well as a shelf-ready dispenser for candies, snack bars, or single-serve packets, allowing retail staff to simply tear away the panel and place the box on the shelf.

Lightweight Hardware and Fasteners

Useful for bulk bins of lightweight parts where users need continuous access, provided the board grade is heavy enough to support the outward pressure of the contents.

Single-Serve Beverage Pods

A practical choice for coffee pods or tea bags in office breakrooms, keeping the units contained while offering an easy reach-in opening.

Retail and Institutional Fit

High-Volume Retail

The seal-end base carton is a common format for automated cartoning lines, making this an efficient choice for mass-market consumer goods.

Medical and Food Service

Provides a clean, enclosed delivery method for sanitary items. The glued ends offer basic evidence of opening before the dispenser is used.

Office and Institutional Supply

Fits well in breakrooms or supply closets where bulk items are dispensed over time, keeping the storage area organized.

When to Consider Alternative Openings

Products requiring a dust-tight reseal

The X14 tear strip is completely removed during opening. If the product needs to be sealed between uses, a tuck-end carton or a design with a reclosable locking flap is a better choice.

Heavy items prone to shifting

The perforated outline naturally weakens the host panel. For dense or heavy products, the outward pressure can cause the perforations to burst prematurely during transit.

Board, Grain, and Packing Choices

Board Grade and Grain Direction

A clean tear depends heavily on the board. The grain direction should ideally run parallel to the tear strip to prevent the tear from wandering or delaminating the paperboard.

Automated Packing Equipment

Because this template uses a seal-end base, the packer usually relies on automated cartoning equipment capable of folding and gluing the top and bottom flaps after loading.

Perforation Cut-to-Tie Ratio

The exact spacing of the cuts and ties in the perforation should be tested with the chosen board. It needs to be strong enough to survive distribution but weak enough for a consumer to open easily.

Outer Shipper Strategy

Since the dispensing hole reduces the main panel's strength, these cartons are typically treated as primary retail packaging and packed inside a corrugated master shipper for pallet transit.

Aperture and Template Adjustments

Aperture Size and Placement

The length and width of the tear-out strip can be adjusted to match the product being dispensed, provided the perforations do not cross the corner creases.

Thumb-Hole Additions

While the standard template uses a continuous oval, a semi-circular thumb push-in can be added to help the consumer initiate the tear.

Tear Strip Shape

The dispensing hole can be modified from a standard oval to a rectangle with rounded corners, depending on how the product needs to be presented on the shelf.

Board and packing details

Adhesive Zones

Ensure the glue flaps and seal-end flaps are free of varnish or ink to maintain a strong adhesive bond during the final packing stage.

Base Carton Variations

Base Carton Style

While this specific template applies the tear strip to a seal-end carton, the dispensing feature can theoretically be applied to tuck-end or crash-lock base cartons depending on your packing line.

Additional notes

Physical tear testing

Always request physical prototypes in the final board grade to verify that the dispensing strip opens smoothly without excessive force.

FAQs

Opening and Closure

Can this carton be reclosed after opening?

The perforated strip is completely removed to create the dispensing hole, leaving the carton permanently open.

How are the ends of the box sealed?

This template uses a seal-end design. The top and bottom flaps are folded over and glued shut, typically by automated cartoning equipment after the product is loaded.

Material and Testing

Does the perforated hole weaken the box?

The perforation reduces the structural strength of that specific panel. The box relies on the intact corners and opposite panels for stacking strength, and it is usually shipped inside a master carton.

How do we ensure the strip tears cleanly?

A clean tear requires matching the perforation pattern (the cut-to-tie ratio) to the specific board grade and aligning the tear direction with the paperboard's grain.

How does the grain direction affect the tear?

Tearing parallel to the paperboard grain usually results in a clean, straight opening. Tearing across the grain increases the risk of the strip wandering or delaminating.

Production and Packing

Can this box be packed by hand?

Manual packing is difficult because the end flaps rely on adhesive to stay closed. It is primarily designed for automated packing lines.

Modifications

Can the size of the dispensing hole be changed?

The length and width of the tear-out area can be adjusted to fit the product, as long as the perforations stay clear of the carton's folded edges.

Print and Finish

Can we print over the perforated area?

Graphics can be printed across the tear strip. However, keep in mind that any text or branding on the strip will be removed and discarded once the consumer opens the box.

Product Fit

What happens if the packed product is too heavy?

Heavy or dense items can press against the weakened perforated panel from the inside, potentially causing the strip to burst open during transit. Testing is recommended for heavier payloads.
