ECMA X64

Double-Wall Carry-Handle Panel for Folding Cartons

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Integrated, double-thick handle for comfort and tear resistance
  • Hidden internal ceiling distributes lifting weight across the box
  • Requires specialized folder-gluer routing for the 180-degree handle fold

About this product

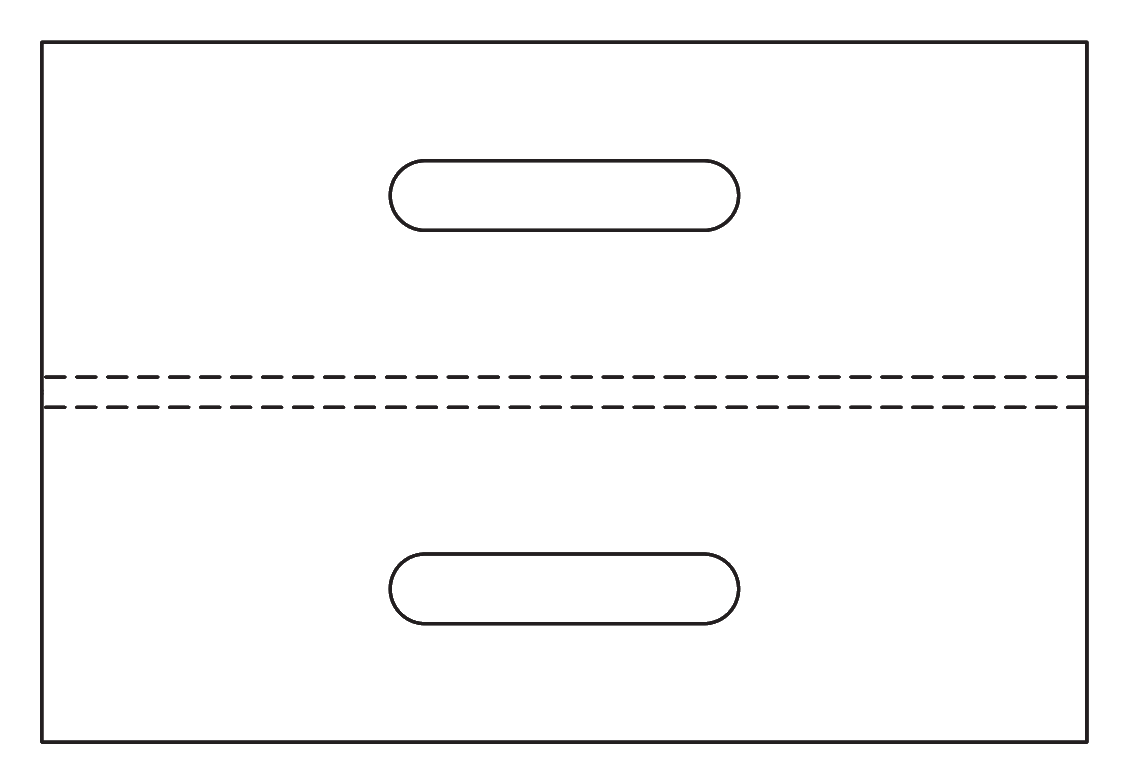

ECMA X64 specifies an extended double-walled panel with a carrying-handle opening. It is a Group X feature used with a folding-carton design. The illustrated carton shows one use of that panel.

The host carton and intended handling need to be considered together for the finished package.

Common uses

  • Small appliances and electronics
  • Heavy cosmetic or personal care kits
  • Premium beverage multipacks

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail and Heavy-Duty Applications

Heavy Retail Products

Well-suited for small appliances, hardware, or electronics where a standard single-wall handle might tear under the weight or cut into the consumer's hand.

Premium Multipacks

Useful for beverage kits or cosmetic collections where the integrated handle adds convenience and a high-end feel to a grab-and-go purchase.

Hardware and Tool Kits

Fits dense products that require a secure carry handle without relying on separate plastic components.

Cosmetic and Personal Care Sets

Provides a premium presentation where a clean, integrated paperboard handle is preferred over external plastic handles.

Premium Consumer Goods

Brand Managers

Provides a clean, self-contained retail presentation that eliminates the need for separate plastic handles or shopping bags.

Packaging Engineers

Solves back-wall bowing issues common in handled cartons by utilizing the internal load-transfer ceiling to distribute weight to the front panel.

Fulfillment Operations

Requires planning for the manual top closure sequence, which involves folding the internal ceiling before the cosmetic top tuck.

When to Consider Simpler Handles

Lightweight Products

If the item is light, a single-walled handle uses less material and avoids the complex gluing process.

Pegboard Display

If the primary goal is hanging the product rather than carrying it, a double-walled euroslot provides the necessary reinforcement for retail hooks.

Production and Material Considerations

Folder-Gluer Capability

The 180-degree fold that creates the double-thick handle requires specific folder-gluer routing. This production step should be discussed early to ensure manufacturing fit.

Board Thickness and Cracking

Thicker boards increase handle strength but raise the risk of cracking on the tight 180-degree fold. Score profiles and board coatings must be carefully matched to the material.

Print Sidedness

The inside of the handle extension will be visible through the die-cut handle hole. Depending on the artwork, this may require two-sided printing or a two-side coated board.

Packing Line Speed

The top closure requires a specific manual sequence of folding the internal ceiling first, then the cosmetic top tuck, which takes more time than a standard tuck closure.

Handle and Dimension Adjustments

Handle Hole Ergonomics

The width, length, and corner radii of the carrying hole can be adjusted to improve consumer comfort and ensure adequate finger clearance.

Overall Proportions

The main tube dimensions dictate the size of the hidden reinforcing ceiling, which must span the exact depth of the box to function correctly.

Bottom Closure Style

The standard tuck bottom can be replaced with a crash-lock bottom to speed up manual erection on the packing line.

Board and packing details

Packing Sequence

The top closure requires a specific manual sequence: folding the internal ceiling first, then the cosmetic top tuck, which may affect high-speed fulfillment lines.

Blank Sprawl

The four-panel handle extension increases the flat size of the blank, which can affect sheet yield and overall material efficiency.

Additional notes

Master Shipper Packing

The handle can fold flat against the top of the box, allowing the cartons to be packed efficiently into master shippers without wasting vertical space.

Related Retail and Display Cartons

X63: Single-Walled Handle Carton

A simpler alternative for lighter products where a double-thick handle is unnecessary.

FAQs

Product Fit and Inserts

Why use a double-walled handle instead of a single-walled one?

A double-walled handle provides a thicker, more comfortable grip for the consumer and increases tear resistance, making it much safer for heavier products.

How does the hidden ceiling work?

The inner layer of the handle extends down and bends 90 degrees across the top opening of the box. This transfers the lifting weight from the back wall to the front wall, preventing the carton from bowing or tearing when carried.

Quantity and Production Path

Can this be packed on automated lines?

The bottom tuck is standard, but the top closure involves a specific sequence of folding the internal ceiling before the main top tuck. This dual-layer top closure is often handled manually or requires specialized automation.

Print and Finish

Does the handle hole show the unprinted side of the board?

Because the inner layer of the handle folds over, its unprinted side will be visible through the handle cutout unless the board is printed on both sides or is two-side coated.

Board and Finish Behavior

What board types fit this fold?

Standard folding carton boards work well. Very thick boards or micro-flutes can be risky because the tight 180-degree fold at the top of the handle may crack or bind.

Quantity and Production Path

Does this require special manufacturing equipment?

The carton requires a folder-gluer capable of making a 180-degree cross-fold to form the handle before or during the standard side-seam gluing.

Route and Shipping

Does this carton need an outer box for shipping?

This is a primary retail carton. The tuck flaps and exposed handle mean it requires an outer shipping box for parcel or courier networks.

Samples and Prototypes

Should we test the handle strength before a full run?

Physical load testing is an important step to ensure the chosen board and score profile can safely support the target product weight without tearing.
