Double-Walled Round-Hole Hang Panel for Folding Cartons
ECMA X66 specifies an extended double-walled panel with a round opening. It is a Group X feature used with a folding-carton design. No specific host carton is named for this Group X feature.
The selected host carton and product weight determine how the panel is used in the finished package.
This double-walled panel provides the extra tear resistance needed to keep heavier small goods, like cosmetics, hardware, or electronics, safely on the peg. The folded board resists tearing better than a single-ply tab, lowering the risk of products falling to the store floor.
Plastic reduction initiatives
For brands looking to remove plastic components, an integrated paperboard hang tab offers a direct replacement for stick-on plastic tabs. It arrives ready to hang, removing a manual application step from the packing line.
High-friction retail environments
In busy retail aisles where products are frequently handled and restocked, a single layer of paperboard can tear. The double-walled construction adds tear resistance to handle repeated customer handling.
Integrated display packaging
Because the tab is cut and folded from the same sheet as the main carton, it keeps consistent branding and color matching across the entire package, bypassing the mismatched look of clear or white plastic add-ons.
Retail shelf presentation and plastic reduction
Health and beauty retail channels
Cosmetics and personal care items often use pegboard display to make use of shelf space. The double-walled tab helps these relatively dense, heavy items stay hung without tearing the packaging.
Hardware and electronics packaging
Small hardware components and electronic accessories are often heavy for their size. A reinforced hanging hole provides the needed support for these dense products on common retail pegs.
Sustainable packaging transitions
Companies moving away from mixed-material packaging use this integrated paperboard feature to remove plastic hang tabs, making the entire empty carton easier for the end consumer to recycle.
Lighter products or wide retail hooks
When the product is light
If the packaged item is lightweight, a single-walled round hole panel (X65) may provide enough tear resistance without the need to fold and glue an extra layer of board.
When retailers use wide safety hooks
If the target stores use wide, flat hooks or double-prong security pegs, a double-walled Euroslot panel (X62) can be used instead of a basic round hole.
Board folding behavior and hole sizing
Board thickness and foldability
Because the panel folds 180 degrees against itself, the chosen board grade and grain direction needs to take the sharp fold without cracking the printed surface at the top edge.
Hole diameter and placement
The round cutouts should be sized to fit the specific peg hardware expected in stores. The vertical placement of the hole also affects how the carton balances when hanging.
Tab height and shelf clearance
The overall height of the extended panel needs to account for the distance between the peg hook and the shelf above it, so the product can be removed without catching.
Grain direction and top-edge cracking

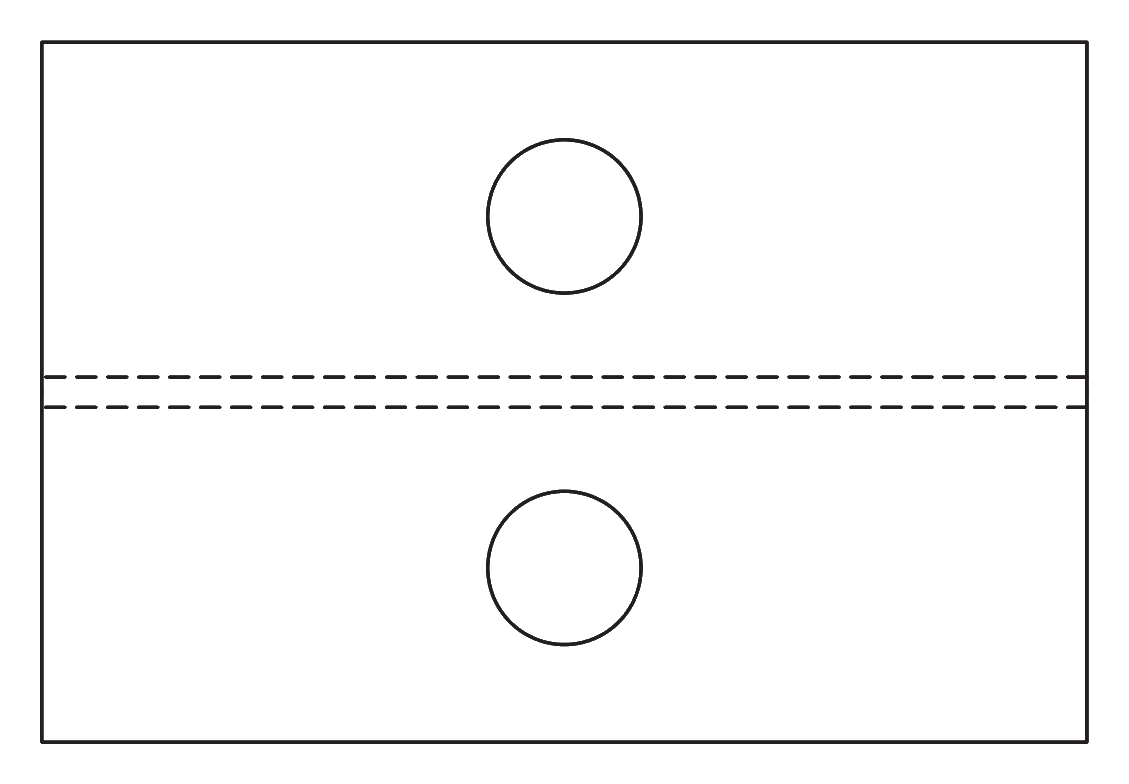

Aligning the board grain with the top fold helps keep the paperboard from splitting. The template uses a double score line to create a tiny flat spine, which lowers stress on the fold.
Hole diameter and tab clearance
Hole diameter sizing
The circular cutouts can be adjusted to match the exact diameter of the target retail peg hooks, creating a close fit that keeps the carton from swinging.
Extended panel height
The height of the folded tab can be extended to provide added branding space above the product or shortened to fit closely spaced retail shelves.
Corner profile
The top corners of the hanging panel are usually squared off, but they can be rounded to match the aesthetic of the main carton or to keep sharp edges from catching on nearby products.
Board and packing details
Double score line for clean folding
The template uses a double score line at the fold. This creates a tiny flat spine rather than a sharp crease, which helps thicker boards fold smoothly and keeps the layers from bowing outward.
Additional notes
Retail hook compatibility
Round holes are designed for single-wire peg hooks. If the store uses wide safety hooks, a Euroslot may be needed instead to keep the carton from hanging crookedly.
Alternative hanging features
X65: Single-Walled Round Hole Panel
A lighter-duty alternative that uses just one layer of board.
A reinforced hanging panel designed for wide retail safety hooks.
FAQs
Product fit and inserts
Does this require a separate piece of board?
No. The hanging panel is usually designed as an extension of the carton back or top panel. It folds over and glues to itself during the normal carton manufacturing process.
Board and finish behavior
Why choose a double-walled tab over a single-walled one?
A double-walled tab provides twice the tear resistance. This makes it better for heavier items that could rip through a single layer of paperboard while hanging on a retail peg.
Will the fold crack the printing at the top?
The template includes a double score line to help the board fold smoothly. However, the choice of board grade, coating, and grain direction should be checked to help the visible top edge remain uncracked.
Route and shipping
Does this replace stick-on plastic hang tabs?
Yes. Integrating the hang tab into the carton body removes the cost of separate plastic tabs and the labor required to apply them after packing.
Product fit and inserts
Can the hole size be changed?
Yes. The round cutouts can be sized to match the specific peg hooks used in your target retail stores, creating a close fit.
Quantity and production path
How is the folded panel secured?
The folded extension is usually glued flat against itself or the main carton body during the automated folding and gluing process at the factory.
Related package choice
What happens if the retail store uses wide safety hooks?
Round holes are designed for single-wire pegs. If the store uses wide, flat safety hooks, a Euroslot panel can be specified instead so the carton hangs straight.
Route and shipping
Does the double wall affect the overall carton thickness during shipping?
The folded tab does add a double layer of board thickness at the top of the carton. This slight increase in profile needs to be accounted for when sizing the master shipping boxes.
A reinforced, integrated hanging solution that keeps your product on the pegboard without extra plastic components.
