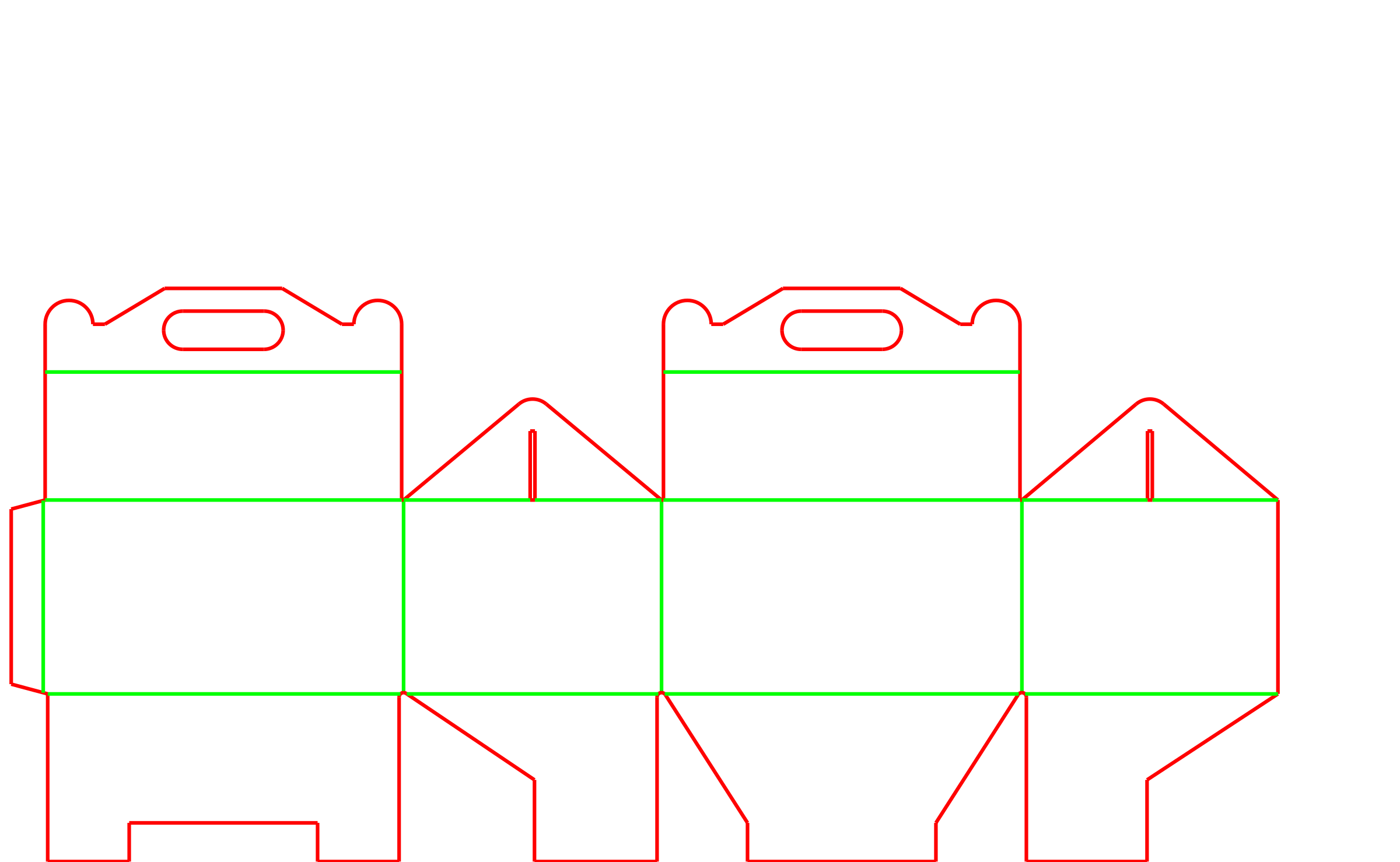

EVC11201

Corrugated Carrying Case with Snap-Lock Base

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Integrated interlocking top handle for retail carry-out
Manual 1-2-3 snap-lock base closes via mechanical friction
Delivered flat as a pre-glued tube for efficient storage

About this product

The EVC11201 is a one-piece corrugated carrier designed for retail carry-out and promotional kitting. It features an integrated interlocking top handle and a manual snap-lock bottom, allowing operators to assemble and close the package using mechanical friction rather than adhesives.

Delivered flat as a pre-glued tube, this design balances a premium unboxing experience with structural strength. Because the base is folded by hand and the gable top prevents flat stacking, it is best suited for point-of-sale environments rather than direct parcel shipping.

Common uses

Retail carry-out for heavy or multi-part purchases
Promotional kits and event welcome packs
Food and beverage catering boxes
Boutique retail packaging

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will these carriers be packed?

What is the estimated weight of the packed items?

How will the packed carriers be distributed?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail carry-out and promotional packing

Retail carry-out

Provides a secure grip for customers leaving a store with heavy or multi-part purchases. The handle load path transfers weight down the main panels to the snap-lock base, supporting moderate consumer weights when specified in the right flute.

Promotional kits and gift packs

The gable top and wide side panels offer excellent presentation and billboard space for branded graphics, making it a strong choice for influencer kits or holiday assortments.

Catering and food delivery

Fits specialty beverage packs, catering boxes, or heavy deli orders where a secure handle is expected and the package will be handed directly to the consumer.

Event welcome packs

Allows attendees to easily carry welcome kits or sample assortments around a trade show or conference floor without a separate bag.

Retail channels and event distribution

Food and beverage

Often used for specialty beverage packs, catering boxes, or heavy deli orders where a secure handle is expected and the package will be handed directly to the consumer.

Corporate events and conferences

Allows attendees to easily carry welcome kits or sample assortments around an event floor without a separate bag.

Boutique retail

Provides a premium unboxing and carry-away experience for high-end consumer goods, eliminating the need for secondary shopping bags.

When to consider a different carrier or shipper

High-volume packing lines

If manual base assembly slows down fulfillment, compare this to an auto-bottom (crash-lock) carrier. A crash-lock base pops open quickly, saving labor time.

Direct parcel shipping

If the package travels through courier networks, the handle and base can catch on sorting belts. Compare to a standard slotted container or plan to place this carrier inside a master shipper.

Palletized storage after loading

The gable top prevents stable vertical stacking. If loaded boxes are stacked high on pallets, consider a flat-top box with die-cut hand holes instead of a raised handle.

Board, labor, and route decisions

Board thickness and handle clearance

E-flute offers a good balance of foldability and print quality. Thicker boards increase puncture resistance but should be checked to ensure the handle tabs do not bind or tear during the manual interlock.

Assembly labor and packing speed

The 1-2-3 snap-lock base is folded by hand at the packing bench. Buyers should weigh this labor time against the speed of a pre-glued crash-lock base.

Outer shipping requirements

Because the handle and base are exposed, buyers should decide if the carrier will be handed directly to consumers or if it uses a master carton for distribution.

Print surface and graphics

The wide side panels provide excellent billboard space. Buyers should decide whether to utilize this for full-color branding or keep it plain kraft for simple utility.

Handle and proportion adjustments

Handle height and clearance

The handle profile and hand-hole dimensions can be adjusted to accommodate different hand sizes or ergonomic preferences without changing the overall box volume.

Base proportions

Length, width, and height can be scaled to fit specific product arrangements, though extreme aspect ratios may affect the stability of the snap-lock floor.

Snap-lock tongue depth

The tuck flap that secures the base can be extended to provide a deeper lock, which helps prevent the bottom from opening under heavier product loads.

Packing details

Delivery and storage

The side seam is glued by the converter, allowing the box to ship knocked-down flat. This maximizes pallet density before the boxes reach the packing bench.

Die-cutting profile

The complex handle and base profiles are typically cut on flatbed equipment. This makes the design better suited for medium to high volumes compared to simple slotted rectangles.

Additional notes

Packing line speed and base choice

If your operation relies on high-speed fulfillment, the manual folding of the snap-lock base may become a bottleneck. In those cases, an auto-bottom variant is often worth comparing.

FAQs

Does this box use adhesive at the packing bench?

The side seam is pre-glued by the manufacturer. The operator manually folds the snap-lock base and interlocks the top handle, securing the package entirely through mechanical friction.

How long does it take to assemble the base?

The 1-2-3 snap-lock base involves three distinct folding motions. It is slower to erect than an auto-bottom box but faster than taping a standard slotted container.

Can I ship this carrier directly through the mail?

It is generally a poor fit for direct parcel shipping. The exposed handle and snap-lock base can catch on automated sorting belts. For courier delivery, this carrier should be placed inside a standard outer shipping box.

Can these boxes be stacked on a pallet?

The gable-style top prevents stable vertical stacking once assembled. They are typically shipped flat on pallets, assembled, loaded, and then handed directly to the end user or placed into master cartons.

What board thickness works well for the handle?

E-flute is common because it folds cleanly and interlocks well. Thicker flutes can be used for heavier items, but the handle slots should be adjusted so the board does not bind or tear during closure.

How much weight can the handle support?

The load path transfers weight from the handle down the side panels to the base. The actual weight limit depends entirely on the chosen board grade, flute, and product distribution, and should be verified with a physical prototype.

Can I use internal dividers with this carrier?

Corrugated partitions or molded pulp inserts can be added to separate bottles, jars, or heavy items, preventing them from shifting and concentrating weight on one side of the base.

Is it easy to test the handle strength before a full run?

Digital cutting tables can produce unprinted prototypes in your chosen board grade, allowing you to verify the handle interlock and base strength with your actual product.
