EVC11220

Corrugated Carry Box with Snap-Lock Base

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Integrated handle with friction-locking top flaps
Manual 1-2-3 snap-lock base for moderate packing volumes
Delivered flat with a pre-glued side seam

About this product

This corrugated carry box combines a built-in handle with a secure top lock and a manual 1-2-3 snap-lock base. It is delivered flat with a glued side seam, ready to be squared up and loaded at the packing bench.

The design is a strong fit for retail carry-out, promotional kits, and grab-and-go products where consumer convenience is the priority. Because the handle protrudes, an outer master carton is often used if the package ships through parcel networks.

Common uses

Retail carry-out
Promotional kits
Grab-and-go food or beverage packs
Heavy parts that benefit from a consumer grip

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Internal length

Internal width

Internal height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How heavy is the packed box expected to be?

How will these boxes be distributed?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail carry-out and grab-and-go packing

Retail Carry-Out

The integrated handle provides immediate convenience for consumers, making it a practical choice for heavier retail items, multi-packs, or specialty food and beverage kits.

Promotional Kits

The large main panels and tall triangular top flaps offer excellent continuous surfaces for branding and graphics, creating a presentation-ready package.

Grab-and-Go Food and Beverage

Useful for pre-packed meals, beverage samplers, or specialty grocery items where the customer needs a secure grip from the store to their destination.

Hardware and Heavy Parts

For dense retail items that are difficult to carry under an arm, the top handle provides a natural lifting point, provided the board grade supports the weight.

Manual packing and retail distribution

Moderate-Volume Manual Packing

The 1-2-3 snap-lock base is folded by hand at the packing station. This makes it a practical choice for moderate volumes where the speed of an auto-bottom base is not strictly necessary.

Kitting and Assembly Lines

Delivered flat with a pre-glued side seam, these boxes can be staged at kitting stations and erected as needed for multi-component promotional packs.

Direct-to-Retail Distribution

When products are shipped on pallets directly to retail floors, the handle design allows staff to quickly transfer individual units to shelves or endcaps.

When to compare auto-bottoms or outer shippers

High-Speed Fulfillment

When packing speed is the primary bottleneck, an auto-bottom (crash-lock) carry box is worth comparing. Auto-bottoms open in a single motion, saving seconds per unit, though they involve a different production route.

Parcel Shipping

The protruding handle is vulnerable to crushing and catching on courier sorting belts. If the primary route is direct-to-consumer parcel delivery, consider a standard mailer or plan to pack this box inside a master shipper.

Heavy Industrial Goods

If the product weight exceeds the tear resistance of the handle, consider a standard RSC or a die-cut box with reinforced hand holes rather than a top-carry design.

Board thickness, lock friction, and handle strength

Board Flute and Lock Friction

The top closure relies on slits in the triangular flaps sliding over the double-thick handle. E-flute or B-flute corrugated board usually provides the best balance of foldability and rigidity. Thicker boards, like C-flute or double-wall, can cause the locking slits to bind or crush during assembly.

Base Taping for Heavy Loads

While the snap-lock base mechanically secures itself, heavy point loads can cause the bottom to bow. Discuss whether your product weight will benefit from a strip of tape across the bottom for added security.

Handle Tear Strength

The handle bears the lifting load. If packing dense or heavy items, the tear resistance of the chosen board grade and flute direction should be validated with a physical prototype.

Print Area and Graphics

The tall triangular locking flaps and large main walls provide ample space for branding. Consider how graphics will align across the creases and handle cutouts.

Handle proportions and locking slit adjustments

Handle Height and Grip Size

The height of the handle and the size of the grip cutout can be adjusted to accommodate different hand sizes or to clear taller internal products.

Window Additions

Display windows can be added to the main wall panels to display the product, provided they are kept away from the structural creases.

Locking Slit Width

The width of the locking slits is directly tied to the board thickness. If the board grade changes, the slit width is adjusted to ensure the lock functions correctly without binding or slipping.

Packing details

Material Footprint and Nesting

The tall handle flaps and triangular locking flaps increase the overall footprint of the flat blank. This reduces the number of boxes that can be nested on a single corrugated sheet compared to a standard rectangular box, which affects production planning.

Additional notes

Board thickness and slit width

The width of the locking slits is directly tied to the board thickness. If you change the board grade later in the process, the template is adjusted to ensure the lock functions correctly without binding or slipping.

FAQs

How does the top handle lock work?

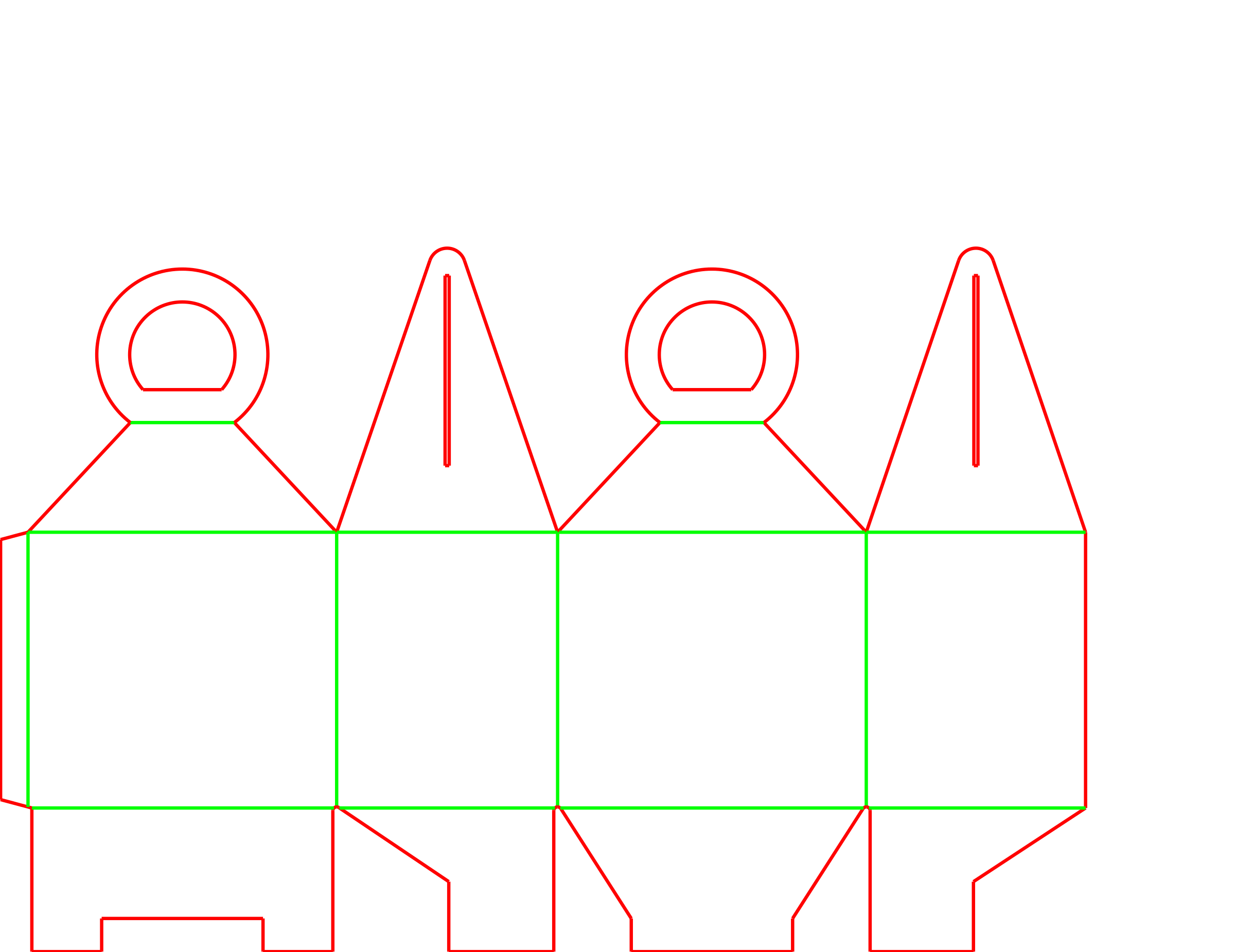

After the product is loaded, the two handle flaps are folded up to meet in the center. Then, the two triangular flaps are folded up, and their vertical slits slide down over the joined handle flaps, locking the top closed and securing the grip.

Does the bottom need tape?

The 1-2-3 snap-lock base is designed to hold its shape mechanically. However, for particularly heavy or dense items, a strip of tape may be needed to prevent the bottom from bowing or opening during transit.

Can I ship this box through the mail?

The exposed handle can easily catch on sorting equipment or be crushed under heavier packages. For parcel delivery, this carry box is usually placed inside a standard outer shipping carton.

What board grades fit this handle design?

Thinner corrugated profiles like E-flute or B-flute are often chosen. The locking slits slide over two layers of board; thicker flutes can make this assembly difficult or cause the board to crush.

Will the handle tear under heavy weight?

Handle strength depends heavily on the chosen board grade and the direction of the fluting. If you are packing heavy items like beverages or metal parts, the handle tear resistance should be validated with a physical prototype.

Is this box suitable for automated packing lines?

Both the snap-lock base and the intricate top handle lock are folded by hand, making it a fit for manual pack stations rather than automated erecting equipment.

Can these boxes be stacked on a pallet?

The protruding handle prevents flat stacking unless the handle is folded down, which defeats the top lock. They are typically stacked inside master cartons or arranged in single layers on retail displays.

Can the handle size be adjusted?

The height of the handle and the size of the grip cutout can be modified to fit different hand sizes or to clear taller products inside the box.
