Corrugated Carrier Box with Snap-Lock Base

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Integrated handle with a flat top closure
Manual snap-lock bottom for hand assembly
Requires an outer carton for parcel networks

About this product

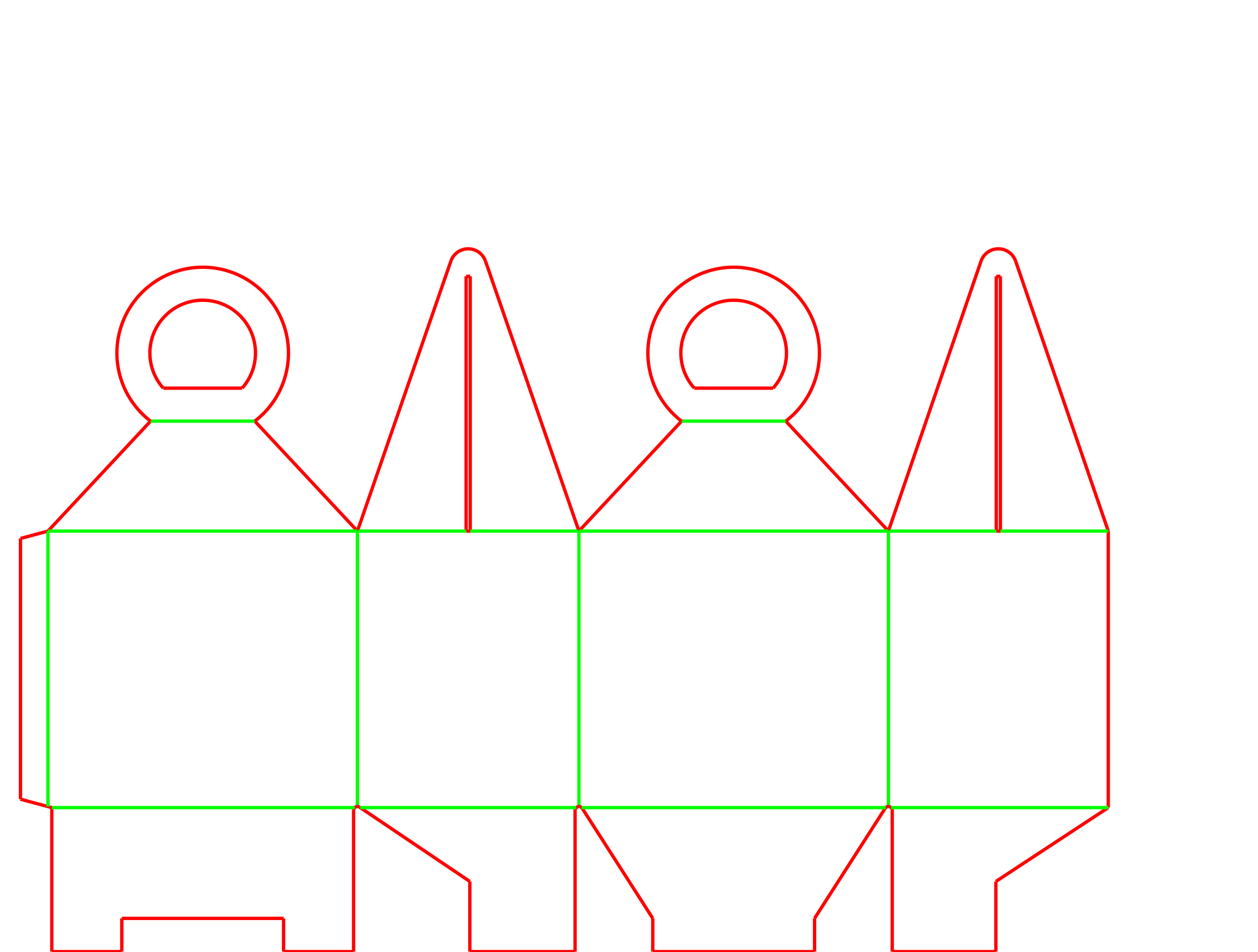

This corrugated carrier features a built-in handle and a flat top closure, designed for retail carry-out and promotional kits. The handle extensions fold up from the inner flaps, while the slotted outer flaps fold flat over them to lock the grip in place.

Because the base uses a manual snap-lock closure, this package is delivered flat and assembled by hand at the packing station. It provides a clean presentation for consumer hand-off, though the protruding handle means it requires an outer master carton for parcel shipping.

Common uses

Retail carry-out
Promotional kits
Moderate-weight consumer goods

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Internal length

Internal width

Internal height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How heavy is the product going inside?

How will this package be distributed?

How many boxes will you be packing per day?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail and Promotional Carry-Out

Retail carry-out packaging

The integrated handle allows consumers to easily transport moderate-weight purchases from the store. The flat top provides a clean surface for branding and allows light stacking before the customer picks up the package.

Promotional kits and event hand-offs

Useful for kitted products distributed at events or trade shows. The handle encourages immediate carrying, while the snap-lock base holds the contents securely during hand-to-hand transfer.

Specialty food and beverage multi-packs

Well-suited for craft beer assortments, jarred goods, or gourmet food kits. The flat top keeps the internal items secure, while the handle makes the heavy, awkward shapes easier for the customer to carry.

Hardware and small appliance retail

For dense, moderately heavy items sold in hardware or home goods stores, the handle provides an ergonomic lifting point that a standard rectangular box lacks.

Fulfillment and Store-Level Packing

Manual packing stations

This box is delivered as a flat, pre-glued tube. Packers must manually fold the four-step snap-lock base, load the product, and align the top slots over the handle. This makes it suitable for moderate-volume fulfillment where automated erecting equipment is not used.

Store-level fulfillment

Retail staff can keep these boxes flat behind the counter, assembling the snap-lock base on demand as customers purchase multi-item kits or heavy goods that require a handle.

Trade show and event distribution

Teams preparing event kits can pre-assemble the bases, load the promotional materials, and close the flat tops. The uniform flat top allows the kits to be lightly stacked on pallets or tables before being handed out.

When to Consider Different Carrier Styles

High-volume packing lines

If packing speed is the primary concern, the manual snap-lock base may slow down fulfillment. An auto-bottom carrier can reduce assembly time, though auto-bottoms require different converter gluing.

Direct parcel shipping

The protruding handle and snap-lock base can catch or open during rough courier transit. If the package must ship directly through the mail without a master carton, a standard mailer or shipping box is a safer choice.

Board, Fit, and Packing Decisions

Flute profile and board thickness

E-flute is a common choice, balancing foldability for the snap-lock base with enough stiffness for the handle. Thicker boards, such as C-flute or double-wall, can make the manual base difficult to fold and may cause the handle slots to bind.

Handle grip size and comfort

The width and height of the hand hole can be adjusted based on the product weight and consumer comfort. Larger cutouts reduce the amount of corrugated board carrying the load, so the grip size should be balanced against the expected payload.

Base strength and product weight

The manual snap-lock bottom relies on interlocking flaps to hold the product. Heavy point loads can force these flaps open, so the payload weight should be evaluated to see if a taped bottom or reinforced pad is necessary.

Delivery form and storage space

Because the converter glues the side seam and delivers the boxes flat, they require minimal storage space before assembly. This is useful for retail environments with limited back-room storage.

Handle, Slot, and Base Modifications

Handle and slot alignment

The distance from the crease to the handle can be modified, but the corresponding slots on the outer flaps must be adjusted to match. This ensures the top remains flat and the handle stays upright.

Hand hole dimensions

The grip cutout can be widened or heightened for better ergonomics. Adjusting this requires checking that enough board remains above the hole to prevent tearing under load.

Snap-lock tongue and clearances

The interlocking tabs on the base can be adjusted to accommodate different board thicknesses, ensuring the bottom locks securely without binding during manual assembly.

Packing details

Print surfaces and handle visibility

The flat top and main walls offer continuous panels for graphics. Because the handle extensions fold upward, the inside surface of the corrugated board may be visible around the grip area, which can influence two-sided print decisions.

Additional notes

Flat delivery and storage

The converter glues the side seam and delivers the boxes flat. This keeps storage volume low while leaving the top and bottom closures for the packing station.

FAQs

Can this carrier be shipped through parcel networks?

The protruding handle and manual snap-lock base are prone to catching or opening on courier sorting belts. For parcel delivery, this carrier should be packed inside a standard outer shipping box.

Does the bottom pop open automatically?

No. The base uses a 1-2-3 snap-lock design, which requires the packer to fold and interlock the four bottom flaps by hand before loading the product.

Can we use a heavy double-wall board for more handle strength?

Thicker boards often bind when folding the snap-lock base and passing the handle through the top slots. If the product is heavy enough to require double-wall corrugated, a different carrier style or reinforced handle insert is usually a better approach.

How much weight can the handle support?

Handle capacity depends on the board grade, flute profile, and the width of the grip cutout. Heavy point loads can tear the handle or force the snap-lock base open, so physical testing with the actual product is recommended.

How is the top closure secured?

The inner flaps fold flat and their handle extensions stand upright. The outer flaps then fold over them, using central slots to capture the handle. This mechanical lock keeps the top closed without tape.

What should we check on a physical sample?

Test the manual assembly time for the base, verify the handle is comfortable to lift when fully loaded, and ensure the top slots align smoothly over the handle without tearing.

Does the flat top allow for stacking?

The flat top panels provide a level surface, allowing these carriers to be lightly stacked on pallets or retail displays before the customer picks them up. However, the protruding handle prevents dense, heavy stacking.

Will the inside of the box be visible to the customer?

Because the handle extensions fold upward from the inner flaps, the unprinted inside surface of the corrugated board will be visible around the grip area unless you specify two-sided printing.
