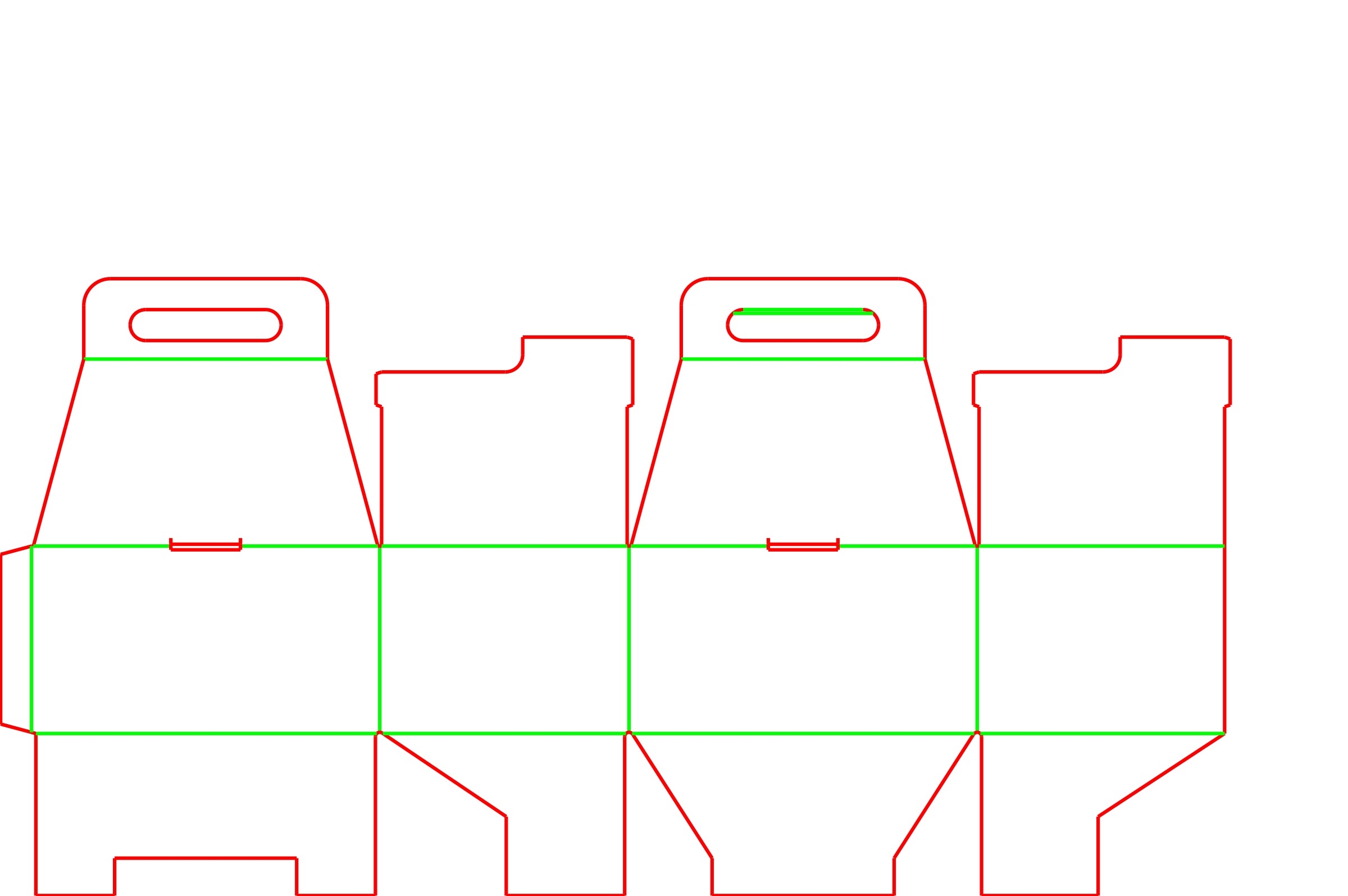

Corrugated Gable Box with Snap-Lock Bottom

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Integrated handle with a smooth fold-over grip
Manual 1-2-3 snap-lock bottom closure
Usually packed in an outer master carton for shipping

About this product

This corrugated gable box features an integrated carrying handle and an angled roof, making it a strong choice for retail kits, promotional assortments, and heavy takeaway items. The handle includes a fold-over reinforcement flap that locks the two halves together and provides a smooth, comfortable grip for the end user.

Because the handle protrudes above the roof, this package is not designed for direct vertical stacking. It is built for direct consumer hand-off and usually travels in a separate master carton for pallet or parcel transit.

Common uses

Retail assortments and kits
Food-to-go and heavy takeaway
Hardware or sample kits
Event marketing handouts

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How heavy is the packed box?

How will these reach the final customer?

Where will these boxes be packed?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail and Promotional Carry Packaging

Retail assortments and promotional kits

The gable roof and vertical handle create a distinct presentation on the shelf or at an event. The wide main panels and angled roof sections provide uninterrupted space for branding and product information.

Heavy takeaway and food-to-go

The interlocking snap-lock bottom provides a secure floor for heavier items like beverage multipacks, hardware kits, or large takeaway orders, while the reinforced handle distributes the weight comfortably for the user.

Event marketing and sample handouts

For trade shows or corporate events, the handle makes it easy for attendees to carry literature and product samples throughout the day without needing an extra bag.

Hardware or heavy component kits

When packed with dense items, the double-thick handle and secure snap-lock base offer sturdy carrying support, provided the board grade and flute direction are specified correctly.

Kitting, Food-to-Go, and Event Marketing

In-plant kitting and manual fulfillment

This box is delivered flat and erected by hand. The packer squares the walls, folds the four bottom flaps into a locked position, loads the product, and secures the top roof and handle. It fits well in operations that rely on manual pack benches.

Retail store-floor assembly

Because it assembles mechanically without specialized equipment, retail staff can easily build these boxes on demand behind a counter or at a display station.

Direct-to-consumer event distribution

The all-in-one design eliminates the need for separate shopping bags, streamlining the hand-off process at busy event booths or pop-up shops.

When to Consider a Different Bottom Closure or Shipper

High-speed packing lines

The 1-2-3 snap-lock bottom involves folding and interlocking four separate flaps by hand. If your operation needs faster assembly, it is worth comparing this to a crash-lock (auto-bottom) gable box, which pushes open into a locked base in a single motion.

Direct parcel shipping

The exposed handle and angled roof are vulnerable to crushing in a mixed courier network. If the package is shipping directly to a consumer without an outer box, consider a standard corrugated mailer or a die-cut mailer with an internal retention insert instead.

Board Thickness, Flute Direction, and Assembly Labor

Flute direction for handle strength

To help prevent the handle from tearing under heavy loads, the corrugated flutes should run vertically through the main walls and up into the handle panels. This provides the necessary tensile strength for lifting.

Board thickness and fold clearances

This template is typically cut from thinner corrugated board, such as E-flute. If a thicker board is specified for heavier products, the double-crease distance on the handle reinforcement flap and the locking slits on the roof should be adjusted so the board does not bind during assembly.

Master carton sizing for transit

Since the handles prevent flat vertical stacking, these boxes are usually packed into a larger corrugated master shipper for palletizing. The master carton should be sized to protect the handles from top-down compression.

Print layout on the angled roof

The angled roof panels offer clear branding space, but artwork should be oriented carefully so it reads correctly when the box is fully assembled and carried.

Handle Sizing and Roof Angle Adjustments

Handle and hand-hole sizing

The width of the handle and the size of the hand cutout can be adjusted to accommodate different product weights or user ergonomics, provided there is enough material left to maintain tear resistance.

Roof angle and locking tongues

The height of the angled roof panels can be modified to change the overall profile of the box. The side dust flaps feature small locking tongues that insert into the roof panels to hold this angle securely.

Base proportion and footprint

The length and width of the base can be scaled to fit specific product arrangements, though very wide or deep boxes may change how the handle balances when carried.

Packing details

Pallet and transit planning

Because the handles prevent vertical stacking, these boxes are typically packed into a larger corrugated master shipper for distribution. The master carton should be sized to protect the handles from top-down compression during transit.

Additional notes

Print panel and label placement

The wide front and back panels, along with the angled roof sections, offer large, uninterrupted surfaces for branding. Barcodes or regulatory labels are often placed on the flat bottom or the narrower side panels to keep the main faces clear.

FAQs

Can I ship this box through a parcel courier?

Typically not on its own. The handle and angled roof are designed for retail carry, not transit. To ship this box, it is typically placed inside a standard rectangular corrugated shipper.

Does the bottom require tape or glue?

The side seam is glued at the factory, and the bottom uses a mechanical 1-2-3 snap-lock design. The packer folds the four bottom flaps so they interlock and support the product weight mechanically.

How does the handle stay together?

When the two roof panels meet, the two halves of the handle align. One half has an extended flap that folds over the top edge and tucks through the hand holes, locking the handle together and creating a thicker, more comfortable grip.

Can this be made from heavy-duty corrugated board?

It is usually made from thinner profiles like E-flute. While thicker flutes increase overall rigidity, they can make the manual snap-lock bottom difficult to fold and may cause the handle's fold-over flap to bind. If heavy board is needed, the template clearances should be adjusted and tested.

How does the roof hold its shape?

The two side dust flaps have small protruding tongues. When the main roof panels are folded up, these tongues slide into corresponding slits in the roof, locking the gable angle in place so it does not collapse inward.

What is the difference between a snap-lock and a crash-lock bottom?

A snap-lock bottom involves the packer manually folding and interlocking the base flaps. A crash-lock (or auto-bottom) is pre-glued at the factory and pushes open into a locked base in one motion, saving time on the packing line but adding manufacturing cost.

How are these boxes delivered?

They are delivered flat (knocked down) with the side seam already glued. They are erected by hand at the packing station.

Can the handle size be adjusted for heavier items?

The handle width and the hand-hole cutout can be scaled to improve ergonomics or distribute weight more evenly, as long as enough board remains to prevent tearing.
