EVC11281

Corrugated 4-Pack Carrier with Auto-Bottom Base

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Pre-glued crash-lock base built for fast manual setup
Multi-ply central spine provides high tear resistance for heavy bottles
Ships flat to maximize inbound freight and storage efficiency

About this product

The EVC11281 is a retail-ready corrugated carrier built to group and display four bottles or cans. It features a multi-ply central handle for lifting strength and individual cells to keep products separated during transit and retail handling.

Supplied flat with the spine and base pre-glued, the carrier opens into a 2x2 grid. This crash-lock base eliminates the need for tape or manual bottom folding, making it efficient for hand-packing lines.

Common uses

Craft beer
Specialty sodas
Sauces
Promotional kits

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length of one cell

Width of one cell

Outer wall height

Total height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What type of product will this carrier hold?

Will the carrier be stored in refrigerators or coolers?

How much custom printing do you need?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail and Beverage Multipacks

Craft Beverage and Sauce Multipacks

Useful for grouping four glass bottles or cans for retail sale. The internal dividers separate the bottles, while the open top allows consumers to see the product labels clearly.

Promotional Kits and Samplers

Works well for curated sets of sauces, syrups, or specialty drinks. The large side panels provide a continuous surface for retail graphics.

Retail Gift Sets

Often used for holiday or seasonal gift sets where presentation matters. The carrier style encourages grab-and-go purchases directly from the shelf or display.

Specialty Food Grouping

Beyond beverages, this carrier can hold jars of olive oil, marinades, or preserves, keeping them upright and organized for retail checkout.

Manual Packing and Retail Display

Manual Packing Lines

Because the base and spine are pre-glued by the converter, operators simply push the edges inward to deploy the carrier. This action reduces assembly time compared to carriers that require manual folding or taping.

Retail Display

Built specifically for the shelf and the consumer's hand. The carrier presents the product cleanly and provides a reinforced grip for carry-out.

Kitting and Fulfillment Operations

For operations assembling variety packs, the flat delivery and instant pop-open base keep the packing station clear of bulky pre-erected boxes.

When to Compare Outer Shippers or Automated Cartons

E-Commerce and Parcel Shipping

This carrier has an open top and exposed handle, making it unsuitable for direct courier shipping. If the multipack ships through a mixed-carrier network, it should be placed inside a protective outer shipping box.

High-Speed Automated Erection

While fast for hand packing, this specific crash-lock basket style is rarely compatible with automated case erectors. Fully automated lines often use wrap-around cartons or specialized basket-erecting machinery.

Board Thickness, Print, and Cell Sizing

Board Thickness and Handle Ergonomics

The central spine is formed by folding and gluing multiple layers of board together. Thinner profiles like E-flute or F-flute fold cleanly and create a comfortable handle. Thicker boards like B-flute can make the handle too thick to grip easily and may cause the folded spine to bind.

Tear Resistance and Material Grade

Because the entire weight of four liquid-filled bottles hangs from the die-cut handle, the board benefits from high tear strength. Kraft liners or moisture-resistant boards are often considered if the carrier will be exposed to cold-chain condensation.

Print and Coating Requirements

The outer side walls and the central spine offer excellent surfaces for branding. If the carrier will hold cold beverages, consider moisture-resistant coatings to prevent the board from weakening when condensation forms.

Cell Sizing and Product Fit

The internal cells should be sized to match the product diameter. A tight fit prevents bottles from rattling, while too much clearance can cause the carrier to feel unstable during transport.

Carrier Sizing and Handle Adjustments

Cell Dimensions

The length and width of the individual cells can be adjusted to match the product diameter, reducing the chance of rattling.

Outer Wall and Handle Height

The height of the outer containment walls can be adjusted to show more or less of the product label. The handle height can also be set to ensure enough clearance for the consumer's knuckles above the bottle caps.

Base and Spine Orientation

The template allows for different spine constructions and crash-lock base orientations, which can affect the folding sequence on the converter's equipment.

Packing details

Folder-Gluer Production Routing

Manufacturing this carrier relies on a specialized folder-gluer capable of handling crash-lock bases and internal divider gluing in a single pass. This complexity means the style is often more practical for medium to high-volume runs.

Spine and Base Construction Variants

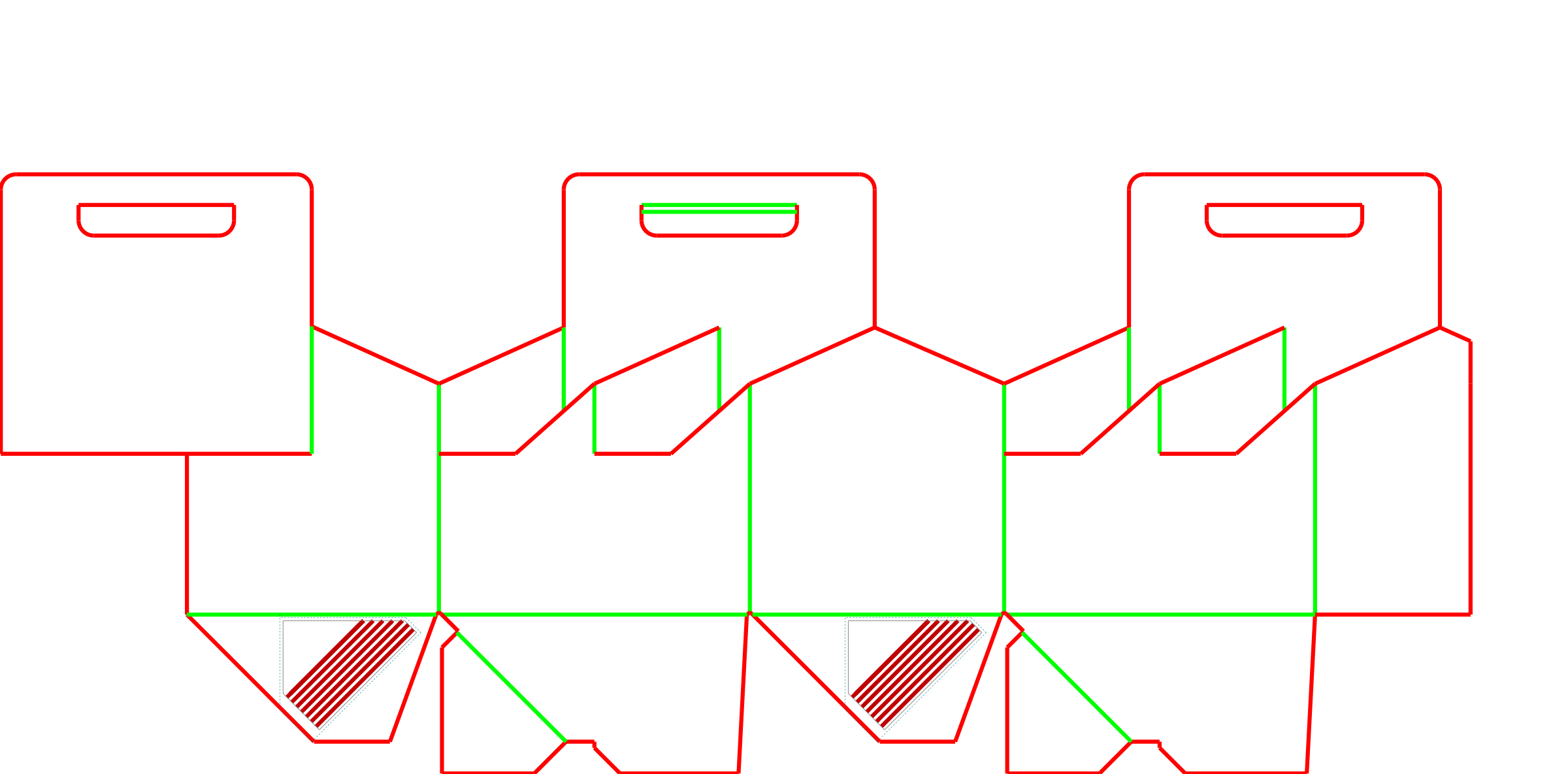

EVC11281 (Standard 3-Panel Spine)

The base template uses three tall panels that fold inward to create a strong, 3-ply central handle. The crash-lock base orientation is driven by the width of the carrier.

EVC11281a (2-Panel Spine with Transverse Dividers)

This variant uses two tall panels for a 2-ply handle and relies on internal cutouts to form the transverse dividers. The crash-lock base orientation is rotated 90 degrees compared to the EVC11281 model.

Additional notes

Flute choice and handle thickness

The central handle is formed by gluing multiple layers of board together. E-flute is usually the thickest practical choice; heavier flutes make the handle too thick to fold properly or grip comfortably.

FAQs

Do I need to tape or glue the bottom of this carrier?

No. The carrier is supplied with the base and spine pre-glued. When you push the flat edges inward, the crash-lock base is built to automatically swing down and interlock into a flat floor.

Can the individual cells be sized for different bottles?

Yes. The cell length and width are adjusted to match your specific bottle or can diameter, reducing the chance of rattling.

Will the handle tear if the bottles are heavy?

To reduce the risk of tearing, these carriers are typically produced using high-strength kraft liners. The multi-ply construction of the central spine also reinforces the handle area. Physical lift testing with the actual product weight helps verify the choice.

Can I ship this carrier directly through the mail?

No. This is a retail display and carry-out package. For e-commerce or courier delivery, the loaded carrier should be packed inside a separate, fully enclosed shipping box.

What happens if the carrier gets wet from cold bottles?

Standard corrugated board weakens when exposed to condensation. If your product is refrigerated, the carrier should be specified with moisture-resistant liners or coatings.

Is this carrier suitable for short trial runs?

Because it relies on a complex die-cut blank and specialized gluing, this style is generally more practical for larger production volumes. Short runs may be less economical.

How does the carrier arrive at the packing facility?

The carrier is delivered flat (knocked down) with the spine and base already glued. This maximizes pallet density and saves storage space before packing.

Can the outer walls be lowered to show more of the product label?

Yes. The height of the outer containment walls can be adjusted during the design phase to reveal more of the bottle or can, as long as the walls remain high enough to contain the product.
