Open-Top Corrugated Bin with Overlapping Base

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Delivered flat and opened for loading
Must be taped or glued at fulfillment
Open top for immediate product access

About this product

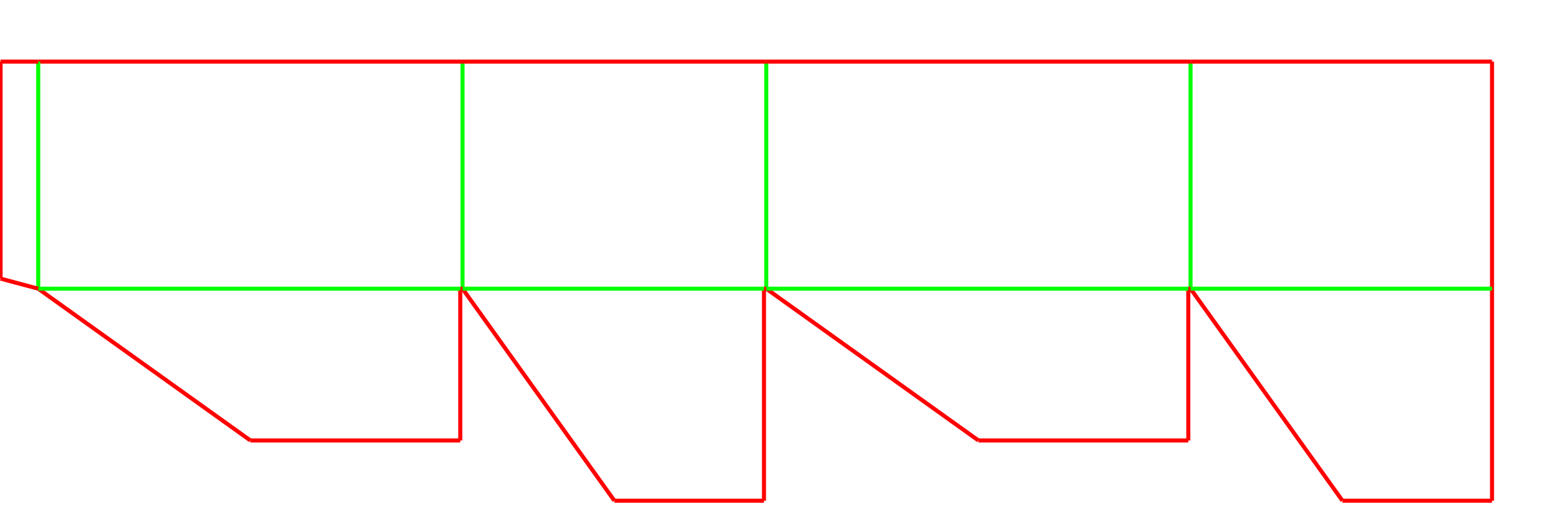

This open-top corrugated bin provides immediate access for parts kitting, internal storage, and retail shelf displays. It is delivered as a flat tube and relies on four overlapping trapezoidal flaps that fold inward to form a continuous, rigid floor.

While the side seam is secured during production, the bottom flaps must be taped or glued at the packing station before loading. Because it lacks a lid, it is typically used as an internal component, a warehouse bin, or paired with an outer shipper for transit.

Common uses

Parts kitting
Retail shelf bins
Internal warehouse storage
Master carton inner packaging

Get a quote
