EVC41230

Heavy-Duty Reinforced Telescopic Box

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Four-piece construction with separate body, lid, and two reinforcement pads
Double-thick roll-over walls hide raw corrugated edges for a premium look
Glueless tab-and-slot assembly involves manual folding

About this product

The EVC41230 is a four-piece corrugated telescopic box designed for extreme rigidity and a premium unboxing experience. It consists of a separate body and lid, both constructed with 180-degree roll-over walls that hide raw corrugated edges, plus two flat reinforcement pads that drop in to lock the structure and double the thickness of the floor and roof.

Because it relies entirely on mechanical tab-and-slot friction locks, this box assembles without glue or tape. The trade-off for its exceptional stacking strength and clean presentation is a higher manual assembly burden, making it best suited for premium kits, heavy hardware, or reusable storage rather than high-speed fulfillment lines.

Common uses

Premium presentation kits
Heavy hardware and dense parts
Reusable storage and archival

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Inside length

Inside width

Inside height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What type of items will be packed inside?

How will the closed box be shipped?

What is your expected packing volume?

How deep should the lid be?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Practical Uses for the Reinforced Telescopic Box

Premium Presentation Kits

The 180-degree roll-over walls hide the raw flutes of the corrugated board, providing a clean, finished edge. Combined with the fully removable telescopic lid, this makes the box an excellent choice for high-end product kits, sample boxes, or promotional mailers where the unboxing experience matters.

Heavy Hardware and Dense Parts

The double-thick walls, floor, and roof provide exceptional puncture resistance and stacking strength. The drop-in reinforcement pads distribute weight evenly, making this structure capable of containing dense, heavy items that might break through a standard single-wall box.

Reusable Storage and Archival

Because the box is highly rigid and the lid can be removed and replaced repeatedly without degrading the closure, it works well for long-term storage, archival purposes, or internal parts handling where the box will see multiple trips.

Heavy-Duty Sample Kits

When sending heavy material samples or industrial prototypes, the double-thick walls and reinforced base keep the presentation intact while supporting the weight.

Industries and Packing Environments

Low-Volume, High-Value Packing Operations

This box involves folding four separate pieces and executing multiple 180-degree roll-over folds. It is a poor fit for high-speed fulfillment lines but an excellent choice for operations where the value of the product justifies the slower, manual packing process.

Flat-Delivered Inbound Logistics

Despite its complex assembled shape, all four components (body, lid, and two pads) are delivered completely flat. This maximizes pallet density and reduces inbound freight space compared to pre-glued rigid boxes.

Manual Packing Environments

Because this box involves folding four separate pieces and executing multiple roll-over folds, it fits best in environments where packers have the time and space to assemble each unit by hand.

When to Consider a Simpler Box Style

High-Speed Fulfillment

If your packing line needs to move quickly, the manual assembly of four separate pieces will create a bottleneck. Compare this to a standard FEFCO 0201 (RSC) or a crash-lock base box that can be erected in seconds or automated.

Standard Parcel Shipping

The friction-fit telescopic lid can detach during rough courier transit. If the box is shipping individually through a parcel network, it often needs external banding, tape, or an outer master shipper. If you want a self-contained shipper, consider a roll-end lock-front mailer.

Cost-Sensitive Commodity Packing

The double-thick walls and extra reinforcement pads use much more corrugated board than a standard box, and the complex tabs involve flatbed die-cutting. If extreme rigidity is not needed, a standard FEFCO 0320 telescopic box will be more economical.

Key Decisions for Fit and Production

Board Grade and Flute Choice

The 180-degree roll-over folds need a board that is pliable enough to fold without cracking the liner, yet stiff enough to keep the friction tabs locked. E-flute is a common starting point. Thicker flutes need careful tuning of the score lines and physical testing to ensure the folds work.

Telescopic Clearance and Friction Fit

The friction fit between the body and the lid is controlled by a gap parameter. This clearance should be tested with your specific board grade and finish to ensure the lid slides on smoothly without being too loose or too tight.

Nesting and Blank Layout

Because this box consists of four separate flat blanks, discuss with your converter whether the pieces can be nested together on a single sheet. Efficient nesting can reduce material waste.

Outer Sealing for Transit

The friction-fit telescopic lid can detach during rough transit. Decide whether the box will be banded, taped, or placed inside an outer master shipper before finalizing the order.

Modifying the Box Dimensions and Fit

Lid Depth Variations

The depth of the lid can be adjusted independently of the body. It can be made full-depth to cover the entire body for maximum stacking strength, or partial-depth to reveal a printed base or make the lid easier to remove.

Removing the Reinforcement Pads

If the extreme rigidity of the double-thick floor and roof is not needed, the reinforcement pads can be omitted. However, this means changing the template to a standard roll-over tray, as the pads in this specific design are used to lock the long walls in place.

Adjusting the Friction Gap

The clearance between the lid and the body can be adjusted. A tighter gap provides a more secure friction fit, while a looser gap makes the lid easier to remove for presentation purposes.

Packing details

Print Surfaces and Flute Shadow

The flat, double-thick panels provide excellent surfaces for high-quality printing. However, if a thicker board grade is used, be aware that the pressure of the roll-over folds might cause slight flute shadowing on the outer panels.

Additional notes

Manual folding sequence

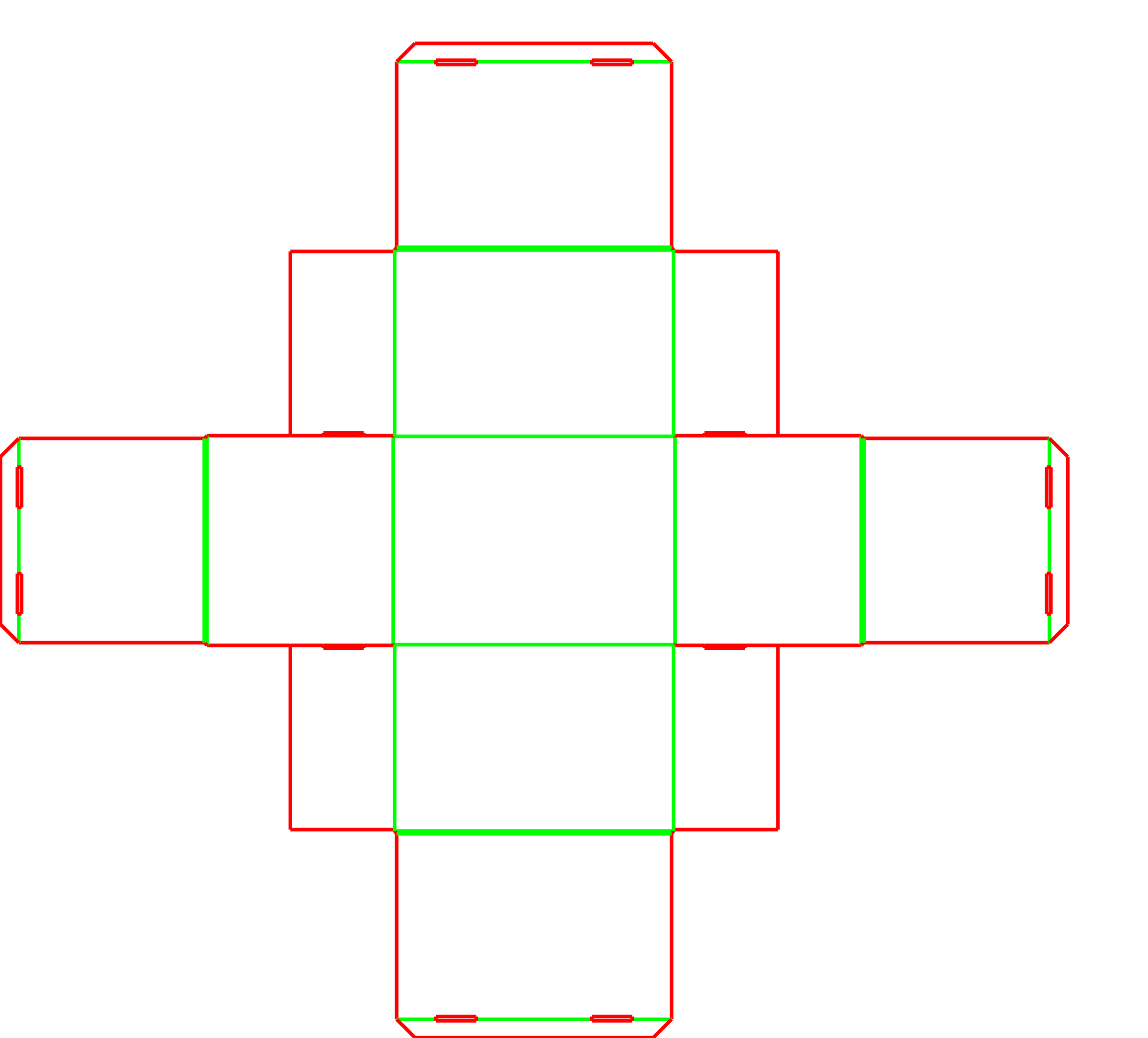

The short walls feature tabs that lock into base slots, trapping the long walls. The reinforcement pad is then dropped in to finalize the lock. This sequence is repeated for both the body and the lid.

FAQs

Can this box be erected on an automated packing line?

No. The EVC41230 is a glueless, manually erected design. It involves folding four separate pieces (body, lid, and two pads) and executing multiple 180-degree roll-over folds, making it unsuitable for standard folder-gluers or automated case erectors.

Is this box safe to ship through parcel networks like FedEx or UPS?

Not on its own. While the box is extremely strong, the telescopic lid relies on a friction fit. In a rough parcel network, the lid can detach. It usually needs to be secured with banding, heavy-duty tape, or placed inside an outer master shipper.

Can I use a heavy double-wall board for even more strength?

It is risky. The 180-degree roll-over folds are difficult to execute with thick double-wall board and can cause the liner to crack. If you need extreme strength, the standard E-flute or B-flute combined with the double-thick walls and reinforcement pads usually provides more than enough rigidity.

Do I have to use the reinforcement pads?

Yes, for this specific template. The edge tongues on the reinforcement pads lock into slots on the base, which keeps the long roll-over walls from springing inward. If you do not want the pads, you should switch to a different tray template.

Does this box look like a rigid setup box?

It provides a similar premium unboxing experience because the roll-over walls hide the raw corrugated flutes, giving the edges a clean finish. However, it is still a corrugated box and will have a different tactile feel than a paperboard rigid box.

What should I check when ordering a sample?

Pay close attention to the friction fit between the lid and the body. The gap needs to be tight enough that the lid does not fall off easily, but loose enough that it can be removed without damaging the box. Also, verify that the 180-degree folds do not crack the printed liner.

Can I print on the inside of the box?

Yes. Because the walls roll over 180 degrees, the outside liner of the corrugated board becomes the inside wall of the assembled box. This allows for continuous branding without needing double-sided printing.

How are the reinforcement pads held in place?

The pads feature small edge tongues that drop into pre-cut slots at the base of the long walls. This locks the pads securely and prevents the roll-over walls from springing inward.
