Corner Protection for Heavy and Bulky Goods
Furniture and cabinetry
Buffers sharp corners against drop impacts inside the master shipper. The rigid shape stays in place while the outer box is lowered over the product.
Appliances and industrial equipment
Can be cut from heavy double-wall corrugated to provide extra standoff distance and crush resistance for heavy items.
Framed goods and mirrors
Protects fragile 90-degree joints from edge impacts during courier transit or pallet handling.
Heavy machinery components
Motors, metal enclosures, or dense parts that require a rigid corner standoff inside a master crate or heavy-duty shipper.
Manufacturing and Distribution Contexts
Manual pack stations
The insert folds quickly by hand. The locking tab snaps into the base slot, holding the shape together without tape, glue, or staples, keeping the packing line moving.
High-volume flat shipping

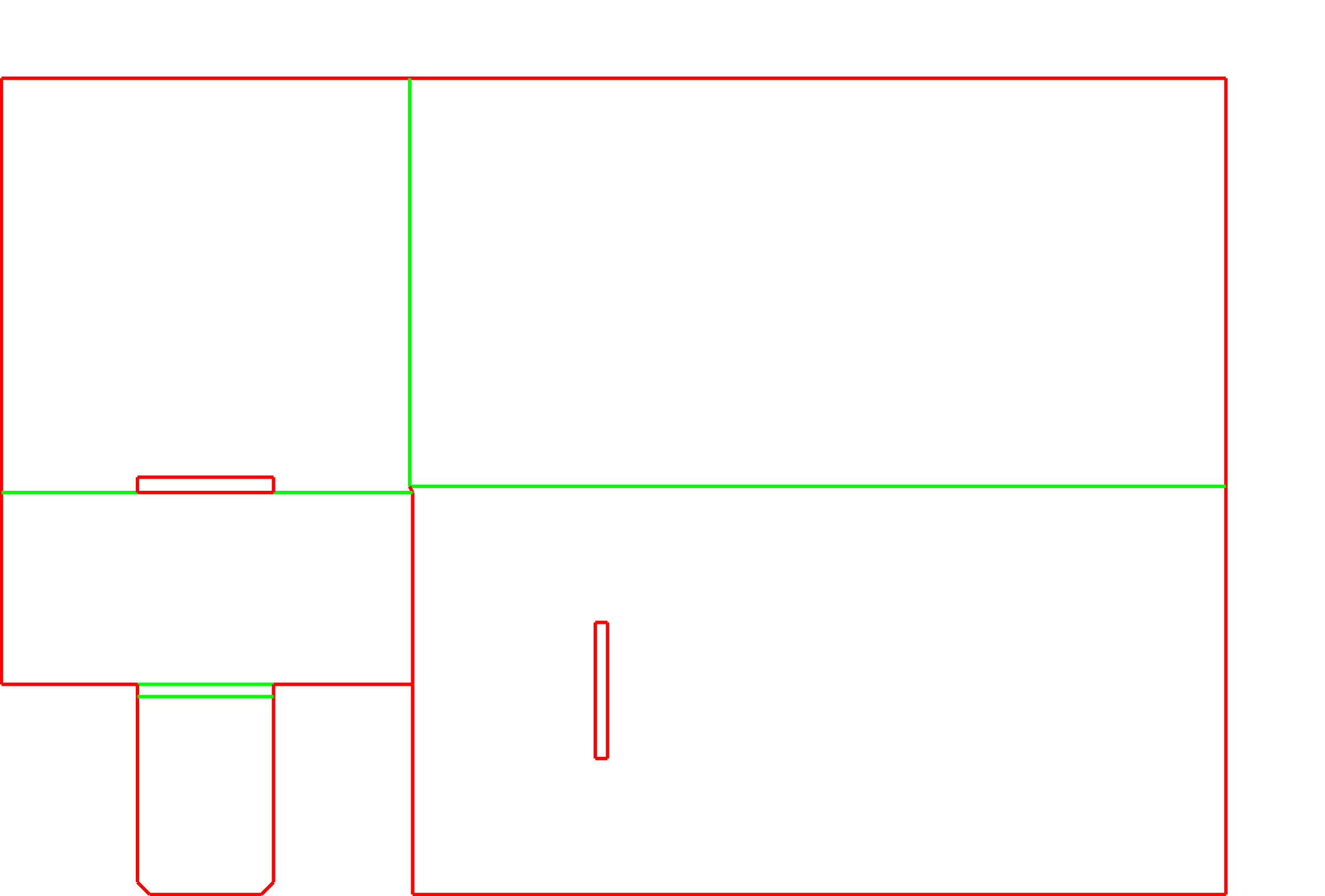

Because the L-shaped blanks nest together tightly on a die-cut sheet, they minimize material waste and ship highly efficiently on pallets before use.
Variable-size product fulfillment
Operations packing different sizes of rectangular goods can use a standard corner protector instead of stocking multiple custom-molded foam inserts.
When to Consider Alternative Edge Protection
High-speed automated packing lines
This insert requires manual folding and locking. If your line uses automated case packers that drop products into pre-formed trays, a different cushioning strategy or pre-glued corner may be necessary.
Complex multi-angle products
This template forms a strict 90-degree corner for rectangular goods. Products with curved or irregular edges may require a custom die-cut pad or molded pulp insert.
Board Grade, Clearance, and Packing Decisions
Board grade and flute profile
E-flute works well for basic standoff and dense pallet storage. Heavy appliances or furniture often require B, C, or double-wall board to absorb severe drop impacts. The locking slot automatically scales to match the chosen board thickness.
Standoff clearance
The height of the side and back walls determines how much buffer space exists between the product and the outer carton. This should be matched to your drop-test requirements.
Outer carton fit
The protector relies on the master carton to hold the unanchored back wall tight. The outer box dimensions must account for the added board thickness of the insert.
Packing line flow
Assess whether packers have the time to manually fold and lock the insert before placing the product, as this is not an automated process.
Adjusting the Protector Dimensions
Wall height and coverage
The length of the base and the height of the vertical walls can be extended to cover more of the product's edge, distributing impact forces over a larger area.
Locking tab width
The width of the locking tongue can be adjusted for a tighter or looser fit, depending on the board grade and the packer's hand-assembly preference.
Base length and width
The footprint of the protector can be extended to cover a longer section of the product's edge, distributing impact forces over a larger area.
Packing details
Back wall behavior
The back wall folds up 90 degrees but does not mechanically lock to the side wall. It relies on the master carton to hold it tight against the product.
Die-cutting and nesting
The L-shaped flat profile allows the blanks to be inverted and nested closely on the corrugated sheet, reducing scrap during flatbed die-cutting.
Additional notes
Slot clearance and board thickness
If you change the board grade after initial sampling, the width of the locking slot must be updated to match the new material caliper. Otherwise, the locking tongue may tear during assembly or fit too loosely to hold the wall upright.
Related Inserts and Protectors
FAQs
Does this corner protector require tape or glue to hold its shape?
No. The side wall features a locking tongue that pushes through a pre-cut slot in the base panel. This mechanical lock holds the bracket at a strict 90-degree angle during packing.
Can this insert be erected by automated machinery?
This specific insert relies on a multi-step manual fold and a tuck-in lock. It is intended for manual pack stations rather than high-speed automated erectors.
How does the back wall stay in place if it doesn't lock?
The back wall folds upright but remains unanchored to the side wall. It is held securely against the product once the entire assembly is slid into the tight-fitting master shipping carton.
Can this protector be made from heavy double-wall corrugated?
Yes. The template is designed so that the locking slot automatically widens to accommodate thicker board grades, making it suitable for heavy-duty appliance or furniture protection.
How are these protectors delivered?
They are delivered completely flat. Their L-shaped profile allows them to stack densely on pallets, taking up minimal warehouse space before they are needed on the packing line.
Can the height of the protective walls be changed?
Yes. The vertical coverage can be extended to protect more of the product's edge, or shortened to act as a minimal corner bumper, depending on your drop-test requirements and outer box size.
What product dimensions are needed to size this insert?
The exact dimensions of the product corner, the required standoff clearance, and the board grade needed to meet your drop-test requirements.
What happens if the locking tab tears during assembly?
Tearing usually means the slot width does not match the board thickness. The template can be adjusted so the slot accommodates the specific material caliper.
