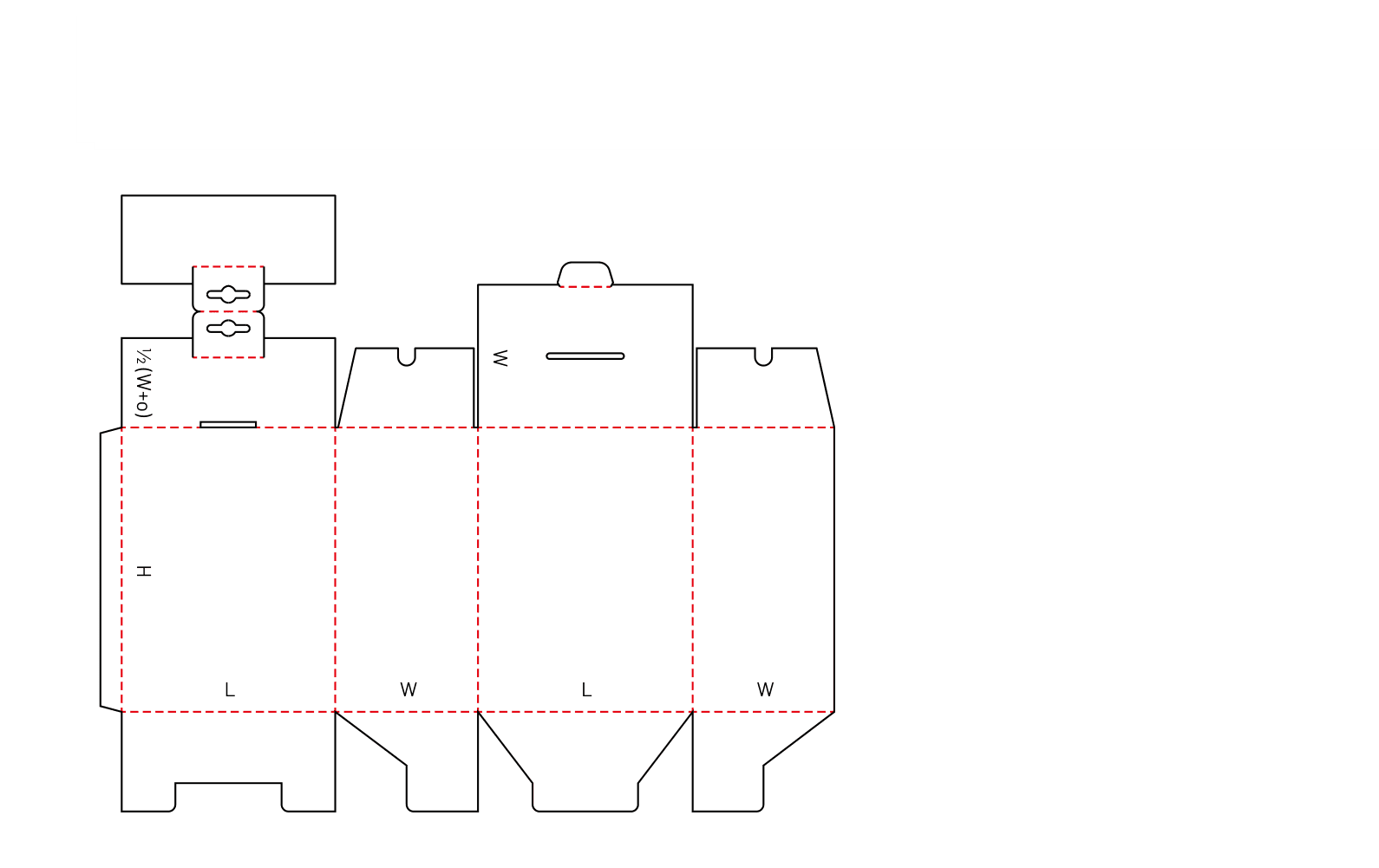

FEFCO 0242

Front-Facing Retail Hanging Box

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Central Euro-hole hanger keeps branding facing forward on retail hooks
Tape-free 1-2-3 snap base supports heavier products without adhesive
Requires manual assembly and a separate master shipper for distribution

About this product

This retail display carton features a central Euro-hole hanger and a tape-free snap-lock base. Because the suspension panel runs parallel to the front of the box, it keeps the primary branding facing directly toward the customer on a pegboard hook.

The central hanger distributes weight evenly across the back and side walls, making it a practical choice for heavier items that might tear a standard adhesive hang tab. It arrives flat, requires manual assembly at the packing bench, and relies on a separate master carton for distribution to the store.

Common uses

Hardware and tools
Consumer electronics
Bicycle parts
Heavy cosmetics

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length (side to side)

Width (front to back)

Height (top to bottom)

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How heavy is the item going inside?

How will this be displayed in the store?

How many of these will you be packing at a time?

Do you also need outer boxes to ship these to stores?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail pegboard displays and heavy-item hanging

Front-facing pegboard displays

The central suspension panel keeps the box hanging squarely facing the aisle. This gives you a full, uninterrupted front panel for branding, unlike boxes that hang sideways or rely on off-center tabs.

Heavy-item retail packaging

When hanging tools, metal parts, or dense electronics, adhesive hang tabs often fail. This structure integrates the hanger directly into the back wall, transferring the product weight down to the interlocking base.

High-visibility endcap promotions

For premium items placed on endcap hooks, the flush tongue-lock lid and clean front panel provide a polished presentation. The lack of bottom tape keeps the overall appearance clean.

Kitting and multi-part assemblies

The interlocking floor holds multiple loose components securely without dropping them. This makes it useful for repair kits or accessory bundles that need to hang together on a single peg.

Hardware, electronics, and premium retail goods

Hardware and bicycle parts

Dense metal components require a floor that holds firm and a hanger that resists tearing. The snap-lock base provides a secure mechanical floor, while the folded top panel reinforces the suspension point.

Consumer electronics and accessories

High-margin electronics benefit from the clean, tape-free presentation. The tongue-lock lid keeps the top flush and secure, so retail staff can easily stock the item without damaging the packaging.

Cosmetics and premium personal care

When printed on solid board or fine flute, this box supports high-end graphics while keeping the product visible at eye level. The manual assembly allows for careful packing of fragile primary containers.

When to consider a different retail box

Crowded retail hooks with limited horizontal space

If shelf space is exceptionally tight, a front-facing box takes up too much room. Compare this with a sideways-hanging box, which turns its narrow edge to the customer to fit more units on a single peg.

Products that will sit on a shelf

If the item will be stacked on a standard retail shelf rather than hung on a pegboard, the extended hanger panel becomes an obstacle. A standard snap-bottom carton provides the same tape-free base without the protruding top.

Close variants and lookalike dielines

The closest library neighbors include 0241, 0240, 0241a. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board choice, tear resistance, and packing labor

Board thickness and tear resistance

This box performs well in solid board or fine flutes like E or F flute. Heavy double-wall board makes the intricate snap-base hooks difficult to fold and often results in ragged edges around the Euro-hole punch.

Manual packing bench labor

The 1-2-3 base and tongue-lock lid eliminate the need for packing tape, but they require a specific manual folding sequence. Factor this assembly time into your fulfillment planning, as this style relies on hand packing.

Master shipper requirements

This box is designed entirely for retail presentation, not rough transit. The protruding hanger panel and friction-locked base mean these cartons must be packed inside a sturdy corrugated master shipper for distribution.

Print surface and finish

Because the front panel is entirely unobstructed, it serves as the primary billboard. Choosing a coated solid board or a fine flute with a high-quality top liner improves the final retail presentation.

Hanger styles and display adjustments

Hanger hole shape

While the standard Euro-hole fits most retail environments, the suspension cutout can be modified to a simple round hole or a custom shape to match specific proprietary display fixtures.

Base lock style

If manual assembly time is a concern and order volumes are high enough, the 1-2-3 snap base can sometimes be replaced with a pre-glued crash-lock bottom for faster packing.

Window cutouts

A die-cut window can be added to the front or side panels to reveal the product inside. This requires careful placement to avoid weakening the load path from the hanger to the base.

Board and packing details

Weight distribution testing

The central hanger distributes weight well, but heavy items require physical tear-out testing before a full production run to confirm the chosen board grade can handle the load.

Box style variations

Hanger hole modifications

The suspension cutout can be adjusted from a standard Euro-hole to a round punch depending on the target retail fixture.

Additional notes

Front-facing versus sideways presentation

Choosing between this box and a sideways-hanging alternative comes down to retail real estate. This box maximizes branding visibility, while sideways boxes maximize the number of SKUs you can fit on a single rack.

FAQs

Shipping and Route

Can I ship this box directly to a customer through the mail?

The snap-lock base and tongue lid rely on friction and can open if dropped. The hanger panel is also easily crushed. Parcel shipment requires an outer master carton or mailer.

Product Fit

How much weight can the hanger support?

The exact limit depends on the board grade and product density. The central hanger distributes weight well, but heavy items require physical tear-out testing before a full production run.

Assembly

Does the bottom require tape?

The four bottom flaps fold in a specific 1-2-3 sequence, creating an interlocking floor that holds itself together through friction and the weight of the product.

Print and Finish

Why is thick corrugated board a bad idea for this box?

Thick board binds when folding the intricate base hooks and tongue lock. It also tears poorly during die-cutting, leaving a messy edge around the suspension hole.

Production

Does this box require custom tooling?

The Euro-hole, locking tabs, and snap base require dedicated flatbed or rotary die-cutting equipment. It cannot be produced on a standard straight-knife slotter.

Retail Setup

Does the hanger panel fold over itself?

The top panel typically folds over to double the material thickness around the suspension hole, providing extra resistance against tearing while hanging on the pegboard.

Inserts and Fit

Can I use internal dividers with this box?

Internal partitions can be added to separate components, but they must be sized to clear the top tongue lock so the lid can close flush.

Samples and Prototypes

Should I test the hanger strength before ordering?

Physical tear-out testing is critical for heavy items. A prototype helps confirm that the chosen board grade will not rip at the Euro-hole under the actual product weight.
