FEFCO 0319

Two-Piece Telescoping Half-Slotted Box

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Two separate half-slotted containers telescope at their open ends
Each piece has a four-flap closure at its opposite end
Board caliper and dimensional allowance control the telescoping fit

About this product

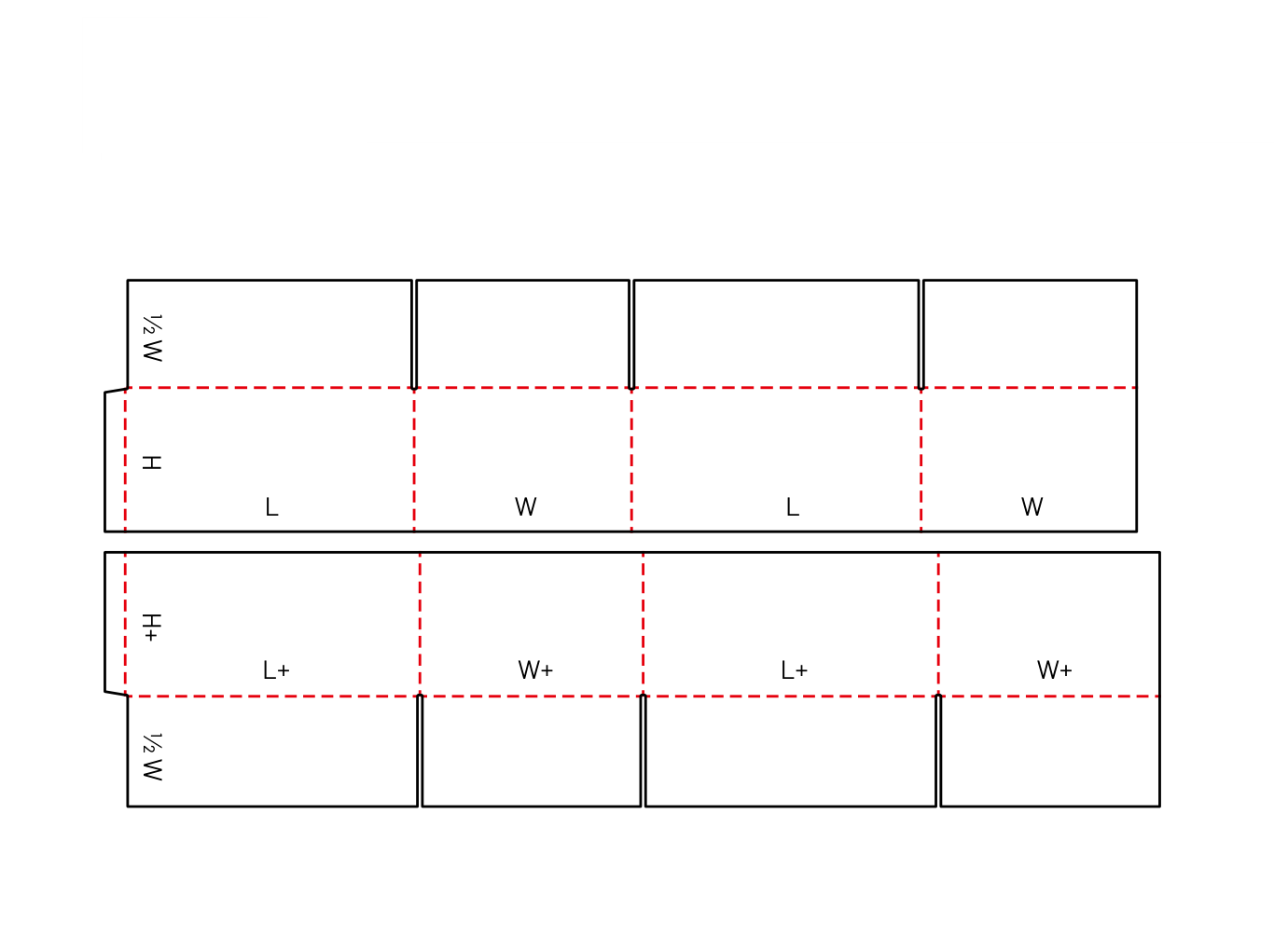

FEFCO 0319 combines two separate half-slotted corrugated containers. Each piece has a four-flap closure at one end and an open end; the open ends telescope together to form the two-piece box.

Packing requires erecting and closing both half-slotted containers, loading one piece, and fitting the other over its open end. There are no extended side flaps that fold down around the other container.

Common uses

Heavy industrial export
Bulk material containment
Appliance and machinery transport
Internal plant transfers and kitting

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Inside length

Inside width

Inside height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will your team load products into the base?

How will you close the flap end of each box piece?

How high will these boxes be stacked on a pallet?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Heavy-duty export and high-stacking transport

Heavy industrial components

Dense metal parts, motors, or calibrated instruments place immense stress on the side walls of a package. The enveloping flaps absorb lateral impacts before they reach the inner base wall.

High-stacking pallet transport

When shipping heavy goods stacked multiple layers high, the vertical walls bear the load. The wrap-around lid creates a double-thick perimeter that resists long-term compression fatigue in warehouses.

Appliance and machinery transport

Large, bulky items require a rigid outer shell. The two-piece design allows workers to load the base easily before dropping the protective lid over the top and strapping it tight.

Bulk granular and loose material containment

When shipping loose bags or heavy granular products, the double-wall side reinforcement prevents the base from bulging outward under the internal pressure.

Industrial and bulk fulfillment environments

Export operations

Long transit times and unpredictable handling require packaging that will not buckle. The strapped enveloping flaps keep the box intact even if the primary tape seals are stressed.

Bulk material distributors

Heavy, shifting payloads require rigid containment. The continuous wrap-around lid prevents the base walls from bowing outward during transit.

Internal plant transfers and kitting

Facilities moving heavy work-in-progress parts between stations benefit from the removable lid. Once the external straps are cut, workers can easily lift the lid to access the contents without destroying the base tray.

When to consider a simpler shipping box

Standard fulfillment operations

If you are shipping lightweight consumer goods or need high-speed packing, the assembly labor of the 0319 will slow you down. A basic slotted container is much faster to erect and seal.

Automated packing lines

Single-case erectors cannot handle the two-piece telescoping and wrap sequence. If your line relies on automation, consider a one-piece wrap-around or standard slotted container.

Close variants and lookalike dielines

The closest library neighbors include 0320, 0320a, 0201a. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board, closure, and packing choices

Board thickness and clearance

The internal clearance gap between the lid and base is very sensitive to board thickness. If you specify a heavy double-wall board, the fold allowances require precise calculation so the enveloping flaps do not bind or tear when folded down.

Fastening method

The enveloping flaps must be secured to function properly. You will need to decide whether your packing line will use heavy-duty tape or horizontal strapping to lock the flaps flush against the base.

Base loading workflow

Because the base is fully open before the lid is applied, you must decide if your team will drop heavy items in from above using a hoist, or if they need a different style with a drop-down side panel for slide-in loading.

Flap folding sequence

You must choose whether the bottom flaps fold in the standard overlapping sequence, or if you require the reversed folding sequence (0319a) to create a perfectly smooth inner floor for snag-free loading.

Template adjustments and structural options

Enveloping flap depth

The depth of the wrap-around flaps can be adjusted. A full-depth wrap provides maximum double-wall protection, while a partial wrap saves material and reduces the overall footprint of the flat lid blank.

Hand hole additions

If workers need to lift the lid frequently, hand holes can be die-cut into the enveloping flaps. This requires verifying that the cutouts do not compromise the required vertical stacking strength.

Manufacturer joint fastening

For exceptional heavy-duty applications using thick double-wall board, the corner joints of the tubes may need to be stitched with metal staples rather than glued, ensuring the corners do not burst under pressure.

Board and packing details

Flat delivery footprint

Because the lid includes extended enveloping flaps, the flat blank sprawls much more than a standard box lid. This reduces the number of blanks that fit on a pallet, which affects inbound shipping density.

Flap folding variants for heavy payloads

Smooth Inner Floor (FEFCO 0319a)

In the standard 0319, the bottom flaps fold like a normal box, leaving a slight unevenness. The 0319a variant reverses the flap folding order so the inner flaps meet exactly in the center, creating a perfectly smooth floor. This prevents heavy products from snagging when loaded or unloaded, though it requires bridging an outer gap with heavy tape.

Additional notes

Print panel and label area

The large enveloping flaps provide an uninterrupted vertical surface for handling instructions, branding, or routing labels, keeping them clearly visible on a stacked pallet.

FAQs

Shipping and Route

Can this box ship through parcel networks?

Not without secondary sealing. The friction-fit lid and enveloping flaps will catch and tear on sorting belts or separate during tumbling unless they are heavily strapped or taped shut.

Packing Labor

How does the assembly time compare to a basic slotted box?

It takes much longer. Your team must erect and seal the base tube, erect and seal the lid tube, load the product, slide the lid over the base, fold down the enveloping flaps, and apply external strapping.

Material and Board

Does this require double-wall corrugated board?

This structure is frequently produced in heavy single-wall or double-wall board to maximize its protective qualities. However, thicker boards require precise factory scoring so the enveloping flaps can fold 90 degrees cleanly over the thick base walls.

Inserts and Fit

Can we use custom foam or wood blocking inside?

Because the base is fully open before the lid is applied, you can easily position heavy-duty foam, corrugated partitions, or wood blocking around your product before closing the box.

Samples and Prototypes

Why is a physical sample critical before a full run?

A sample proves the telescopic friction fit. It ensures the lid slides on easily without being too loose, and verifies that the enveloping flaps fold down smoothly without binding against the base walls.

First Conversation

What product details should we gather before discussing this package?

Share your exact payload dimensions, the maximum weight the box will hold, your intended pallet stacking height, and whether your facility plans to use tape or strapping to secure the outer flaps.

Reusability

Can we reuse this box for internal plant transfers?

The two-piece design allows for repeated opening and closing. Once the external straps are cut, the lid lifts off cleanly, making it useful for moving work-in-progress parts between assembly stations.

Storage

How are the empty boxes delivered and stored?

Both the base and the lid are delivered flat. Because the lid features extended enveloping flaps, its flat footprint is quite large, requiring adequate pallet storage space before assembly.
