FEFCO 0413

Front-Closing Hinged-Lid Mailer with Dust Flaps

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

One full hinged lid closes over the entire opening
Side dust flaps fold around the base and product
Front closing panel is secured with tape, glue, or an adhesive strip

About this product

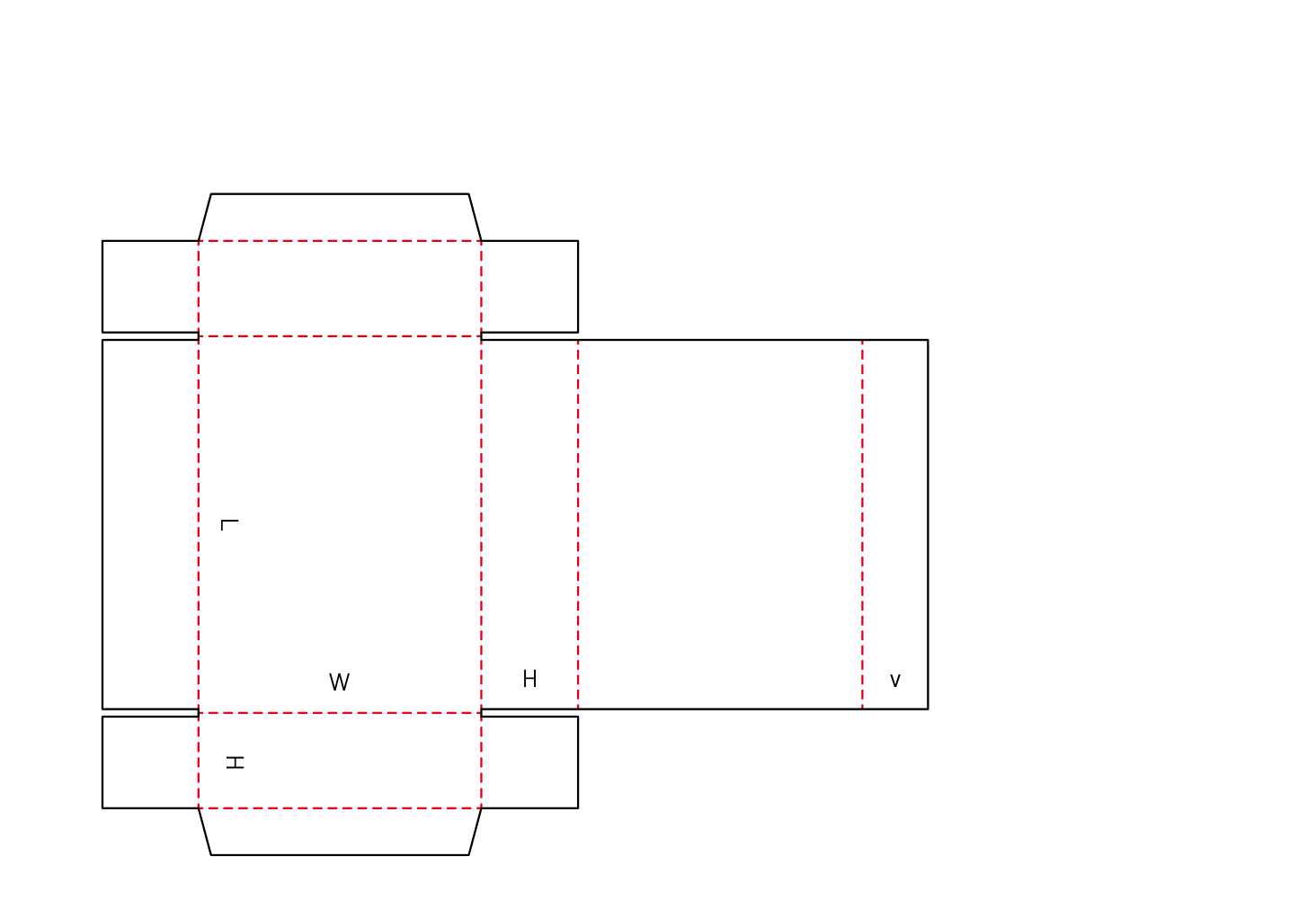

This one-piece mailer has one full hinged lid, a separate front closing panel, and protective side dust flaps. Packers load the product on the open base, raise the walls and dust flaps, bring the lid over the opening, and fold the closing panel down the front.

Each produced blank has one specified length, width, and depth. The front closing panel has no mechanical tuck, so the finished package is secured with tape, glue, or an added adhesive strip.

Common uses

E-commerce book and media fulfillment
Apparel and soft goods shipping
Fixed-dimension sample and presentation kits
Shallow retail boxes and framed prints

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Inside length

Inside width

Inside depth

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How do you plan to seal these mailers?

What type of products are you packing?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Uses for a hinged-lid mailer

E-commerce book and media fulfillment

Books, catalogs, and media can be loaded directly onto the base before the side dust flaps and full lid are folded around them. The blank must be specified for the packed product dimensions; a different stack height requires a different depth or a different package style.

Apparel and soft goods

Folded apparel can be placed on the open base and enclosed by raising the side flaps and bringing the full lid over the opening. The specified depth should match the packed garment stack so the contents are not loose or over-compressed.

Framed prints and shallow retail boxes

Flat, rigid items can use the side dust flaps as added edge coverage before the hinged lid closes. The base footprint and fixed depth must be sized to the item and any required protective insert.

Sample kits and mixed promotional mailings

A fixed assortment of brochures, samples, or folders can be arranged on the base and enclosed in one folding sequence. If the kit contents change the packed dimensions, review the blank size or use an insert rather than assuming the same 0413 blank will fit.

Who uses this wrap-around style

High-volume pick and pack operations

Warehouses handling a repeat flat-goods SKU can stage the blank open, load the product, fold the dust flaps and lid, and apply the specified front seal. Each blank serves the dimensions for which it was produced.

Direct-to-consumer subscription boxes

Subscription kits can use this style when the packed assortment and finished dimensions are established before production. A content change that alters the packed depth requires a size review.

Third-party logistics (3PL) providers

Fulfillment centers can use a repeatable fold and seal sequence for an approved product and blank size. The packing specification should state the product orientation, any insert, and the tape, glue, or adhesive-strip method.

When to consider a different mailer

Products that change height

FEFCO 0413 is not a variable-depth mailer. If one packaging SKU must handle several packed heights, compare a structure designed with selectable depth scores or specify separate 0413 sizes.

Very wide or framed items

For large, shallow items like retail signage, rolling a single long lid over the product becomes awkward for one person. A cross-fold mailer that brings two flaps together in the center is easier to handle.

Close variants and lookalike dielines

The closest library neighbors include 0412, 0415, 0415a. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board and closure decisions

Manual taping versus adhesive strips

The base template requires the packer to hold the front flap down against the board's natural spring-back while applying tape. For higher volumes, converters can apply a pressure-sensitive adhesive strip and a tear tape during manufacturing to speed up the packing line.

Board thickness and fold binding

Board caliper affects the fixed crease allowances, dust-flap overlap, and force required to fold the lid and front panel. Prototype the specified board when a heavier grade or tight fit is being considered.

Specified package dimensions

Each produced blank has one length, width, and depth. Confirm whether the supplied dimensions are inside, outside, or score-to-score so board-thickness and layer corrections are applied consistently.

Print surface utilization

The base and lid offer broad print surfaces. Keep critical graphics, barcodes, and small text clear of the fixed fold lines, dust-flap overlaps, and front sealing area.

Template adjustments beyond length and width

Length, width, and depth

The template is resized before production for the required finished dimensions. Changing the depth changes the locations and allowances of the fixed folds; it does not create selectable depths in one produced blank.

Dust flap angle and coverage

The side flaps are cut at an angle to prevent them from colliding when folded inward. This angle can be adjusted to balance folding clearance with the amount of corner protection provided.

Front flap overlap length

The front closure flap can be extended to provide a larger surface area for tape or adhesive, increasing the security of the final seal.

Board and packing details

Trapezoidal dust flaps and tooling

Because the side flaps feature angled cuts, this mailer routes through a flatbed or rotary die-cutter rather than a basic box-making machine.

Additional notes

Adhesive strip additions

If manual taping slows down your fulfillment line, converters can add a pressure-sensitive adhesive strip and a tear string during production, turning the basic folder into a faster packing option.

FAQs

Closure and shipping

How does the front flap stay closed during transit?

The front flap simply overlaps the base. Without external tape, glue, or an integrated adhesive strip, the board's natural memory causes the mailer to spring open.

Board and materials

Does heavy double-wall board work for this style?

A heavier board changes the crease allowances, dust-flap overlap, and folding force. It may be workable for a specific size, but it should be checked with a sample cut from the proposed board rather than assumed from the style code.

Packing labor

Is this faster to pack than a regular slotted box?

For flat goods, the wrap-around motion is often faster. The packer places the item directly on the flat base and folds the board around it, avoiding the friction of sliding a flat item down into a vertical tube.

Production

Does the angled flap design change the manufacturing route?

Yes. The angled side dust flaps mean this shape cannot be produced on a basic slotter. It routes through a flatbed or rotary die-cutter.

Inserts and fit

Do I need void fill if the product is smaller than the base?

Yes, when the product is smaller than the fixed base footprint or depth. Use an insert, pad, or another size so the contents cannot move freely inside the closed folder.

Samples and testing

How do we test fit and closure before a full run?

Request a CAD-cut sample in the proposed board grade and finished dimensions. Load the actual product and verify dust-flap clearance, lid alignment, the front seal, and any insert before production.

Related packaging

Can one 0413 blank pack several product depths?

No. The template can be resized before production, but each produced blank has one specified length, width, and depth. Use separate sizes or compare a structure designed for selectable depths.

Shipping route

How does this handle mixed-courier transit?

When properly taped or glued, the tight wrap and double-layered corners (where the dust flaps sit inside the walls) provide solid protection for flat goods. The main vulnerability is the tape seal, which must be strong enough to resist the board's spring-back tension.
