FEFCO 0416

Glueless Dust-and-Tuck Presentation Box

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • One-piece folder with dust and tuck flaps
  • All represented variants form enclosed boxes, not open trays
  • Board thickness affects tuck fit and fold quality

About this product

This one-piece folder uses dust and tuck flaps to form a fully enclosed presentation box by hand.

The represented 0416, 0416_1, and 0416a forms all include closing panels; none is a separate open-top tray form.

Common uses

  • Retail shelf displays
  • Bakery and pastry boxes
  • Internal kitting trays
  • Premium e-commerce when placed inside a master shipper

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail Displays, Kitting, and Bakery Packaging

Retail shelf displays

The open-top tray configuration provides a clean, unglued interior that looks premium on the shelf, keeping products accessible and neatly contained.

Internal kitting and component sorting

The glueless setup allows operators to build trays on demand at the pack bench without maintaining hot-melt glue equipment.

Bakery and pastry packaging

Often cut from lighter folding carton or fine-flute corrugated, the lidded version provides a classic, clean presentation that opens easily for the consumer.

Premium e-commerce inserts

When placed inside a larger master shipper, the lidded presentation box organizes multiple components securely without exposing the end customer to messy glue trails.

Premium Presentation and Hand-Packed Workflows

Premium unboxing and presentation

Brands that want a pristine interior without visible glue trails or tape residue benefit from the mechanical friction locks.

Low-volume or seasonal hand-packing

Operations that do not have the volume to justify an automated tray erector can rely on this style for fast, tool-free manual assembly.

Clean-room or food-adjacent packing

Facilities where hot-melt adhesive fumes or machinery are undesirable can use this folded design to keep the packing environment simple and clean.

Situations That Require Glued Trays or Parcel Mailers

High-speed automated packing lines

If you are processing thousands of trays per hour, the manual folding and locking of this design will create a bottleneck. Evaluate the FEFCO 0415, which is designed for automated hot-melt tray erectors.

Standalone parcel shipping

The friction locks risk springing open if the box is dropped or tumbled in a courier network. For rough transit, evaluate the FEFCO 0427 roll-end tuck-top mailer, or plan to use an outer master carton.

Close variants and lookalike dielines

The closest library neighbors include 0414, 0427_1, EVC41321_1. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board Thickness, Friction Locks, and Assembly Labor

Board thickness and fold resistance

This package is sensitive to board caliper. Thick double-wall corrugated will cause the 180-degree roll-over hinges to crack and the friction tabs to bind. Fine flutes or solid cartonboard are safer choices.

Surface finish and lock friction

The entire structure holds together via friction. High-gloss varnishes or slick laminations can reduce that friction, increasing the risk that the tuck flaps or corner tabs spring open under tension.

Assembly labor versus factory gluing

You avoid the need for factory gluing, but you shift that effort to manual pack-bench labor. The flatbed die-cutting required for the lock tabs also generates corner offcut waste, which affects the material yield.

Open tray versus lidded closure

Decide whether the product needs top protection or just lateral containment. The base tray leaves the top completely open for display, while the lidded variant adds a hinged cover with a front tuck flap.

Lock Tab Geometry and Fold Clearances

Lock tab geometry

The shape of the friction catch can be adjusted to tune how tightly the lid or end walls grip the base, depending on the board grade.

Inside fold corrections

For thicker corrugated boards, the template must be adjusted with specific layer-step creases to ensure the walls do not bow when folding over the internal dust flaps.

Corner slot profiles

The slots that receive the friction tabs can be cut with squared or rounded profiles. Rounded slots often strip more cleanly during the die-cutting process.

Board and packing details

Die-cutting and stripping waste

The complex lock tabs and dust flaps strictly require flatbed or rotary die-cutting. The cross-shaped blank creates offcut waste that impacts nesting efficiency on the sheet.

Open-Top Trays versus Lidded Presentation Boxes

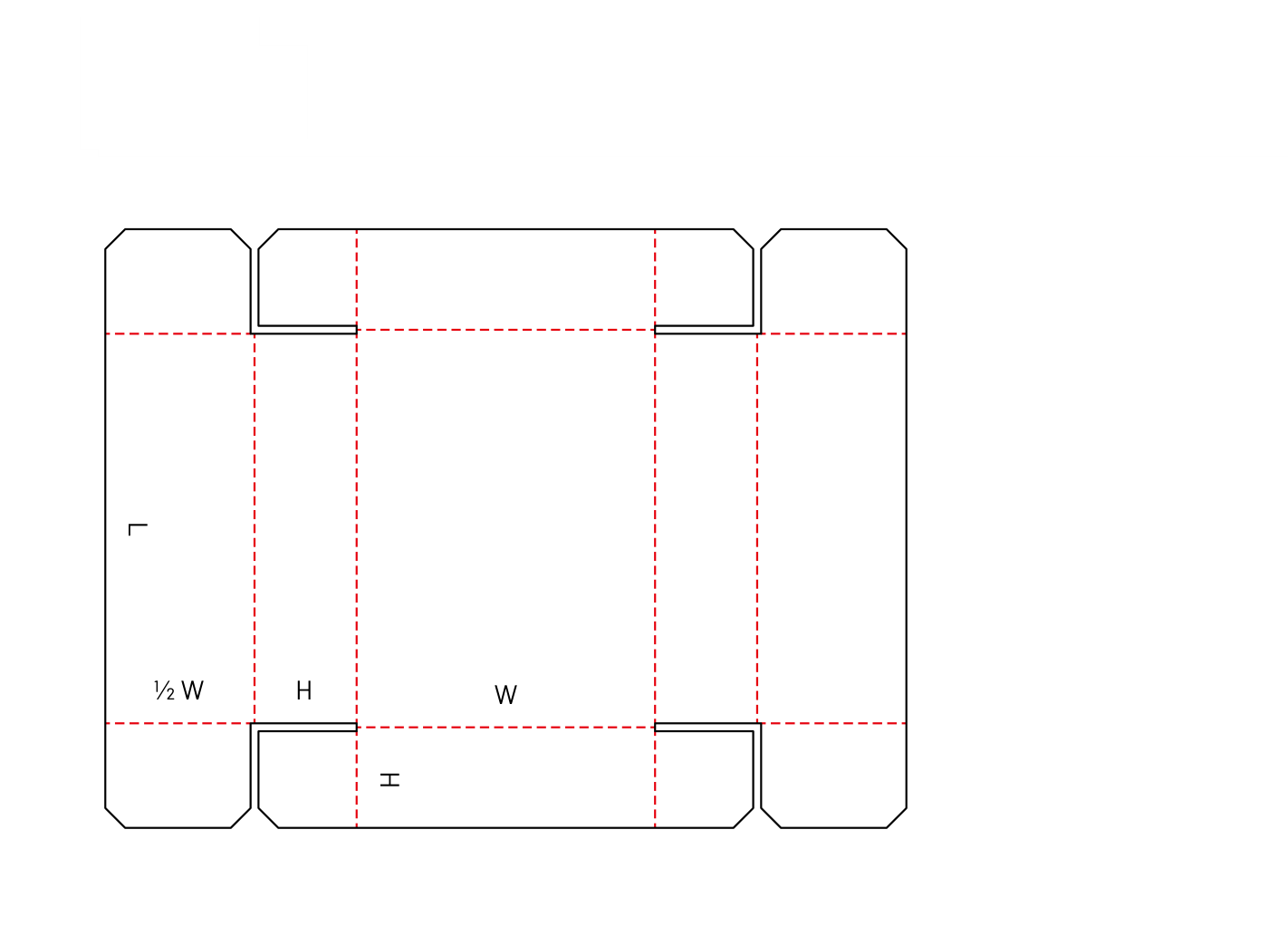

Open-Top Tray (Base 0416)

The standard configuration features 180-degree roll-over end walls that lock into the base, leaving the top completely open for display or easy access.

Lidded Presentation Box (0416a / 0416_1)

Adds a hinged lid with a front tuck flap. The side walls fold 90 degrees and lock via corner tabs, creating a clean, reclosable presentation box.

Additional notes

Physical sample testing for lock tension

Always request an unprinted physical sample in your exact chosen board grade. Lock friction is subjective and must be tested to ensure the box does not spring open under its own tension.

Related Trays and Mailers

FAQs

Shipping and Route

Can this box be shipped through a parcel courier?

Not reliably on its own. The friction locks risk springing open if the box is dropped or tumbled. It should be placed inside a master shipping carton or securely taped if entering a mixed-carrier network.

Board and Finish

What board types fit this glueless lock?

Fine flutes and solid folding cartonboard fit well. Heavy single-wall or double-wall corrugated is a poor fit because the thick board resists the tight folds and causes the friction locks to bind or tear.

Will a glossy print finish affect the box?

It can. Because the box relies on friction to stay locked, slick laminations or high-gloss varnishes can make the tabs slip, increasing the risk of the box springing open. A physical sample helps test the lock tension.

Assembly and Packing

Does this require any tape or glue to assemble?

No. The structure relies entirely on mechanical friction locks and tuck flaps. Once the creases are folded correctly, the box holds its shape without any adhesive.

Can this be assembled by automated machinery?

No. The 180-degree roll-overs and friction tucks are designed for manual, two-handed assembly. If you need automated forming, you should evaluate a glued tray style.

Closure and Access

How does the lidded version stay closed?

The lidded variants use a front tuck flap with small lateral tabs that catch inside the front wall slots. This friction fit allows the box to be opened and reclosed multiple times.

Board and Finish

Can I use double-wall corrugated for this tray?

Double-wall board is generally a poor choice. The thick material resists the 180-degree roll-over folds, causing the hinges to crack and the friction locks to bind.

Samples and Prototypes

How do I know if the friction locks will hold my product?

The only reliable way to verify lock tension is to test a physical, unprinted sample in your exact chosen board grade. Heavy products may cause the side walls to bow, which can pull the locks open.
