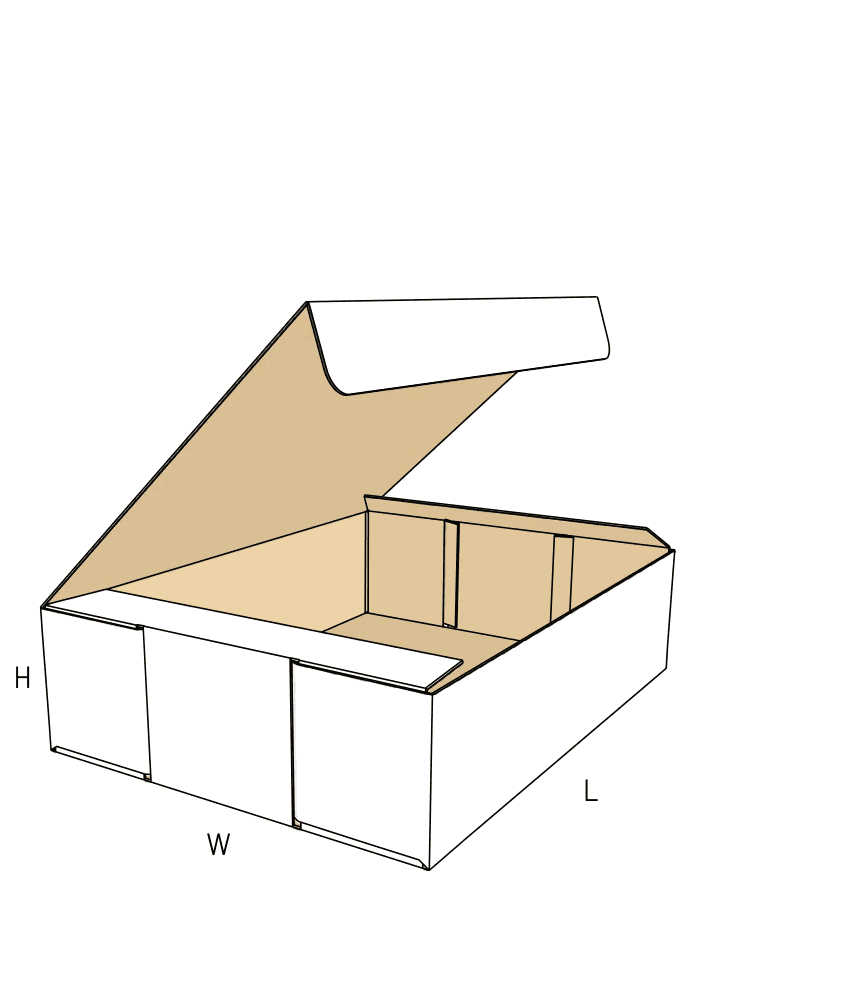

FEFCO 0445

Flat-Unfolding Presentation Box

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Unfolds completely flat for a full-stage unboxing reveal
  • Assembles entirely by hand without glue or tape
  • Requires an outer master carton or secure seal for parcel transit

About this product

This one-piece corrugated folder is built for the unboxing reveal. When the front tuck flap is released, the entire box springs open and lays completely flat, creating an unobstructed presentation stage for the goods inside.

Because it uses single-layer walls instead of rolled edges, it offers a clean look for retail kits, apparel, and flat goods. That same single-layer construction means it trades vertical crush resistance for presentation aesthetics, requiring careful planning for the shipping route.

Common uses

  • Retail apparel
  • Sales kits
  • Document presentation
  • Influencer mailers

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Presentation and Retail Kitting

Premium unboxing and sales kits

The flat-unfolding design creates a natural stage for the product. Because the walls drop away entirely when opened, the recipient gets an immediate, unobstructed view of the contents. This makes it a strong choice for sample sets and high-end retail presentations.

Shallow retail goods

For items that do not need heavy vertical stacking strength, the single-layer walls keep the overall package profile tight and material usage low. It works well for flat goods that are handed directly to a customer or placed into a shopping bag.

Influencer and media mailers

While it requires an outer shipping box for transit, the inner 0445 provides a high-end presentation layer. The flat reveal feels deliberate upon opening, keeping the focus entirely on the product rather than the packaging structure.

Flat apparel and textile presentation

Clothing, scarves, and textiles benefit from the clean interior and gapless floor. The friction-tuck lid allows retail staff to open the box to show the garment and reseal it without damaging the cardboard.

Apparel, Documents, and Sales Kits

E-commerce apparel brands

The friction-tuck lid allows for a clean presentation of garments. Brands often pair this with a poly mailer or outer shipper to protect the presentation box during transit.

Corporate communications

The flat base and easy-open lid make this a practical folder for A4 documents, welcome packets, or framed media. The recipient can review the materials without pulling them out of a deep cavity.

Boutique retail gifting

Stores selling flat, lightweight gift items use this folder because it stores completely flat behind the counter and folds quickly around the product at the point of sale.

When to Consider a Heavier Mailer

Direct parcel transit

The friction tuck flap is designed for easy opening, which means it can pop loose if dropped. If you are shipping directly to consumers through the mail without an outer box, look at a roll-end tuck-front mailer instead.

Heavy top-load environments

Because the walls are a single layer of corrugated board, this box will buckle under heavy pallet loads. If your packed product cannot bear its own weight, the package may call for a package with reinforced walls.

High-speed automated packing

This folder lacks glued seams and relies on a multi-step folding sequence where the walls must be held square while the lid is tucked. If the package needs machine-erected packing, evaluate a 4-point glued tray.

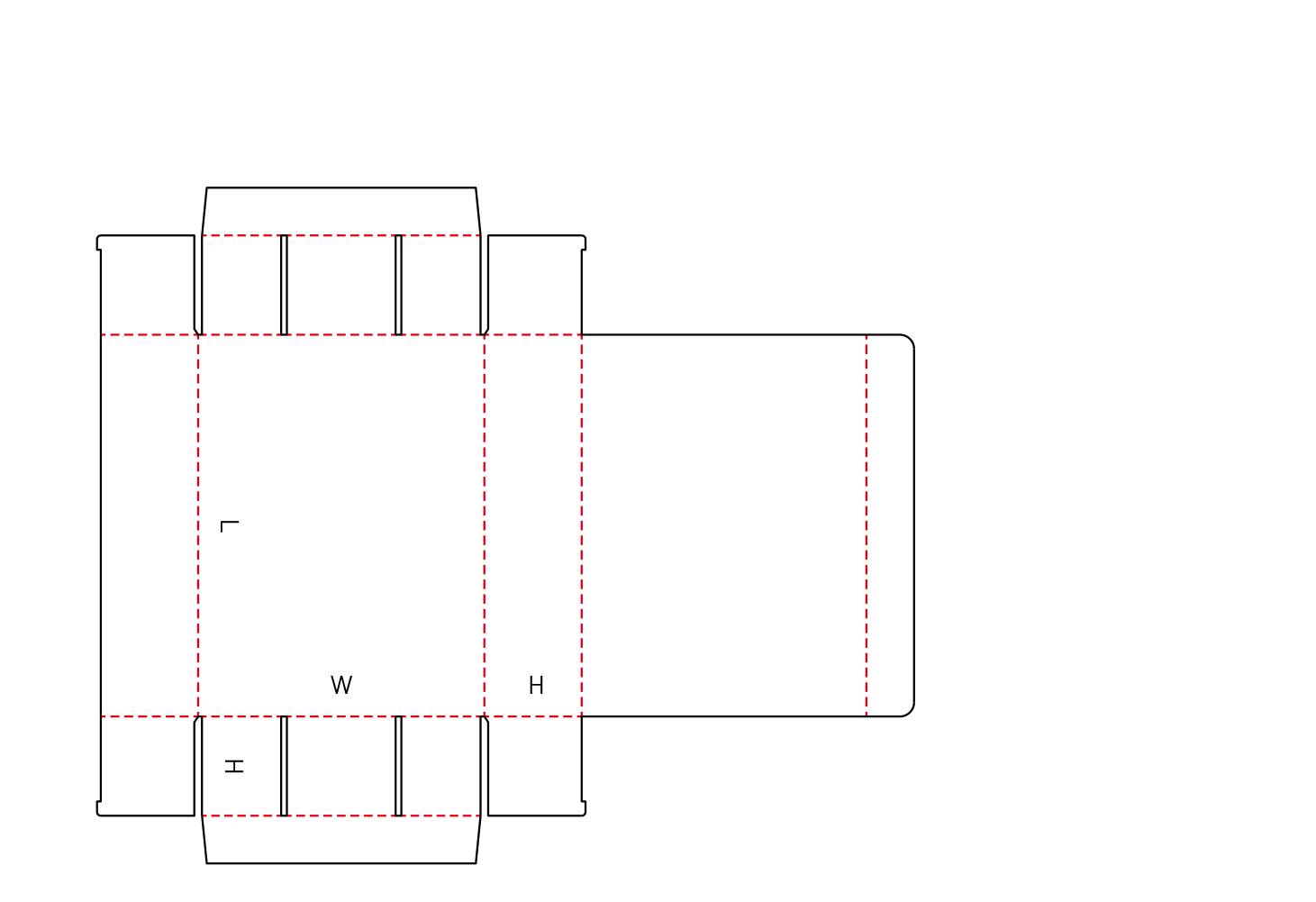

Close variants and lookalike dielines

The closest library neighbors include 0428a, 0428, 0420. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board Thickness, Friction, and Route Planning

Board thickness limits

This structure is highly sensitive to board caliper. It pairs best with thin, fine flutes like E or F flute. Thick double-wall board will cause the tuck flap to bind and the single-layer walls to bow outward during assembly.

Surface finish and friction

The entire box is held together by the friction of the front tuck ears. Applying a high-gloss varnish or slick lamination can reduce that friction, increasing the risk that the box springs open on its own.

Outer shipping strategy

Decide early if this box will ship inside a master carton, a courier bag, or be handed directly to the customer. This determines whether the package needs to add a clear wafer seal to the front tuck.

Insert compatibility

If you plan to use a die-cut insert to hold components securely, verify the insert height. The insert must sit flush with the single-layer walls so the lid can close without bulging.

Corner Slots and Flap Clearances

Corner slot profiles

The slots that receive the tuck ears can be cut with squared or rounded profiles. Rounded corners often improve how cleanly the waste material strips away during die-cutting.

Tuck flap length and ear width

The friction lock can be tuned by adjusting the width of the tuck ears. Wider ears increase closure security but require more force to insert, which can tear the front wall if the board is too weak.

Dust flap height

The half-height trapezoidal dust flaps keep the corners aligned without adding bulk to the top edge. Their height can be adjusted to prevent interference with the lid hinge.

Board and packing details

Flat delivery and storage

Because the box has no glued joints, it ships to your facility completely flat. The blank sprawl is highly efficient, taking up minimal pallet space in your warehouse before use.

Related Flat Folders

Simplified flat folder (FEFCO 0420)

A similar flat-unfolding design that omits the half-height trapezoidal dust flaps. It uses slightly less material but sacrifices some corner alignment stability during assembly.

Additional notes

Outer shipping and master cartons

If you are using this as an e-commerce presentation kit, plan your outer packaging early. A snug-fitting master carton protects the presentation box from scuffs and keeps the friction lock secure during transit.

other package styles worth comparing

0427: Roll-End Tuck-Front Mailer

Look at this option if the package needs a box for direct parcel transit without an outer carton. It uses double-thick rolled walls for high crush resistance, but it does not unfold flat.

0415: Five-Panel Folder

Evaluate this style for long, flat items that need tight wrap-around protection rather than a presentation reveal.

FAQs

Shipping and Route

Can I ship this box through the mail without an outer carton?

It is not recommended. The friction tuck flap can pop open if the box is dropped. For parcel transit, place this presentation box inside a master shipper, a poly mailer, or use a secure external tape seal.

Assembly and Packing

Does this box require glue or tape to assemble?

No. The box is assembled entirely by hand using a series of 90-degree folds. The front tuck flap locks into the front wall, holding the entire structure together through friction.

Materials and Print

Can I use heavy-duty corrugated board for extra protection?

Thick board is a poor fit for this design. Because the tuck flap relies on precise fold clearances, thick double-wall board will cause the lock to bind and the walls to bow. Stick to fine flutes like E or F.

Assembly and Packing

Is this box suitable for automated packing lines?

No. Because it lacks glued seams and relies on a multi-step folding sequence where the walls must be held square while the lid is tucked, it requires manual pack-bench assembly.

Product Fit

Can I use custom inserts with this box?

Yes. A die-cut insert can be placed on the base panel to hold components securely. When the box unfolds flat, the insert and the products remain presented in the center.

Materials and Print

Where can I print on this box?

Because it unfolds completely flat, both the inside and outside surfaces are highly accessible for printing. The large, uninterrupted inner lid is an excellent space for branding or instructions.

Structure and Design

How does the flat-unfolding mechanism work?

The box lacks the 180-degree rolled walls found in standard mailers. Instead, the single-layer walls are held upright entirely by the front tuck flap. Releasing that flap removes the tension, allowing the walls to drop flat.

Shipping and Route

Can this box support heavy top loads on a pallet?

No. The single-layer walls offer low vertical compression strength. If you are palletizing these boxes, the packed product must bear the weight, or you must use a sturdy master carton.
