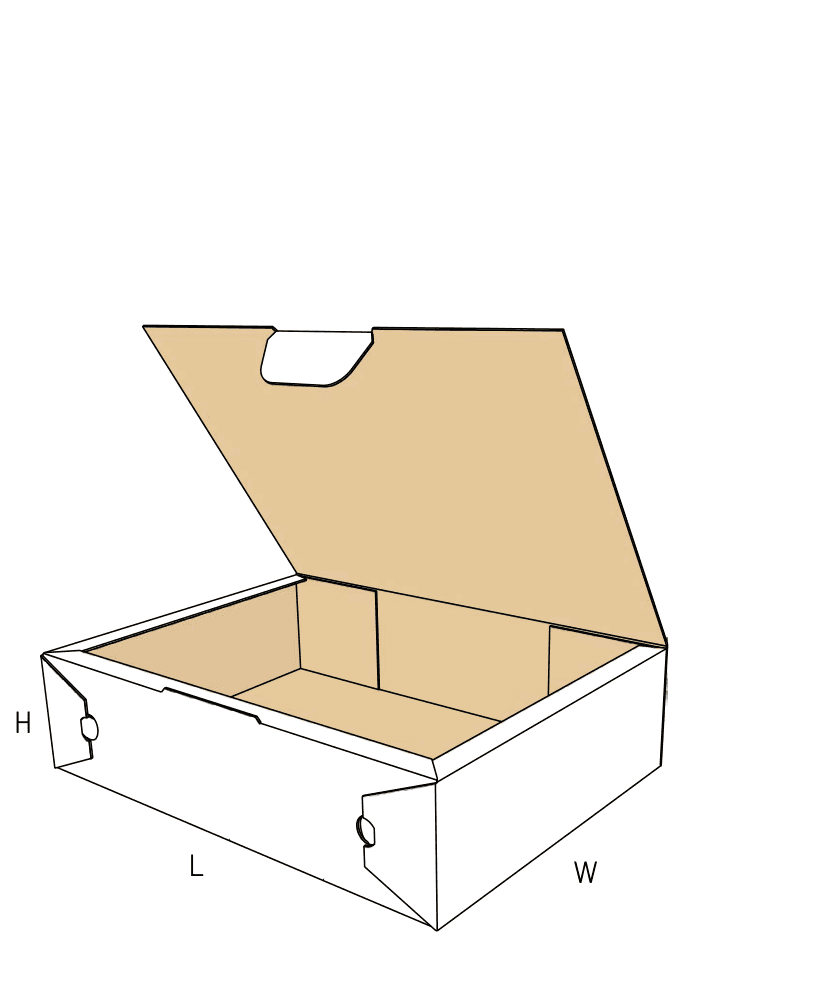

FEFCO 0466

Heavy-Duty Presentation Box with Tongue Locks

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Double-thick side walls provide high lateral crush resistance
  • Base secures via mechanical tongue locks for a clean interior
  • Requires manual two-handed assembly and precise board selection

About this product

This one-piece corrugated box forms a rigid tray with a hinged lid, relying on discrete tongue-and-slot locks rather than glue. By rolling the side walls over internal corner flaps and locking them directly into the base, the design creates a double-thick perimeter that provides high side-crush resistance and a clean interior.

Because the base locks require deliberate manual pressure to seat correctly, this style trades packing speed for structural security. It fits heavy industrial components, electronics, or premium kits where the presentation justifies the assembly time. Single-item courier shipments will still require an external seal to keep the friction-tuck lid closed.

Common uses

  • Industrial component kitting
  • Premium retail presentation
  • High-value e-commerce inside a master shipper
  • Heavy hardware grouping

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Heavy Component Kitting and Premium Presentation

Industrial parts and electronics

The double-walled perimeter isolates dense components from side impacts. The tongue locks keep the base from bowing outward under lateral pressure.

Premium retail and corporate gifting

The rolled-over side walls hide all raw corrugated edges, presenting a clean interior that frames custom inserts or printed collateral well.

Heavy hardware and metal components

The mechanical locks anchor the side walls directly into the floor, preventing the base from dropping out when lifting dense payloads.

Stackable storage and grouping

The reinforced side walls provide enough vertical strength to stack multiple loaded trays inside a master shipper without crushing the bottom units.

Industries Relying on Reinforced Side Walls

High-value e-commerce

Brands shipping expensive items often use this box inside a master shipper. The rigid structure protects the primary product, while the hinged lid offers a controlled unboxing reveal.

Technical equipment manufacturers

Teams shipping low-volume, high-value devices rely on the locked base to prevent the tray from splaying open when handling heavy payloads.

B2B sample kitting

Sales teams use the clean, double-walled interior to present product samples professionally, knowing the tray will remain rigid during repeated opening and closing.

When to Consider a Different Mailer Style

Standard Roll-End Tuck-Front Mailer (FEFCO 0427)

Look at this alternative if the package needs faster assembly or plan to ship the box through a parcel network without an outer carton. It uses continuous friction wedges instead of discrete base locks, making it easier to fold, and its lid features side locks that resist popping open during transit shock.

Wrap-Around Folder with Buffers (FEFCO 0465)

Consider this alternative if the package needs extreme internal standoff protection for delicate items. It rolls the side walls into massive hollow buffers rather than flat double walls, sacrificing internal volume for maximum impact isolation.

Close variants and lookalike dielines

The closest library neighbors include 0426b, 0426a, EVC41105. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board Thickness and Assembly Planning

Board selection and lock binding

This design is sensitive to corrugated board thickness. If you specify a heavy double-wall board without adjusting the fold clearances, the 180-degree hinges will crack and the tongue tabs will fail to reach their base slots. Fine flutes generally provide the most reliable locking behavior.

Manual packing labor

The tongue-and-slot mechanism requires deliberate downward thumb pressure to seat correctly. This box cannot be erected on automated tray formers and will dictate a slower, manual pack-bench rhythm.

Outer sealing for parcel transit

The hinged lid relies entirely on a simple friction tuck against the front wall. While this allows for easy repeated opening, it will pop open if dropped. Single-item courier shipments will require a strong wafer seal, strapping, or a master shipping carton.

Print surface and friction

A slick, high-gloss coating reduces friction across the board. This can make the front tuck flap more likely to slip out of place, meaning you may need to rely more heavily on an external seal to keep the lid closed.

Base Lock and Tuck Flap Adjustments

Locking tab friction

The width and depth of the tongue tabs can be tuned to match your specific board grade, helping the side walls lock securely without requiring excessive force from your packing team.

Tuck flap depth

The front closure flap on the lid can be extended to increase the friction area against the front wall, providing a slightly more secure hold for heavier contents.

Dust flap clearance

The internal corner flaps can be trimmed to ensure they do not bind against the inner side walls during the 180-degree roll-over, especially if you are using a thicker single-wall board.

Board and packing details

Packing trial with the real product

A sample or short packing trial helps check product fit, board behavior, closure feel, insert clearance, and how the package sits at the packing station before repeat ordering.

Additional notes

Blank sprawl and material efficiency

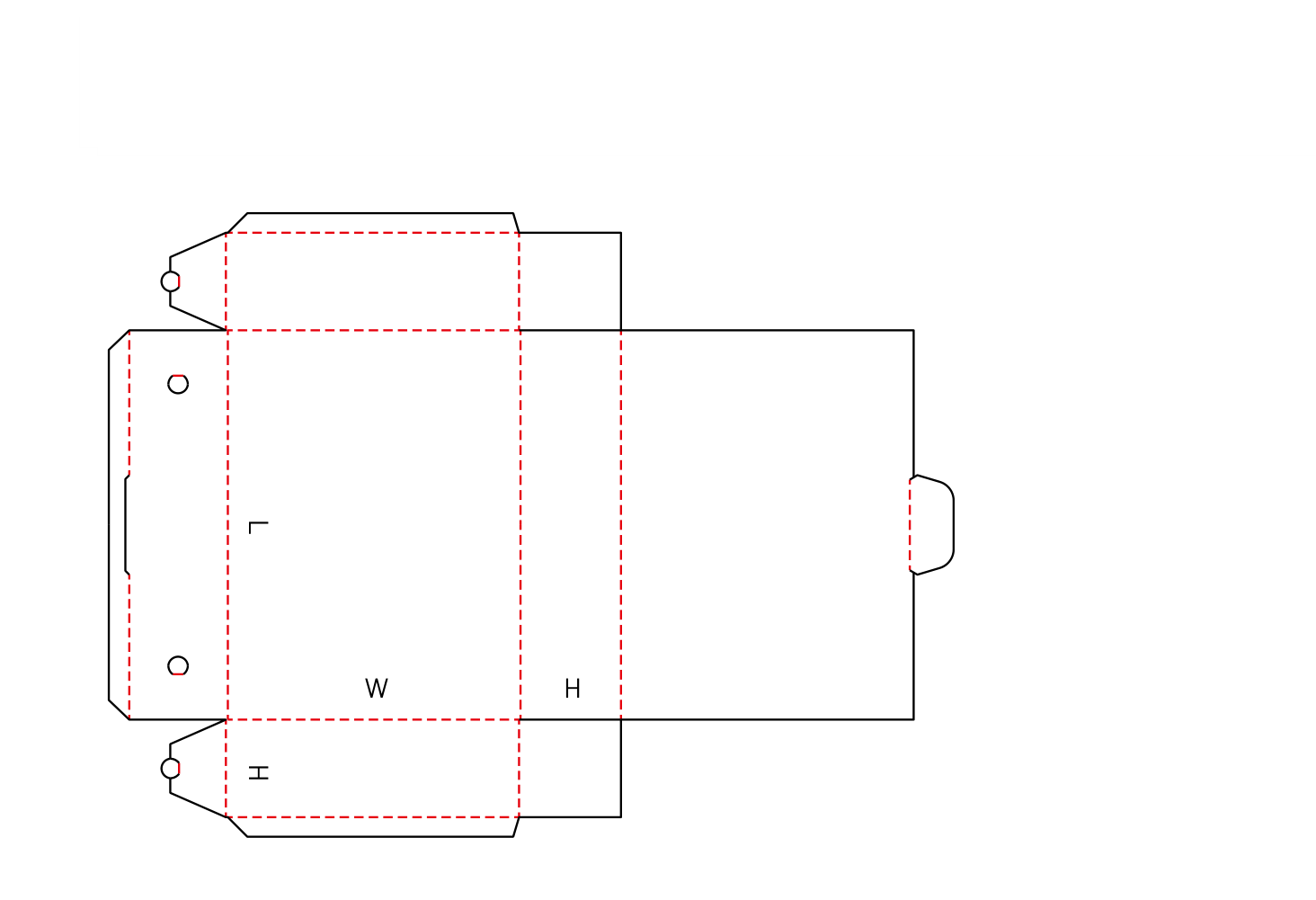

The extended roll-over side panels and attached lid create a large, cross-shaped flat blank. This requires more raw corrugated board than a standard slotted box of the same volume, increasing the overall material footprint.

Related Presentation and Delivery Boxes

FAQs

Assembly and Packing

Can this box be assembled on an automated line?

Standard automated lines cannot assemble this box. The 180-degree roll-over walls and discrete tongue locks require two-handed manual assembly and deliberate pressure to seat the tabs into the base slots.

Shipping and Route

Does the lid stay closed during parcel shipping?

The friction-tuck lid is designed for presentation and easy reopening. If you ship this box individually through a mixed-carrier network, the package may call for to apply a strong external seal or tape strip to prevent it from popping open upon impact.

Materials and Board

Can we use heavy double-wall corrugated for extra protection?

Using double-wall board introduces mechanical risk for this specific design. The thick material causes the 180-degree hinges to bind and prevents the locking tabs from reaching their slots. If heavy board is required, the template clearances must be modified and physically tested.

Product Fit

How does this box handle outward pressure from heavy parts?

The discrete tongue locks driven into the base floor provide strong resistance against outward lateral bulge, sometimes outperforming standard friction-wedge mailers when holding dense industrial components.

Print and Finish

Does a high-gloss finish affect the box structure?

A slick coating reduces friction. This can make the front tuck flap more likely to slip out of place, meaning you may need to rely more heavily on an external seal to keep the lid closed.

Samples and Prototyping

Why is a physical sample critical for this box?

A sample proves that the locking tabs seat correctly with your chosen board grade. Even minor changes in corrugated thickness can cause the side walls to spring open if the die-cut slots are not tuned perfectly.

Product Fit

Can this box hold heavy metal parts without the bottom bowing?

Yes, the tongue locks secure the base floor directly to the side walls. This mechanical connection prevents the floor from dropping out or bowing heavily under dense payloads, provided the board grade is appropriate.

Dimensions and Sizing

Does the double-wall side reduce internal space?

Yes, the 180-degree roll-over consumes internal volume. The outer dimensions will be noticeably larger than the usable inside space, which you must account for when sizing the box for exact product fits or custom inserts.
