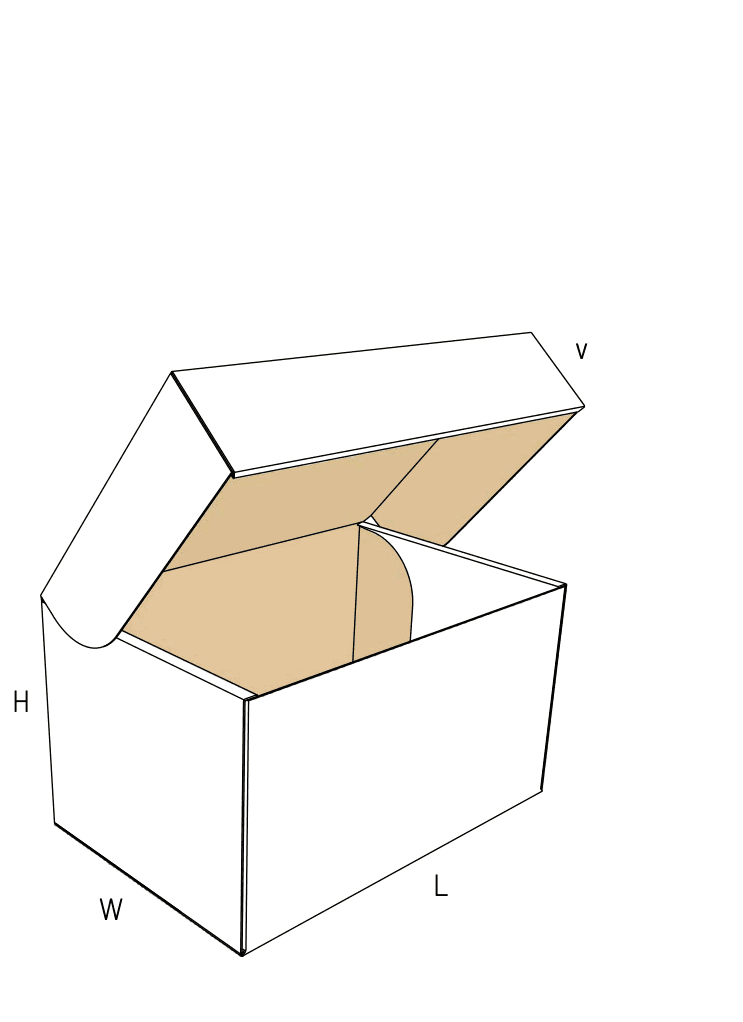

FEFCO 0469

Heavy-Duty Archive Box with Hinged Lid

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Double-thick reinforced floor supports dense payloads
  • Triple-thick end walls with integrated handles for manual lifting
  • Requires manual assembly and a large flat footprint before folding

About this product

This one-piece corrugated box is built for dense, heavy loads. It features interior bottom flaps that fold inward to create a double-thick floor, while the end walls roll over to form triple-thick columns around integrated carrying handles.

The result is exceptional vertical stacking strength and ergonomic lifting for paper archives or heavy parts. However, this strength comes at the cost of a large flat footprint and high manual assembly time, making it better suited for internal storage and palletized distribution than high-speed fulfillment.

Common uses

  • Archiving paper documents and financial records.
  • Manual intra-facility transport of heavy metal components.
  • Palletized storage of dense retail goods.

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Archiving, Office Moves, and Heavy Parts Storage

Document archiving and office moves

Dense paper weight requires a reinforced base. The double-thick floor prevents the bottom from bowing or dropping out when the box is lifted by its handles.

Internal parts kitting

For B2B component kits or factory floor transfers, the mechanical locks and friction-tuck lid allow the box to be opened and re-closed multiple times without destroying the corrugated board.

Palletized storage

The triple-thick end walls provide high vertical compression resistance. When stacked on a pallet, these reinforced columns carry the weight straight down to the base.

Retail backroom organization

Stores managing seasonal inventory or overstock can use these boxes to keep items dust-free. The hinged lid allows quick visual checks without cutting tape.

Corporate Procurement, Legal Services, and Industrial Kitting

Corporate procurement

Medical and administrative offices need reliable, stackable storage for long-term records. The integrated handles make manual lifting safer for staff.

Industrial components

Distributors packing heavy metal parts or dense hardware need a box that will survive manual carry. The reinforced floor ensures the payload stays secure.

Legal and financial services

Firms handling sensitive physical documents require sturdy, enclosed storage that can be easily moved between filing rooms and off-site archives.

When to Compare Standard Mailers or Two-Piece Boxes

High-speed ecommerce fulfillment

If you are shipping lightweight retail goods, a standard mailer uses much less material and folds faster. The heavy-duty archive box is over-engineered for simple parcel delivery.

Frequent top-access filing

If the box will sit on a shelf and be accessed daily, a two-piece archive box with a completely detached lift-off lid may be less frustrating than managing a hinged lid.

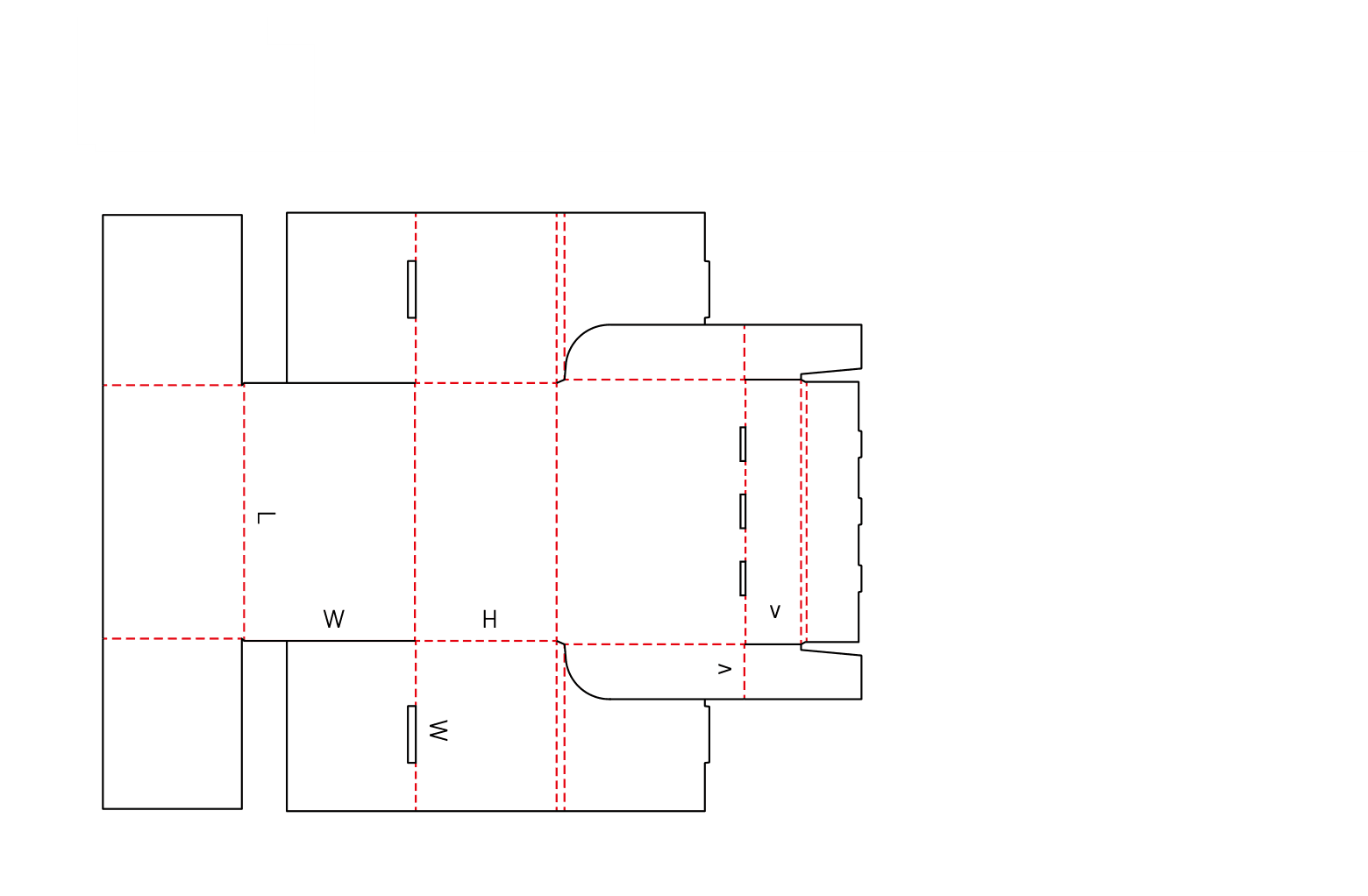

Close variants and lookalike dielines

The closest library neighbors include 0472, 0471, 0471a. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board Thickness, Handle Styles, and Transit Sealing

Board thickness and fold clearance

Double-wall board offers maximum stacking strength, but the fold allowances must be precisely adjusted. If the template is not tuned for thick board, the 180-degree roll-over walls will crack or bind during assembly.

Handle style

You can choose a full oval cutout or leave a fold-up flap. A flap cushions the user's hand against the corrugated edge during heavy lifting, while a full hole removes the material entirely.

Courier transit sealing

The friction-tuck lid is designed for easy access, not drop shocks. If this box travels individually through a parcel network, an outer shipper or strapping helps keep the lid closed.

Base lock friction

The tabs that secure the roll-over walls rely on friction. High-gloss finishes or certain board coatings can reduce this friction, making the locks more prone to slipping out under pressure.

Handle Cutout Adjustments and Lock Tuning

Handle placement and alignment

Moving the handles higher or lower requires adjusting the cuts perfectly across the outer wall, the inner dust flap, and the roll-over flap so they align in 3D space.

Lid tuck flap depth

The front tuck flap can be extended for a deeper, more secure friction fit, or shortened to make repeated opening easier for the end user.

Base slot width

The slots in the base panel can be widened or narrowed to change how tightly the roll-over tabs lock into place, depending on the chosen board grade.

Board and packing details

Flat footprint and material usage

The extended flaps that create the double floor and triple walls make the unfolded blank massive. This reduces how many boxes can fit on a single corrugated sheet, which changes the material footprint compared to simpler box styles.

Handle Flaps versus Full Cutouts

Handle Flaps versus Full Cutouts

The die-cut handles can be configured to leave a protective flap attached at the top edge, or they can be punched out entirely depending on ergonomic needs.

Additional notes

Die-cutting and internal waste removal

The complex locks, handle holes, and base slots mean this box must be produced on a flatbed or rotary die-cutter. The internal waste from the handles must be cleanly removed during production.

Related Storage and Mailer Boxes

FAQs

Shipping and Route

Can this box be shipped through a parcel network?

Only with an outer seal or strapping. The friction-tuck lid is designed for easy storage access and will likely open if dropped during rough courier transit.

Assembly and Packing

Does it require glue or tape to assemble?

The base locks mechanically using tabs and slots, meaning it forms a rigid tray without adhesive. However, it requires firm thumb pressure to seat the locks, especially with heavy board grades.

Can this be assembled by automated machinery?

The complex sequence of folding the interior bottom flaps and rolling over the end walls requires manual pack-bench assembly. It cannot be run on automated packing lines.

Board and Material

Can we use heavy double-wall board for maximum strength?

Heavy double-wall board provides excellent stacking strength, but the fold allowances must be precisely adjusted. Thick board can cause the roll-over walls to bind if the template is not tuned for the exact caliper.

Quantity and Cost

Why does this box use more material than a standard shipping box?

The flat blank is massive. The extra flaps that create the double floor and triple walls take up a large amount of space on the corrugated sheet, which changes the material footprint.

Product Fit

What happens to the cardboard cut out for the handles?

You can choose to remove it entirely as a full hole, or leave it attached at the top to fold inward and cushion the user's hand during heavy lifting.

Assembly and Packing

How does the base lock together without tape?

The end walls roll over 180 degrees, wrapping around the inner dust flaps. Tabs on the edge of these roll-over walls then push into pre-cut slots in the floor, locking the entire structure in place.

Product Fit

Can the lid be removed completely?

No, the lid is permanently hinged to the rear wall of the box. If you need a completely removable lid, a two-piece archive box (like FEFCO 0325) is a better choice.
