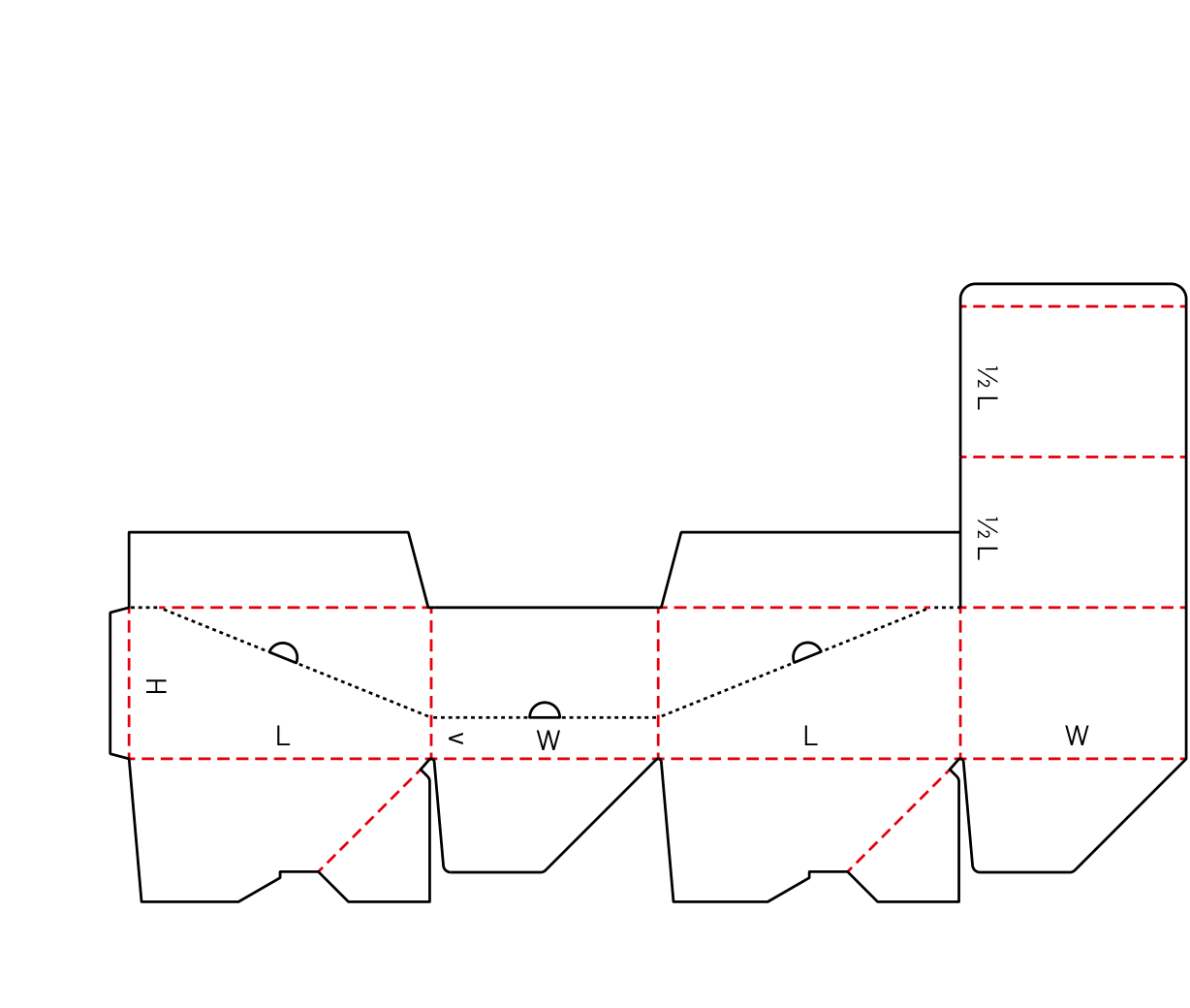

FEFCO 0728

Auto-Bottom Retail Display Box with Hinged Header

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Base deploys instantly to save labor on high-volume pack benches
Attached lid opens upright to create a visible display header
Board grade must support clean base erection and lid folding

About this product

This single-piece carton combines an auto-bottom base with a hinged lid. At the store, the attached lid opens upright to form a display header.

The header remains part of the box; there is no tear-away front in the source dieline. Board choice still needs to support clean base erection and header folding.
