EVC61007

Double-Wall Corrugated Counter Display Tray

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Double-wall construction on all four sides for clean edges
Single-sided print covers both exterior and interior walls
Tool-free manual assembly with base-locking tabs

About this product

The EVC61007 is a premium corrugated counter display tray designed for clean, rigid retail presentation. Featuring double-wall roll-over panels on all four sides, it hides raw corrugated edges and creates a polished look for point-of-purchase environments.

Because the outer panels fold inward to form the interior walls, a single-sided print on the flat blank covers both the outside and inside of the assembled display, maximizing branding impact without the cost of two-sided printing.

Common uses

Point-of-purchase counters
Shelf-ready packaging when shipped in a master carton
Cosmetic or premium good displays

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Interior width (side to side)

Interior depth (front to back)

Back wall height

Front lip height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How do you plan to print this display?

Will you use custom inserts or dividers to separate the products?

How will the loaded displays be shipped to retail?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail and Point-of-Purchase Display Roles

Countertop Point-of-Purchase

The angled side walls and low front lip provide clear product visibility, while the high back panel offers a prominent billboard for branding.

Shelf-Ready Merchandising

When packed inside a master shipper, this tray can be pulled out and placed directly on retail shelves. The double-thick walls resist bowing even when fully loaded.

Checkout Impulse Bins

The rolled edges eliminate sharp corrugated fluting, making it comfortable for shoppers reaching in for small, loose items near the register.

Premium Cosmetic and Skincare Presentations

The hidden raw edges elevate the perceived value of the display, making it a strong fit for high-end retail environments where standard single-wall trays look too industrial.

Product Categories and Merchandising

Premium Consumer Goods

Cosmetics, electronics, and specialty foods benefit from the clean, finished edges. The roll-over panels hide the fluting, elevating the perceived value of the display.

Co-Packing and Fulfillment

The tray is delivered flat and assembled manually without tape or glue. Fulfillment teams should budget time for folding and locking the four double-wall panels before loading.

Retail Pharmacy and Health

Over-the-counter products often require clean, professional presentation. The rigid double walls hold up well to frequent restocking and customer interaction.

When to Consider Simpler Display Trays

High-Volume Automated Packing

If your packing line relies on automated tray erectors, evaluate machine-erected glued trays. The EVC61007 requires manual folding and locking.

Strict Material Budgets

The four roll-over panels consume more corrugated board than a single-wall tray. If material efficiency is more critical than a premium edge finish, consider a standard open-top tray.

Board, Print, and Assembly Considerations

Board Flute and Caliper

Thinner boards like E-flute yield sharper, cleaner folds on the 180-degree roll-overs. Thicker boards like C-flute may crack or resist staying flat when folded inward.

Print Strategy

Take advantage of the roll-over design. A high-quality single-sided print on the exterior of the blank will automatically become the interior wall surface once assembled.

Master Shipper Sizing

This display has an open top and cannot be shipped individually via parcel networks. You will need to size an outer shipping carton to protect the loaded display during transit.

Insert and Partition Fit

If you plan to use internal dividers to separate products, they must be sized to the exact interior clearance, which is reduced by the thickness of the four folded roll-over panels.

Adjusting the Display Profile

Front Lip Height

The front wall can be raised for better product retention or lowered to maximize visibility, depending on the size and shape of the items being displayed.

Back Wall Billboard

The rear panel height can be extended to provide more space for promotional graphics or instructions.

Locking Tab Count

The number of base-locking tabs on the front and back roll-over panels can be adjusted based on the tray's width and expected handling.

Packing details

Tooling and Blank Sprawl

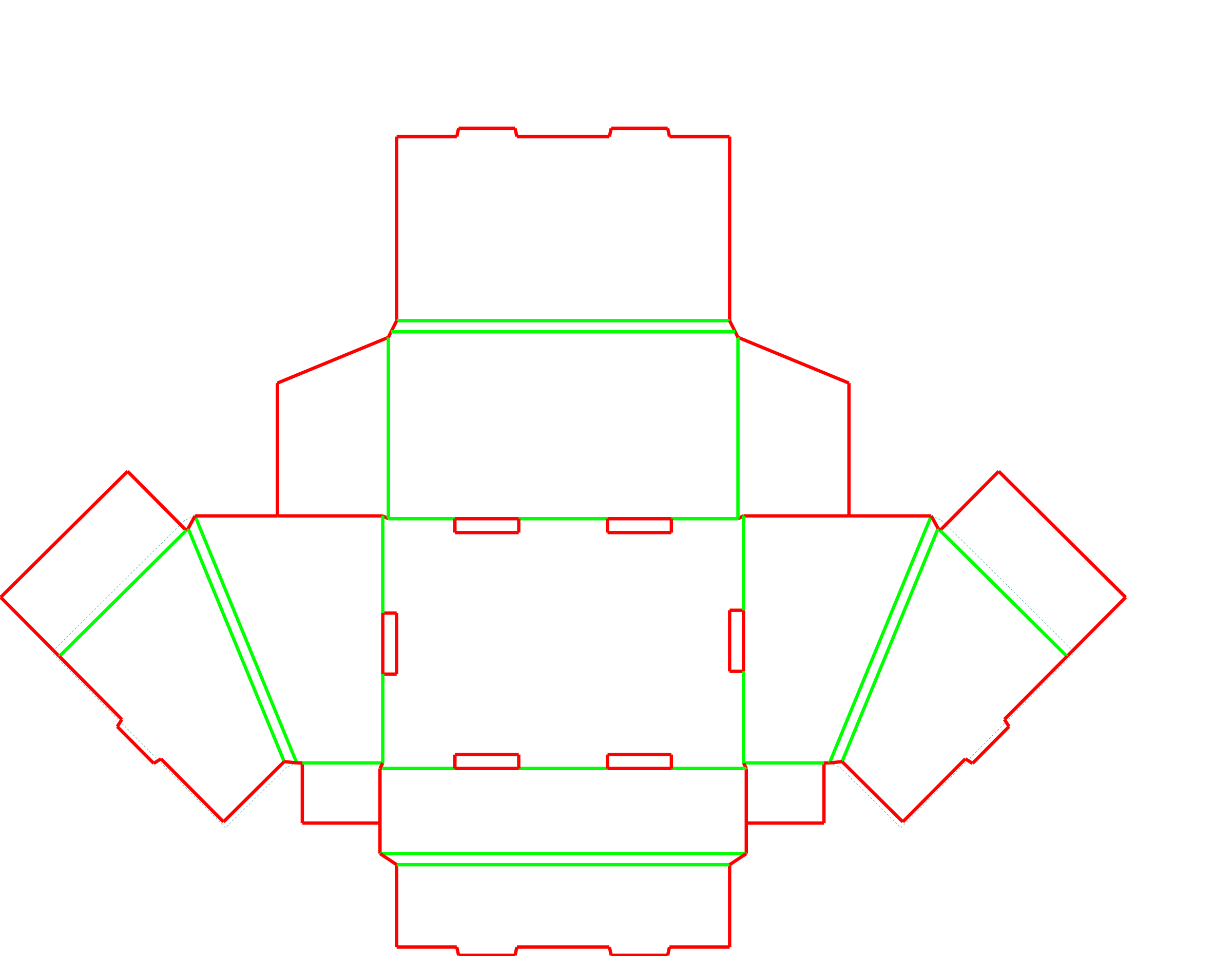

Because the roll-over panels extend outward from all four sides of the base, the flat blank requires a larger footprint. This affects nesting efficiency on the corrugated sheet and requires precise double-crease rules to match your chosen board thickness.

Additional notes

Manual assembly labor

While tool-free, folding four separate double-wall panels and aligning the locking tabs takes more time per unit than popping open a crash-lock base. Factor this into your fulfillment planning.

FAQs

Do I need two-sided printing to have graphics on the inside of the tray?

A single-sided print on the flat blank covers both the exterior and the interior of the assembled display because the outer panels roll over and fold inward to create the double walls.

Does this display require glue or tape to stay together?

The tray assembles entirely through mechanical locks. The roll-over panels feature tabs that lock securely into slots on the base panel, requiring no adhesive.

Can this tray be erected by automated machinery?

This specific design is intended for manual assembly. The sequence of folding the corner flaps and locking the four roll-over panels is typically done by hand at a packing station.

Can I ship this display directly to a customer?

Because the tray has an open top and no native closures, it must be packed inside a master shipping carton for transit through courier or freight networks.

Which corrugated flute works best for this design?

Thinner profiles like E-flute or B-flute are generally preferred. They provide excellent print surfaces and fold cleanly. Heavier flutes can create bulky edges and may resist the 180-degree folds required for the double walls.

How does the tray prevent the walls from bowing outward?

The corner flaps are trapped securely inside the double-wall roll-over panels, and the base tabs anchor the structure. This creates a rigid perimeter that resists outward pressure from the loaded products.

Can I use internal dividers with this tray?

Internal dividers work well, but they must be sized to the exact interior clearance. The four double-thick walls reduce the internal footprint compared to the outer dimensions.

How are the corner flaps secured during assembly?

The corner flaps fold inward and are trapped by the roll-over panels. The front flaps are held by the front wall roll-over, and the rear flaps are held by the side roll-overs, creating a rigid perimeter.
