Corrugated Counter Display Tray

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Manual assembly with glueless push-in locks
Double-thick side walls and front lip for clean presentation
Packed inside an outer master shipper for transit

About this product

This corrugated counter display tray features a tall back header, angled side walls, and a clean roll-over front lip. Designed for retail point-of-purchase and shelf-ready packaging, it presents products clearly while providing billboard space for branding.

The tray is erected manually without glue. The side walls and front lip fold into double-thick walls, locking together with push-in tabs to hide raw corrugated edges and maintain a rigid, angled profile on the store shelf.

Common uses

Checkout counter merchandisers
Shelf-ready retail packaging
Lightweight cosmetics or confectionery displays
Temporary event and trade show displays

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Overall width (side to side)

Overall depth (front to back)

Back header height

Front lip height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What type of items will this display hold?

Do you need a custom shape for the back header?

How will these displays be shipped to stores?

Who will be assembling and loading these trays?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail and Counter Display Applications

Checkout Counter Merchandising

The tall back wall provides a header for branding, while the angled sides keep products visible and accessible. The double-thick front lip hides raw corrugated flutes, creating a clean presentation for checkout counters.

Shelf-Ready Retail Displays

Loaded at a fulfillment center and shipped inside a master carton, this tray can be lifted directly onto a retail shelf. The double-wall sides keep the tray from splaying when fully stocked with lightweight to medium-weight items.

Small Packaged Goods Presentation

The angled profile and clean front edge make this tray a strong fit for cosmetics, confectionery, and small packaged goods that need to stand upright and face the consumer.

Temporary Event and Trade Show Displays

Because it ships flat and sets up without tape or glue, this tray is useful for temporary event merchandising where quick assembly and professional presentation matter.

Fulfillment and Store-Floor Setup

Fulfillment Center Assembly

Because the tray relies on multi-directional folding and push-in tabs, it is assembled manually at a pack bench. It is not suitable for automated folder-gluers. Fulfillment teams should plan for the two-handed assembly needed to align and seat the side locks.

Store-Floor Setup

If shipped flat to the store, retail staff can erect the display without tape or glue. The mechanical friction locks hold the tray together securely once the front lip is rolled over and tucked into the base.

Seasonal and Promotional Rollouts

For short-term retail promotions, the unglued tray avoids the cost of factory gluing, making it easier to produce in smaller batches for specific seasonal campaigns.

When to Consider Alternative Displays

Heavy or Dense Products

This open-top tray provides no vertical compression strength. If the display must support heavy top loads or if the products themselves are dense, a reinforced display style or a tray with a corrugated center divider may be necessary.

High-Speed Automated Packing

If your packing line relies on automated case erectors or tray formers, this manual-lock tray is a poor fit. Evaluate machine-erected tray styles that use adhesive instead of friction tabs.

Board, Print, and Packing Route Choices

Board Thickness and Header Rigidity

A 3.0 mm B-flute is a common starting point, offering a balance of header rigidity and a smooth print surface. Thinner E-flute improves print quality for retail goods but may allow a tall header to bow. Thicker C-flute can cause tension and cracking in the roll-over front and push-in tabs.

Outer Transit Packaging

This display cannot be shipped as a standalone parcel. The outer dimensions of the fully assembled and loaded tray must be calculated carefully to specify a properly fitted master shipper, such as a regular slotted carton.

Two-Sided Print Requirements

The back header and outer side walls are main areas for graphics. Because the inner side walls and the base are formed by folding panels inward, they share the same printed side of the corrugated blank as the exterior.

Pack-Bench Labor Allocation

The manual folding sequence requires time and care to seat the push-in tabs without tearing the board. Fulfillment planners should account for this assembly time when calculating the total cost of the display program.

Template Adjustments and Header Customization

Custom Header Shapes

The straight top edge of the back wall can be modified with a custom die-cut shape to match brand logos or product silhouettes without altering the base of the tray.

Front Lip Adjustments

The height of the front roll-over lip can be adjusted to retain taller products or lowered to increase visibility, provided it does not interfere with the side locking mechanism.

Side Wall Slope and Product Access

The angle of the side walls can be steepened or flattened to change how much of the product is exposed from the side, depending on how the items are stacked inside.

Packing details

Blank Sprawl and Tooling

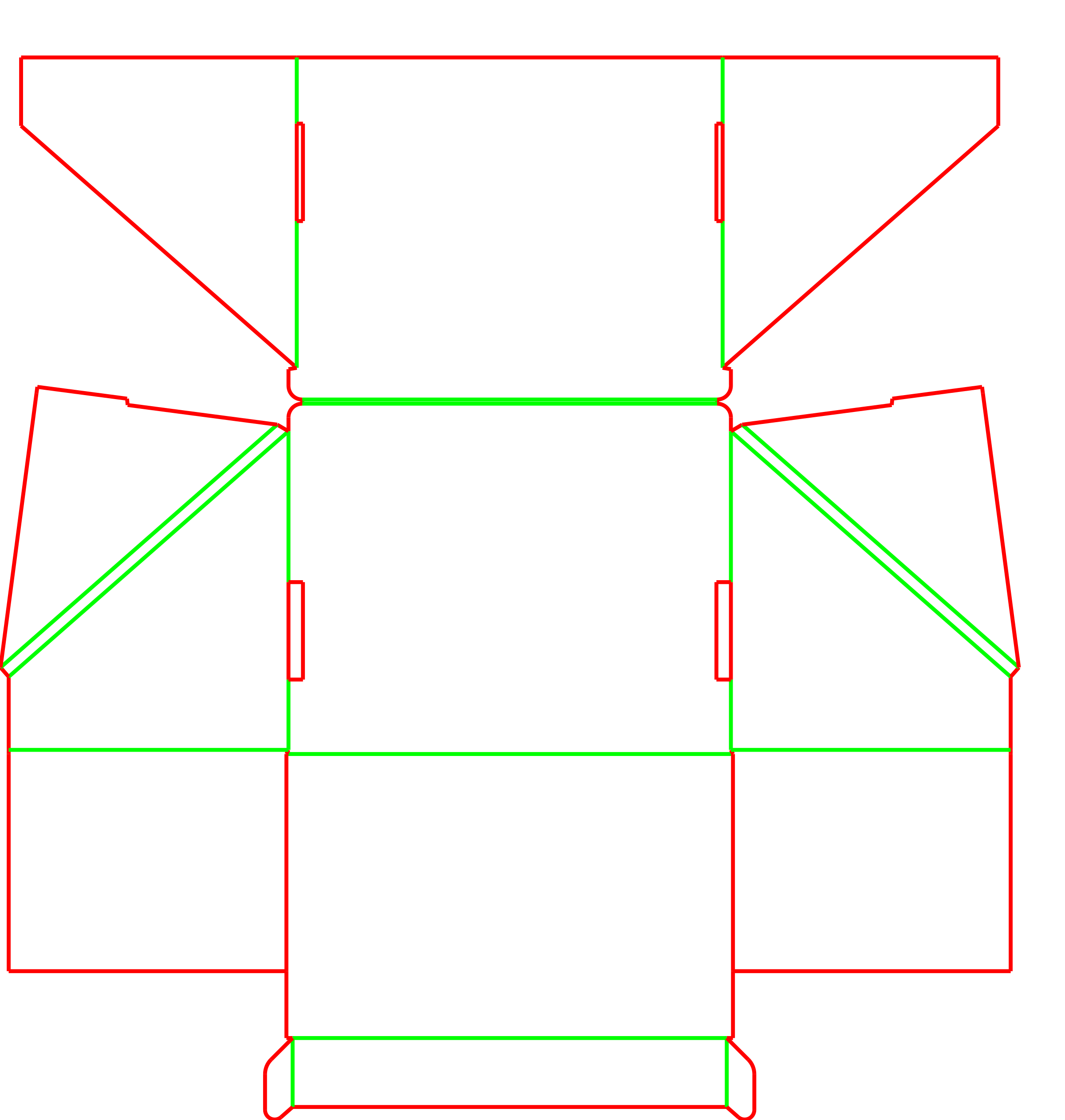

The flat blank forms a large cross shape due to the tall header and wide side flaps. This footprint can affect how many displays nest on a single corrugated sheet during die-cutting, which influences material yield.

Additional notes

Side Lock Friction and Testing

The stability of the angled sides relies on the friction of the push-in tabs. It is worth testing a physical sample with your chosen board grade to confirm the tabs seat firmly without tearing during assembly.

FAQs

Does this display require glue or tape?

No. The tray is erected entirely through mechanical folds. The inner side walls lock into the outer side walls using push-in tabs, and the front lip rolls over to lock into the base.

Can this tray be erected automatically?

This tray is assembled manually. The multi-directional folding sequence and push-in tabs are not compatible with automated folder-gluers or tray formers.

Can I ship this display directly to a customer?

Not as a standalone package. The open top and angled sides do not cover goods against vertical crushing or transit impacts. It must be packed inside a master shipper for distribution.

What happens if I use a thicker corrugated board?

While thicker board increases overall rigidity, it can create excessive tension when rolling over the front lip and may cause the push-in side tabs to bind or tear. The lock clearances must be recalculated if the board caliper changes.

Which panels are visible for printing?

The tall back header, the outer side walls, and the front lip provide the main exterior billboard space. The interior base and inner side walls are also visible when the display is partially empty, and they print on the same side of the flat blank as the exterior.

How does the front lip stay in place?

The front panel folds up, and an attached flap rolls over the top edge and down into the tray. Small tabs on the edge of this flap tuck into slots in the base panel, locking the front lip securely.

Can the back header be shaped to match a logo?

Yes. The top edge of the back wall can be die-cut into custom shapes to highlight branding or product outlines, as long as the base structure remains intact.

Why are the side walls double-thick?
