Retail and Counter Display Applications
Retail Ready Packaging (RRP)
The clean edges and angled profile make this tray a strong fit for direct-to-shelf loading, presenting products professionally without exposing raw corrugated fluting.
Point-of-Purchase (POP) Displays
Provides a polished look for counter displays, offering a more finished appearance than standard single-wall trays while remaining a single-piece corrugated design.
Countertop Product Assortments
The double-wall construction increases the rigidity of the tray walls, helping contain loose or mixed product assortments on the counter.
Shelf-Ready Merchandising
Useful for organizing rows of products on retail shelves, where the high back provides support and the low front allows easy access.
Fulfillment and Merchandising Contexts
Co-packing and Fulfillment
These trays are delivered flat and erected manually at the packing station. The fold-and-lock assembly requires seating multiple tabs, which should be factored into packing line labor estimates.
Retail Merchandising
The double-wall construction increases the rigidity of the tray walls, helping contain loose or mixed product assortments on the shelf.
Brand Promotions and Trial Launches
Offers a clean presentation that hides raw fluting, making it suitable for short-term promotional displays without the cost of rigid board.
When to Consider Simpler Display Trays
High-Volume Automated Packing
This design is typically assembled by hand. If the packing line uses automated erection equipment, a glued tray or a machine-erected tray may be a better fit.
Strict Material Budgets
The roll-over panels on all four sides increase the overall footprint of the flat blank. If material efficiency is a higher priority than hiding the fluting on the side walls, a tray with single-wall sides may be a better choice.
Board, Print, and Assembly Choices
Board Caliper and Fold Behavior
The 180-degree folds require precise double-crease allowances. Heavy flutes may crack or bind during assembly. Thinner profiles, such as E-flute or B-flute, generally provide cleaner folds and tighter locking tabs.
Print Surface Utilization
Because the outer panels roll over to become the inner walls, the primary exterior print surface wraps inside the tray. This often provides a continuous graphic presentation without the cost of two-sided printing.
Master Shipper Planning
This is an open-top display tray with no native sealing mechanism. It is typically packed inside an outer master carton for distribution to the retail environment.
Assembly Labor and Packing Speed
The fold-and-lock assembly involves seating six different tabs into base slots. This manual process should be evaluated against packing speed requirements.
Profile and Locking Adjustments
Display Profile Angles
The height of the back wall and the front display lip can be adjusted to change the slope of the side walls, altering how much of the product is visible from the side.
Locking Tab Distribution
The number of locking tabs on the front and back roll-over panels can be increased for very wide trays to ensure the walls remain securely anchored to the base.
Front Lip Height
The front wall can be raised or lowered depending on whether the priority is product visibility or secure containment.
Packing details

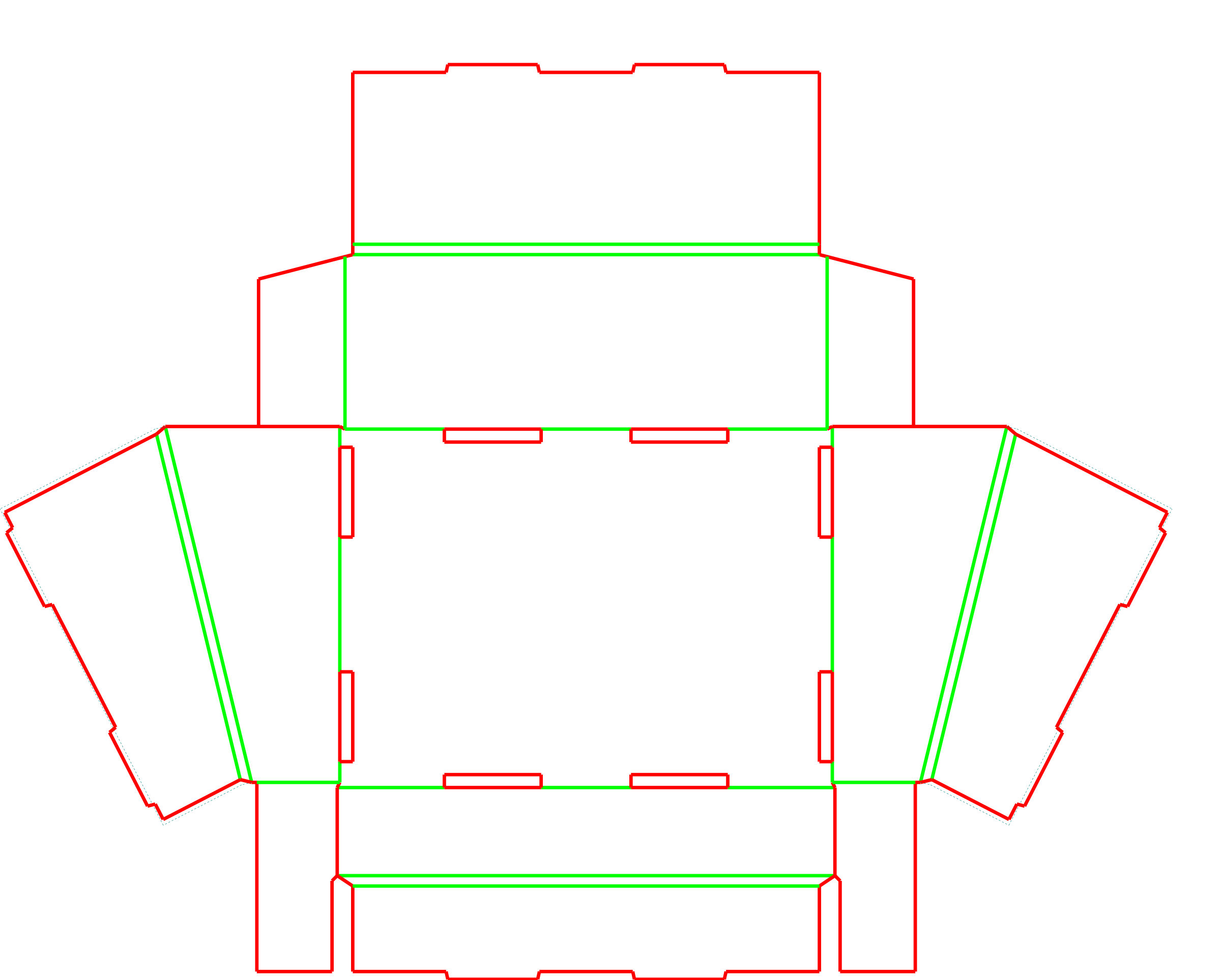

Blank Sprawl and Nesting
The extended roll-over panels on all four sides create a large flat blank. This can affect how many units nest efficiently on a standard corrugated sheet during flatbed die-cutting.
Additional notes
Corner Flap Trapping
During assembly, the front and back walls roll over the side corner flaps. This trapping action is what prevents the side walls from splaying outward under lateral product weight.
FAQs
Can this tray be erected on automated packaging lines?
This design is typically assembled by hand. The process involves folding and seating six different roll-over tabs into base slots, which is generally not suited for standard linear folder-gluers.
Does this display tray require two-sided printing?
Usually no. The roll-over design means the exterior printed surface wraps over the top edge and covers the inside walls of the tray, providing a finished look from a single printed side.
What board grades are usually chosen for this design?
Thinner flutes like E-flute or B-flute are generally preferred. Heavy or rigid boards can cause the printed liner to crack when folded 180 degrees to form the double walls.
Can this tray be shipped directly in the parcel network?
No, it is an open-top display tray designed for retail presentation. It relies on an outer master carton to protect the products during transit.
How does the tray stay together without glue?
The front and back roll-over panels feature locking tabs that seat into corresponding slots in the base panel. As they roll over, they trap the side corner flaps, securing the entire structure.
Does the angled profile affect stacking?
Yes, because the side walls are sloped, stacking loads are unevenly distributed and primarily rest on the high back wall. Stacking behavior should be tested with the actual product and the master carton.
How are these display trays delivered?
They are delivered flat and stacked on pallets, which saves storage space before they are assembled at the packing station.
Do I need to tape the base of the tray?
No, the tray is self-locking. The roll-over panels lock into the base slots, holding the structure together without tape or adhesive.
