Corrugated Retail Display Tray

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

High back and low front for retail visibility
Glue-free manual assembly with roll-over locking walls
Requires an outer master carton for transit

About this product

A glue-free corrugated display tray designed for retail shelving. It features a high back wall for branding, a low front wall for product access, and a swooping side profile that transitions smoothly between the two.

Delivered flat and assembled by hand, the tray uses roll-over walls that lock securely into the base. Because it has an open top, it requires an outer master carton for shipping to the store or distribution center.

Common uses

Retail Shelf Displays
Countertop Point-of-Purchase
In-Plant Kitting
Club Store Merchandising

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Back wall height

Front wall height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What type of products will this display hold?

Do you also need outer shipping boxes for these trays?

How would you like the display printed?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail and Presentation Uses

Retail Shelf Displays

The low front wall and swooping side profile provide clear visibility and easy access for shoppers, while the high back wall offers a primary billboard for branding.

Countertop Point-of-Purchase

Suitable for smaller footprints where products need to be contained neatly near a register without obstructing the view.

In-Plant Kitting

Can be erected on demand at the packing station, loaded with product, and then placed into a master shipper for distribution.

Club Store Merchandising

Organizing bulk goods or multi-packs on pallet displays where shoppers need immediate, unobstructed access to the products.

Retail Channels and Packing Environments

Consumer Packaged Goods (CPG)

Useful for grouping individual retail units, such as pouches, small boxes, or bottles, into a single, shelf-ready presentation unit.

Retail Ready Packaging (RRP)

Fits well into programs that require store staff to simply open a master carton and place the inner tray directly on the shelf.

Food and Beverage

Presenting jars, bottles, or snack pouches on grocery shelves where the high back wall can carry nutritional or brand messaging.

When to Consider a Different Display Style

Need for a standalone shipper

This tray has an open top and cannot be shipped via parcel or freight without an outer box. If you need a display that doubles as its own shipper, compare tear-away display shippers or hood-style display boxes.

High-speed automated packing

The roll-over locking walls are designed for manual assembly. If your packing line relies on automated folder-gluers or tray erectors, a machine-erected glued tray is a better fit.

Board, Print, and Assembly Choices

Board Grade and Flute

E-flute (1.5mm) is a common choice, offering a clean print surface and crisp folds for the roll-over walls. B-flute (3.0mm) can be used for heavier products but requires adjusting the slot widths and double creases to prevent the locks from tearing.

Print Surface

The roll-over construction means the inside of the back wall and the outside of the side and front walls are formed from the same side of the corrugated blank. This allows for continuous graphics on the primary visible surfaces.

Master Carton Sizing

Because this tray does not have a lid, the outer master carton must be sized to accommodate the loaded tray and protect the exposed products from vertical compression during transit.

Packing Labor

The roll-over walls require manual folding and locking. For repeat, high-volume packing lines, weigh the labor cost of hand assembly against the speed of a machine-glued tray.

Adjusting the Display Profile

Front Panel Height

The height of the low front wall can be adjusted to retain taller or heavier products. Changing this height also alters the bottom point of the swooping side profile.

Locking Tab Sizing

The tuck tongues that secure the roll-over walls can be lengthened or widened to provide a tighter lock, depending on the stiffness of the chosen board.

Swoop Profile Curve

The curve cut into the front dust flaps can be made steeper or shallower to reveal more of the primary product face or provide more side retention.

Packing details

Flatbed Production

The swooping curves and locking tongues are produced on flatbed equipment, which is highly repeatable for medium to high volumes but less suited for simple rotary slotters.

Blank Sprawl

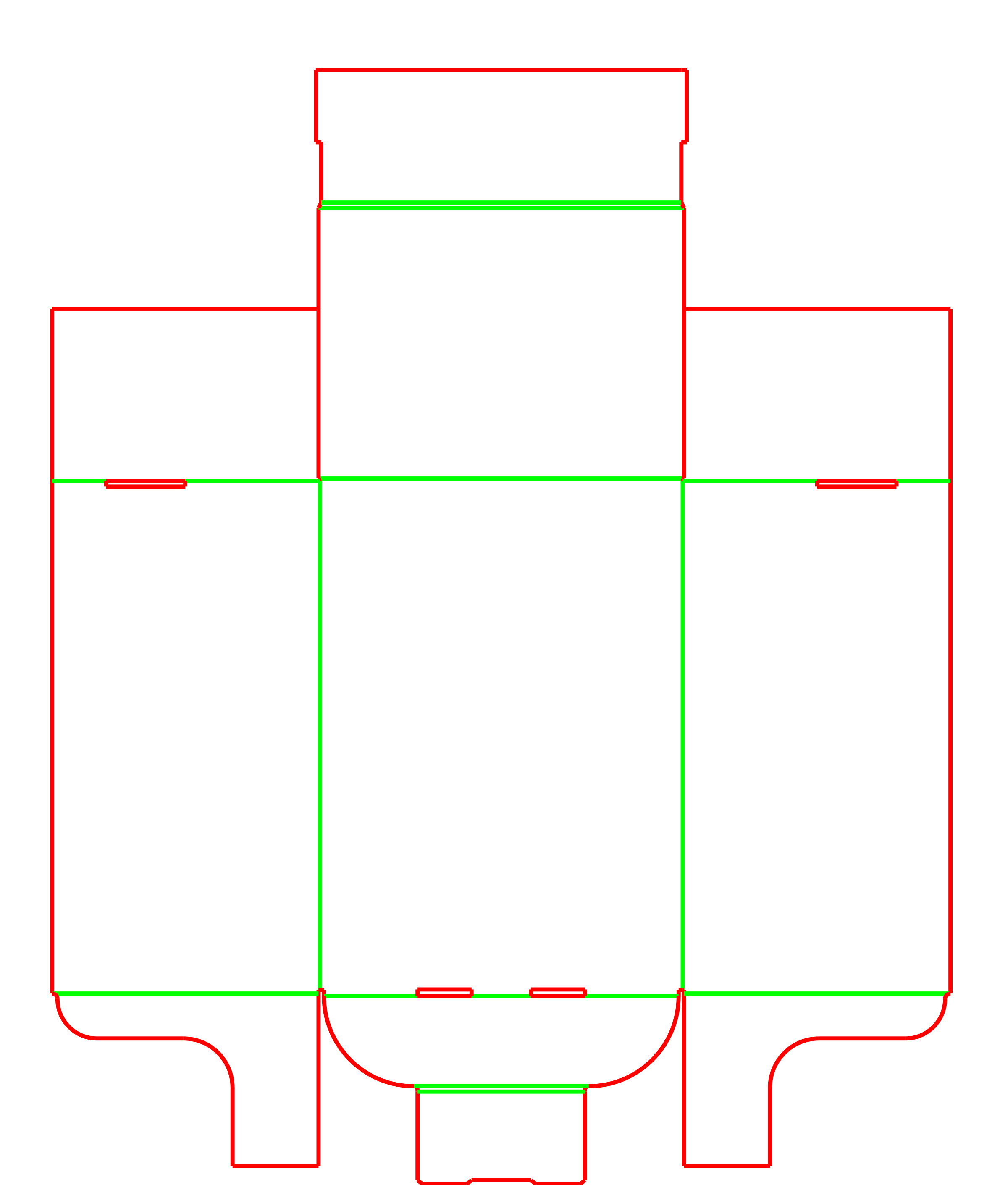

The cross-shaped flat blank, created by the roll-over walls and side flaps, consumes more corrugated board than a simple glued tray. This is the trade-off for achieving a clean, glue-free presentation.

Additional notes

Print panel and label area

The roll-over design exposes the inside of the corrugated board on the back wall and the outside of the board on the front and sides. Discuss two-sided printing if the interior floor of the tray also needs graphics.

Retail shelf loading

Store staff can easily lift the loaded tray from its master carton and place it on the shelf. The high back wall prevents products from falling backward, while the low front ensures immediate shoppability.

FAQs

Does this tray require glue or tape?

The tray is designed for manual assembly without adhesives. The front and back walls roll over the side flaps and lock into slots in the base panel.

Can I ship this tray directly in the mail?

The open top provides no vertical protection or containment for parcel shipping. It must be packed inside a master shipping carton.

Which board thicknesses are suitable?

E-flute (1.5mm) is a common choice for retail displays, providing a good balance of printability and foldability. Heavy double-wall board is not recommended, as the roll-over folds may crack or resist bending.

How is the swooping side profile created?

Unlike some displays where the outer side walls are cut into a curve, this tray uses full-height rectangular side walls. The swooping curve is actually cut into the front dust flaps, which fold inward to sit behind the low front wall.

Can the height of the front wall be changed?

The front panel height can be raised to hold taller products securely, which will also adjust the angle of the swooping side transition.

Will the front wall pop open under product weight?

The front wall is secured by a tuck tongue that locks into the base. For heavier products, the tongue dimensions and base slots must be precisely matched to the board thickness to ensure a strong hold.

How does the tray stay square during packing?

The front and back roll-over walls lock into the base panel, trapping the side flaps. This holds the side walls upright and maintains rigid corners while products are loaded.

Does the tray support interior printing?

The roll-over design naturally exposes the inside of the corrugated board on the back wall. If the interior floor of the tray also needs branding, two-sided printing is required.
