EVC61064

Corrugated Counter Step Display

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Three-piece design: tray, steps, and header
Tiered presentation for small retail items
Requires a separate master shipper for transit

About this product

The EVC61064 is a three-piece corrugated counter display designed to present small, lightweight products in a tiered arrangement. It consists of an outer tray body, an accordion-folded stepped insert, and a removable back header, making it a strong fit for retail point-of-purchase environments.

Because the display is built from three separate components, it offers flexibility for mixed materials or different print finishes on the header versus the base. It requires manual assembly and relies on mechanical locks and friction rather than glue or tape.

Common uses

Cosmetics counters
Packet or sachet dispensers
Small bottle presentations

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Overall width

Overall depth

Overall height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will this display be shipped to retail stores?

What type of products will be placed on the steps?

Do you need a custom shape for the back header?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Counter and Point-of-Purchase Uses

Cosmetics and Small Bottle Presentation

The tiered steps elevate back rows of product, ensuring full visibility for small items like cosmetics, essential oils, or sample bottles. The vertical support ribs under each step help transfer the weight to the base panel.

Packet and Sachet Dispensers

The angled side walls of the outer tray contain lightweight packets or sachets laterally, while the steps keep them organized and accessible for shoppers.

Confectionery and Snack Merchandising

For candy bars, mints, or gum, the stepped insert creates distinct rows that prevent products from sliding forward into a disorganized pile as items are purchased.

Lightweight Hardware and Small Parts

Small boxed items or lightweight hardware components can be separated by tier, making it easier for customers to locate specific sizes or variations on a crowded counter.

Store-Level Setup and Fulfillment

Store-Level Manual Assembly

This display is delivered flat and requires manual folding. The outer tray uses roll-over locking walls, the steps are accordion-folded, and the header slots into the back wall. This setup is straightforward for retail staff but should be factored into rollout planning.

Pre-Packaged Kitting and Transit

If the display is assembled and loaded at a co-packing facility, it will require a separate corrugated master shipper to protect the open top and header during transit to the retail store.

Short-Run Promotional Campaigns

Because the display consists of three separate flat blanks, it is well-suited for digital cutting and printing. This allows brands to run smaller promotional batches without committing to large production volumes.

When to Compare Other Retail Displays

High-Volume Automated Packing Lines

If your packing line relies on automated folder-gluers or case erectors, a multi-piece manual display will create a bottleneck. Consider simpler tray styles if automation is required.

Heavy Product Loads

While the step insert features vertical support ribs, this structure is primarily for lightweight goods. For heavy jars or hardware, a display with reinforced internal partitions or a different material may be necessary.

Print Routing and Board Choices

Print Routing for Separate Components

Because the header, tray body, and steps are separate pieces, they can be printed on different sheets. This allows for a high-gloss, premium finish on the header billboard while keeping the internal steps simple or unprinted.

Flute Grade and Direction

B-flute offers a good balance of rigidity and foldability. For smaller displays requiring crisper folds and better graphic registration, an E-flute may be a better choice. The flute direction on the step insert is critical to ensure the vertical ribs do not buckle.

Master Shipper Selection

This display cannot ship through parcel networks on its own. You must decide whether to ship the components flat in an outer mailer or pre-assemble the display and ship it inside a custom master carton.

Assembly Labor Allocation

The three-piece design relies entirely on manual folding and mechanical locks. Deciding whether store employees or a dedicated co-packing facility will handle this assembly shapes the final cost and rollout timeline.

Step and Header Adjustments

Step Count and Tread Dimensions

The number of steps, as well as the depth and height of each tread, can be adjusted to match your specific product dimensions. Changing these will alter the overall footprint of the outer tray.

Header Shape and Branding

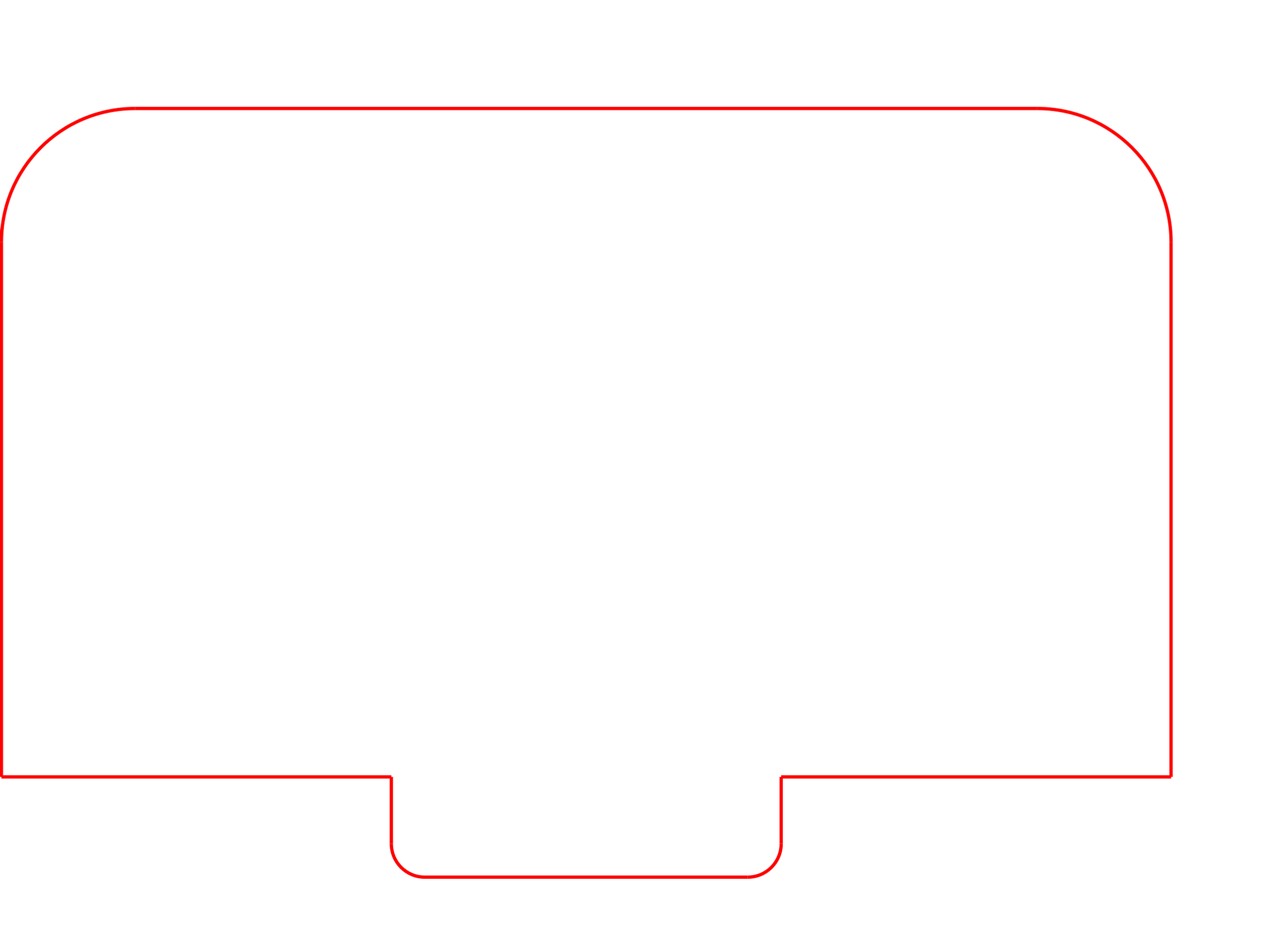

The rectangular header can be die-cut into custom shapes to match brand logos or product silhouettes, provided the bottom mounting tab remains intact to secure it to the tray body.

Front Lip Height

The front wall of the outer tray can be raised to hold taller items securely or lowered to maximize the visibility of the first row of products.

Packing details

Master Shipper Sizing and Header Placement

When designing the master shipper for a pre-loaded display, ensure there is adequate clearance for the header, which sits higher than the tray walls. The header can sometimes be shipped flat alongside the loaded tray to reduce the master carton's height.

Additional notes

Step depth and product clearance

Ensure the depth of each step accommodates your product without it tipping forward, especially for taller bottles or top-heavy items.

Flat delivery versus pre-assembled transit

Shipping the display flat to stores saves transit space but shifts the assembly burden to retail staff. Pre-assembling at a co-packer requires larger master shippers but ensures consistent presentation.

FAQs

Does this display require glue or tape to assemble?

The tray body uses roll-over flaps that tuck into the base, the steps drop in, and the header uses a tab-and-slot connection. It is entirely manually assembled using mechanical locks without glue or tape.

Can this display be shipped directly via parcel networks?

The display has an open top and a protruding header, so it cannot ship on its own. It requires a separate corrugated master shipper to protect it during transit, whether shipped flat or pre-assembled.

Can I print the header differently than the rest of the display?

Because the header is a separate flat blank, it can be run on a different print route or even use a different board finish than the tray body and steps.

How much weight can the steps hold?

The steps feature side flaps that fold backward to act as vertical support ribs, transferring weight to the base. However, the exact capacity depends on the chosen board grade and flute direction, and should be verified with a physical prototype.

Can the number of tiers be changed?

The template can be adjusted for fewer or more steps, which will correspondingly change the size of the step insert and the outer tray body.

Should I request a prototype before ordering?

A physical sample helps verify that your products fit the step depth, that the display supports the weight, and that the manual assembly process fits your store rollout plan.

What happens if my product is too heavy for the steps?

If the load exceeds the capacity of the vertical support ribs, the steps may buckle. For heavy items like glass jars, a different internal partition style or a thicker board grade should be tested.

Can the steps be removed once the display is empty?

The step insert simply drops into the outer tray without adhesive. It can be lifted out if you want to use the base as a simple dump bin later.
