EVC62201

Multi-Step Retail Floor Display

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Four-piece kit: base, body, steps, and header
  • Elevated pedestal design for floor standing
  • Requires manual pack-out and a master shipper

About this product

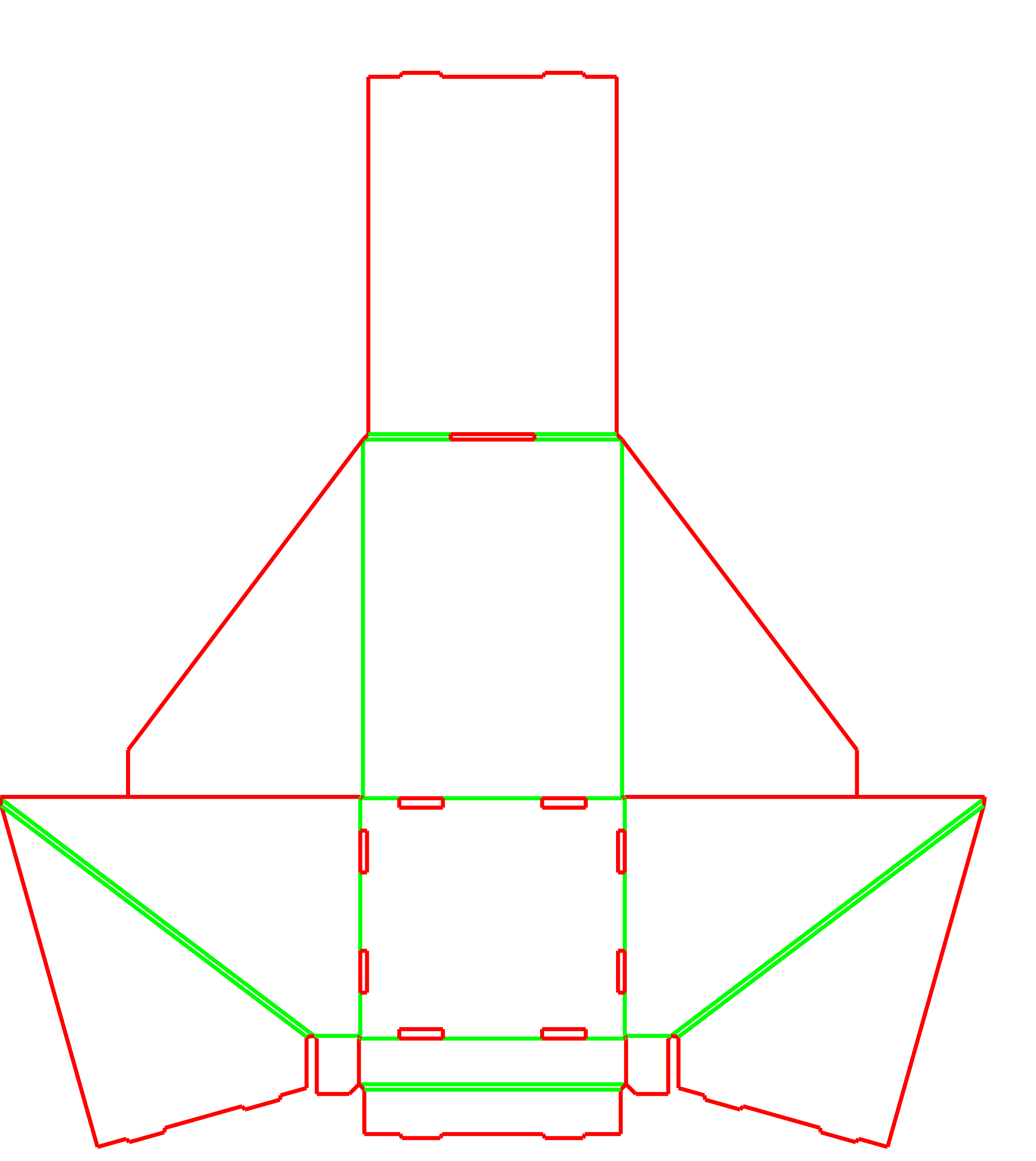

The EVC62201 is a four-piece corrugated floor display designed for freestanding retail promotions. It combines an elevated pedestal base, an angled main body, an accordion-folded step insert, and a removable header card to organize and present products at hand level.

Because it uses four separate components, it offers excellent flexibility for mixing board grades and targeted printing. However, this multi-part design requires manual assembly and a dedicated master shipper for distribution.

Common uses

  • End-cap promotional rollouts
  • Aisle staging for mixed product assortments
  • Seasonal retail campaigns requiring high visibility

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail Staging and Floor Promotions

End-caps and aisle staging

The pedestal base elevates the product assortment to a comfortable shopping height, while the tall rear header provides a billboard for brand messaging in high-traffic retail aisles.

Mixed product assortments

The stepped shelves allow different products, flavors, or sizes to be displayed together. The tiered arrangement ensures that items in the back rows remain visible and accessible.

Seasonal retail campaigns

Because the header card is a separate flat piece, it can be swapped or updated for different holidays or promotions without replacing the entire base and body.

High-visibility product launches

The angled side profile and tiered steps draw attention to new items, making it easier for shoppers to browse multiple SKUs in a single freestanding unit.

Merchandising and Co-Packing

Co-packing operations

When displays are pre-loaded before reaching the store, co-packers must account for the labor of erecting the base and body tubes, folding the steps, loading the product, and sealing the entire unit inside a master transit shipper.

Store-level rollouts

If shipped knocked-down to retail locations, store staff will need clear instructions to assemble the four parts. The base and body open from flat tubes, but the accordion steps require careful seating.

Brand merchandising programs

Marketing teams often use this four-piece setup to mix premium printing on the header and body with cost-effective, heavy-duty board for the hidden pedestal base.

When to Consider Counter Displays

Limited floor space

If retail floor space is unavailable or the total product volume is small, a stepped counter display is often a better choice. Counter units eliminate the pedestal base and reduce the overall footprint.

High-speed fulfillment needs

If the assembly labor of a four-piece kit is too high, consider single-piece pop-up displays. They may offer less customization for the header and steps, but they reduce pack-out time.

Print, Board, and Pack-Out Decisions

Mixing board grades

Because the display is made of four separate parts, the material can be optimized. The pedestal base carries the total weight and may need a heavier board, while the header card can use a thinner, smoother board for high-quality printing.

Master shipper sizing

This display is not meant for direct shipping. You must plan for a corrugated master shipper, whether the display is shipping flat to a fulfillment center or pre-loaded to a retail store.

Inside flap visibility

The top flaps of the main body fold inward and downward to create the angled side walls. This means the inside surface of that corrugated board becomes visible to the shopper and may require printing.

Step load and reinforcement

The horizontal step panels transfer product weight to the vertical risers and the side walls of the body. Very heavy items may require a heavier board grade or a hidden support insert under the steps.

Adjusting Steps, Height, and Headers

Step count and depth

The accordion insert can be modified to feature fewer, deeper steps for large items, or more, shallower steps for small cosmetics or packaged goods.

Header shape

While the template starts with a plain rectangular header, the flat board can be die-cut into custom contours to match brand logos or campaign artwork.

Pedestal height

The base tube can be lengthened or shortened to hit specific retail height requirements, ensuring the product sits exactly where shoppers expect it.

Packing details

Base and body stacking joint

The upper body rests on or sleeves over the pedestal base. Depending on the product weight and retail environment, this joint may require double-sided tape or friction-fit adjustments to prevent the top half from shifting if bumped.

Step load transfer

The horizontal step panels transfer product weight to the vertical risers and the side walls of the body. Very heavy items, like beverages or hardware, may cause the center of the steps to sag unless a reinforcing insert is added underneath.

Additional notes

Pack-out labor and store-level assembly

Four-piece displays carry a higher assembly burden than single-piece pop-ups. Factor this time into co-packing schedules or provide clear instructions if store staff will be building the units.

Inside flap visibility

Because the top flaps of the body fold inward to frame the steps, the interior side of the corrugated board will be visible and should be considered during artwork layout.

Related Retail Displays

FAQs

How is this display assembled?

The base and body are supplied as flat tubes that open into shape. The top and bottom flaps are folded in to create the pedestal and the angled display cavity. The step insert is manually accordion-folded and seated inside the body, and the header card slots into the back.

Can this display ship directly in the mail?

No. Whether shipped flat or fully assembled and loaded with product, this display requires a dedicated corrugated master shipper for freight or parcel handling.

Can the steps hold heavy items?

The steps rely on the side walls of the body for support. While suitable for typical retail goods, heavy items may cause the center of the steps to sag. Heavy payloads often require a heavier board grade or a hidden support insert under the steps.

Do all four pieces need to be printed?

No. Because they are separate parts, you can choose to print only the header and the body, leaving the base and steps plain, or apply different finishes to different components.

Can the number of steps be changed?

Yes. The template can be adjusted to increase or decrease the number of steps, as well as the depth and height of each shelf, to match your specific product dimensions.

Does the display require glue or tape?

The base and body tubes are supplied with manufacturer's glue seams. Field assembly generally relies on folding and slotting, but securing the body to the base often requires double-sided tape for stability in busy retail aisles.

What determines the base height?

The base pedestal can be adjusted during the design phase to elevate your specific product to the target shopping height. This depends on the retail environment and the total height of the assembled unit.

How is the header attached?

The header is a separate flat card that slots into a receiving gap at the top rear of the assembled body. This makes it easy to install or swap out in the field.
