EVC62003

Three-Shelf Slanted Floor Display

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Three gravity-fed slanted shelves with front retaining lips
Removable top header for promotional branding
Ships flat as a multi-piece kit for manual assembly

About this product

This freestanding corrugated floor display features three slanted shelves designed for gravity-fed retail presentation. The angled shelves naturally push products forward as items are removed, keeping the display looking full and organized on the store floor.

Built from seven interlocking components, the display uses a glued base pedestal and a tool-free tab-and-slot upper structure. It ships flat for efficient distribution and requires manual assembly at a kitting center or retail location.

Common uses

Retail end-caps
Aisle promotions
Gravity-fed product rollouts

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Overall width

Overall height

Shelf depth

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What type of products will be displayed on the shelves?

How do you plan to pack and distribute the displays?

What are your printing requirements?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Applications for Slanted Shelves

Gravity-fed retail promotions

The slanted shelves are well-suited for items that need to slide forward automatically, such as boxed goods, packaged snacks, or lightweight bottles. The front lip retains the product while ensuring the facing remains visible.

End-cap and aisle rollouts

With a tall, freestanding profile and a dedicated header card, this display is built to anchor promotional rollouts in high-traffic retail aisles.

Lightweight packaged goods

Because the shelves are angled, they concentrate weight against the front lip. This makes the display a strong fit for lighter items rather than heavy cans or jars that might bow the corrugated board.

High-turnover product presentations

The gravity-feed mechanism reduces the need for store staff to constantly pull products forward, making it useful for fast-moving inventory.

Fulfillment and Store-Floor Setup

Kitting for flat distribution

Because the display consists of seven separate flat components (base halves, side walls, shelves, and header), it must be carefully kitted before shipping to retail locations. All parts are bundled flat to minimize freight volume.

Store-floor tab and slot assembly

While the base pedestal is typically glued during manufacturing, the rest of the display relies on mechanical tab-and-slot connections. Assembly requires no tools or additional adhesive, but the multi-piece design means store staff or kitting teams should be allocated sufficient setup time.

Temporary promotional campaigns

The corrugated construction and manual assembly make this a practical choice for short-term retail events where permanent metal or plastic fixtures are not justified.

When to Consider Flat Shelves or Simpler Displays

Upright stacking and heavy products

If your product is prone to tipping over when placed on an incline, or if you are displaying heavy items that might bow an angled surface, compare this to a standard flat-shelf display. Flat shelves provide a stable, level base for stacked or upright goods.

Limited store-floor labor

If retail staff cannot spare the time to assemble a seven-piece tab-and-slot kit, consider a pre-assembled pop-up display or a simpler stackable tray system that requires fewer steps to erect.

Planning Your Display Run

Shelf angle and product sliding behavior

The default slant angle is 30 degrees, but this can be adjusted based on how easily your product slides. Steeper angles require taller front retaining lips to prevent items from spilling over.

Board strength and shelf bowing risk

Slanted shelves concentrate product weight against the front lip and the side-wall locking tabs. The board grade must be specified and tested against your actual product weight to prevent the shelves from bowing or tearing the side slots.

Print surfaces and litho-lamination

Retail displays often use litho-lamination or high-quality direct print. You can choose to print the entire exterior, including the side walls, header, and the top surfaces of the shelves, depending on your branding needs.

Kitting and fulfillment routing

Decide whether the manufacturer will kit all seven parts into a single master shipper, or if parts will be shipped in bulk to a third-party fulfillment center for packing with the actual product.

Adjusting the Display Profile

Header modifications

The removable header card can be resized, shaped with custom die-cuts, or omitted entirely if the display needs to fit under lower store fixtures.

Shelf count and vertical spacing

While designed for three shelves, the vertical spacing and overall height can be modified to accommodate taller products or to add additional tiers.

Base pedestal height

The height of the bottom base can be adjusted to raise or lower the primary shopping zone, ensuring products sit at a comfortable reach level for customers.

Packing details

Production route and flatbed die-cutting

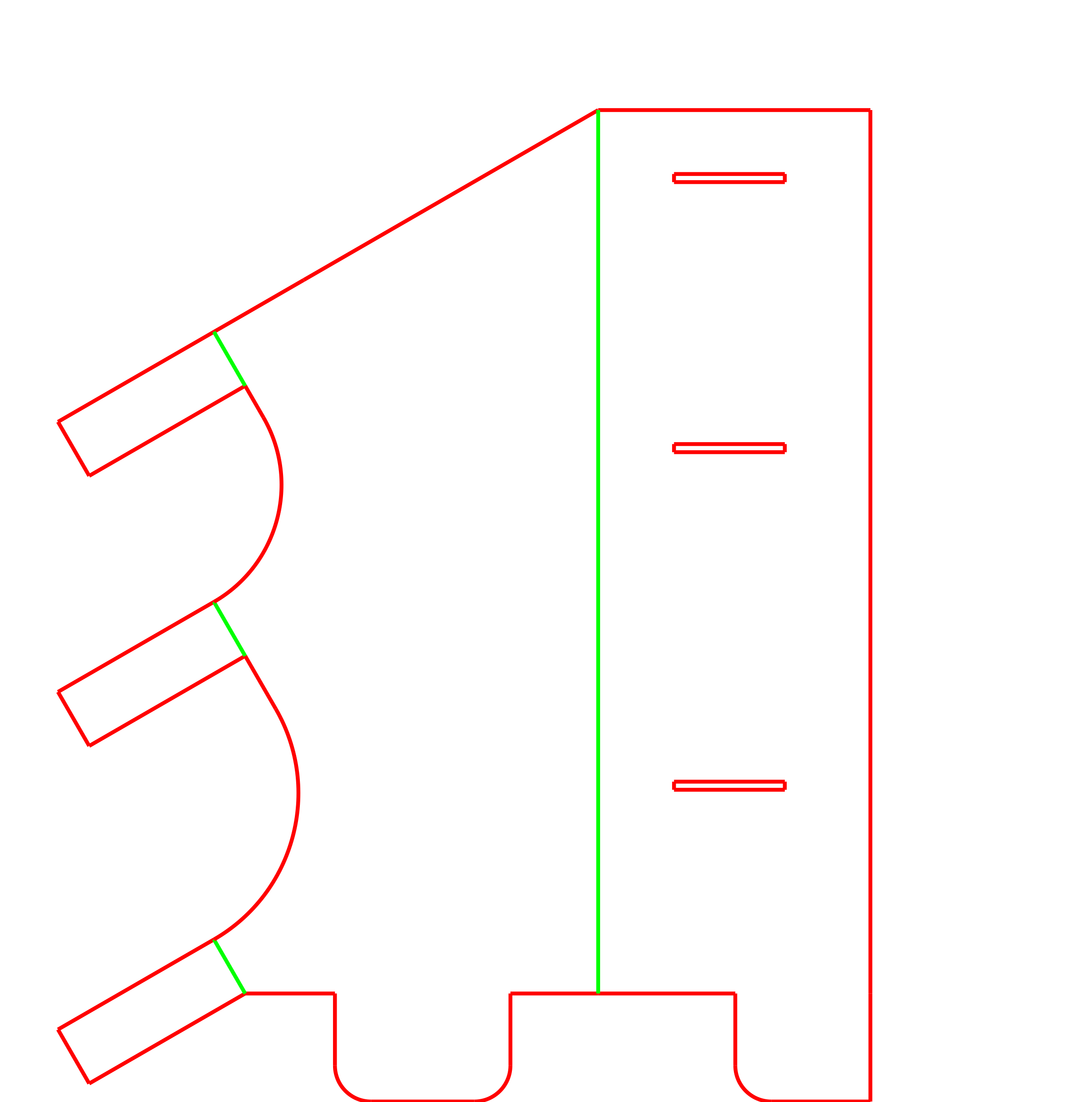

The complex angled slots and scalloped side walls require flatbed die-cutting. The two base halves are typically run through a straight-line folder-gluer before being packed flat with the rest of the components.

Additional notes

Kitting for multi-piece displays

Because this display relies on multiple separate components, missing a single piece prevents assembly. Fulfillment centers must ensure the base halves, both side walls, all three shelves, and the header are bundled securely in the outer shipper.

FAQs

Does this display require glue for assembly?

The base pedestal is usually pre-glued by the manufacturer. The side walls, shelves, and header lock together using manual tab-and-slot connections, requiring no additional tape or glue on the store floor.

How much weight can the slanted shelves hold?

Weight capacity depends entirely on the chosen board grade and the shelf dimensions. Because slanted shelves transfer weight differently than flat shelves, physical load testing with your actual product is a necessary step.

Can the slant angle of the shelves be changed?

The angle can be adjusted during the design phase to match your product's friction and weight. This ensures items slide forward smoothly without spilling over the front lip.

How is this display shipped to stores?

The display is shipped knocked down (KD). Because it contains seven distinct parts, it is typically kitted into a single flat master shipper so that all components arrive together for assembly.

Which parts of the display are usually printed?

Most brands print the outward-facing side walls, the front retaining lips of the shelves, the top surface of the shelves, and the header card. The base pedestal can also be printed.

When should I choose flat shelves over slanted shelves?

Choose flat shelves if your products are heavy, need to be stacked vertically, or are unstable on an incline. Slanted shelves are a strong choice for lightweight, boxed, or packaged goods that benefit from gravity feeding.

Can the base be shipped pre-glued?

Yes, the two-piece base pedestal is typically run through a folder-gluer at the manufacturing facility, allowing it to be shipped flat but ready to open into a rectangular tube.

What board grade makes sense for the shelves?

B-flute or C-flute corrugated are common for the overall structure, but heavy items may require double-wall board for the shelves to prevent them from bowing under the concentrated forward weight.
