EVC62012

Four-Shelf Retail Floor Display with Locking Supports

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Four horizontal shelves locked by vertical load-bearing inserts

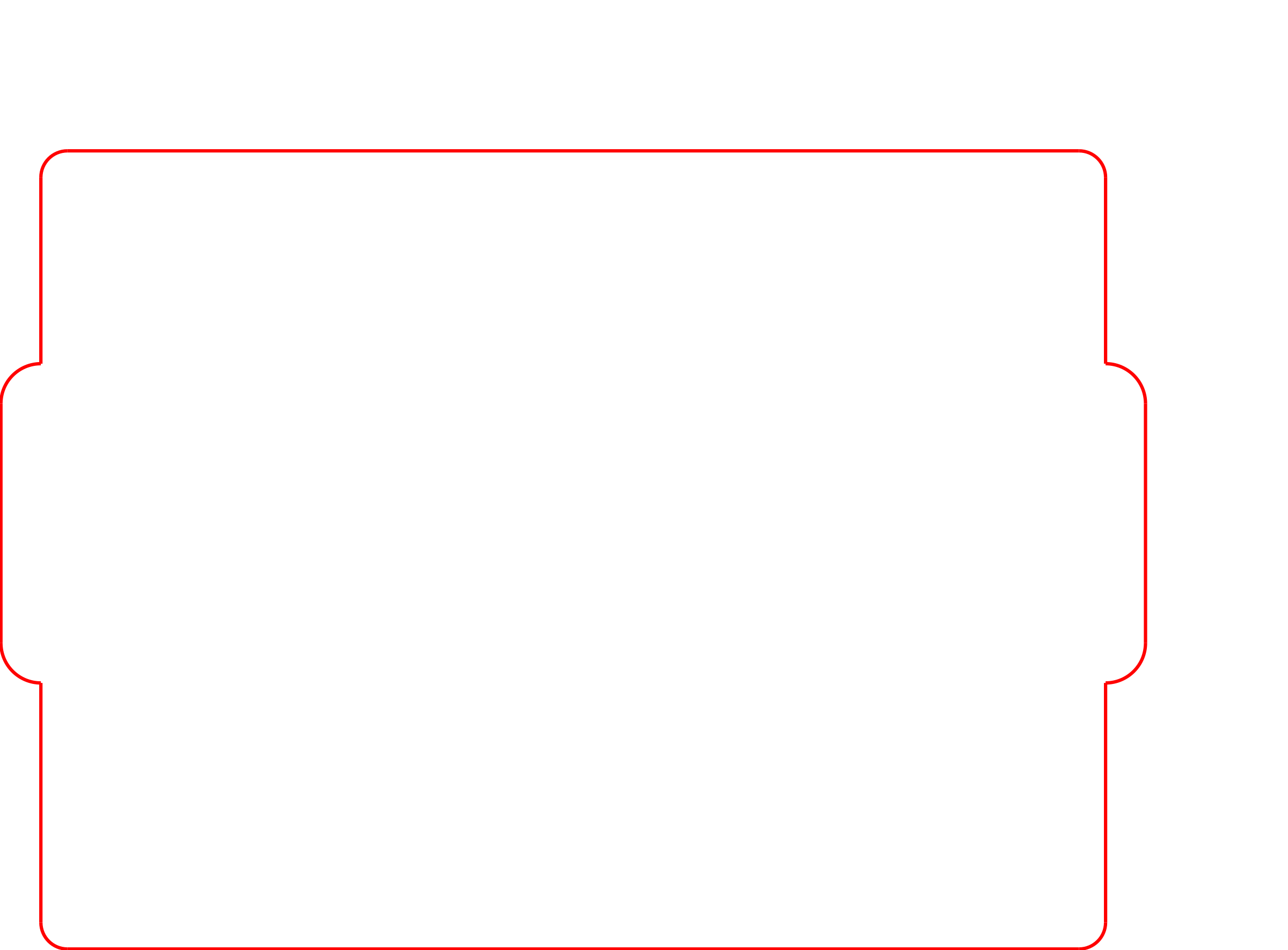

Adhesive-free manual assembly via friction-fit tabs and slots
Integrated top header for primary brand messaging

About this product

This multi-piece corrugated floor display provides four stable tiers for retail point-of-purchase presentations. It uses a unified main body wrap and separate shelf components that lock together using vertical internal struts, eliminating the need for adhesive during setup.

Because the front edges fold inward 180 degrees, the display presents a clean, double-thick profile without exposed corrugated flutes. The entire kit ships flat, making it an efficient choice for co-packers or retail teams preparing promotional rollouts.

Common uses

Retail endcaps
Aisle displays for packaged goods
Co-packed promotional rollouts

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Overall width

Overall depth

Overall height

Usable shelf height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will the display be assembled and shipped?

Will the display be placed in areas prone to wet floors or frequent mopping?

Do you need a custom shape for the top header?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail and Promotional Display Roles

Point-of-Purchase Floor Rollouts

The tall back wall and integrated header create a high-visibility billboard for retail aisles and endcaps. The four shelves provide distinct zones for product families or tiered pricing.

Heavy or Dense Packaged Goods

Instead of relying solely on the side walls, the vertical inserts transfer weight from the center of the shelves down to the floor. This reduces the risk of shelf sagging when displaying heavier items like bottled beverages or dense boxed goods, provided the board grade is matched to the payload.

Aisle-End Promotional Campaigns

The unified body wrap presents a continuous graphic surface on the sides and header, making it useful for endcap placements where shoppers approach from multiple angles.

Seasonal Retail Presentations

Because the entire kit ships flat and assembles without adhesive, it is a practical choice for temporary seasonal promotions that need to be set up quickly on the store floor.

Fulfillment and Assembly Contexts

Co-Packing and Fulfillment Centers

Because the display involves moderate manual assembly (folding the main body, inserting four shelves, and sliding the locking struts into place), it is often built and loaded by dedicated co-packers before being shipped to retail locations on pallets.

Store-Level Assembly

If shipped flat directly to retail stores, staff can assemble the display without tools or glue. The tab-and-slot design helps the display lock together correctly, though the multi-piece nature benefits from clear instructions and floor space to build.

Brand-Managed Retail Distribution

Brands distributing directly to independent retailers can ship these displays flat in outer cartons. The adhesive-free assembly allows store owners to erect the display and stock the shelves themselves.

When to Consider Alternate Display Styles

Pre-loaded stackable displays

If the product is too heavy to ship on a fully assembled display pallet, or if store staff cannot build a multi-piece kit, consider stackable display trays that ship pre-loaded and simply stack on top of one another at the store.

Countertop or shelf-ready trays

If retail floor space is limited or the promotional volume does not justify a freestanding unit, shelf-ready packaging or countertop displays may be a more practical choice.

Key Decisions for Fit and Production

Board Caliper and Slot Tolerances

The friction-fit locking mechanism and the 180-degree front edge returns rely entirely on the physical thickness of the corrugated board. The template's slot widths and double-crease allowances should be matched to the chosen material to keep the shelves from binding or fitting too loosely.

Flatbed Die-Cutting Limits

The main body of this display is a single, large corrugated blank. Depending on the final dimensions, this piece often involves large-format flatbed die-cutting. If the overall size exceeds standard machine envelopes, the back wall may need to be split into a multi-piece assembly.

Base Protection and Floor Contact

Because the corrugated base sits directly on the retail floor, deciding whether to apply a moisture-resistant coating to the bottom panels can help protect the display against floor cleaning and scuffing.

Print Surface and Graphic Layout

The multi-piece nature of the display allows for different printing approaches. The main body wrap can carry primary branding, while the individual shelves can be printed separately to feature specific product tiers.

Structural Adjustments

Header Shape and Height

The top header can be adjusted in height or contour-cut to match brand logos and promotional graphics, as long as the cuts do not interfere with the top shelf's locking slots.

Shelf Spacing

The vertical distance between shelves can be modified to accommodate different product heights. Adjusting the spacing involves updating the slot positions on the main body and the vertical locking inserts.

Shelf Lip Depth

The front folded return on each shelf can be extended to provide more space for pricing labels or to increase product retention for loose items.

Packing details

Front Edge Presentation

The side walls feature return panels that fold 180 degrees inward. This creates a smooth, double-wall thickness at the front of the display, hiding the raw corrugated flutes and providing a premium finish for retail environments.

Additional notes

Moisture risk at the floor level

Because the corrugated base sits directly on the retail floor, consider a moisture-resistant coating for the bottom panels to protect against floor cleaning and scuffing.

FAQs

Does this display need glue or tape to assemble?

The entire display uses a friction-fit tab-and-slot system. The shelves slide into the main body, and vertical inserts slide down through the shelves to lock everything in place.

Can this display be shipped fully assembled?

It can be assembled and loaded by a co-packer and shipped on a pallet, but the assembled unit is not suitable for rough parcel or courier networks. It is intended to ship flat to the point of use or fulfillment center.

How much weight can the shelves hold?

Weight capacity depends entirely on the chosen corrugated board grade and flute profile. The vertical locking inserts help transfer weight to the floor, but physical load testing with the actual product should be completed before a full production run.

How are the shelves supported?

In addition to slotting into the back and side walls, vertical corrugated inserts slide down through the center of the shelves. These inserts act as load-bearing struts, transferring weight directly to the floor.

Why is board thickness so critical for this design?

The display relies on slots and double-creased folds that wrap closely around the material. If the board is thicker or thinner than the template specifies, the locking tabs may not seat correctly, and the front edges may bulge or tear.

Can the shelves be printed?

The shelves are cut from separate corrugated blanks, allowing for custom printing on the top surfaces or the front folded lips to complement the main body graphics.

Can the header shape be customized?

The top header is integrated into the main body blank and can be contour-cut to match brand graphics, provided the cuts do not interfere with the structural slots for the top shelf.

Should we order a prototype before production?

A physical prototype cut on a digital table helps verify that the slot clearances and fold allowances work perfectly with the intended board grade, and confirms the assembly process with your team.
