EVC62028

One-Piece Triangular 3-Shelf Display

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Single-sheet design with three integrated shelves
Triangular footprint fits retail corners
Delivered flat for store-level assembly

About this product

The EVC62028 is a material-efficient, freestanding point-of-purchase display that forms a triangular column. Designed from a single sheet of corrugated board, it creates three integrated shelves by utilizing the negative space of the front face, eliminating the need for separate shelf inserts.

Because it forms a rigid three-sided tube, this display is delivered flat and unglued. The back corner is secured during store-level assembly, making it a practical choice for lightweight retail merchandising where manual setup is planned.

Common uses

Retail corner displays
End-cap merchandising
Lightweight promotional items
Temporary aisle promotions

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Overall width

Overall height

Overall depth

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What type of products will be placed on the shelves?

How will the back corner be secured during store setup?

Do you need a custom shape for the top header panel?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Merchandising and Corner Displays

Corner and End-Cap Merchandising

The triangular footprint allows this display to fit neatly into retail corners or stand freely near end-caps. The three shelves are sized for promotional goods, cosmetics, or packaged snacks.

Single-Sheet Retail Rollouts

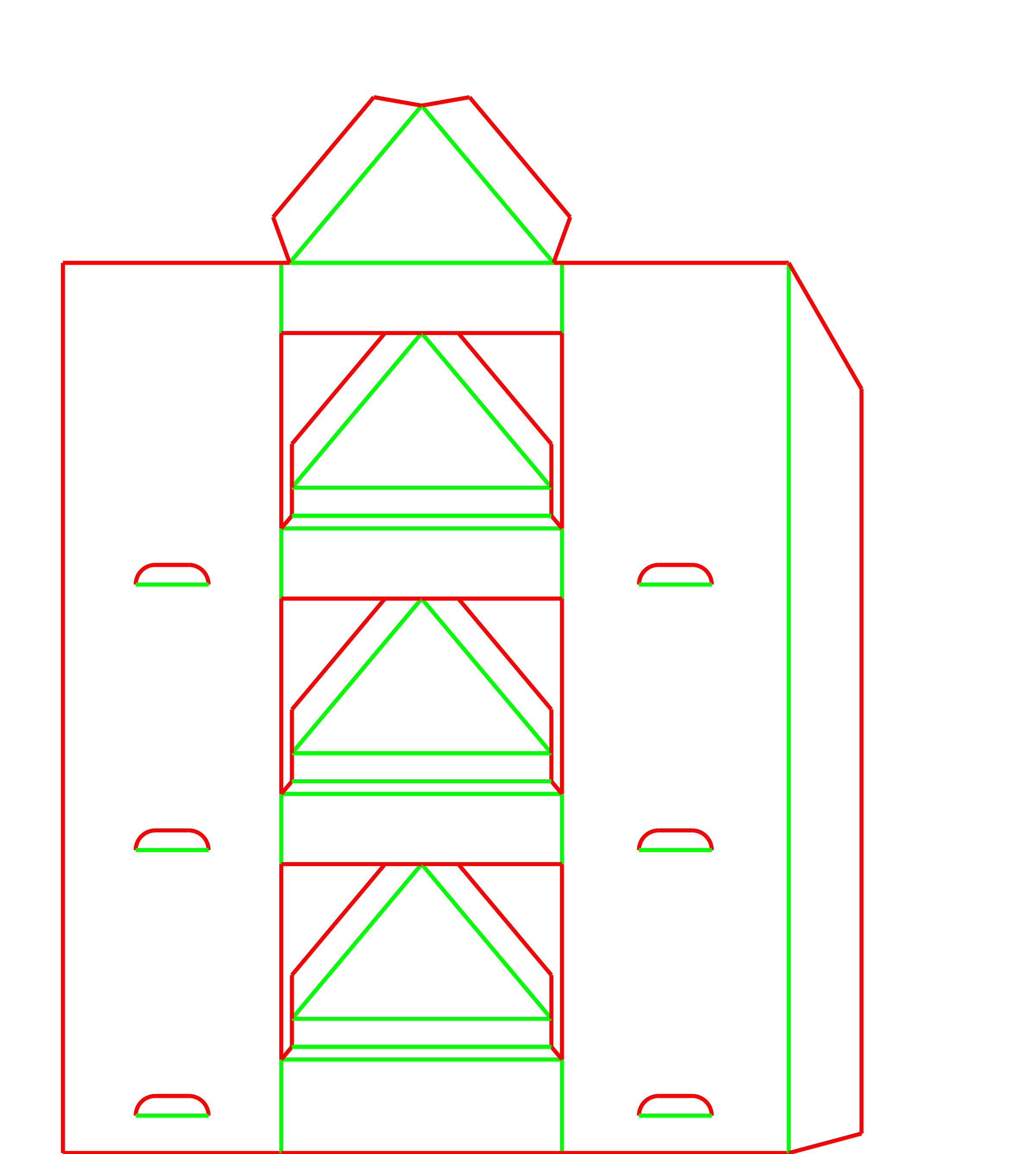

Because the shelves are cut directly from the front face of the display, the entire structure is produced from a single die-cut sheet. This simplifies the bill of materials and eliminates the need to manage separate shelf components for broad retail rollouts.

Lightweight Packaged Goods

The integrated shelf design relies on side-wall slots for support, making it well-suited for lighter items rather than heavy beverage bottles or large hardware.

Temporary Aisle Promotions

The straightforward fold-and-lock assembly makes this a practical choice for short-term seasonal promotions where store staff need to set up the display quickly.

Campaign Rollouts and Store-Level Setup

Store-Level Assembly

This display is shipped flat to the retail location. Store staff fold the side walls back, secure the rear corner joint, and fold the shelves down into their locking slots. Buyers should plan for this manual assembly step.

Flat Distribution to Retailers

The unglued, single-sheet format allows multiple displays to pack densely onto a pallet or inside master shippers, reducing transit space before they reach individual stores.

Brand-Specific Header Customization

Marketing teams often use the top panel as a primary branding surface. The header profile can be modified to match specific campaign graphics or character outlines.

When to Consider Multi-Piece or Rectangular Displays

Heavy Product Loads and Center Support

If you are merchandising heavy items, a one-piece integrated shelf design may not provide enough downward support. Review multi-piece displays that use dedicated, reinforced shelf inserts and load-bearing center dividers.

Pre-Glued Knock-Down Delivery

Because a three-sided tube does not fold flat once the back corner is sealed, this display is delivered unglued. If your fulfillment center requires displays that simply pop open without taping, a standard four-sided auto-bottom display is a better fit.

Board Thickness, Tape Application, and Shelf Load

Board Thickness and Shelf Slot Clearance

The default B-flute provides a smooth printing surface and sufficient stiffness for light goods. Upgrading to C-flute increases vertical crush resistance, but requires widening the side wall slots so the shelf tuck flaps still fit.

Corner Fastening and Tape Application

The back corner joint must be secured to hold the triangular shape. Decide whether to specify pre-applied double-sided tape on the glue flap before distribution, or if retail staff will supply their own adhesive.

Product Weight and Load Distribution

Because the shelves are integrated and rely on side-wall slots, physical load testing with actual products is highly recommended to check for shelf sag before a full production run.

Print Surface Visibility

The front lips, side walls, and top header offer continuous surfaces for retail graphics. Because the shelves fold inward from the front face, the top surface of the shelves will display the inside liner of the corrugated board.

Adjusting Footprint, Spacing, and Header Shape

Header Profile and Branding Shape

The top panel serves as a branding header. While the template defaults to a pentagonal shape, this profile can be easily modified to match brand logos or specific campaign graphics.

Footprint Angle and Shelf Spacing

The overall width, side wall angle, and distance between the shelves can be adjusted to fit specific product dimensions. Changing the side wall angle alters the entire triangular geometry.

Shelf Depth and Tuck Flaps

The depth of the shelves is tied to the side wall angle and the front face width. Adjusting these parameters changes how far back the shelves reach and how the tuck flaps engage with the side slots.

Packing details

Physical Prototyping

Always request a physical sample to verify that the shelf locks hold securely under the intended product weight and that the triangular footprint remains stable.

Additional notes

In-Store Assembly and Tape

To reduce friction for retail staff, specifying pre-applied double-sided tape on the back glue flap allows store employees to simply peel the backing and press the corner together.

FAQs

Can this display be shipped pre-glued and folded flat?

Because it forms a rigid three-sided triangular tube without a collapsing score, it does not fold flat once the back corner is sealed. It is delivered flat and unglued.

How do the shelves stay in place?

The shelves are hinged to the front horizontal lips. They fold downward 90 degrees, and angled tuck flaps on the sides of each shelf insert into pre-cut slots on the side walls.

What is needed to secure the back corner?

The back corner requires adhesive to hold the triangular shape. This is typically handled by specifying pre-applied double-sided tape on the glue flap, allowing store staff to peel and press the joint together.

How much weight can the shelves hold?

Weight capacity depends on the chosen board grade and the product distribution. Because the shelves are integrated, physical load testing with actual products is recommended to check for sagging.

Where can graphics be printed on this display?

Graphics are typically printed on the outside of the blank, which becomes the front lips, the exterior side walls, and the front of the top header.

Will the top of the shelves be printed?

The top surface of the folded shelves will show the unprinted inside liner unless the corrugated board is printed on both sides, because the shelves fold inward from the front face.

Can we change the shape of the top header?

Yes. The top header panel can be custom die-cut to match specific brand shapes, logos, or promotional themes without altering the structural base.

How is this display delivered to retail stores?

It is delivered as a single flat sheet. Multiple displays can be packed densely onto a pallet or inside a master outer carton for distribution.
