EVC62063

360-Degree Corrugated Floor Display

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Four-sided product access for open retail floors
Multi-piece kit with locking shelves and squaring caps
Requires manual assembly at the store or by a co-packer

About this product

The EVC62063 is a freestanding, multi-shelf corrugated display designed for open retail spaces. With large window cutouts on all four sides, it allows shoppers to view and access products from any direction, making it a strong fit for aisle intersections and open floor promotions.

Because it lacks a solid back wall, the vertical weight is carried entirely by four corner posts. This makes it a practical choice for lightweight to medium-weight goods like snacks, cosmetics, or small packaged items, while requiring careful board selection to ensure the locking shelves remain secure.

Common uses

Open retail aisles
Snack and cosmetic promotions
Co-packed pallet displays

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Overall display height

Shelf width

Shelf depth

Distance between shelves

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will this display be assembled and loaded?

What type of products will be displayed?

How many shelves do you need?

What kind of artwork or printing are you planning?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Environments and Product Fit

Open-Aisle Retail Promotions

This display excels in open floor spaces where foot traffic approaches from multiple directions. The 360-degree windows ensure products are visible from any angle, making it very effective for impulse buys, seasonal campaigns, and high-turnover consumer goods.

Lightweight to Medium-Weight Goods

Because the display uses open windows rather than solid walls, the vertical weight is carried entirely by the four corner posts. It is best suited for lighter items like bagged snacks, boxed cosmetics, or small retail kits.

Co-Packed Pallet Programs

Brands often use this design for palletized retail programs. The display can be fully assembled, loaded with product by a co-packer, covered with a corrugated shipping shroud, and sent directly to retail distribution centers.

Multi-Sided Product Launches

When introducing a new product line, the four-sided access allows multiple shoppers to interact with the display simultaneously. This reduces aisle congestion and maximizes the footprint of the promotional space.

Assembly and Fulfillment Paths

Co-Packer Assembly

Many brands choose to have this display assembled and loaded by a co-packer. The loaded display can then be fitted with a corrugated shipping shroud and sent directly to retail distribution centers, allowing store staff to simply remove the outer cover and place the unit on the floor.

Store-Level Setup

If shipped flat directly to retail locations, store staff will need to erect the main tube, attach the top and bottom caps, and lock the shelves into place. While the tongue-and-slot mechanism is straightforward, the multi-piece nature of the kit means assembly takes more time than a simple pop-up bin.

Seasonal and Promotional Campaigns

For short-term retail events, this display provides high visual impact without the cost of permanent fixtures. Once the promotion ends, the entirely corrugated assembly can be broken down for standard paper recycling.

When to Consider a One-Sided Display

Wall Placement or Endcaps

If the display will be placed against a wall or at the end of an aisle, a 360-degree design wastes valuable structural strength. Compare this to a standard one-sided floor display, which uses a solid back wall to support much more weight and provides a large, uninterrupted rear panel for branding.

Heavy Beverage or Canned Goods

When packing dense, heavy items, the open corner-post design may buckle under the vertical load. Compare this to displays with reinforced back walls, double-wall construction, or specialized heavy-duty shelving.

Structural and Production Choices

Board Caliper and Shelf Locks

The shelves lock into the main body using a precise tongue-and-slot system. The width of these slots must exactly match the thickness of the chosen corrugated board. Changing the board grade later in the process requires recalculating the CAD template and ordering new cutting dies.

Print and Surface Finish

The large main body tube and the top/bottom caps are highly visible. Brands often choose litho-lamination for high-quality, photorealistic graphics. If using direct flexo printing, the flute profile should be evaluated for potential shadow or washboarding effects on the artwork.

Shelf Count and Vertical Spacing

The number of shelves and the distance between them must be finalized before production. These dimensions dictate the overall height of the display and cannot be adjusted once the slots are cut.

Assembly Labor Allocation

Decide whether the display will be built at the store or by a co-packer. This choice determines whether you need to design an outer shipping shroud for a fully loaded display or standard flat-pack master cartons for the unassembled kits.

Structural Adjustments

Shelf Count and Spacing

The template can be adjusted to include more or fewer shelves, and the vertical distance between them can be modified to fit specific product heights. Adding shelves increases the overall height of the display and the number of separate pieces in the kit.

Corner Post Width

The width of the four vertical corner posts can be adjusted. Wider posts increase the vertical compression strength of the display but reduce the size of the viewing windows. This balance should be tested with physical mockups based on the actual product weight.

Base and Header Proportions

The solid bottom base and the top header region can be extended or reduced. A taller base raises the bottom shelf to a more accessible height, while a taller header provides more uninterrupted space for primary branding.

Packing details

Large-Format Die-Cutting

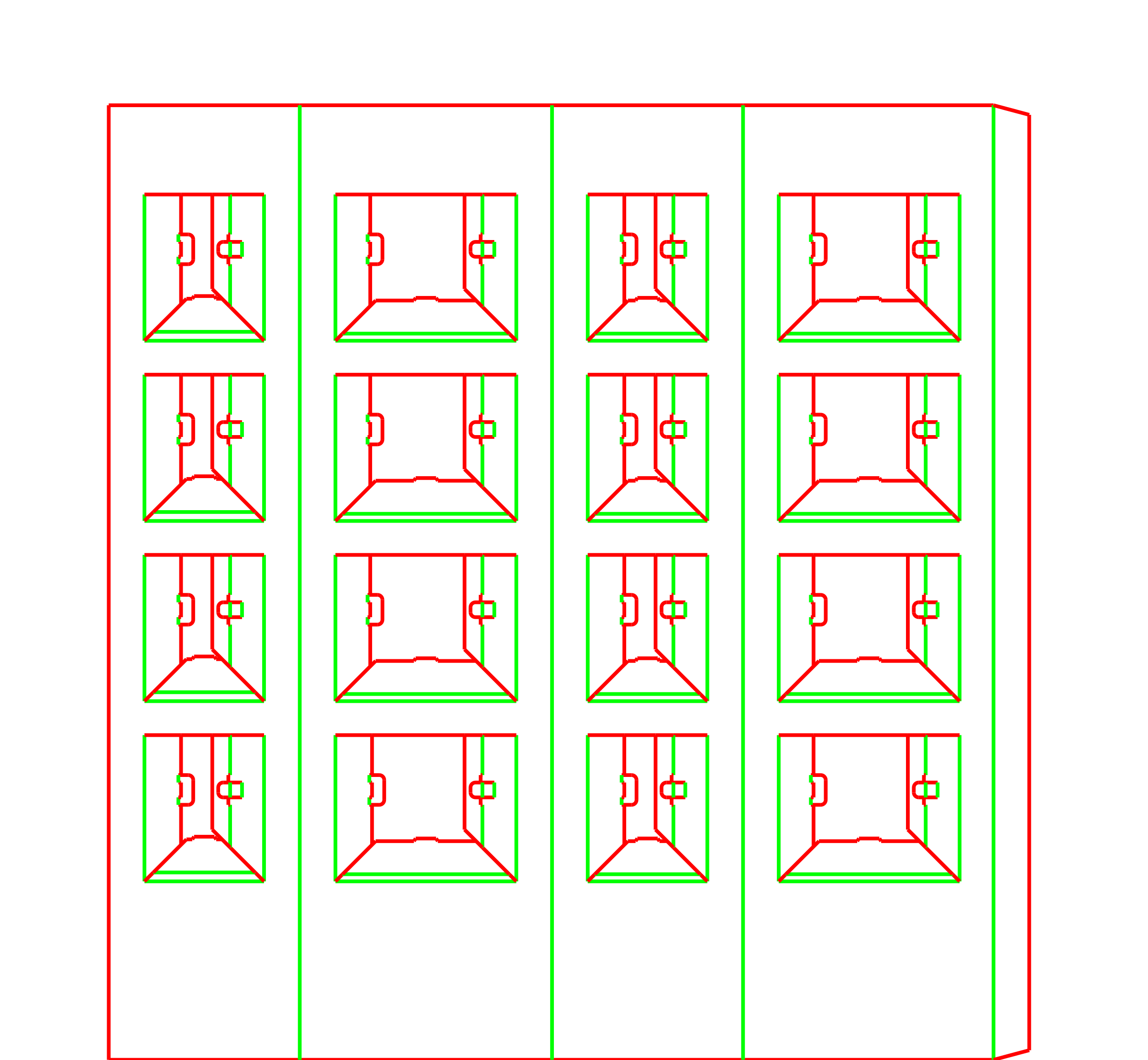

The main body of this display is cut from a single, exceptionally large corrugated blank. This requires large-format flatbed die-cutting equipment and generates substantial material waste from the four window cutouts. The independent shelves and caps are cut separately and can often be nested more efficiently.

Additional notes

Shelf edge flaps

The folded flaps on the perimeter of each shelf do more than just lock into the body; they provide critical rigidity that prevents the shelf from bowing under the weight of the product.

FAQs

How do the shelves stay in place?

Each shelf has folded edge flaps with locking tabs (tongues). These tabs slide into corresponding slots cut into the four corner posts of the main body. The folded flaps also help prevent the shelf from bowing under the weight of the product.

Does this display require glue or tape to assemble?

The main body tube is glued along its side seam by the manufacturer before it is shipped flat. Final assembly at the store or co-packer relies entirely on folding, friction-fit caps, and mechanical tab locks. No additional tape or glue is needed for setup.

How much weight can this display hold?

Because it has open windows on all sides, the weight capacity depends entirely on the width of the corner posts and the strength of the corrugated board. It is generally intended for lighter retail goods. Physical testing with your actual product is necessary before a full production run.

Can this display be shipped through parcel networks?

No. This is a retail floor display, not a shipping container. It is either shipped flat on a pallet to a retail location for assembly, or pre-assembled by a co-packer and shipped inside a protective corrugated master carton or shroud.

Can the shelves be adjusted after the display is assembled?

No. The slots for the shelves are die-cut into the main body at fixed heights. The shelf spacing must be determined during the structural design phase before the cutting dies are made.

Why is board thickness so critical for this design?

The locking tabs on the shelves must fit snugly into the slots on the corner posts. If the board is too thick, the tabs won't fit; if it's too thin, the shelves will be loose and may fail. The exact board material must be chosen before the final template is approved.

What is the purpose of the top and bottom caps?

The separate top and bottom cross-shaped trays cap the ends of the main body tube. They are essential for keeping the tall structure perfectly square and preventing it from twisting or leaning on the retail floor.

How is the main body manufactured and shipped?

The main body is cut from a single, large corrugated blank. The manufacturer folds it and glues the side seam to create a flat tube, which is then shipped flat alongside the separate shelves and caps.
