EVC62060

Two-Sided Multi-Shelf Floor Display

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Two-sided access for center-aisle retail placement
Multi-piece tab-and-slot assembly with a central spine
Independent locking shelves prevent forward pull-out

About this product

This freestanding corrugated display is designed for center aisles and open retail spaces, offering shoppability from two opposite sides. Instead of a single folded sheet, it is a multi-piece kit featuring a central vertical spine, zig-zag side walls, and independent shelves that lock securely into the core.

Because every shelf and base brace is a separate component, this display provides excellent structural stability for retail goods. The tab-and-slot design requires planned assembly time, making it a strong fit for co-packer fulfillment rather than quick store-level setup.

Common uses

Center-aisle grocery promotions
Seasonal endcaps
Lightweight boxed goods
Cosmetics and personal care assortments

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Shelf width

Shelf depth

Number of shelves per side

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will this display be assembled and packed?

What type of products will be placed on the shelves?

How do you plan to print the side walls?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Floor and Center-Aisle Placement

Center-Aisle Merchandising

The two-sided design maximizes product exposure in open floor plans. Shoppers can approach and pick products from either direction, making it highly effective for seasonal promotions and lightweight retail items.

Modular Product Assortments

Because the shelves are independent pieces that slide into the side walls, the display can hold different product sizes on different tiers. The central spine keeps the shelves from tipping or pulling forward during shopper interaction.

Seasonal Retail Promotions

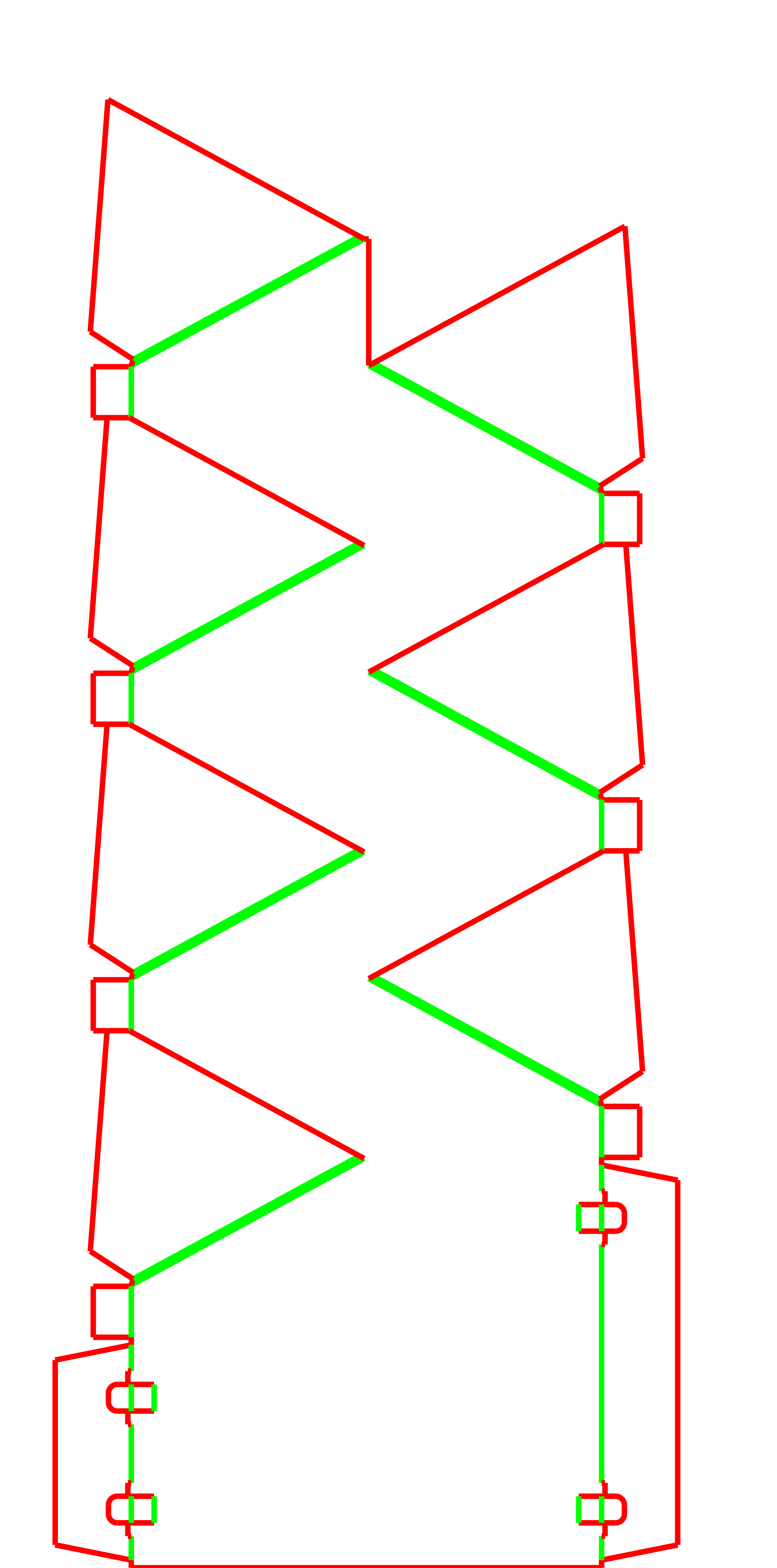

The distinctive zig-zag profile draws attention in busy retail environments. The large side panels and base covers provide ample room for campaign branding.

Lightweight Boxed Goods

This multi-shelf setup handles cosmetics, snacks, and packaged items well. The separate shelves distribute the weight of lighter goods evenly across the side wall ledges.

Merchandising and Co-Packer Fulfillment

Co-Packer and Kitting Operations

This display ships flat as a multi-part kit. Due to the number of components, including two rear walls, two side walls, base covers, and multiple shelves, it is usually assembled and loaded by a co-packer before being shipped to the retail floor.

Grocery and Supermarket Aisles

Wide aisles allow traffic to flow in both directions. A two-sided display captures attention from both ends of the aisle without requiring shoppers to walk around to the front.

Brand Activations

The zig-zag side walls expose both the inner and outer faces of the corrugated board. This creates a unique visual presentation for brands willing to plan for two-sided printing.

When to Consider Single-Sided or Simpler Displays

Single-Sided Wall Placement

If the display will be pushed against a wall or endcap backer, a two-sided structure wastes space and materials. Evaluate a single-sided floor display to reduce footprint and assembly time.

Heavy Beverage or Liquid Bulk

While the central spine adds rigidity, corrugated shelves have weight limits. For heavy liquids or canned goods, a display with reinforced stacking trays or a different material profile should be evaluated.

Board Caliper, Print Surfaces, and Shelf Count

Board Caliper and Slot Tolerances

The locking mechanism relies entirely on exact board thickness. The slots in the central spine and the tongues on the shelves must be cut to match the chosen board grade. Changing from a single-wall to a double-wall board requires updating the entire cutting template.

Two-Sided Print Requirements

The zig-zag side walls expose both their inner and outer faces to the shopper. Depending on the branding requirements, this may require two-sided printing or specific litho-lamination strategies.

Shelf Count and Spacing

The number of shelves and the vertical distance between them can be adjusted to fit the product. Adding shelves increases the number of zig-zag notches on the side walls and requires more board.

Assembly Labor Budget

Factoring in the time needed to erect the spine and insert multiple independent shelves helps determine if this kit fits the fulfillment schedule.

Adjusting Shelf Spacing and Base Height

Shelf Depth and Width

The physical dimensions of the shelves can be expanded or contracted to match specific retail packaging, provided the board strength supports the wider span.

Base Height and Branding

The front bottom covers stabilize the display and dictate how high the first shelf sits off the floor. This lower area can be extended to create a larger continuous branding panel.

Custom Header Cards

The top of the central spine can be modified to accept a slotted header card for additional branding, a common addition for retail rollouts.

Packing details

Physical Load Testing

Because the shelves rest on the zig-zag ledges of the side walls, the weight capacity depends heavily on the board crush resistance. Physical load testing of a fully assembled prototype is strongly recommended before a full production run.

Structural Additions

Header Card Slots

The rear spine panels can be cut with top slots to hold a separate printed header card.

Additional notes

Kitting and outer shippers

If shipping the display knocked-down to a fulfillment center, the flat components will need to be collated and packed into a separate outer shipping carton with assembly instructions.

FAQs

Can retail store staff assemble this display?

While possible, it is not recommended for quick store-level setup. The display is a multi-piece kit requiring the erection of a central spine, base braces, and individual insertion of up to eight shelves. It is best suited for co-packers who assemble and load the display prior to retail delivery.

How much weight can the shelves hold?

Weight capacity depends entirely on the chosen board grade and shelf width. The shelves transfer weight to the zig-zag side walls. For heavier items, a double-wall board may be necessary, which requires adjusting the template locking slots to match the thicker material.

Do the side walls need to be printed on both sides?

Often, yes. Because of the zig-zag profile and the two-sided nature of the display, shoppers will see both the inside and outside faces of the side panels. Discuss your graphic layout early to determine the best printing approach.

How does this display ship to the fulfillment center?

The components ship flat as a knocked-down kit. Because there are multiple loose pieces, they are usually collated and packed into a separate outer shipping carton.

Can we change the distance between shelves?

Yes, the vertical spacing between the shelves can be adjusted during the structural design phase to accommodate taller or shorter products.

What board grade is usually chosen for this display?

A single-wall B or C flute is common for lightweight goods. If the product is heavier, a double-wall board might be required to prevent the shelves from sagging.

What keeps the shelves from pulling forward?

Each shelf features a tongue locking system on its back edge. Once the shelf slides into the side wall notches, this tongue locks into a corresponding slot on the central spine.

Is this display suitable for endcaps?

It depends on the store layout. Because it is designed to be shopped from two opposite sides, it works best in open center aisles. If the endcap blocks one side, a single-sided display is a better choice.
