EVC62102

Slanted Cell Floor Display

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Slanted profile improves visibility and product retention
Interlocking egg-crate grid creates individual product cells
Assembles manually via tab-and-slot connections with no gluing

About this product

The EVC62102 is a multi-piece corrugated floor display designed to present retail merchandise in an organized, slanted grid. By angling the presentation backward, it improves product visibility and naturally keeps items seated in their individual cubbies.

Because it relies on an interlocking matrix of shelves and dividers enclosed by a large outer shell, this display involves manual assembly and multiple components. It is a strong choice for retail rollouts where the premium presentation justifies the setup labor and production planning.

Common uses

Cosmetics and small boxed goods
Beverage or bottle presentation
Assorted retail SKUs that benefit from separation

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Total number of cells

Cell width

Cell depth

Cell height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What type of products will go in the display?

How will the display be assembled and packed?

Do you need a custom shape for the top header?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Presentation and Organization

Multi-SKU Retail Assortments

The individual cells keep different products or variations separated and organized, preventing the display from looking messy as items are shopped.

High-Visibility Point of Purchase

The backward slant angles the products toward the shopper's eye line, making it a practical choice for premium items that benefit from a dedicated presentation.

Small Boxed Goods and Cosmetics

The compartmentalized grid prevents small, lightweight boxes from falling over or shifting, maintaining a neat appearance on the retail floor.

Beverage or Bottle Presentation

The slanted base helps keep cylindrical items seated firmly against the back of each cell, reducing the risk of bottles rolling forward.

Fulfillment and Retail Rollouts

Co-Packer Assembly

This display ships flat as a kit of six distinct parts. It takes manual labor to build the internal grid, fold the base tray, and wrap the large outer body around the assembled grid. Co-packers should plan for this assembly time before loading products.

Retail Floor Placement

Once assembled, the display provides a stable, freestanding footprint. The slanted center of gravity helps prevent forward tipping, provided the display is not loaded with excessively heavy items at the top.

Prototype and Short-Run Testing

Because the large body panel and multiple parts take careful planning, buyers often use digital cutting for short runs to test the assembly process and product fit before committing to a larger rollout.

When to Consider Simpler Displays

Continuous Shelving Needs

If your products are wide or you prefer the flexibility of open shelves rather than individual cubbies, a straight-shelved floor display will be easier to manufacture and assemble.

Fast Retail Setup

If store staff are expected to assemble the display quickly, this complex interlocking design may cause frustration. Consider a simpler pop-up or pre-glued display style instead.

Heavy Bulk Loading

If the display holds dense, heavy items without individual separation, a reinforced bin or standard tiered shelf may offer better vertical crush resistance than a slotted grid.

Manufacturing and Assembly Planning

Board Caliper and Slot Fit

The internal grid relies on intersecting slots. The width of these slots should exactly match the thickness of your chosen corrugated board. If the board changes, the template should be recalculated to prevent the grid from binding or fitting too loosely.

Large-Format Production Routing

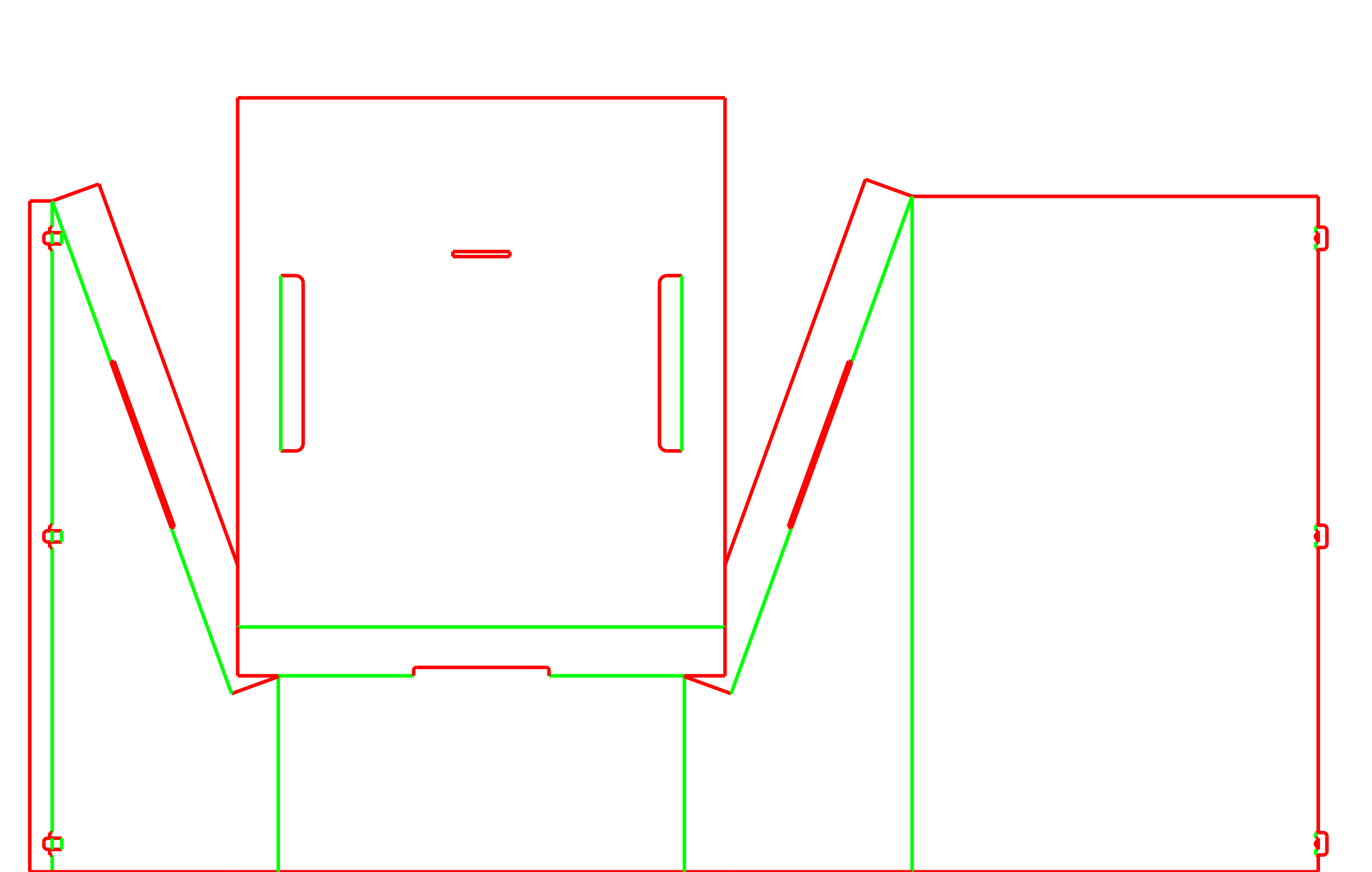

The main body wrap is exceptionally large and often exceeds the limits of common cutting equipment. High-volume runs often point to large-format flatbed cutting, while short runs may rely on digital cutting.

Header Branding Area

The top header panel slots into the main body and serves as a primary billboard for branding. Its shape and height can be customized independently of the main display body.

Pre-Packed Shipping Strategy

This display is not a shipping container. If it is pre-packed by a co-packer, it usually needs a separate, strong outer corrugated shipper to protect it during transit to the retail store.

Configuring the Cell Grid and Slant

Cell Count and Dimensions

The number of columns and rows, as well as the width, depth, and height of each individual cell, can be adjusted to fit your specific product.

Slant Angle

The backward angle of the display can be modified. A steeper slant improves retention but shifts the center of gravity further back, which should be balanced against the base footprint to ensure stability.

Header Shape and Height

The removable header panel can be cut into custom shapes or extended in height to accommodate different branding requirements.

Packing details

Outer Shipper Considerations

If the display is loaded with product before shipping to stores, the entire unit should be placed inside a protective corrugated master carton.

Additional notes

Header panel and branding area

The top header panel slots into the main body and serves as a primary billboard for branding. Its shape and height can be customized independently of the main display body.

FAQs

Does this display need glue to assemble?

No. The entire display relies on mechanical tab-and-slot connections. The shelves and dividers interlock to form the grid, and tuck tongues secure the outer body to the base and internal matrix.

Can this display be set up quickly at the store?

This is a complex, multi-piece display that involves manual labor. It is often better suited for assembly by a co-packer prior to shipping, rather than relying on retail staff for setup.

Why does the board thickness matter so much for this design?

The internal grid is formed by intersecting slots in the corrugated board. If the slot width does not perfectly match the board caliper, the pieces will either bind during assembly or fit too loosely, compromising the display's rigidity.

Are there limitations on producing this display?

The main body panel is very large, which may point to large-format flatbed cutting equipment. Additionally, because it consists of six unique parts, it involves multiple cutting passes, making the initial production planning more involved than simpler displays.

How is this display shipped?

It is manufactured and delivered knocked down (flat). If you plan to ship it fully assembled and loaded with product, you will want to specify a separate outer shipping box.

Can the angle of the display be changed?

Yes, the backward slant can be adjusted during the structural design phase to optimize product visibility and retention, provided the overall center of gravity remains stable.

How are the individual cells formed?

The cells are created by interlocking horizontal shelves and vertical dividers. These pieces feature precise slots that slide together to form a rigid egg-crate matrix.

Can the header panel be customized?

Yes. The header is a separate piece that slots into the top of the main body. It can be cut to custom shapes and heights to match your branding.
