Point-of-purchase retail and product presentation
Point-of-purchase retail
The slanted profile naturally draws the eye and makes lower shelves easier to view without bending. It fits well for end-caps or open floor spaces where a specific product family or promotional assortment needs to stand out.
Lightweight to medium goods
The interlocking corrugated grid provides good support for compartmentalized items like health and beauty products, packaged snacks, or small electronics. Heavy items should be tested carefully, as the slanted center of gravity and corrugated shelf spans have practical limits.
End-cap and aisle promotions
The freestanding nature of the display allows it to be placed at the end of retail aisles or in open promotional spaces. The angled presentation helps capture shopper attention from a distance.
Compartmentalized product sorting
The intersecting shelves and dividers create distinct cells, keeping different product variations, flavors, or colors organized and preventing them from mixing on the shelf.
Co-packing and store-level assembly
Co-packing and kitting
This display needs dedicated manual assembly. The base, shelves, dividers, and walls are folded and locked together using native tabs and slots. Many brands choose to have a co-packer assemble and load the display, then ship it to retail inside a large protective master carton.
Store-level setup
If delivered flat directly to retail locations, store staff will need clear instructions to build the seven-piece unit. The interlocking build avoids the need for glue, but the tab-and-slot assembly takes time and floor space.
Short-term retail campaigns
Corrugated floor displays offer a practical alternative to permanent retail fixtures for seasonal promotions or limited-time product launches. The unit is recyclable after the campaign ends.
When to compare a straight vertical display
Straight vertical presentation
If the products need to sit flat, or if the retail space cannot accommodate the deeper footprint needed to stabilize a slanted display, compare this to a straight vertical floor display.
Pre-packed parcel shipping
If the display needs to ship fully loaded through regular parcel networks, a large seven-piece floor stand may need excessive outer void fill and protection. Compare this to smaller counter displays or pre-packed shipper-displays that are easier to secure for single-parcel transit.
Board strength, print routing, and base protection
Base protection and board strength
The pedestal base carries the entire weight of the display and sits directly on the retail floor. A sturdy double-wall board or a moisture-resistant coating is often used to prevent the base from softening due to floor mopping or scuffing.
Print planning for multiple components

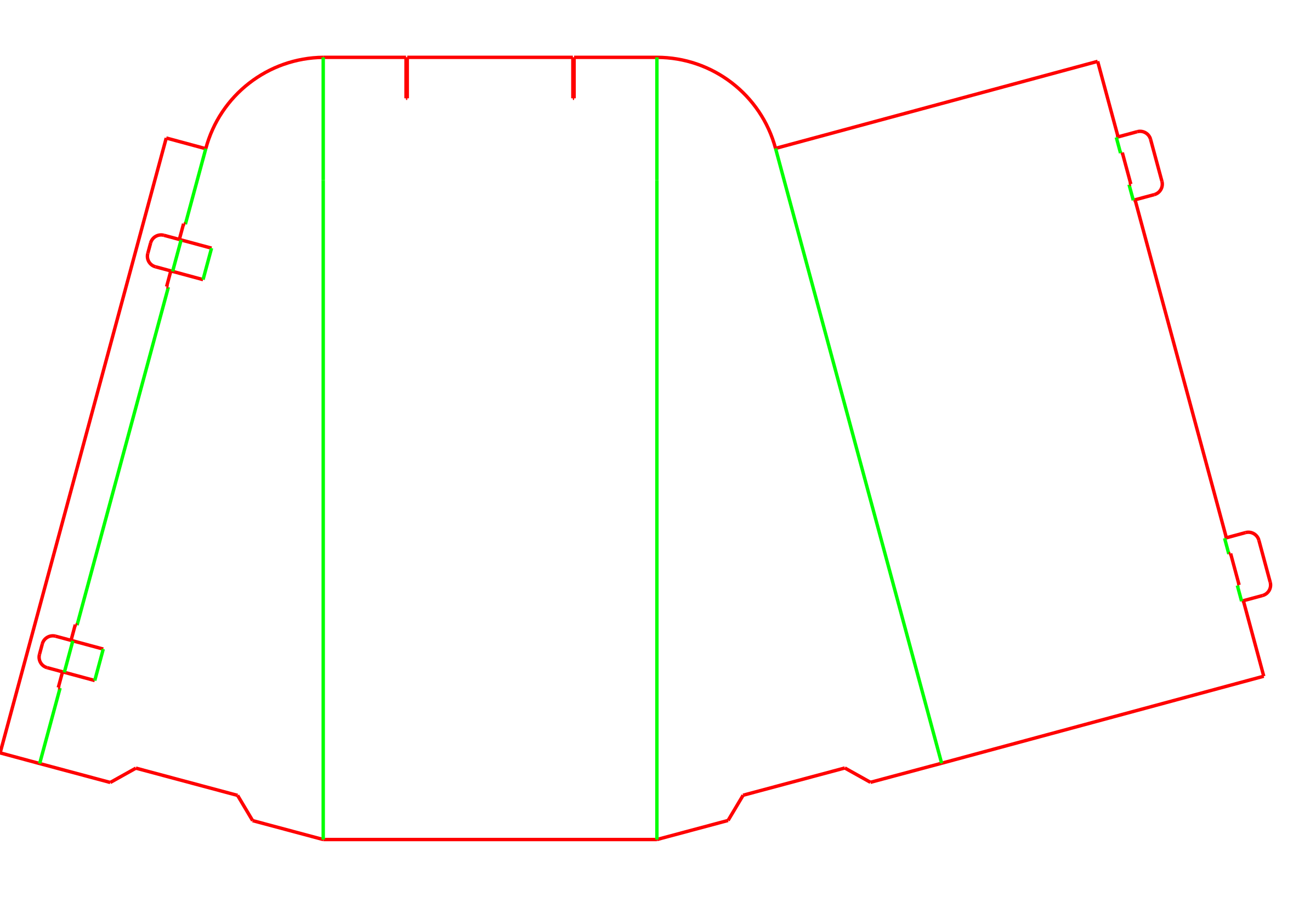

Because the display is made of seven separate blanks, you have the option to choose which pieces receive high-end graphics. The top banner, side walls, and base are primary branding surfaces, while internal dividers might use simpler printing to manage costs.
Shelf weight capacity and board grade
The weight of the retail goods dictates the necessary board strength for the shelves and dividers. Heavier items may need a thicker flute profile to prevent the horizontal spans from sagging over time.
Assembly labor allocation
Decide whether the display will be built by a dedicated co-packer or by retail staff on the floor. This choice affects whether you need to design a large outer master carton for shipping the assembled unit.
Adjusting shelf count and slant angle
Shelf count and compartment sizing
The number of horizontal columns and vertical rows are adjustable to fit the specific product assortment. Changing these dimensions will alter the overall height, width, and center of gravity, which should be checked for stability.
Slant angle and base depth
The backward tilt of the display is adjustable. A steeper angle needs a deeper base footprint to prevent the unit from tipping forward. Any major change to the slant should be validated with a physical prototype.
Top banner shape and height
The top banner is a separate corrugated piece that locks into the rear and side walls. Its height and outer profile are adjustable to match specific brand logos or promotional shapes without changing the main shelving grid.
Packing details
Prototyping and stability testing
Because the slanted profile shifts the center of gravity, cutting a physical sample and testing it with the actual products helps confirm the base footprint is deep enough to prevent tipping and the shelves will support the payload.
Additional notes
Flat delivery and storage before use
Delivering the seven pieces flat to a fulfillment center or retail store minimizes transit volume and reduces freight costs compared to moving empty, pre-assembled displays.
FAQs
How does the multi-piece display assemble?
It is built manually from seven flat pieces. The base folds into a pedestal, the shelves and dividers interlock to form a grid, and the side walls, rear wall, and banner lock the upper unit together before it is seated into the base.
Does the display ship fully assembled to stores?
While a co-packer may assemble and load it, the finished display is too large and fragile for regular parcel courier networks. It should be shipped on a pallet or inside a rigid master shipper if moved fully built.
How much product weight do the slanted shelves support?
Weight capacity depends entirely on the chosen board grade and the width of the shelf spans. The interlocking dividers help transfer weight downward, but heavy items should be physically tested to confirm the shelves do not sag and the slanted base remains stable.
Do all components need full printing?
You have the option to choose high-quality graphics on the most visible pieces, like the banner, side walls, and base, while leaving internal dividers or the rear wall plain or simply printed.
How does the corrugated base handle retail floor conditions?
Because the corrugated base sits directly on the floor, it is exposed to moisture from mopping and impact from foot traffic. Specifying a treated board or adding a plastic mop tray helps protect the base over longer promotional periods.
Is the top banner customizable?
The top banner is a separate piece that locks into the rear and side walls. Its height and shape are adjustable to accommodate specific brand graphics or promotional messaging without altering the main shelf grid.
Are the shelf dimensions adjustable for different products?
The width, depth, and height of the individual compartments are adjustable during the planning phase, which will alter the overall size of the interlocking grid to fit specific retail goods.
Does the display need glue or tape to assemble?
The upper shelving unit uses native tabs and slots to lock together without adhesive. The folded pedestal base may need tape or adhesive depending on the exact fold logic and expected floor movement.
