Retail and Presentation Contexts
Beverage and bottle displays
The deep internal grid separates heavy glass bottles on the retail floor. The body and bottom pad carry the weight, while the dividers help keep individual units upright as shoppers remove inventory.
Rolled goods and tall items
Useful for posters, blueprints, umbrellas, or tall retail cartons that are difficult to stack. The deep cells provide lateral support, helping maintain a neat presentation.
Fragile specialty items
For high-value goods like olive oils, cosmetics, or specialty sauces in tall containers, the individual cells reduce product-to-product contact while keeping the labels facing forward.
Long-handled tools and sporting goods
Organizes items like brooms, bats, or long tools into standing columns, rather than leaving them tangled in an open dump bin.
Fulfillment and Assembly Contexts
Co-packing and manual fulfillment

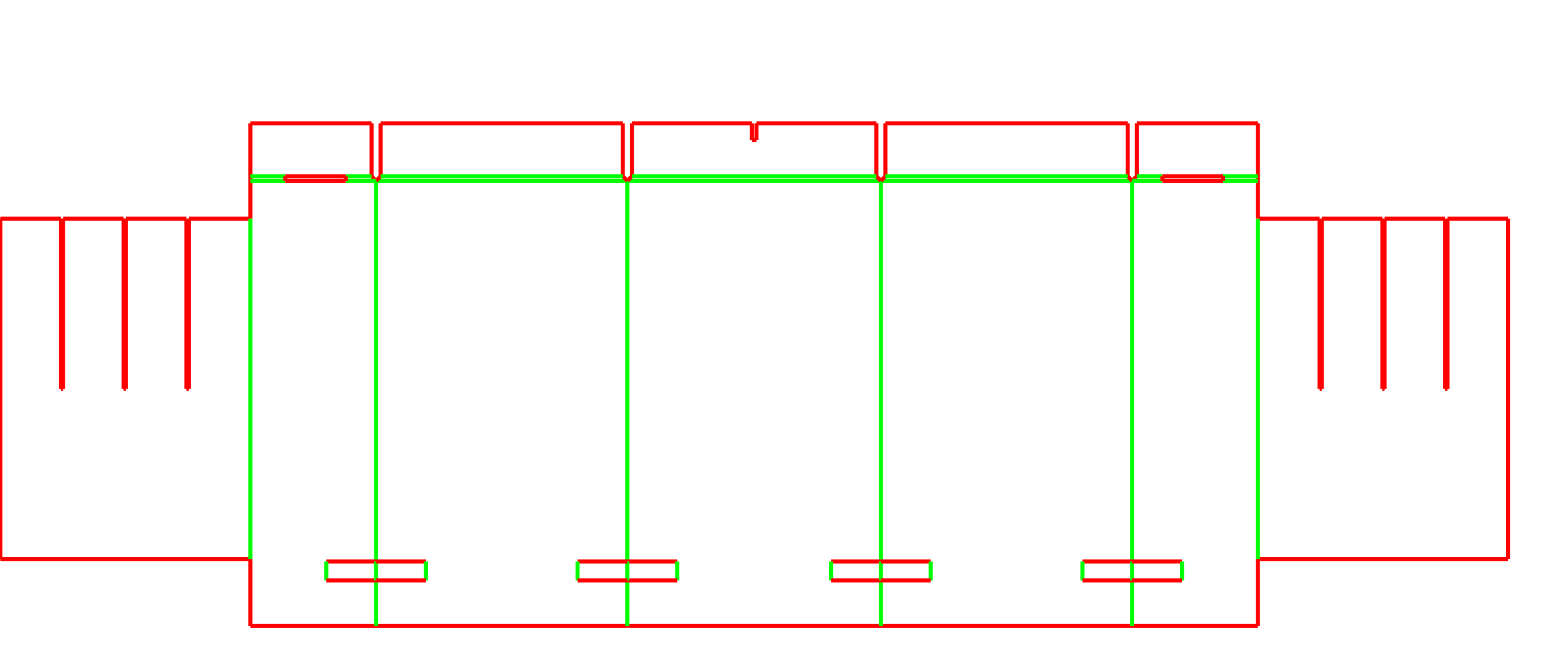

This display relies on manual assembly. The body tube is opened, the bottom flaps are folded inward to create a ledge, the flat pad is dropped in, and the pre-assembled grid is lowered into place. It requires dedicated assembly time before reaching the retail floor.
Retail floor and endcap promotions
Creates a standalone destination for a specific product line, moving inventory off the standard shelf and into high-traffic aisles.
Club store multi-pack presentations
Organizes tall items for bulk retail environments where neatness and strict product separation matter for the shopping experience.
Seasonal or temporary product rollouts
Provides a corrugated display option for short-term campaigns, avoiding the need for permanent store fixtures.
When to Compare Alternative Displays
When automated packing is required
If your volume demands automated case erecting and loading, this multi-piece drop-in display will not fit that workflow. Compare regular boxes with partitions or wrap-around display cases instead.
When lifting fully loaded displays
The bottom of this bin relies on a drop-in pad resting on folded inner flaps. If retail staff frequently lift the entire loaded display by the side walls, a package with a fully glued crash-lock or auto-bottom may be worth comparing to reduce the risk of the base giving way.
Design and Material Choices
Mixed board grades
Because the display is cut from five separate parts, you can mix materials. The body and bottom pad often use a heavier double-wall board for strength, while the header and dividers can use a thinner single-wall board to manage material usage and improve print resolution.
Print and graphic placement
The outer body wrap and the removable header card are the primary surfaces for retail graphics. Decide whether the inside of the body or the divider tops need printing, as this changes the printing route.
Transit packaging
This display has an open top and a removable header. It cannot be shipped through parcel or courier networks on its own. It requires a fitted outer master carton or pallet shroud for transit to the retail store.
Cell dimensions and product fit
The internal grid should be matched closely to the product footprint. A tight fit reduces rattling, while leaving enough clearance for shoppers to remove the product easily.
Grid and Header Modifications
Cell count and dimensions
The internal grid can be adjusted for different product footprints. Changing the number of cells or the cell depth changes the outer body and the divider slots to match.
Header card profile
The shape of the header card can be adjusted for your brand, provided the two insertion tongues remain aligned with the receiving slots on the back wall of the display body.
Base height extension
The front and side walls can be raised or lowered relative to the product height. A lower front wall reveals more of the primary product label, while a higher wall provides more space for display graphics.
Divider height
The interlocking dividers can be made shorter than the outer walls to make grabbing the product easier, or kept flush with the top edge for maximum separation.
Packing details
Production routes for multi-part displays
Producing this display involves cutting five distinct parts. Short trial runs often use digital cutting to prepare the components, while repeat programs typically move to flatbed die-cutting.
Additional notes
Slot width adjustments for board thickness
If you change the board thickness for the dividers, the interlocking slots must be adjusted to match the exact caliper. If the slots are too narrow, the grid will bow; if too wide, the cells will be loose.
Related Display Packaging
FAQs
How does the bottom of the display hold together?
The main body tube has bottom flaps that fold inward 90 degrees to create a perimeter ledge. A separate flat corrugated pad is then dropped down through the top of the tube to rest on this ledge, locking the flaps in place and forming the floor.
Can this display be erected by automated machinery?
The interlocking divider grid, the drop-in bottom pad, and the slotted header card require manual assembly. It is not a fit for automated erecting lines.
Can I use different corrugated flutes for different parts?
It is common to use a stronger, thicker board for the load-bearing body and bottom pad, while using a thinner board for the header card to achieve better print resolution.
Can I ship this display fully loaded?
It can be shipped loaded on a pallet if properly shrouded, but it requires a separate outer master carton for individual transit. The open top and slotted header are not intended for parcel shipping.
How does the header card attach?
The header features two extended tabs (tongues) at its base. These push down into receiving slots cut into the top back edge of the main display body.
Will the bottom hold heavy glass bottles?
The drop-in pad distributes the weight across the folded perimeter ledge. For heavy items like beverages, the board grade of the body and pad must be specified carefully, and the loaded display should be tested to ensure the ledge does not tear if the bin is lifted.
How are the internal dividers assembled?
The lengthwise and widthwise divider panels feature vertical slots. They are manually slotted together to form a rigid grid, which is then lowered into the main display body.
Do I need a separate shipping box for this display?
Because the display has an open top and a removable header, it requires an outer master carton to protect the products and the display itself during transit to the retail store.
