Modular Corrugated Display Bin

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Tool-free horizontal and vertical interlocking
Manual snap-lock base and locking front lip
Ships flat for efficient retail distribution

About this product

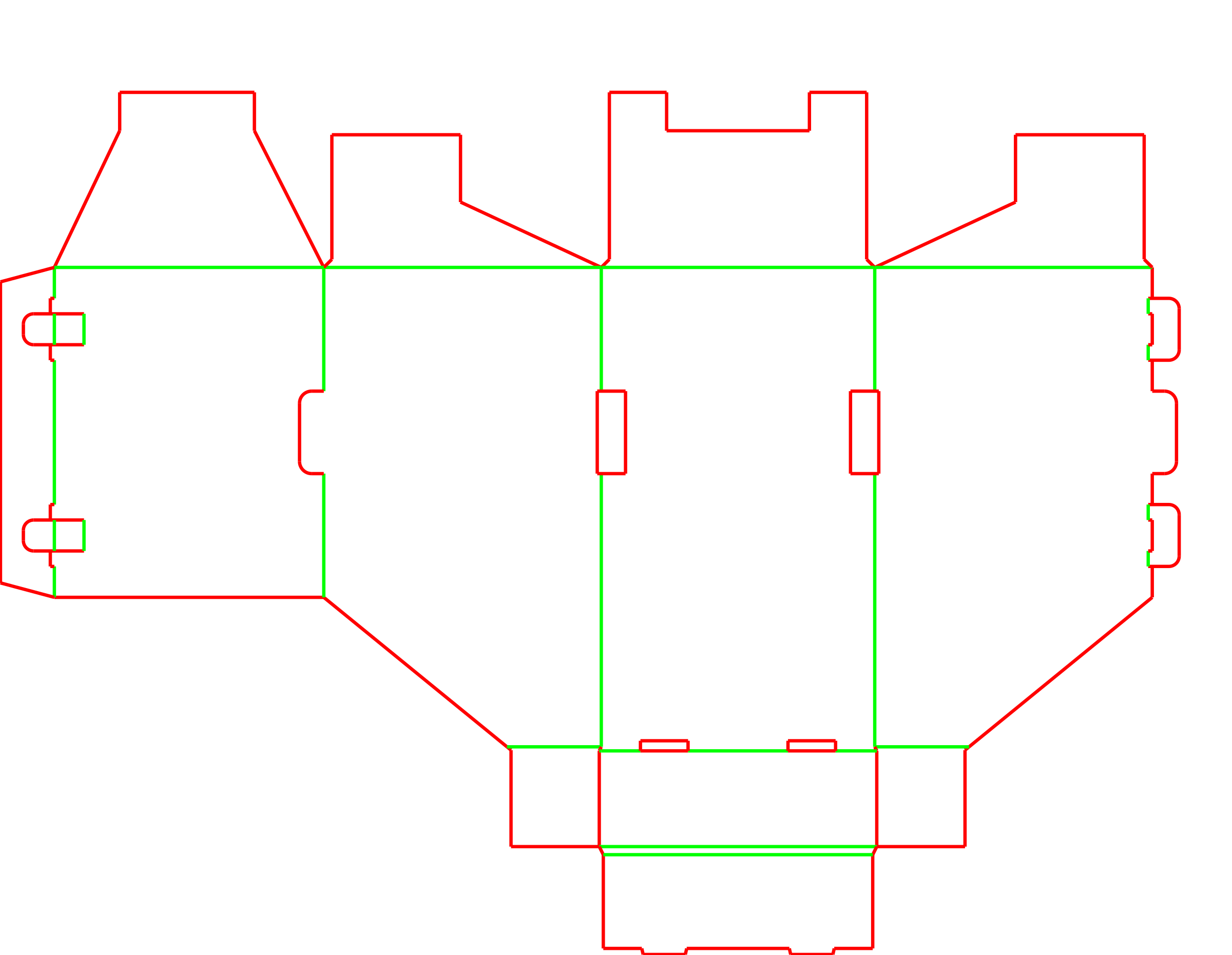

The EVC62801 is a single-piece corrugated bin designed to act as a modular building block. By interlocking multiple identical bins horizontally and vertically, you can construct a custom-sized pick wall or retail display without external hardware, clips, or shelving.

Delivered flat, each bin sets up manually with a snap-lock base and an interlocking front lip. Because the connection tabs rely on friction and precise slot clearances, board thickness and flute direction must be carefully matched to the intended product weight.

Common uses

Retail floor pick walls for seasonal promotions.
In-plant kitting and sorting for lightweight parts.

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Bin width

Bin depth

Back wall height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What is the estimated weight of the items in each bin?

Where will this display wall be set up?

How many bins high do you plan to stack the wall?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Displays and Kitting Walls

Retail floor pick walls

Creates scalable, multi-compartment displays for loose merchandise, allowing store staff to build the exact wall size needed for a promotion or endcap.

In-plant kitting and sorting

Organizes lightweight parts on assembly lines where a temporary, low-cost, and configurable bin system is preferred over permanent plastic bins.

Seasonal promotional endcaps

Provides a temporary, branded structure that can be sized to fit specific aisle endcaps and easily recycled after the promotion ends.

Backroom fulfillment sorting

Acts as a temporary sorting wall for seasonal inventory spikes, allowing fulfillment centers to add pick locations without installing permanent metal racks.

Point-of-Purchase and Assembly Environments

Retail promotions

Useful for planners who need to distribute flat, easy-to-assemble display components to multiple store locations without shipping bulky pre-assembled shelving.

Fulfillment centers

Provides temporary, easily reconfigurable sorting walls for seasonal or changing inventory profiles.

Assembly line staging

Helps production managers organize small components at individual workstations using lightweight, recyclable bins that connect together.

When to Consider Standard Trays or Shelving

Heavy industrial parts

If the payload is dense or heavy, the corrugated tabs and snap-lock base may collapse under vertical load. A heavy-duty stackable tray or permanent plastic bins should be compared.

Single-unit displays

If the goal is a standalone counter bin rather than a multi-cell wall, a simpler open-top display tray without the complex interlocking tabs is easier to manufacture and assemble.

Board Caliper, Flute, and Interlock Clearances

Board thickness and tab clearance

The horizontal and vertical locking tabs are cut to match a specific board caliper. Changing from B-flute to E-flute or C-flute requires recalculating the slot dimensions so the wall holds together without tearing.

Flute direction for stacking

To maximize the vertical strength of the assembled wall, the corrugated flutes should run vertically along the back and side panels.

Base closure strength

The bottom of each bin uses a manual snap-lock closure. For heavier items, this base style should be tested to ensure it does not sag or open when the bin is lifted or suspended in the wall.

Print surface continuity

The outside of the flat blank becomes both the visible interior and exterior of the assembled bin. Artwork should be planned to account for how the interlocking front lip halves meet in the center.

Adjusting Bin Dimensions and Clearances

Front lip height

The front retaining wall can be raised or lowered to balance product containment with visibility and hand access.

Bin width and volume

The overall width of the individual cell can be adjusted, provided the interlocking tabs remain proportional to maintain the wall's stability.

Tongue and slot clearances

The exact width of the locking tongues and receiving slots can be fine-tuned to match the friction and crush characteristics of the chosen corrugated board.

Packing details

Assembly labor

Building a large wall requires forming each bin's snap-lock base, folding the front lip, and physically sliding the tabs into the adjacent bins. This should be factored into retail setup time.

Stripping waste

The flatbed die-cutting process must fully strip the internal slots and cutouts. Unstripped waste will prevent the modular tabs from engaging properly on the retail floor.

Additional notes

Retail assembly time

While tool-free, building a multi-cell wall requires folding and interlocking each individual bin before connecting them. Planners should account for this manual labor when designing store rollouts.

FAQs

Does this bin require clips or tape to connect to other bins?

No. The bins connect using integrated corrugated tabs and slots. The side tabs slide into adjacent bins, and the top back tongues insert into the base of the bin stacked above it.

Can I ship products inside these bins through a parcel network?

No. This is an open-top display component with a manual snap-lock base. It is designed to ship flat to a retail or warehouse location, be assembled, and then loaded with product.

How high can I stack these bins?

The maximum stacking height depends entirely on the chosen board grade, flute direction, and the weight of the product inside each bin. A physical compression test is necessary to validate the final wall configuration.

Can this be run on automated folder-gluer machines?

No. The blank is a complex flatbed die-cut designed for manual, tool-free assembly on-site. It does not form a simple glued tube.

Can I change the corrugated material later without redesigning the bin?

Changing the board thickness usually requires adjusting the CAD file. The interlocking slots are sized for a specific caliper; if the board is too thick, the tabs will bind and tear, and if it is too thin, the wall will be loose.

What should a prototype test focus on?

A sample run should verify that store staff can easily engage the horizontal and vertical locks, and that the assembled wall remains stable when fully loaded with your specific product.

Which panels are visible for printing once the wall is built?

The outside of the flat blank forms both the exterior side walls and the interior floor and back wall of the bin. The front lip is formed by folding the side panels inward, meaning the outside print will be visible on the front face.

How does the bottom of the bin close?

The base uses a manual 1-2-3 snap-lock closure. The bottom flaps fold in and interlock without tape or glue, providing a floor that can support lightweight to medium-weight loose items.
