Retail Applications for Grid Displays
Cosmetics and Packaged Accessories
Well-suited for small, lightweight items. The individual shelves separate products cleanly, giving each item its own dedicated space on the display wall.
Endcap and Wall-Leaning Showcases
Works well as a freestanding or wall-leaning unit where a large, organized visual grid is needed to attract customer attention.
Small Electronics Presentation
Organizes boxed cables, chargers, or small devices. The protruding shelves allow customers to view individual items without digging through a shared bin.
Lightweight Snack Displays
Provides a structured presentation for bagged or boxed snacks, keeping the retail presentation orderly across multiple rows and columns.
Store Formats and Fulfillment
Store-Level Assembly
This display is delivered flat as a kit containing the front panel, rear panel, and all individual shelves. Store staff must erect the main hollow wall and individually fold and insert each shelf. This high manual burden should be factored into your retail rollout plan.
Flat Delivery and Kitting
Because the display is composed of many flat pieces, it ships efficiently. The large wall panels and nested shelf blanks can be kitted together to minimize freight space before reaching the retail location.
Planned Retail Resets
Due to the assembly time required for the main wall and dozens of individual shelves, this structure fits best into planned seasonal resets rather than quick, temporary promotions.
When to Compare Other Retail Displays
Heavy or Bulky Products
The cantilever shelves rely on corrugated brackets resting against the front wall. If your products are heavy, these brackets can crush or tear the mounting slots. For heavier items, consider displays with solid horizontal shelves and vertical dividers.
Rapid Deployment Needs
If store staff have limited time to set up displays, a multi-piece kit with dozens of individual shelves may not be practical. Consider pop-up displays or pre-assembled units if speed is critical.
Board, Fit, and Route Decisions
Shelf Count and Wall Size
The number of shelves and the distance between them dictate the overall size of the front and rear wall panels. Adding more shelves will increase the height and width of the display, which may eventually exceed production equipment limits or retail floor space restrictions.
Physical Load Testing
Before committing to a production run, a prototype must be cut and loaded with your actual products. This verifies that the shelf brackets and the front panel slots can handle the downward weight without tearing.
Board Grade Selection
A sturdy board, such as B or C flute, is usually required to provide enough rigidity for the main wall and tear resistance for the shelf slots. Thinner boards are generally too weak to support the cantilever hooks under load.
Shelf Depth and Leverage
The depth of the individual shelves changes how weight transfers to the main wall. Deeper shelves protrude further, increasing the leverage and stress on the mounting slots, making load testing even more critical.
Adjusting the Shelf Grid
Grid Layout and Spacing
The display can be configured with any number of rows and columns. The horizontal and vertical distance between the shelves can also be adjusted to accommodate different product sizes.
Shelf Dimensions
The width and depth of the individual shelves can be modified to match the product footprint.
Wall Depth
The depth of the hollow main wall can be adjusted. When the wall depth changes, the rear tongues on the shelves automatically lengthen to ensure they still reach the back panel and lock the structure together.
Packing details
Production Route for Large Wall Panels
The front and rear panels of a multi-shelf display are often very large. Depending on the final dimensions, they may require large-format flatbed die-cutting or digital CNC routing, which influences the production method.
Additional notes
Cantilever shelf mechanics and failure risks
The shelves transfer downward weight into compressive force against the front wall and tension on the locking hooks. The most common failure point is the hooks tearing downward through the corrugated board if the product is too heavy.
FAQs
How long does it take to assemble this display?
Assembly time depends on the number of shelves. The main wall must be erected first, and then each shelf must be individually folded, inserted into the front slots, and pushed back to lock into the rear panel. This is a labor-intensive process best suited for planned retail resets.
How much weight can each shelf hold?
Weight capacity depends entirely on the chosen board grade, the depth of the shelf, and the product's weight distribution. Because the shelves are cantilevered, they are vulnerable to tearing the front panel slots if overloaded. Physical testing with your actual product is mandatory.
Can this display be shipped fully assembled with products?
No. The cantilever shelves are vulnerable to impact and vibration during transit. This display must be shipped flat as a kit and assembled at the final retail location.
Can I add a branded header to the display?
Yes. A header panel can typically be integrated into the top perimeter flap of the front wall, or added as a separate piece, to provide additional branding space above the shelf grid.
Why does the main wall need to be hollow?
The hollow depth provides structural stability for the large display and creates the necessary distance for the shelf tongues to span between the front and rear panels, locking the entire assembly together.
How do the individual shelves attach to the wall?

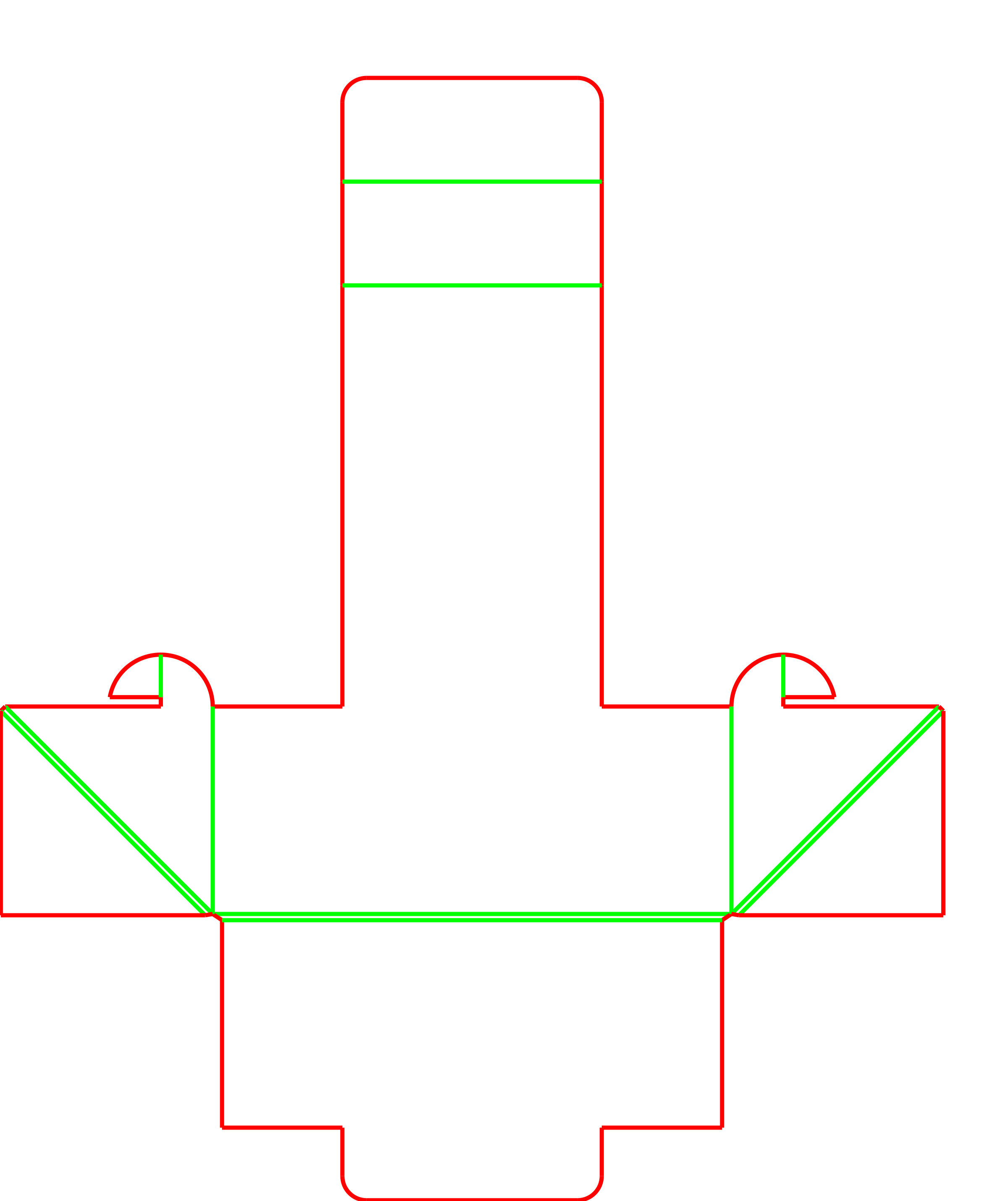

Each shelf features a rear tongue that passes through a horizontal slot in the front panel and seats into the rear panel. Triangular side brackets on the shelf fold down and hook into vertical slots on the front panel to provide cantilever support.
Can the distance between the shelves be adjusted?
Yes. The horizontal and vertical spacing between the shelves can be modified to fit your specific product dimensions, which will automatically adjust the overall size of the main wall panels.
What board grade provides enough rigidity for the main wall?
A sturdy board, such as B or C flute, is usually required to provide enough rigidity for the hollow main wall and tear resistance for the shelf slots. Thinner boards like E flute are generally too weak to support the cantilever hooks under load.
