ECMA A30.21.03.03

Reinforced Hanger Carton with Scissor-Lock Bottom

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Double-thick hanger tab resists tearing on retail pegboards
Scissor-lock bottom holds more weight without requiring tape
Front of the hanger tab usually needs two-sided printing

About this product

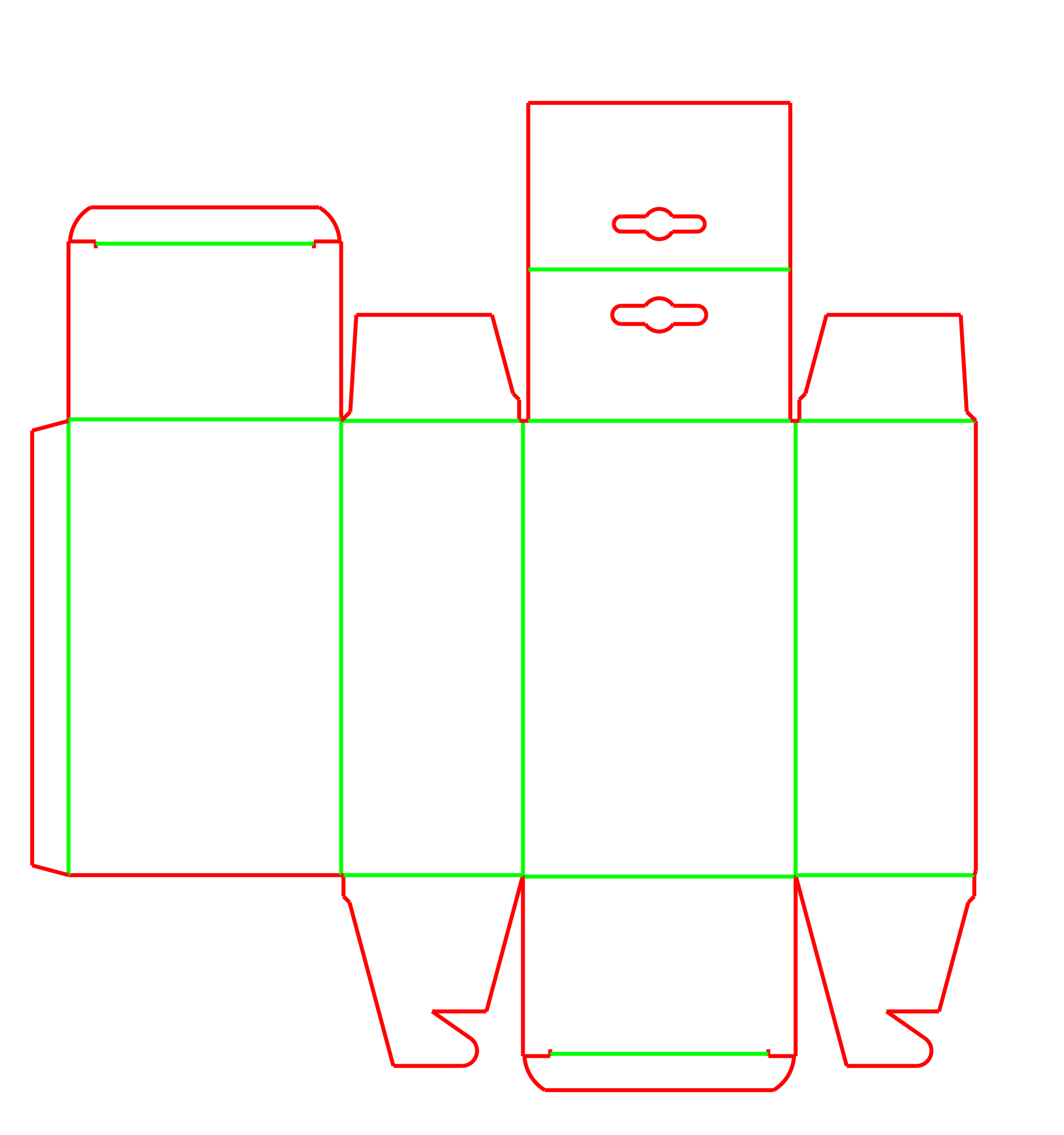

This retail display carton is built for pegboard environments where product security matters. It features an extended rear panel that folds completely over to create a double-thick, tear-resistant Euro-hole hanger, while the bottom uses a scissor-lock system to hold heavier items than a standard tuck flap.

Because the hanger tab folds 180 degrees, this design relies on careful board selection to help prevent cracking and specific print planning to ensure graphics appear correctly on the folded header.

Common uses

Cosmetics and beauty accessories
Small electronics and cables
Light hardware and tools

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Height

Size notes

Quantity notes

Materials and print

Paperboard preference

Add details for paperboard preference

Paperboard details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Display and Pegboard Applications

Pegboard displays for medium-weight items

The double-thick hanger tab provides added tear resistance, making this carton a strong fit for items that might pull through a single-ply header. The scissor-lock bottom adds security by catching the internal dust flaps, helping to keep the base closed under the product's weight.

High-handling retail environments

For products that are frequently removed and replaced on display hooks, the reinforced header maintains a clean appearance longer than standard tabs. The tuck-in top allows retail staff to easily load or inspect the product before placing it on the floor.

Hand-packed retail programs

Because the scissor lock and folded header require manual manipulation, this carton is well-suited for hand-packing operations rather than high-speed automated cartoning lines.

Products requiring bottom security without tape

When a clean retail appearance is necessary and tape is not desired, the mechanical scissor lock provides a secure base that stays closed on the shelf or pegboard.

Product Categories and Merchandising

Electronics accessories and cables

Heavier charging cables, adapters, and small tech accessories benefit from the secure bottom lock, helping to keep the product secure while hanging on crowded retail racks.

Cosmetics and personal care

The smooth surfaces of folding boxboard support high-quality graphics, while the reinforced header keeps premium products looking pristine on the pegboard.

Small hardware and DIY tools

Lightweight tools and hardware components that might tear a standard single-ply hanger tab can be displayed safely using the double-thick folded header.

When to Consider Simpler Hanger Cartons

Very light products

If the product is extremely light, the double-thick hanger and scissor lock may be unnecessary. A standard friction-tuck bottom or a single-ply hanger tab can reduce board usage and simplify hand assembly.

Direct parcel shipping

This carton is designed for retail presentation, not courier networks. The hanger tab and tuck flaps can catch in sorting equipment. For direct-to-consumer shipping, this carton should be placed inside a protective outer shipper.

Board Selection and Print Layout

Two-sided print requirements for the header

Because the extended rear panel folds 180 degrees forward to create the double-thick tab, the front of the hanger is actually formed by the inside surface of the board. If you need graphics on the front of the hanger tab, the board usually needs printing on both sides.

Board thickness and folding endurance

The 180-degree fold on the hanger tab is sensitive to board thickness. Thick or brittle materials will crack, exposing raw fibers. This design usually relies on a flexible folding boxboard (FBB or SBS) and is not suitable for corrugated materials.

Hand assembly and packing labor

While the side seam is machine-glued, the final setup is manual. Packers pop the carton open, engage the bottom scissor locks carefully, load the product, fold the hanger tab over, and insert the top tuck. This takes slightly more time than a standard straight-tuck box.

Outer shipping requirements

Because the hanger tab extends above the main body, these cartons require careful arrangement inside master shippers to avoid crushing the headers during transit.

Hanger Hole and Lock Adjustments

Hanger hole shape and placement

The standard Euro-hole can be adjusted in width, height, and placement to match specific retail pegboard requirements, or changed to a simple round hole for single-hook displays.

Scissor lock tension

The depth and offset of the bottom locking slits can be fine-tuned based on the exact board thickness and product weight to ensure the bottom stays secure without being too difficult for packers to engage.

Extended panel height

The height of the folded hanger panel can be increased to provide more billboard space for branding or product information above the main carton body.

Board and packing details

Nesting efficiency and board waste

The extended panel required to create the double-thick hanger makes the flat blank longer than a standard carton. This reduces how many blanks can fit on a single sheet of board, which can affect material efficiency.

Package Variants

Hanger hole styles

The template supports standard Euro-holes, round holes, or custom punch shapes depending on the retail display hardware.

Additional notes

Board grain direction and cracking

Because the hanger tab folds completely over, the board's grain direction should be carefully planned to help prevent the fold from cracking and exposing raw paper fibers.

FAQs

Print and Finish

Why does the hanger tab require two-sided printing?

The double-thick hanger is created by folding the extended back panel 180 degrees forward. This means the inside surface of the board becomes the front face of the hanger tab. To have graphics there, the inside of the board needs to be printed.

Material and Board

Can this carton be made from corrugated board?

Generally, no. The 180-degree fold required for the hanger tab and the small slits used for the scissor lock will crush or crack if made from corrugated board. It relies on a flexible folding boxboard (FBB or SBS).

Closure and Assembly

How does the scissor-lock bottom work?

The bottom tuck flap has small slits on its sides. When inserted, these slits catch onto the edges of the internal dust flaps. This mechanical lock offers more resistance to downward pressure than a standard friction tuck.

Does this carton require tape or glue to assemble?

The main side seam is glued during manufacturing. The packer simply pops it open and engages the mechanical locks by hand. No tape or additional glue is needed for retail display.

Shipping and Route

Can I ship this carton directly in the mail?

No. The exposed hanger tab and tuck flaps can easily catch and tear in courier sorting systems. It should be packed inside a corrugated outer shipper for parcel delivery.

Production and Quantity

How does the hanger tab affect material usage?

The tall extended panel makes the flat carton blank longer, meaning fewer cartons fit on a single sheet of board. This can affect material efficiency compared to a standard carton.

Design and Structure

Can the hanger hole be customized for different retail hooks?

Yes, the standard Euro-hole can be modified in width and height, or replaced with a simple round hole to match the specific pegboard hardware used in the retail environment.

Assembly and Labor

Is this carton suitable for automated packing lines?

Because the scissor lock and the 180-degree folded hanger tab require specific manual manipulation, this design is typically erected and loaded by hand rather than on high-speed automated cartoning equipment.
