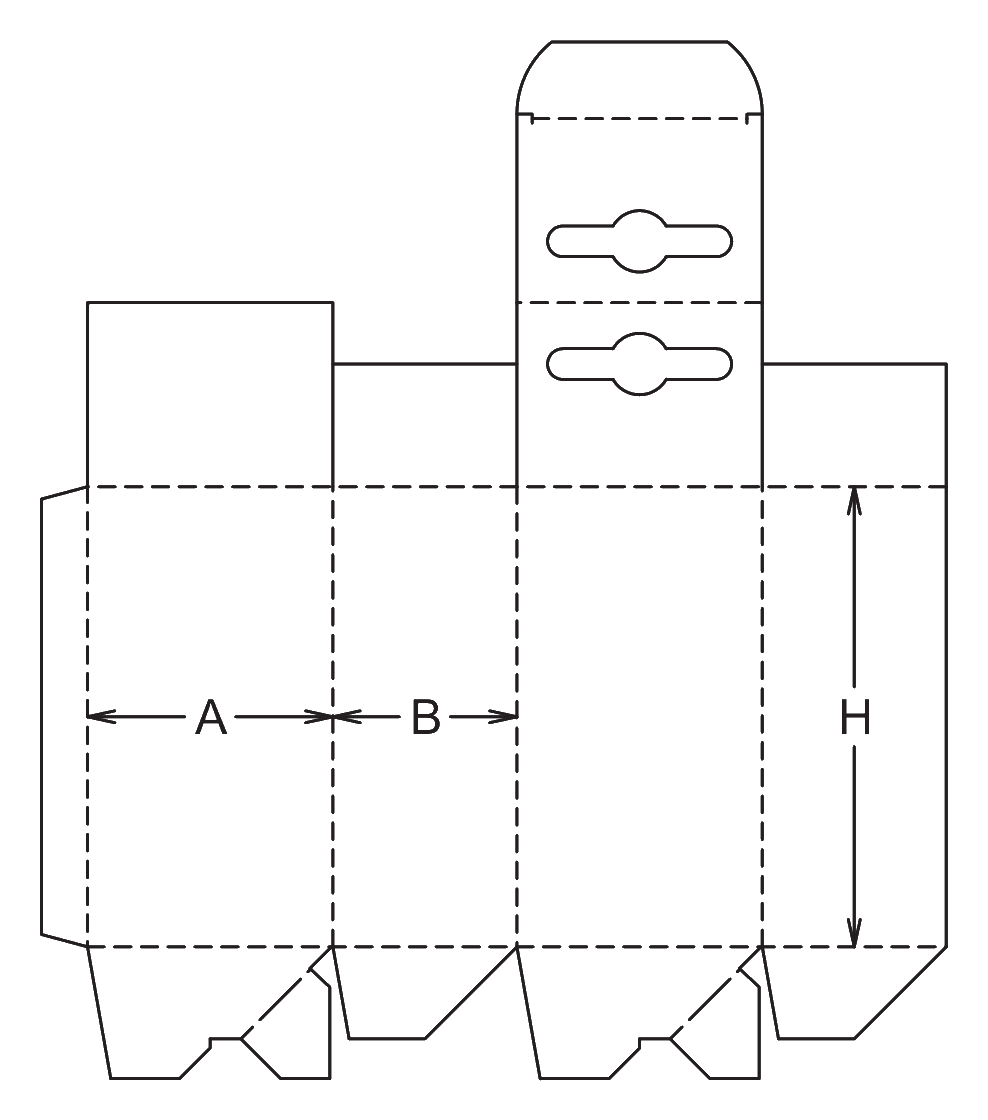

ECMA A60.15.00.03

Crash-Lock Hanging Box

This retail hanging carton combines a reinforced pegboard tab with a pre-glued crash-lock base, making it one of the fastest display boxes to assemble by hand. Delivered flat, the box snaps into a rigid tube with a locked bottom the moment it is squared, eliminating the need to manually fold and tuck base flaps.

Because the extended back panel folds over and glues to itself, the hanger tab is double the thickness of the main carton body, providing excellent tear resistance on retail pegs. The top closes with a simple friction-fit tuck flap, making it a useful choice for high-volume manual packing lines.

Get a quote
  • Order custom samples, short runs, or production runs.
  • US-based. Nationwide service.
  • Nationally competitive pricing & delivery costs.
  • Available in a wide variety of configurations.

At a glance

  • Crash-lock base snaps open for instant manual assembly
  • Double-thick hanger tab resists tearing on retail pegboards
  • Often involves multi-point gluing production

Common uses

  • Cosmetics and personal care
  • Electronics accessories
  • Light hardware and tools
  • Retail pegboard rollouts

Get a quote

Or email us at info@herculeindustrial.com

Files (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail Display And Fast Fulfillment

High-Volume Pegboard Rollouts

When packing thousands of units by hand, the time spent folding box bottoms adds up. The crash-lock base eliminates that step, allowing operators to simply squeeze the flat carton open, drop the product in, and tuck the top flap. The double-thick hanger tab helps the package handle repeated browsing on retail pegs.

Lightweight To Medium-Weight Consumer Goods

A strong fit for cosmetics, electronics accessories, and small hardware. The pre-glued bottom easily supports standard retail payloads, while the reinforced Euro-hole prevents the box from tearing and falling off the peg hook.

Hand-Packed Promotional Kits

For promotional rollouts that require rapid assembly by temporary labor, the intuitive nature of the auto-bottom reduces training time and keeps the packing line moving quickly.

Retail Environments Requiring Tear Resistance

Because the hanger panel is folded over and glued to itself, it offers twice the board thickness of a standard tuck box. This makes it highly resistant to dog-earing and tearing when consumers repeatedly remove and replace the item on the display hook.

Product Fit And Packing Environments

Manual Packing Lines

This carton is purpose-built for manual fulfillment. While the converter handles the complex folding and gluing of the base and hanger, the final packing team receives a flat blank that opens with a quick squeeze.

Retail Store Environments

The friction-tuck top provides clean, easy access for the consumer, while the extended back panel keeps the product facing forward on the pegboard. The double-thick header resists damage from repeated browsing.

Transitioning from Plastic Blisters

Brands moving away from plastic clamshells often use this style to maintain pegboard compatibility while switching to a fully paperboard package. The fast assembly helps offset the labor differences when moving to folded cartons.

When To Consider Alternative Hanging Boxes

Short Runs And Prototype Trials

The crash-lock base and 180-degree hanger fold usually involve multi-point gluing equipment, which carries higher setup times. For very short runs or prototypes, a standard snap-lock or tuck-bottom hanging box may be more practical to produce.

Heavy Or Dense Retail Products

While the crash-lock is secure, extremely heavy items can force the bottom flaps to bow or drop out. If the product is dense, testing the board strength and glue seams is necessary, or a different base style may be worth comparing.

Board, Finish, And Production Choices

Board Caliper And The Hanger Fold

Because the hanger panel folds 180 degrees to glue to itself, the board cannot be too thick or stiff, otherwise the fold will crack or bulge. Folding boxboard (FBB) or solid bleached sulphate (SBS) in standard retail calipers usually performs well.

Grain Direction And Tear Resistance

Grain direction involves a trade-off. Horizontal grain prevents the main panels from bowing, but vertical grain offers better tear resistance at the hanger hole. The right choice depends on the product weight and the specific board grade.

Production Route and Run Size

The complex gluing involved for the auto-bottom and the folded hanger tab means this box is usually chosen for medium to long repeat runs. Short digital trials may involve manual gluing, making them harder to source efficiently.

Outer Shipper Requirements

This is a primary retail package. The friction-tuck top and crash-lock base are not designed to handle direct parcel shipping on their own. The cartons must be packed into a corrugated master shipper for transit.

Hanger And Closure Modifications

Hanger Hole Shape

The standard Euro-hole can be modified to a simple round hole, a delta hole, or a custom shape to match specific retailer pegboard requirements, provided it remains centered on the extended panel.

Window Patches

A window cutout can be added to the front panel for product visibility. This involves an additional machine pass for window patching and must be kept clear of the main creases and the top tuck flap.

Top Closure Style

While the standard design uses a friction tuck, the top flap can be modified to include locking tabs or a tamper-evident seal if the retail environment requires extra security.

Board and packing details

Parcel Sealing And Outer Carton Choice

This is a primary retail package. The friction-tuck top and crash-lock base are not designed to handle direct parcel shipping on their own. The cartons must be packed into a corrugated master shipper for transit.

Additional notes

Short digital trial versus repeat run

Because aligning the crash-lock hooks and the hanger fold takes time on the gluing equipment, this style is usually chosen for medium to long repeat runs. For short trials, a manual-bottom box may be easier to source.

Related Retail Cartons

A55.15.01.03: Envelope Base Hanging Box

Uses a self-locking envelope base instead of a glued crash-lock, changing the assembly motion and production requirements.

FAQs

Assembly and Packing

How much faster is a crash-lock base than a standard box?

A crash-lock (auto-bottom) base snaps into place when the flat carton is squeezed open. This typically cuts manual base-assembly time to a fraction of a second, making a noticeable difference on high-volume packing lines compared to folding individual flaps.

Production and Tooling

Why does this box often involve specific gluing equipment?

This carton usually involves multi-point gluing equipment to pre-glue the 45-degree crash-lock flaps and to fold the extended hanger panel 180 degrees so it glues to itself. It is rarely run on a simple straight-line gluer.

Material and Fit

Can I use corrugated board for this hanging box?

Micro-flute corrugated is generally not recommended. The 180-degree fold required for the double-thick hanger tab will crush the fluting and look bulky, and the crash-lock base is difficult to execute cleanly with corrugated material.

Retail Display

Is the hanger tab strong enough for heavy items?

The hanger tab is double the thickness of the main carton body, providing excellent tear resistance. However, the ultimate weight capacity depends on the board grade chosen and the strength of the crash-lock base. Heavy items should always be tested with physical samples.

Shipping

Can I ship this box directly to a customer?

This carton is not designed for direct parcel shipping. The friction-tuck top and crash-lock base can pop open during courier transit. It must be packed inside a corrugated outer shipper for transit.

Adjustments

Can I add a window to the front panel?

A window cutout can be added for product visibility. This involves an additional machine pass for window patching and must be kept clear of the main creases and the top tuck flap.

Can I change the shape of the hanger hole?

The standard Euro-hole can be modified to a simple round hole, a delta hole, or a custom shape to match specific retailer pegboard requirements, provided it remains centered on the extended panel.

Material and Fit

How does grain direction affect the hanger tab?

Grain direction involves a trade-off. Horizontal grain prevents the main panels from bowing, but vertical grain offers better tear resistance at the hanger hole. The right choice depends on the product weight and the specific board grade.

A fast-packing display carton that keeps fulfillment moving and products secure on the pegboard.
