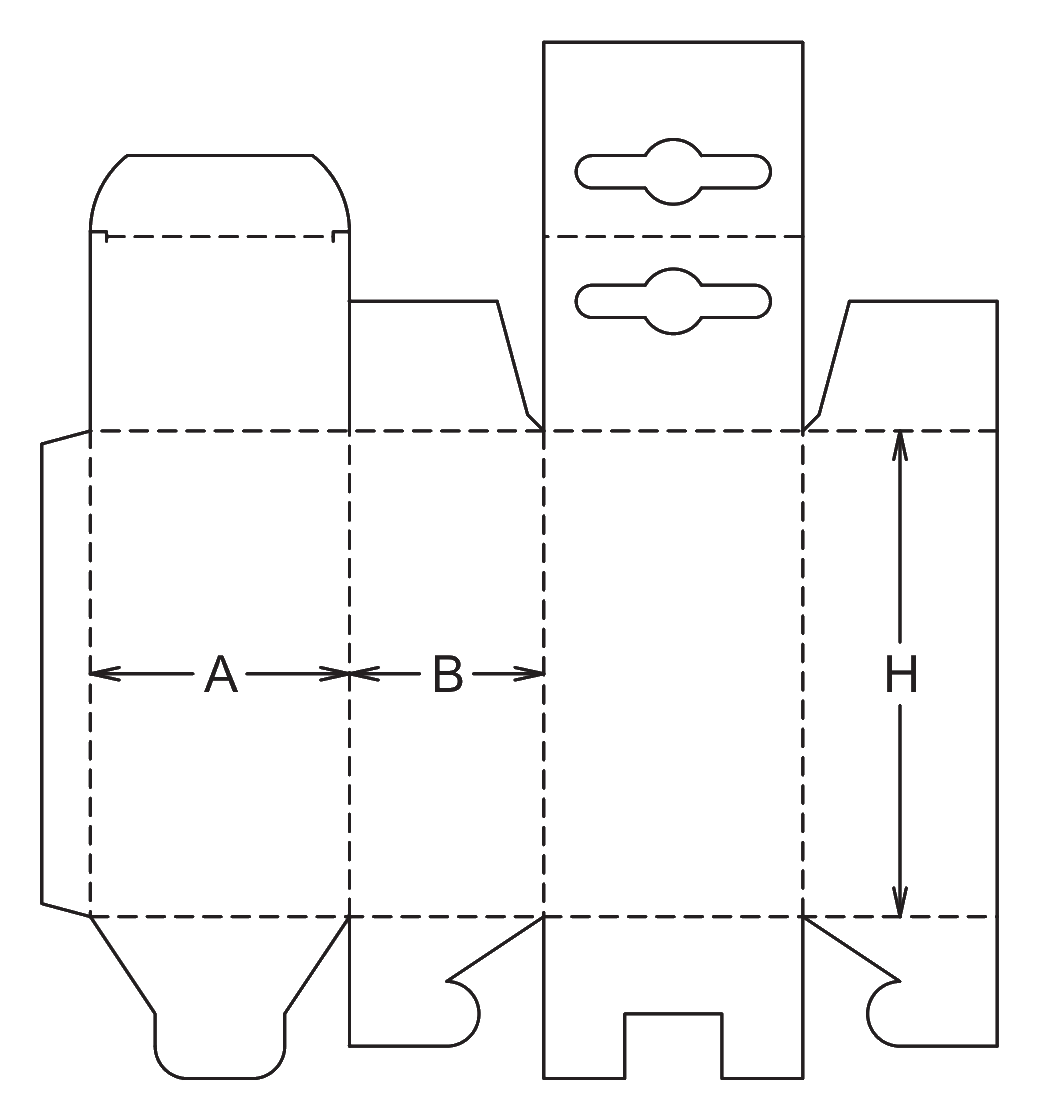

ECMA A55.21.01.03

Snap-Lock Hanging Box

The snap-lock hanging box (ECMA A55.21.01.03) is a retail-ready folding carton designed for pegboard displays. It features an extended, double-thick back panel for secure hanging and a 1-2-3 interlocking bottom that sets up quickly by hand without tape.

Often used for lightweight cosmetics, electronics accessories, and small hardware, this style balances clean front-facing presentation with efficient manual packing. Because the bottom flaps fold and lock together, it is generally used for products under 250 grams.

Get a quote
  • Order custom samples, short runs, or production runs.
  • US-based. Nationwide service.
  • Nationally competitive pricing & delivery costs.
  • Available in a wide variety of configurations.

At a glance

  • Built-in double-thick hanger tab for retail pegboards
  • 1-2-3 snap-lock base for quick manual assembly
  • Well-suited for lightweight products under 250 grams

Common uses

  • Lightweight cosmetics
  • Small electronics accessories
  • Hardware parts
  • Stationery items

Get a quote

Or email us at info@herculeindustrial.com

Files (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Practical Retail Applications

Pegboard Retail Display

The extended back panel is folded over and glued to create a rigid, double-thick hanger tab. This allows the box to hang securely on standard retail pegboards without tearing, while keeping the entire front panel clear for branding and product information.

Manual Kitting and Fulfillment

The 1-2-3 bottom (also known as a snap-lock base) is designed specifically for hand assembly. Packers simply push the bottom flaps into place, where they interlock to form a secure floor. This eliminates the need for bottom taping or gluing during fulfillment.

Point-of-Purchase Display Racks

For checkout counters and endcaps, this carton hangs neatly on wire racks. The flat front panel presents a clean billboard for impulse-buy items like lip balm, charging cables, or travel-sized toiletries.

Lightweight Parts Packaging

Small, non-spilling items like specialty screws, craft supplies, or hobby parts fit well in this carton. The snap-lock base keeps the contents contained on the shelf without requiring extra adhesive.

Who Uses the Snap-Lock Hanging Box

Consumer Electronics and Accessories

Cables, chargers, and small tech accessories are frequently packed in this style. The box provides enough billboard space for technical specs while hanging neatly in high-density retail aisles.

Health and Beauty

Lightweight cosmetics and personal care items benefit from the clean presentation. The friction-tuck top closure allows consumers to open and reclose the box if needed, while the snap-lock base keeps the product secure on the shelf.

Hardware and Fasteners

For small, lightweight hardware components, this carton offers a visible, hangable retail presence. It is a practical choice when the product weight is low enough that the interlocking bottom will not bow.

When to Consider Auto-Bottoms or Standard Cartons

High-Volume Packing Lines

If your team is packing thousands of units per day, the manual folding steps of a 1-2-3 bottom can become a bottleneck. Compare this to an auto-bottom (crash-lock) hanging box, which opens in one motion, saving labor time for repeat programs.

Heavier Products

The snap-lock base relies on friction and interlocking tabs. For products weighing more than 250 grams, the downward pressure can cause the bottom to bow or open. Heavier items often warrant an auto-bottom or a taped closure.

Key Decisions for Hanging Cartons

Hanger Hole Shape

The standard cutout is a Euro-hole (sombrero shape), which fits most single and double-prong retail pegs. This can be adjusted to a simple round hole or a custom shape depending on your specific retail environment.

Board Thickness and Grain Direction

Because the entire weight of the package hangs from the top tab, board strength matters. Solid Bleached Sulfate (SBS) or high-quality Folding Boxboard (FBB) are common choices. The paper grain should run vertically to maximize tear resistance at the hanger hole.

Outer Transit Packaging

This is a primary retail carton. The friction-tuck top and snap-lock bottom are not designed for direct parcel shipping. You will likely need an outer master shipper or mailer for transit.

Insert and Clearance Planning

If you are using an internal paperboard or plastic insert to hold the product, ensure the insert does not interfere with the bottom tuck tab when it snaps into place.

Hanger and Closure Adjustments

Window Cutouts

If the product needs to be visible, a window can be added to the front panel. This requires checking the placement so it does not interfere with the top tuck flap or weaken the overall carton.

Top Closure Security

The standard top is a friction tuck with slit locks. For added security at retail, a clear wafer seal can be applied over the top flap to deter tampering.

Hanger Hole Placement

The vertical position of the hanger hole can be adjusted to balance the carton properly, depending on the center of gravity of the packed product.

Board and packing details

Production Folding of the Hanger Tab

During manufacturing, the extended back panel is folded 180 degrees and glued to itself. This creates the double-thick hanger tab. Ensure your converter is equipped to handle this inline folding step, as it requires specific folder-gluer attachments.

Additional notes

Insert clearance

If you are using an internal paperboard or plastic insert to hold the product, ensure the insert does not interfere with the bottom tuck tab when it snaps into place.

Retail shelf stacking

Because the hanger tab extends above the box, these cartons cannot be stacked vertically on a shelf. They must be hung on pegs or placed in a custom retail-ready display tray.

Related Retail Packaging

FAQs

Product Fit and Weight

How much weight can a snap-lock hanging box hold?

This style is generally suited for lightweight items, typically under 250 grams. Heavier products can cause the interlocking bottom flaps to bow or disengage, and may tear the hanger hole. For heavier items, an auto-bottom base is often a safer choice.

Packing and Assembly

Is the 1-2-3 bottom faster to pack than a standard tuck box?

Yes. While it requires a few manual folding steps, the bottom locks into place without needing tape or labels. However, it is slower to assemble than an auto-bottom (crash-lock) box, which opens in one motion.

Route and Shipping

Can I ship this box directly in the mail?

No. The friction-tuck top and snap-lock base can easily open during rough transit. This is a primary retail carton and should be placed inside a corrugated mailer or master shipper for delivery.

Print and Finish

Can I print on the back of the hanger tab?

Yes. Because the hanger tab is formed by folding the extended back panel over and gluing it to itself, both the front and back of the finished tab display the printed side of the board.

Modifications

Can the hanger hole be changed to a simple round punch?

Yes. While the Euro-hole (sombrero) is common for retail flexibility, the die can be adjusted for a round hole, a delta hole, or a custom shape to fit specific display racks.

Production

Does this box require special manufacturing equipment?

It requires a folder-gluer capable of folding the hanger tab 180 degrees inline, in addition to gluing the standard side seam. Most commercial folding carton converters can handle this setup.

Packing and Assembly

Do I need tape to seal the bottom of this box?

No. The 1-2-3 snap-lock bottom is designed to interlock securely without tape or adhesive, provided the product weight remains within the suggested limits.

Product Fit and Weight

Can I use this box for loose, dusty, or liquid products?

No. The interlocking bottom flaps leave small gaps. Loose powders, liquids, or very fine parts should be placed in a primary bag or container before being packed into this carton.

The snap-lock hanging box provides a clean, secure presentation for lightweight retail products, combining a strong display tab with efficient manual assembly.
