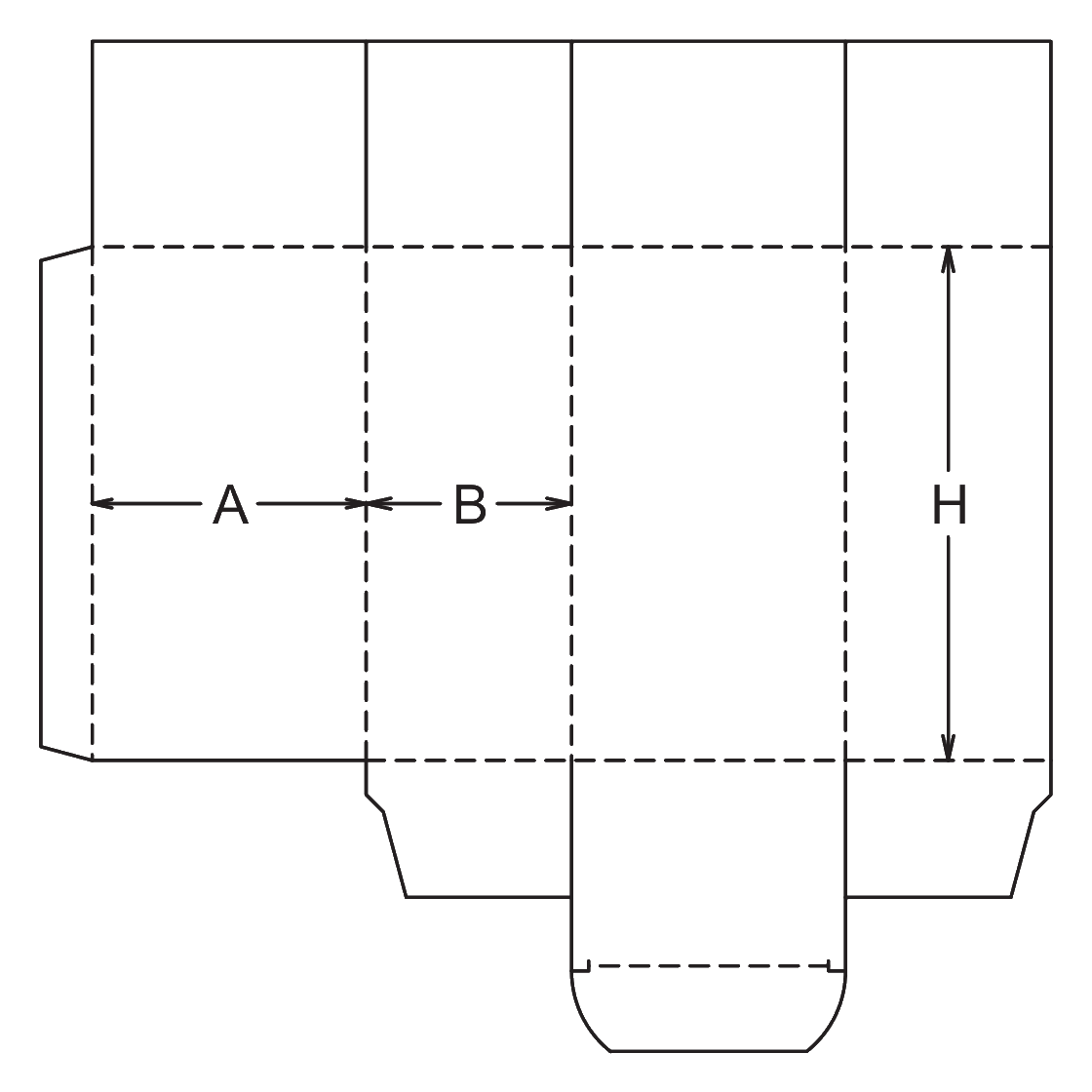

ECMA A20.10.03.03

Full-Overlap Top Carton with Tuck Bottom

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Four-layer top pad provides high vertical stacking strength
  • Top closure relies on tape, a seal, or a security label
  • Bottom tucks mechanically with slit locks for secure retention

About this product

This folding carton combines a mechanical slit-lock bottom with a heavy-duty, four-layer overlapping top. It is designed for retail and shelf environments where products are stacked vertically and require high top-crush resistance.

Unlike standard tuck-top boxes, the four top flaps span the full width of the opening and have no mechanical locks. They rely on a seal, tape, or a strong label after loading, creating a rigid, flat surface that resists bowing under heavy loads.

Common uses

  • Heavy retail products
  • Palletized folding cartons
  • Products needing a rigid, flat top surface

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail Stacking and Heavy-Load Presentation

Palletized or densely stacked retail goods

The primary advantage of the full-overlap top is its resistance to vertical crushing. Because all four top flaps fold across the entire width of the carton, they form a solid, four-layer board pad. This helps keep the top from caving in when heavy products are stacked on top of each other on retail shelves or during palletized transit.

Tamper-evident retail packaging

Because the top flaps rely on a seal or tape to stay shut, the carton provides natural tamper evidence. Once the seal or security label is broken, the carton cannot be easily reclosed, making it clear if a product has been opened.

Heavy-duty hardware packaging

For dense items like fasteners or small tools, the bottom slit locks hold the weight securely while the four-layer top helps prevent the box from buckling when stacked in hardware aisles.

Automated top-sealing lines

When a fulfillment center has automated sealing equipment, this carton runs efficiently. The flat top flaps fold over smoothly and accept a seal without the need for complex mechanical tucking motions.

Hardware, Dense Goods, and Secure Retail

Hardware and dense consumer goods

Products that are heavy for their size often cause standard tuck-top cartons to bulge when stacked. The rigid top pad distributes weight more evenly down the vertical walls, helping protect the presentation of dense items.

High-volume retail fulfillment

Operations equipped with automated sealing stations can close the top flaps quickly. The flat, overlapping top is well-suited for machine closure, provided the board is properly specified with clear seal areas.

Secure pharmaceutical or cosmetic packaging

Brands requiring a clear indication of opening often choose a sealed full-overlap top. The destructive opening process ensures consumers know they are receiving an untampered product.

When to Evaluate Standard Tuck or Reduced-Flap Cartons

Manual packing lines without sealing equipment

If the fulfillment team packs by hand and does not have a taping or sealing station, the full-overlap top will slow down operations. A standard reverse-tuck or straight-tuck carton allows for entirely mechanical closure at both ends.

Lightweight products needing less board

For lighter items that do not require a four-layer top pad, the full-overlap top consumes unnecessary material. A reduced-flap top carton provides a sealed closure while using shorter inner flaps to reduce the overall board footprint.

Top Sealing Methods, Board Yield, and Board Orientation

Choosing the top sealing method

The buyer must decide how the top will be closed: a liquid seal, an external tape, or a label. If a seal is planned, the dieline must include clear, unprinted areas on the top flaps to ensure a strong bond.

Evaluating the material footprint

The four full-width top flaps consume more board area than standard tuck closures. This increases the overall material footprint. Evaluate whether the extra stacking strength justifies the higher board usage.

Bottom lock engagement

The standard slit locks provide good retention for most retail goods. For exceptionally heavy items, the lock geometry should be tested with a physical sample, or a crash-lock bottom might be evaluated for higher security.

Board orientation for vertical strength

To maximize the carton's resistance to bulging and ensure clean folds during production, the board's orientation should run horizontally around the carton. This supports the vertical walls when the top pad is under load.

Adjusting Tuck Depth, Lock Friction, and Seal Areas

Bottom tuck depth and slit-lock engagement

The depth of the bottom tuck flap and the geometry of the slit locks can be adjusted based on the board thickness and product weight. Heavier products may require a deeper tuck or tighter lock offsets to help prevent the bottom from opening when lifted.

Seal areas for top flaps

The exact placement and size of the clear areas on the top flaps can be tailored to match the specific sealing equipment used on the packing line.

Dust flap chamfers and clearances

The angles and cutouts on the bottom dust flaps can be modified to accommodate thicker board grades, ensuring the slit locks engage smoothly without tearing the paperboard.

Board and packing details

Pre-glued delivery

The carton is delivered flat with the side seam pre-glued. The packing line is responsible for erecting the box, tucking the bottom, loading the product, and sealing the top flaps.

Additional notes

Seal areas for top closure

If the packing line seals the top with a liquid seal, ensure the artwork files leave the seal areas free of ink and coatings. Coatings will prevent the seal from forming a secure bond.

Related Folding Cartons

A20.20.03.03: Straight Tuck End Carton

Review this alternative when the packing line requires a mechanical tuck closure on both the top and bottom to speed up manual packing and reduce board usage.

A20.11.03.03: Reduced-Flap Top Carton

Review this alternative when the packing line uses a sealed top but the buyer wants to reduce material waste by using shorter inner flaps.

A30.10.03.03: Scissor-Lock Bottom Carton

Review this alternative when the product requires a scissor-lock bottom closure instead of a standard slit-lock tuck.

FAQs

Closure and Sealing

Can the top of this carton be closed without tape or a seal?

The top flaps are designed to overlap completely without any mechanical tucks or friction locks. They rely on an external seal, such as tape or a strong security label, to stay closed.

Is this carton easy for consumers to reclose?

Because the top relies on a seal or tape, opening the carton usually tears the bond or the board surface. It is not designed for repeated opening and closing like a standard tuck-top box.

Strength and Protection

Why use a full-overlap top instead of a standard tuck top?

The four overlapping flaps create a thick, rigid pad across the entire top of the carton. This provides higher resistance to vertical crushing, making it a strong choice for heavy products that will be stacked on retail shelves.

Shipping and Route

Can this carton be shipped through parcel networks on its own?

Like most folding cartons, it is designed as primary retail packaging. It requires an outer corrugated shipper for mixed-carrier parcel networks, as the paperboard is designed for presentation rather than external transit impacts.

Production and Board

Does the full-overlap top affect the material footprint of the carton?

The extended top flaps require a much larger flat blank than a standard tuck carton. This increases the amount of board needed per unit and can reduce how efficiently the cartons nest on a sheet during die-cutting.

Inserts and Fit

Will heavy products fall out of the bottom?

The bottom uses a tuck flap with slit locks that catch on the inner dust flaps, providing good security for standard retail weights. For very heavy items, the lock engagement should be tested with a physical sample, or a crash-lock bottom might be evaluated.

Production and Board

What board grades work well for this carton?

Standard carton board provides excellent print surfaces and folds cleanly. The specific caliper depends on the product weight and the required stacking strength.

Strength and Protection

How does the board orientation affect the carton's performance?

Running the board orientation horizontally around the carton helps prevent the main panels from bulging outward when the top pad is under a heavy vertical load.
