ECMA A10.01.03.00

Open-Top Carton Base

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Completely open top for unobstructed access or separate lid application
Four-flap bottom requires tape or adhesive sealing
Delivered flat (KDF) with a pre-glued side seam for fast erection

About this product

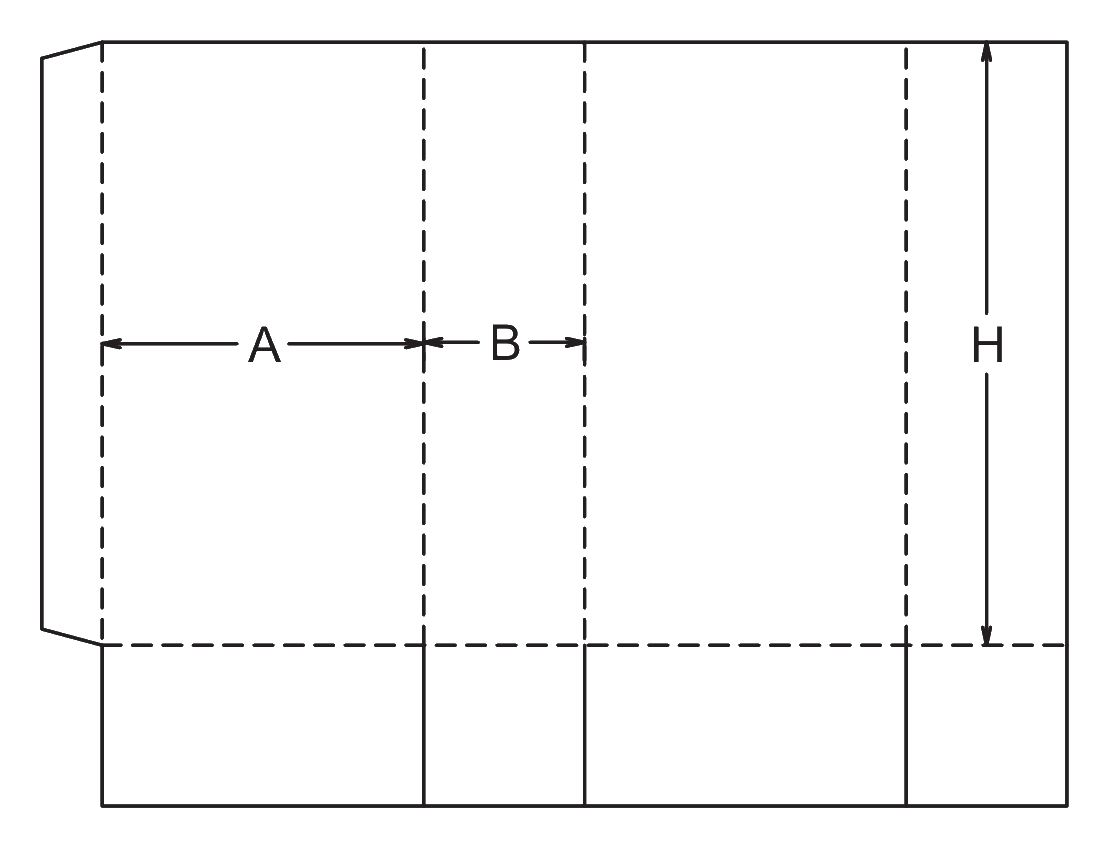

This open-top folding carton forms a rectangular tube with a four-flap bottom and a completely open top edge. Delivered flat with a pre-glued side seam, it is designed to open quickly for loading.

Because it lacks top flaps, it is typically used as the base component for a two-piece telescope box, an inner sleeve for multi-part kitting, or an open bin on automated filling lines that will be sealed later with film or a separate cap. The bottom flaps do not lock mechanically and need tape or adhesive to secure the load.

Common uses

Base for two-piece telescope boxes
Automated filling bins sealed later by film
Inner sleeves for retail kitting

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Height

Size notes

Quantity notes

Materials and print

Paperboard preference

Add details for paperboard preference

Paperboard details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will the open top be covered or used?

How will the bottom be sealed after packing?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Base Components, Inner Sleeves, and Display Bins

Base for Two-Piece Telescope Boxes

The open top edge allows a separate rigid or folding carton lid to slide over the base, creating a premium presentation or a reusable storage box.

Automated Filling Bins

The lack of top flaps provides a clear target for automated drop-filling equipment. Once filled, the open top is often sealed with a film or a separate cap.

Inner Sleeves for Kitting

Used inside larger master cartons or retail displays to group smaller items, keeping them organized while allowing immediate access once the outer packaging is opened.

Slipcase Inserts

The smooth, flap-free top edge allows this base to slide cleanly into an outer sleeve, forming a drawer-style package for retail or presentation.

Automated Lines and Retail Kitting

Automated Cartoning Lines

This carton is often used with automated magazines. The flat tube opens reliably, and the bottom flaps are folded and glued by automated equipment before filling.

Retail Display Kitting

When printed and finished, the open-top base can serve as a simple shelf bin or display sleeve, provided the product is secured by an insert or outer wrap.

Multi-Component Assembly

Useful for grouping multiple loose items on an assembly line before the entire base is inserted into a final master carton or retail box.

When to Compare Closed-Top or Locking-Bottom Cartons

When the package needs a built-in top closure

If the carton must fully enclose the product without secondary lids or film, compare this to a standard reverse tuck or straight tuck carton.

When manual packing speed is the priority

Because this base requires manual taping or gluing of the bottom flaps, hand-packing operations often switch to a crash-lock base, which snaps into a locked floor automatically.

Bottom Sealing, Board Caliper, and Flap Overlap

Bottom Sealing Method

The bottom flaps must be secured with adhesive or tape. The chosen method dictates the required flap overlap and whether varnish-free zones are needed on the printed board.

Board Caliper and Layer Step Creases

When using thicker board with fully overlapping bottom flaps, layer step creases are necessary to offset the folds. This prevents the bottom from bulging and ensures the carton sits flat on a shelf or conveyor.

Grain Direction

For an open-top tube, the board grain typically runs horizontally around the perimeter to prevent the long vertical walls from bowing outward. If a heavy lid will be applied, vertical grain may be chosen to increase top-to-bottom stacking strength.

Top Edge Protection

Because the top edge is a raw cut without flaps, buyers must decide how the final package will protect the contents. This could mean a separate lid, a film wrap, or an outer master carton.

Glue Flap Placement and Varnish-Free Zones

Glue Flap Placement

The side glue seam can be positioned on the inside or outside of the carton wall, depending on aesthetic preferences and the location of critical graphics.

Varnish-Free Zones

If the bottom will be sealed with adhesive on the packing line, specific areas of the bottom flaps must be left free of ink and protective coatings to ensure a strong bond.

Flap Overlap Adjustments

The length of the major bottom flaps can be adjusted to either meet exactly in the middle or fully overlap, depending on the required bottom strength and the sealing equipment used.

Board and packing details

Top Edge Vulnerability

Without top flaps to brace the opening, the raw cut edge is vulnerable to crushing or tearing during rough handling. This base relies on a lid, an outer shipper, or the internal product itself for structural support.

Bottom Flap Overlap Variants

A10.01.03.00.a (Flaps Meet in Middle)

The major bottom flaps are cut to exactly half the carton length, meeting flush in the center. This saves material but needs a tape seal over the center seam.

A10.01.03.00.b (Full Overlap Bottom)

The major bottom flaps extend the full length of the carton, completely overlapping each other. This creates a double-thick floor for heavier items and is typically sealed with adhesive.

Additional notes

Layer step creases for thick board

When specifying thick board with fully overlapping bottom flaps, layer step creases are necessary. They offset the fold lines to accommodate the material thickness, preventing the bottom from bulging.

Grain direction for wall stability

For an open-top tube, horizontal grain direction helps prevent the long vertical walls from bowing outward, maintaining a clean rectangular profile.

FAQs

Closure and Sealing

Does the bottom of this carton lock automatically?

The bottom flaps fold flat but do not have mechanical locks or friction tabs. They must be secured with tape or adhesive on the packing line.

Shipping and Route

Can this open-top base be used for parcel shipping?

Not on its own. The open top provides no protection for the contents, and the raw edge can be easily crushed. It requires a sturdy outer shipper or a secure telescope lid for transit.

Variants and Options

What is the difference between the flap overlap variants?

The base code overlaps flaps based on the carton width. Variant .a cuts the flaps to meet exactly in the middle, saving material but requiring a tape seal. Variant .b extends the flaps to fully overlap, creating a stronger, double-thick floor usually sealed with adhesive.

Production and Delivery

How is this carton delivered?

It is delivered flat with the side seam already glued by the manufacturer. It opens into a rectangular tube for loading.

Product Fit

Can this base support heavy products?

The weight capacity depends entirely on the strength of the bottom seal and the board grade. Full overlap flaps provide a stronger floor for heavier items than flaps that simply meet in the middle.

Packing Labor

Is this suitable for manual packing operations?

It can be packed manually, but the requirement to tape or glue the bottom flaps by hand slows down the process. For high-speed manual packing, a crash-lock base is often a better choice.

Top Closure

How is the open top usually secured?

Because there are no top flaps, the carton is typically closed by sliding a separate lid over it, inserting it into an outer sleeve, or wrapping the entire filled base in film.

Board Choice

Does board thickness affect the bottom closure?

When using thick board with fully overlapping flaps, layer step creases are added during production. These offset the fold lines so the thick flaps do not bind or cause the bottom to bulge.
