Variation

1 / 3

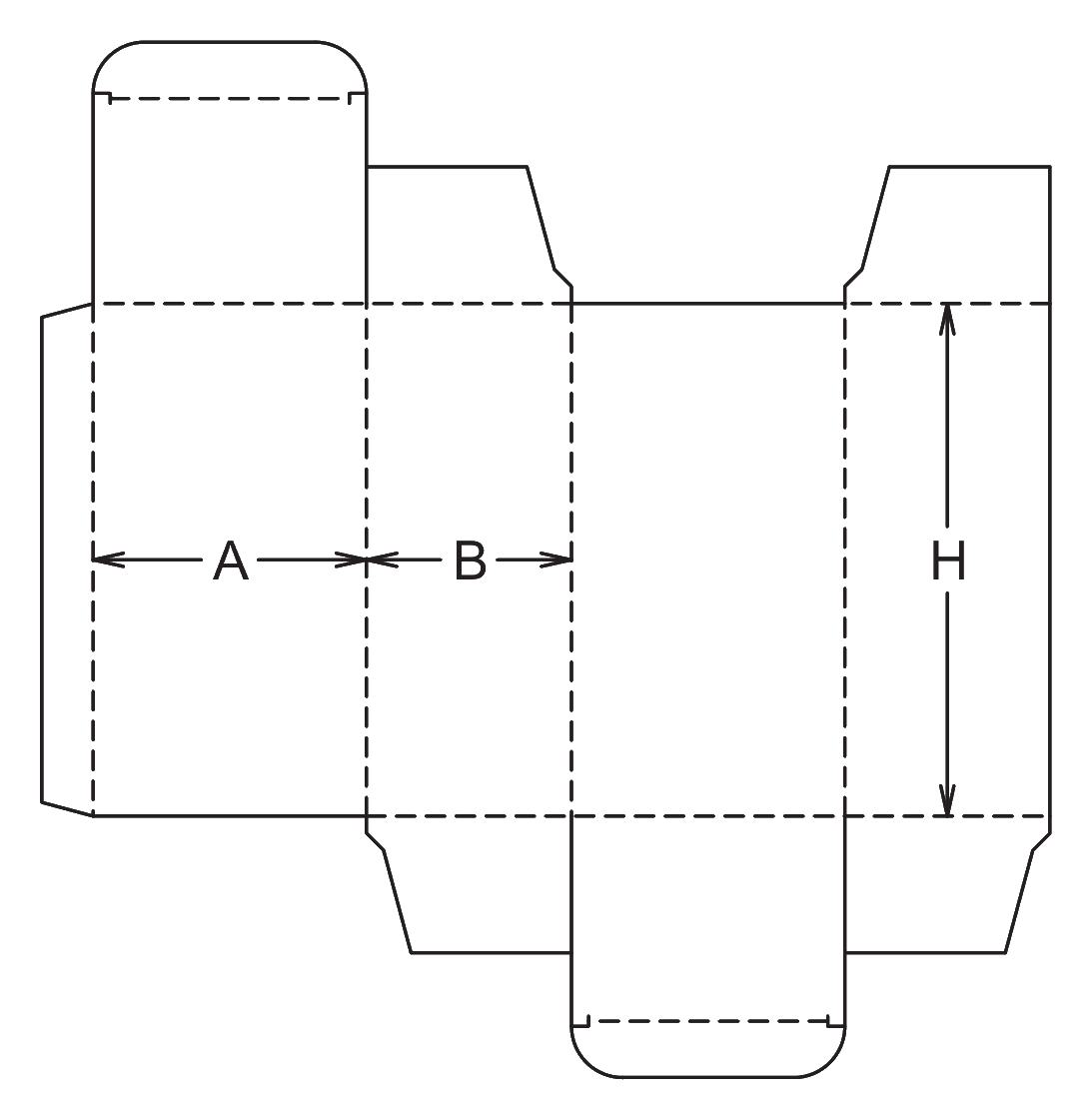

ECMA A20.20.03.01

Reverse Tuck End (RTE) Carton

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Top and bottom tuck flaps hinge from opposite panels
Efficient nesting reduces material waste
Delivered flat (KDF) for manual or automated filling

About this product

The reverse tuck end (RTE) carton is a common choice for lightweight retail packaging. Delivered flat with a pre-glued side seam, it is opened into a rectangular tube with top and bottom tuck closures located on opposite panels.

Because the top and bottom flaps alternate, RTE blanks interlock tightly during die-cutting. This makes them material-efficient for large runs, though the friction-fit bottom limits their use to lightweight goods.

Common uses

Primary retail packaging for cosmetics and personal care.
Pharmaceutical blister packs and lightweight bottles.
Contract packaging on automated cartoning lines.

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Width

Depth

Height

Size notes

Quantity notes

Materials and print

Paperboard preference

Add details for paperboard preference

Paperboard details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How heavy is the product going inside?

How will these cartons be packed?

Do you need extra security or tamper evidence?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Primary Retail and Lightweight Goods

Cosmetics and personal care

A common carton for tubes, small bottles, and jars. The slit locks keep the carton closed on the retail shelf, while the flat main panels provide uninterrupted space for branding.

Pharmaceuticals and supplements

Used for blister packs and lightweight bottles. The simple assembly makes it easy to load instructions or inserts alongside the primary product.

Automated cartoning lines

The straight-line glue seam and tuck closures fit automated filling lines, provided the creases are properly prepared during manufacturing.

Lightweight consumer electronics

Useful for small cables, chargers, or accessories. The reverse tuck design allows for fast manual packing while keeping unit material usage low.

Retail Display and Contract Packaging

Retail shelf presentation

The carton stands upright cleanly and stacks well. Because it is a reverse tuck, one hinge will be visible on the front face and one on the back, which should be considered when laying out continuous graphics.

Contract packaging operations

Co-packers rely on this carton because it is predictable and runs consistently on automated cartoning equipment. The interlocking blank design also keeps unit material usage low for large runs.

E-commerce inner packaging

While not suitable as an outer shipper, this carton works well as a primary retail box placed inside a corrugated mailer, keeping the product clean and branded during transit.

When to Compare Straight Tucks or Locked Bases

When artwork needs an uninterrupted front face

If your design needs the front panel to be completely free of visible hinges or cut edges, look at a Straight Tuck End (STE) carton, where both tuck flaps hinge from the rear panel.

When the product is heavy

The bottom tuck flap relies on friction and small slit locks. Suitability depends on the product weight, board caliper, closure fit, and handling conditions; test the packed carton when the product is demanding. A crash-lock or snap-lock base may be a better choice when more bottom security is needed.

When shipping directly via courier

Friction-fit tuck flaps will open during rough parcel sorting. If the carton is not placed inside a master shipper, look at a corrugated mailer with a locking tab or adhesive seal.

Filling Methods and Board Clearances

Manual versus automated filling

If the carton will be erected on an automated line, the converter usually needs to pre-break the main creases on the folder-gluer. This ensures the carton opens smoothly without jamming the machine magazine.

Board caliper and lock depth

The thickness of the paperboard dictates how deep the slit locks need to be. Changing from a thin folding boxboard to a thicker recycled grade means recalculating these clearances so the locks do not tear when opened.

Grain direction

Grain should run horizontally around the perimeter of the carton. This helps keep the large main panels from bowing outward and ensures the long vertical folds remain sharp.

Surface finish and friction

Heavy UV coatings or film laminations can make the paperboard slick, reducing the natural friction of the tuck tongue. If a heavy finish is applied, the slit locks may need to be deepened to keep the carton closed.

Tuck Friction and Flap Clearances

Slit lock depth and offset

The small notches that catch the dust flaps can be adjusted. Deeper locks provide more resistance against accidental opening, while shallower locks create a smoother, friction-only opening experience.

Dust flap chamfers

The corners of the internal dust flaps can be sloped or chamfered to help keep them from catching on the product or the machine arms during automated closing.

Tuck tongue radius

The rounded corners of the tuck tongue can be modified to change how easily the flap slides into the carton body, which is especially useful for tuning automated assembly speeds.

Board and packing details

Die-cutting layout and grain direction

While the reverse tuck design allows for tight nesting on the printed sheet, the layout should still respect the horizontal grain direction. Forcing a vertical grain to fit more cartons on a sheet will cause the main panels to bow outward.

Tamper Evidence and Securing Locks

Zipper tear strip (A20.20.03.01.11.b)

Adds a horizontal perforated tear strip across the main panels. This provides built-in tamper evidence and allows the consumer to cleanly sever the top section of the carton for access.

Tongue lock (A20.20.03.01.33)

Replaces the standard friction tuck with an extended terminal tab that snaps into a corresponding U-shaped receiving cut on the opposite panel. This increases resistance to accidental opening.

Additional notes

Continuous graphics and hinge visibility

Because the flaps alternate, one tuck hinge will be visible on the front face and one on the back. Keep this in mind when laying out continuous graphics or critical text near the top and bottom edges.

Board caliper and slit lock tearing

If you switch to a thicker board grade, the slit locks should be adjusted. Locks that are cut too tight for a thick board will tear when the consumer tries to open the box.

FAQs

Comparison

What is the difference between a reverse tuck and a straight tuck carton?

In a reverse tuck carton, the top and bottom flaps hinge from opposite main panels. In a straight tuck, both flaps hinge from the same panel. Reverse tucks are generally more material-efficient to manufacture because the alternating flaps interlock tightly on the printed sheet.

Product fit

How much weight can a reverse tuck carton hold?

They are generally suited to lighter products, but the workable load depends on the product, board caliper, closure fit, and handling conditions. Test the packed carton with the actual product; a crash-lock or snap-lock base may be better when more bottom security is needed.

Production path

Is this carton compatible with automated filling lines?

Reverse tuck cartons are common for automated cartoning. However, automated filling should be specified early so the converter knows to pre-break the creases on the folder-gluer, which helps avoid machine jams.

Route and shipping

Can this carton be shipped directly in the mail?

The friction-fit tuck flaps will open during rough parcel sorting. Reverse tuck cartons should be packed inside a corrugated outer shipper or mailer for courier transit.

Closure

Do I need to tape or glue the ends closed?

The top and bottom closures use friction-fit tuck flaps with small slit locks that catch on the internal dust flaps to stay closed. The side seam is permanently glued by the manufacturer.

Modifications

Can I add a tamper-evident feature to this carton?

The template can be modified with a perforated zipper strip (variant .11.b) that is torn to open the box. Alternatively, a clear wafer seal can be applied over the tuck flaps after filling.

Material efficiency

How does the reverse tuck design affect material waste?

Because the top and bottom flaps alternate, reverse tuck blanks interlock tightly during die-cutting. This nesting reduces the amount of paperboard wasted between cartons, making it efficient for large runs.

Assembly

How is the carton delivered?

The carton is delivered flat with the side seam already glued. It is opened into a rectangular tube before the bottom is tucked and the product is loaded.
