Practical Uses for Open-Top Auto-Bottom Cartons
Retail display bins
The open top allows immediate product visibility and access on the shelf. The auto-erecting bottom means store staff can set up displays quickly without tape or complex instructions.
Slipcase inner trays
Acts as the sliding drawer for a rigid outer sleeve. The crash-lock bottom provides a floor for the contents, while the open top allows the sleeve to dictate the unboxing experience.
Fulfillment sorting bins
Useful in kitting operations where operators need to drop multiple items into a container quickly before the entire unit is loaded into a master shipping carton.
Multi-component kitting bases
Serves as a fast-erecting boundary for complex kits. The open top allows packers to arrange multiple items and inserts before sliding the entire assembly into a final outer package.
Retail and Fulfillment Environments
High-volume manual packing
When packing speed is the primary bottleneck, the time saved by an auto-erecting bottom often justifies the specific manufacturing setup required to produce it.
Shelf-ready packaging
For products that need to transition straight from a shipping case to a retail shelf, this open-top format keeps the goods contained while remaining fully accessible to shoppers.
Two-part rigid box programs
When a brand wants the unboxing experience of a sleeve-and-drawer but needs the drawer to ship flat and assemble quickly, this carton provides the necessary structure.
When to Consider a Closed Box or Simpler Base
Short prototype runs
Crash-lock bottoms require specific folder-gluer setups. For very short trials or initial prototypes, a tuck-bottom open tray is often easier to manufacture and test.
Direct parcel shipping
Because the top is completely open, this carton provides no upper containment. If the item will ship through a courier network without a master carton, a fully closed crash-lock box is worth comparing.
Board, Fit, and Packing Route Decisions
Board thickness and crash-lock tolerances
The interlocking bottom flaps rely on precise clearances. Thicker boards or heavy corrugated materials can change how the bottom folds and may require structural adjustments.
Outer shipper planning
Since the top is open, vertical stacking strength relies entirely on the side walls. Master shippers must be sized accurately to protect the open bins during transit.
Closure method for the final unit
Because the top is open, the buyer must decide how the product will be secured before reaching the end user. Options include a separate sliding sleeve, shrink wrap, or direct placement into a master carton.
Print surface and orientation
For display bins, the inside back wall is often highly visible once the product is removed. Buyers should consider whether double-sided printing is necessary for their retail presentation.
Adjusting the Bin Proportions
Height and access
The wall height can be adjusted to balance product containment with visibility. Lower walls make it easier to reach the product, while higher walls provide better lateral support.
Front cutouts
A front dip or thumb notch can be added to the open top edge to make product removal easier, especially when the carton is used as a dispenser.
Base locking tongue
A locking tongue can be added to the crash-lock floor flaps to provide additional stability and help keep the floor flat when the carton is squared.
Board and packing details
Crash-lock floor weight limits
The floor relies on the interlocking tension of the bottom flaps. While suitable for many retail goods, dense or heavy items can push through the center. Weight capacity should always be tested with your specific product and board choice.
Base and Closure Variants
Top Edge Profile

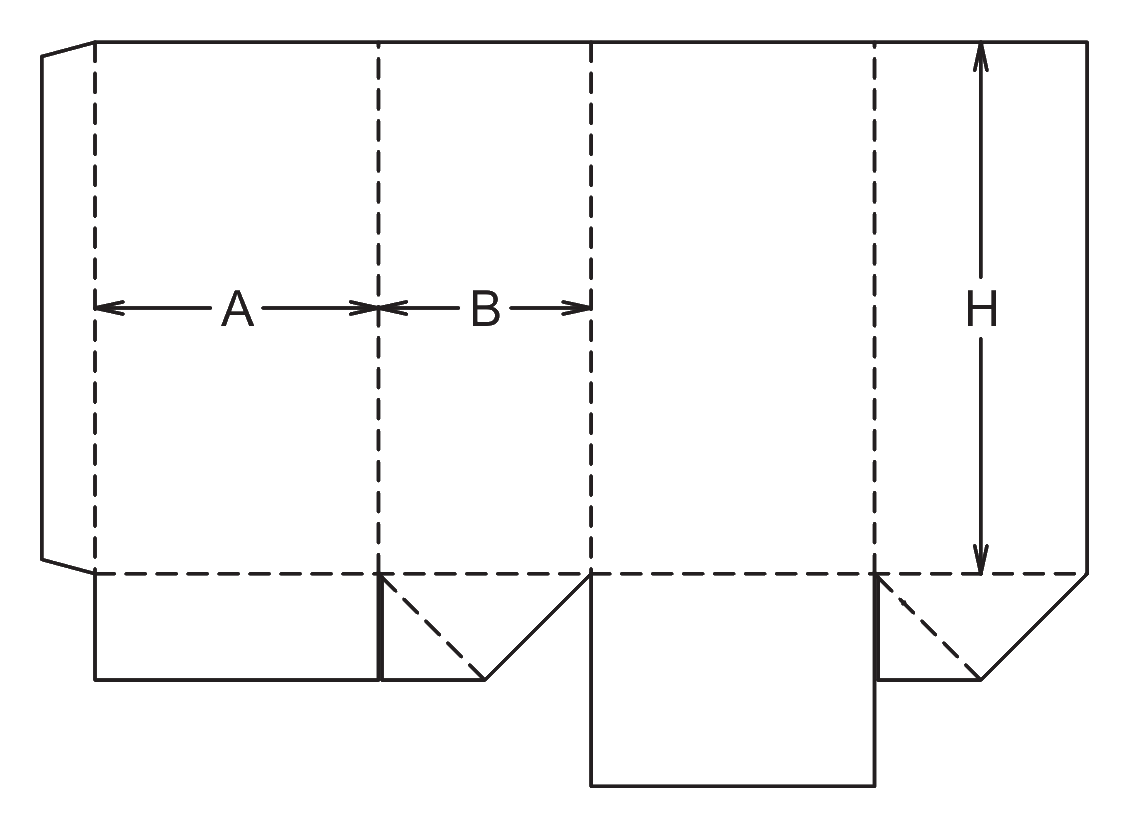

The standard template features a straight, flat top edge, but custom cutbacks or display headers can be integrated depending on the retail presentation.
Additional notes
Outer carton planning
Since the top is open, vertical stacking strength relies entirely on the side walls. Master shippers must be sized accurately to protect the open bins during transit.
Related Trays and Cartons
FAQs
Assembly and Packing
Does the crash-lock bottom require tape or glue during packing?
No. The bottom is pre-glued during manufacturing. When you push the opposite edges of the flat carton toward the center, the floor automatically pulls itself into an interlocked position.
Production Route
Is this style cost-effective for short trial runs?
Crash-lock bottoms require specific folder-gluer setups with multiple glue points. For very short prototype runs, a manual tuck-bottom tray is often more practical to manufacture, while the crash-lock excels in repeat, higher-volume programs where packing speed is the priority.
Product Fit
How much weight can the auto-erecting floor hold?
The floor relies on the interlocking tension of the bottom flaps. While suitable for many retail goods, dense or heavy items can push through the center. Weight capacity should always be tested with your specific product and board choice.
Shipping
Can this carton be shipped through parcel networks?
Because the top is completely open, this carton provides no upper containment or crush resistance. It is designed as an inner tray, display bin, or retail pack that requires a master shipper for transit.
Inserts
Can I use custom inserts with this open-top tray?
Yes. The flat, interlocked floor can support die-cut inserts, dividers, or molded trays to keep multiple components organized within the bin.
Print
Can the inside of the carton be printed?
Yes. For retail display bins, the inside back wall is often visible to shoppers. Double-sided printing can be used to brand the interior.
Closure
How do I secure the open top for retail?
This carton is typically paired with a separate sliding sleeve, wrapped in shrink film, or packed directly into a shelf-ready master carton to keep the contents contained before display.
Samples
Should I test the crash-lock bottom with my exact product?
Yes. Because the floor flaps rely on friction and interlocking geometry, testing a physical sample with your actual product weight ensures the bottom will not push through during handling.
