Retail Display and Pegboard Applications
Pegboard retail displays

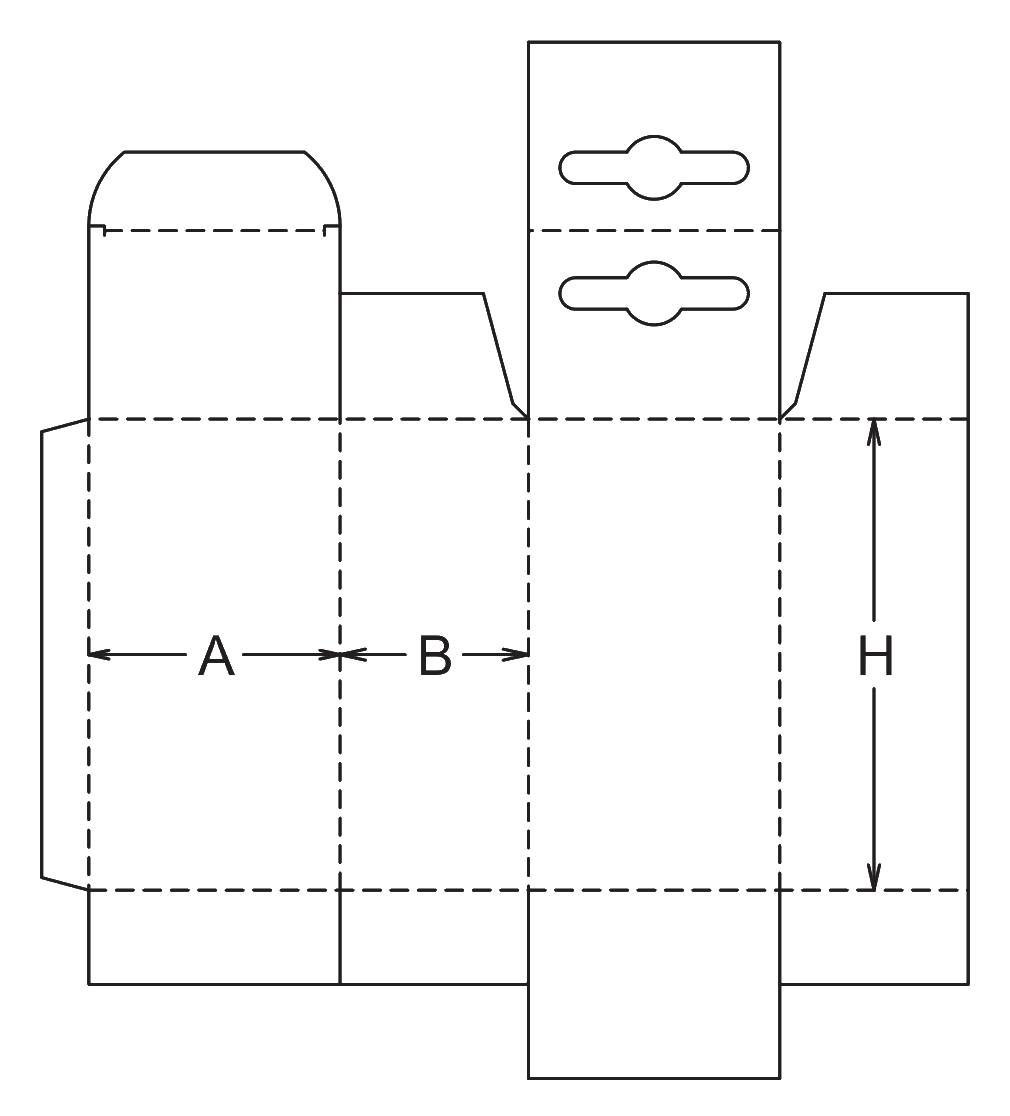

The extended back panel folds over on itself to create a double-thick hanger tab. This reinforces the euro-hole, making it highly resistant to tearing when customers pull the product from a retail peg hook.
Medium-weight retail goods
Because the bottom flaps are sealed with adhesive or tape rather than a simple friction tuck, the base can support heavier items like hardware accessories, small electronics, or dense cosmetics without blowing out on the shelf.
High-volume automated packing
The glued bottom and standard top tuck are well-suited for automated cartoning lines. Machines can easily fold and seal the base, making this a strong choice for large retail rollouts.
Clean-face retail branding
The top closure tucks into the back of the carton rather than the front. This ensures the raw edge of the paperboard is hidden from the consumer, leaving a smooth, uninterrupted front panel for graphics.
Product Fit and Merchandising
Automated cartoning lines
This package is well-suited for automated fulfillment. Standard cartoning equipment can often handle the glued bottom and top tuck, making it efficient for high-volume retail rollouts.
Manual kitting and assembly
If packed by hand, operators must manually fold and seal the bottom flaps with tape or glue. For purely manual operations, this adds a step compared to self-locking or crash-lock alternatives.
Mixed-display environments
While designed primarily for hanging, the glued bottom provides a relatively flat base. This allows the carton to stand upright on a shelf if retail merchandising plans change.
Comparing Bottom Closures for Packing Speed
When hand-packing speed is the priority
If your fulfillment team packs entirely by hand and wants to avoid taping or gluing the bottom, compare this to a crash-lock base. A crash-lock carton pops open ready to load, reducing assembly time per unit.
When packing very lightweight items
For light cosmetics or small accessories, a tuck-in bottom may provide enough security without the need for bottom adhesive. This simplifies both the carton design and the packing process.
Board, Grain, and Hanger Adjustments
Board grain direction
Grain direction forces a tradeoff. Vertical grain gives the carton better column strength, preventing the front and back panels from bowing under the product weight. Horizontal grain makes the 180-degree fold of the hanger tab cleaner and less prone to cracking.
Converter pre-gluing capabilities
The two-ply hanger tab must be folded and glued by the manufacturer before the carton is delivered flat. Discuss this step early, as it requires specific folder-gluer setups to process the top tab and the side seam efficiently.
Bottom sealing method
Decide whether the fulfillment center will use hot melt glue, cold glue, or tape to seal the bottom flaps. This choice affects packing speed and the final appearance of the base.
Board caliper and the hanger fold
Thicker boards require a specific step-crease adjustment where the hanger tab folds over. This ensures the two layers sit flat against each other without bowing the back panel.
Hanger Hole and Tab Modifications
Hanger hole shape and placement
The standard euro-hole can be modified into a simple round hole or a delta shape to match specific retail pegboard requirements. The distance from the top of the carton to the hole can also be adjusted for clearance.
Single-ply hanger tab
For very light products or strict cost reductions, the fold-over layer of the hanger tab can be removed. This simplifies manufacturing but cuts the tear resistance of the hanging hole in half.
Top tuck lock types
The top tuck flap can be configured with slit locks that catch on the dust flaps for extra security, or as a simple friction fit if the product does not push against the top.
Board and packing details
Front-face presentation
The top closure tucks into the back of the carton rather than the front. This ensures the raw edge of the paperboard is hidden from the consumer, leaving a smooth, uninterrupted front panel for branding and graphics.
Alternative Base Styles
Full overlapping bottom (A10.21.03.03)
Uses full-width bottom flaps instead of reduced flaps, providing a completely flat interior floor at the cost of slightly higher material usage.
Additional notes
Retail shelf loading and peg spacing
When configuring the carton dimensions, consider the depth of the box relative to the length of the retail peg hooks. Deeper cartons reduce the number of units that can fit on a single hook.
Board thickness and the hanger fold
Thicker boards require a specific step-crease adjustment where the hanger tab folds over. This ensures the two layers sit flat against each other without bowing the back panel.
FAQs
Packing and Fulfillment
Does this carton require tape or glue to assemble?
Yes. While the top uses a friction-fit tuck flap, the bottom flaps must be sealed with tape or adhesive during final packing to secure the product.
Retail Display
How much weight can the hanger tab support?
The two-ply folded tab provides excellent tear resistance, but the exact weight limit depends heavily on the chosen board grade and caliper. Heavy items should always be physically tested on a peg hook before a full production run.
Shipping and Route
Can this carton be shipped directly in the mail?
No. The top tuck flap and exposed hanger tab are designed for retail shelves, not the postal network. It requires a corrugated outer shipper for parcel transit.
Materials and Print
Will the fold on the hanger tab crack the printed ink?
Folding a printed panel 180 degrees can cause cracking, especially on thicker boards. This is usually managed by adjusting the crease profile, selecting the right board grain, or applying a protective coating.
Related Packaging
Why choose a glued bottom over a crash-lock base?
A glued bottom is often more cost-effective to manufacture and runs smoothly on automated cartoning lines. A crash-lock base costs slightly more upfront but saves significant labor time during manual hand-packing.
Product Fit
Is the interior floor completely flat?
The base uses one fully covering flap over a shorter support flap, which creates a relatively flat floor. If your product requires an absolutely flat bottom, a full overlapping closure may be a better choice.
Retail Display
Can this carton stand upright on a shelf?
Yes. Although designed primarily for pegboard hanging, the glued bottom provides a flat enough base for the carton to stand upright if retail merchandising plans change.
Design and Branding
What is the benefit of the top tuck folding to the back?
Tucking the top flap into the back panel hides the raw edge of the paperboard from the consumer. This leaves the front panel completely smooth and uninterrupted for branding and graphics.
