Retail display and automated packing
Pegboard retail displays for lightweight goods
The extended back panel elevates the product for hanging displays. The top tuck flap allows for clean loading and easy consumer access, making it a strong fit for cosmetics, small electronics, and accessories.
Automated cartoning environments
The reduced-flap bottom is structured specifically for automated lines where adhesive is applied and the major flap is plowed shut. This setup speeds up high-volume packing compared to manual assembly.
High-volume cosmetic and personal care packaging
For lightweight tubes and bottles, the glued bottom provides a flat base and the tuck top allows for a clean unboxing experience. The automated bottom sealing supports the speed required for large cosmetic runs.
Small electronics and accessory retail
Cables, chargers, and small devices fit well within the glued-tube structure. The reinforced hanger panel keeps the presentation secure on crowded retail pegs without tearing.
Product classes and retail environments
Health, beauty, and cosmetics
The flat front and side panels offer uninterrupted space for high-quality graphics, while the tuck top provides the clean unboxing experience expected in personal care markets.
Consumer electronics and accessories
The reinforced hanger panel keeps the presentation secure on retail pegs, while the glued bottom ensures the product does not slip out during handling.
Hardware and craft supplies
For lightweight hardware or craft items, the carton provides a clear presentation face and a secure hanging point, though heavier items may require a different board grade or a blister pack.
When to consider different bottom closures
Manual fulfillment and hand-packing lines
Because the bottom requires adhesive to seal, hand-packing this carton can be slow and messy. If your team packs by hand, a crash-lock or snap-lock bottom is usually a faster, cleaner choice.
Heavy or bulky products
Heavy items increase the risk of the hanging hole tearing or the bottom adhesive seal failing. For heavier goods, consider blister packs, clamshells, or reinforced corrugated structures.
Need for a full overlapping top flap
If the product requires a full overlapping top flap for added security or a different unboxing experience, a different top closure style should be evaluated.
Hanger strength and sealing methods
Board tear resistance and hanger reinforcement

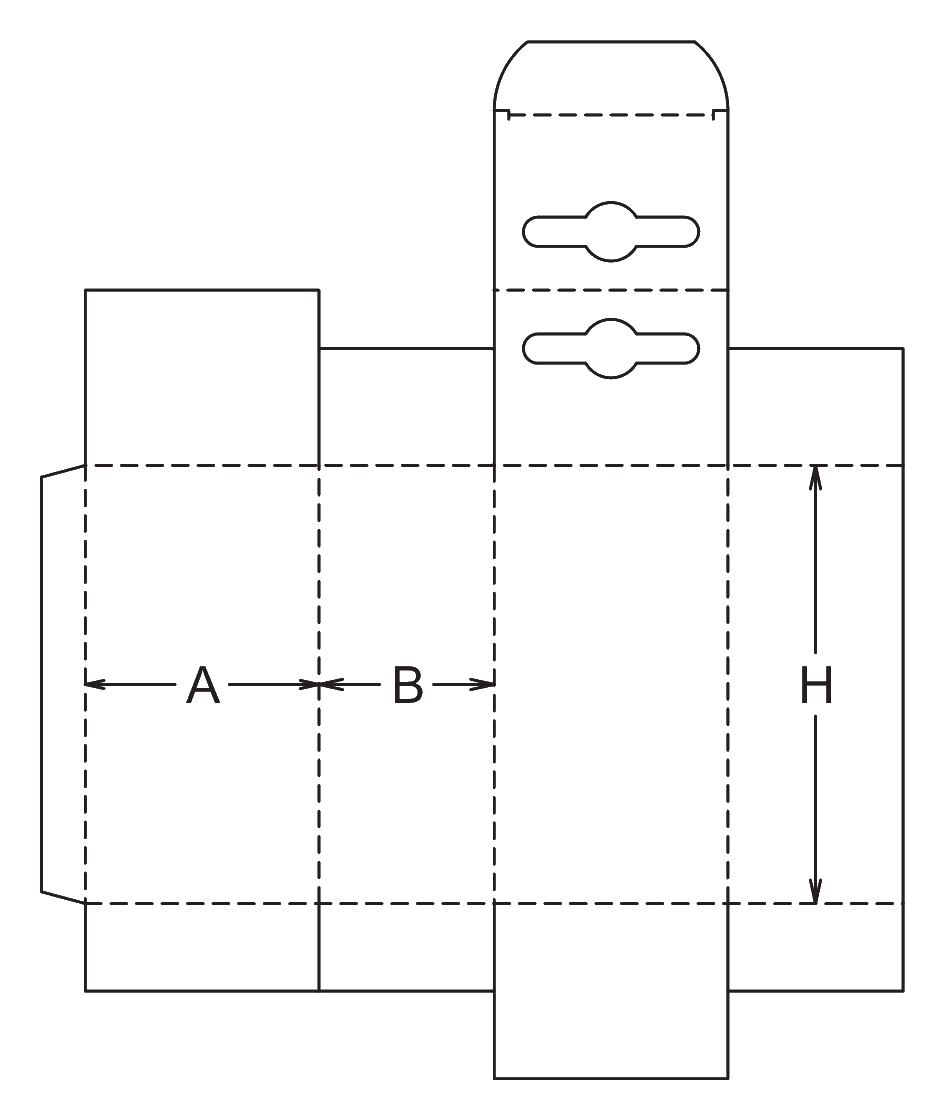

The template includes a fold-over reinforcement section that doubles the board thickness around the hanging hole. Deciding whether to keep this reinforcement depends on the product weight and the tear resistance of the selected board.
Bottom sealing method and equipment
Confirm that your packing facility has the equipment to glue the bottom flaps. If the bottom must be taped instead, it can compromise the retail presentation, and a different base style may be worth comparing.
Grain direction for hanger stiffness
Aligning the board grain parallel to the height of the carton maximizes the vertical stiffness of the extended back panel, preventing it from flopping forward on the pegboard.
Master shipper requirements for transit
The extended hanging panel is vulnerable to bending or crushing during transit. These cartons require a properly sized outer master shipper to protect the hanger until they reach the retail floor.
Aperture and reinforcement adjustments
Hanging aperture shape
The standard euro-hole can be adjusted to a simple round hole or a custom hook shape to match specific retail display fixtures.
Hanger reinforcement fold
The 180-degree fold-over reinforcement at the top of the hanger panel can be removed for very lightweight products to save board and simplify folder-gluer routing.
Tuck flap friction and dust flap depth
The height of the top tuck flap and the depth of the side dust flaps can be adjusted to change the opening friction and consumer unboxing experience.
Board and packing details
Folder-gluer routing for the hanger reinforcement
If the hanger reinforcement fold is used, the folder-gluer must be capable of folding and gluing this top section inline with the main side seam.
Nesting efficiency on the board sheet
The extended back panel increases the overall blank size, which can reduce the number of cartons that fit on a single sheet of board. This should be factored into material planning.
Additional notes
Folder-gluer routing for the hanger reinforcement
If the hanger reinforcement fold is used, the folder-gluer must be capable of folding and gluing this top section inline with the main side seam.
FAQs
Packing and Assembly
Can this carton be assembled without glue?
While the top uses a friction-fit tuck flap, the bottom relies on reduced flaps that must be sealed with adhesive. It is not designed for tape-free or glue-free assembly.
Retail Display
What prevents the hanging hole from tearing?
The template features a reinforcement section at the top of the extended panel. During production, this section is folded over and glued, doubling the board thickness around the hole to resist tearing.
Shipping and Route
Does the hanger panel fold flat for delivery?
The carton is delivered as a flat tube with the side seam and hanger reinforcement already glued. It is popped open into its 3D shape during the packing process.
Product Fit
Is this suitable for heavy retail items?
It is generally used for lightweight to medium-weight goods. Heavy items increase the risk of the hanging hole tearing or the bottom adhesive seal failing. Physical testing should be done for heavier payloads.
Modifications
Can the bottom closure be changed for hand packing?
If automated gluing is not available, the base can be modified to a crash-lock or reverse-tuck style, which are much easier to assemble and close by hand.
Retail Display
Can the carton stand upright on a shelf?
While the glued bottom provides a flat base, the extended back panel can make the carton top-heavy or obscure products behind it. It is primarily designed for hanging rather than standing.
Materials
How does the extended panel affect board usage?
The extended back panel increases the overall length of the flat blank. This can reduce how many cartons fit on a single sheet of board, which may affect material planning for large runs.
Shipping and Route
What kind of outer packaging is needed for shipping?
Because the extended hanger panel is vulnerable to bending or crushing, these cartons require a properly sized master shipper to protect them during transit to the retail store.
