ECMA A20.15.03.03

Reverse Tuck Hanging Carton

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Integrated display header with euro-holes
  • Reverse tuck flaps with bottom slit locks
  • Delivered flat for manual pop-up assembly

About this product

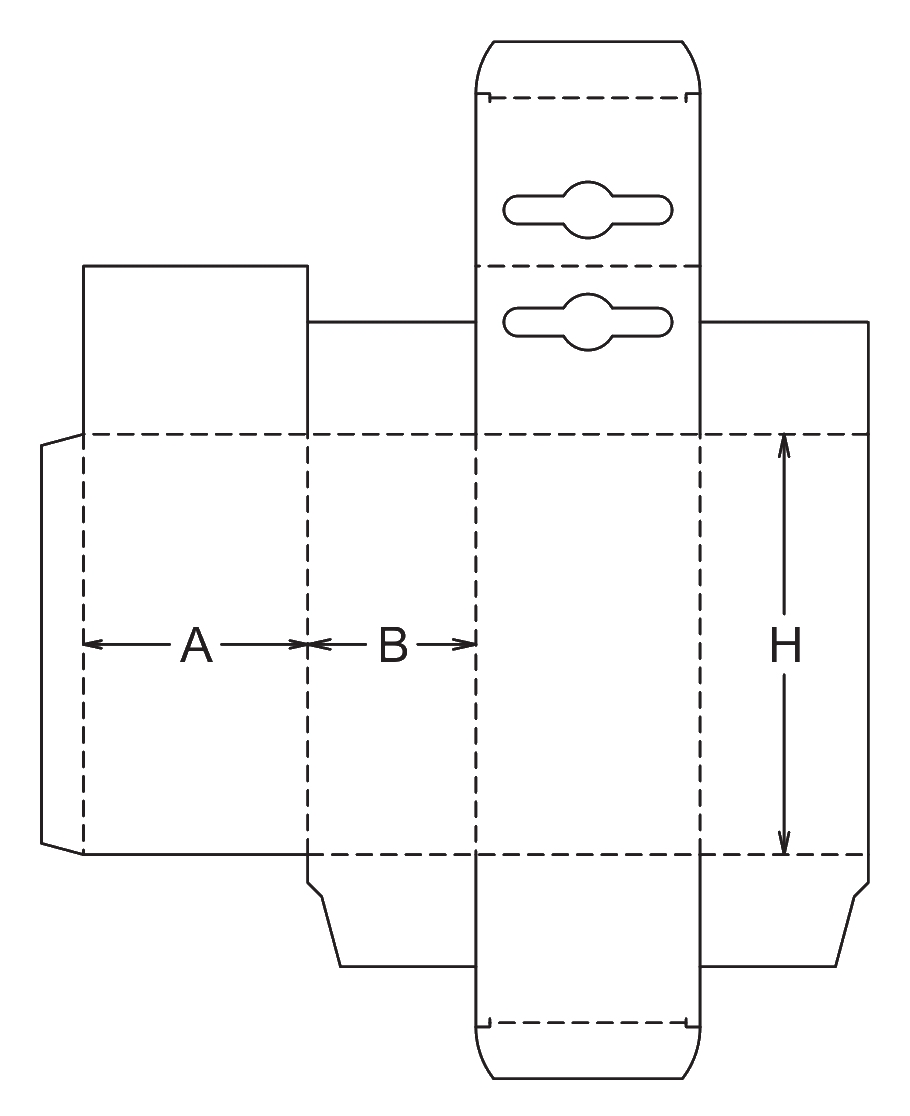

This reverse tuck folding carton features an integrated extended back panel with hanger holes, making it a standard choice for retail pegboard displays. Delivered flat and pre-glued along one side, it is erected by hand for manual loading.

The design relies on a friction-fit top tuck and a slit-locked bottom tuck. Because the entire weight of the package hangs from the top panel, board choice and product weight must be carefully matched to prevent the hanger hole from tearing.

Common uses

  • Cosmetics and beauty accessories
  • Small electronics and cables
  • Lightweight hardware parts
  • Retail impulse buys

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail Display And Pegboard Packing

Lightweight retail goods

Commonly used for cosmetics, small electronics, and accessories that benefit from eye-level pegboard placement. The built-in header provides immediate branding space without requiring a separate insert or blister card.

Manual kitting and fulfillment

The pre-glued tube opens easily by hand. The reverse tuck flap arrangement establishes a predictable packing rhythm, while the bottom slit locks add security before the product is dropped in.

Impulse buy counter displays

Often hung on small spinner racks near checkout registers. The vertical header ensures the brand name is visible even when the product is crowded among other small items.

Hardware and accessory parts

Useful for small cables, fasteners, or lightweight tools. The paperboard construction offers a printable alternative to plastic clamshells, provided the product weight remains low.

Product Categories And Retail Environments

Store-floor presentation

The extended back panel stands vertically above the storage volume, ensuring the brand message remains visible even when multiple units are stacked on a single peg hook.

Master shipper planning

Because the extended header adds overall height to the flat carton, master transit boxes must be sized to accommodate the full length without crushing or bending the display panels.

High-density pegboard stocking

The flat profile of the header allows multiple cartons to sit flush against each other on a retail peg, maximizing the number of units that fit on a single display hook.

When To Consider A Different Hanging Box

Heavy products that risk tear-out

If the product is dense, the paperboard hanger hole may tear. Compare this with a carton that uses a reinforced plastic hang tab or a blister pack.

Products requiring higher bottom security

While the bottom tuck flap includes slit locks, heavy items can still force it open. If bottom drop-out is a concern, compare this with a scissor-lock bottom carton.

Board, Grain, And Packing Decisions

Board stiffness and grain direction

The extended header must remain upright under its own weight and the stress of hanging. Specifying a vertical grain direction helps prevent the header from flopping forward on the peg.

Print sidedness

The top tuck flap folds backward, meaning the inside of the extended back panel is partially visible to the consumer. Decide if the board needs a double-sided coating or print pass to maintain a premium look.

Hanger hole stripping

The small euro-hole cutouts must be cleanly stripped during die-cutting. Discuss this with the converter to ensure no hanging chads remain to slow down retail stocking.

Bottom closure security

Evaluate whether the bottom slit locks provide enough friction for the product weight. For added security, clear wafer seals can be applied over the tuck flaps after loading.

Header And Hanger Hole Adjustments

Hanger hole style and placement

The standard euro-hole can be changed to a simple round hole, or a secondary hole can be removed if only one peg position is required.

Header height

The extended panel can be made taller for more branding space, but taller headers require stiffer board to prevent bending and will reduce how efficiently the flat blanks nest during production.

Slit lock depth

The depth and offset of the bottom slit locks can be adjusted to match the chosen board thickness, ensuring the flap locks securely without tearing during manual assembly.

Board and packing details

Nesting efficiency and material yield

The stepped profile of the extended header means these cartons do not interlock as tightly on a parent sheet as standard rectangular boxes, which affects material yield and layout efficiency.

Additional notes

Master shipper sizing

When calculating the size of the outer transit box, remember to account for the full height of the carton including the extended header, not just the internal storage volume.

Related Retail Cartons

A30.15.03.03: Scissor-Lock Hanging Carton

Uses a scissor-lock bottom instead of a friction tuck, providing better resistance against heavy items dropping out.

FAQs

Product fit and weight

How much weight can this hanging carton hold?

Weight capacity depends entirely on the board grade and caliper. Paperboard hanger holes are generally suited for lightweight goods. Heavy items may cause the hole to tear or the bottom tuck flap to open.

Can the hanger hole be reinforced?

If the board alone is not strong enough, a clear plastic reinforcement patch can sometimes be applied over the hanger area, though this adds a manufacturing step. Upgrading the board or changing the package style is often more practical.

Assembly and packing

Is this carton suitable for automated packing lines?

This style is typically erected and loaded by hand. The extended back panel and the slit locks on the bottom flap complicate automated cartoning machinery.

Do I need tape to seal this box?

The top and bottom tuck flaps are friction-fit. While the bottom has slit locks for added retention, neither end is tamper-evident. If security is required, clear wafer seals are often applied over the tuck flaps.

Shipping and route

Can this carton be shipped individually in the mail?

The extended header is easily crushed, and the friction tucks can open during rough handling. These cartons must be packed inside a sturdy master shipper for transit.

Print and finish

Will the inside of the box be visible?

The inside face of the extended back panel is exposed above the top closure. If a uniform appearance is important, the board may need to be coated or printed on both sides.

Assembly and packing

Does the bottom flap lock automatically?

No. The bottom flap is a manual tuck closure with slit locks. The packer must fold the dust flaps inward and push the tuck flap past the slits to secure the bottom.

Adjustments

Can the hanger hole shape be changed?

Yes. The standard euro-hole can be modified to a simple round hole, or a secondary hole can be removed if only one peg position is needed for the retail display.
