ECMA A10.10.03.03

Seal-End Folding Carton

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Relies on adhesive sealing for top and bottom flaps
  • Optimized for automated cartoning equipment
  • Supports tear strips, spouts, and handle modifications

About this product

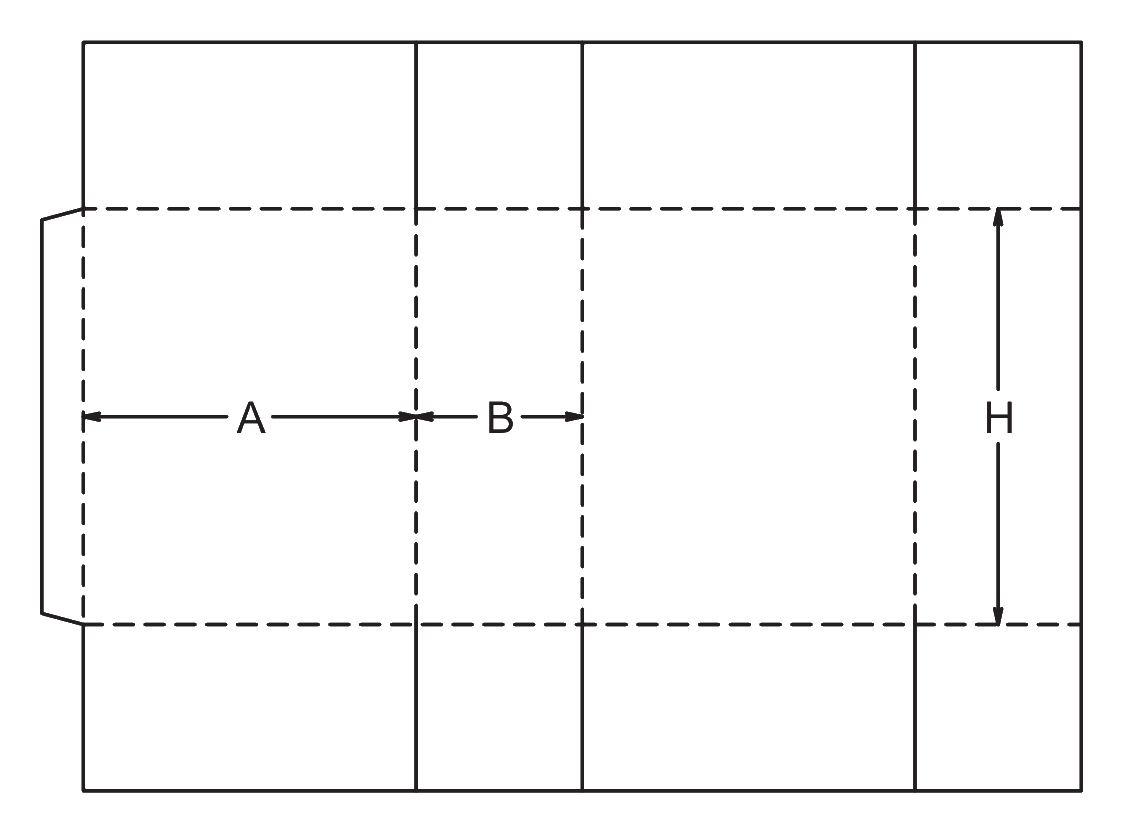

The seal-end folding carton is a retail package designed for automated filling lines. Unlike tuck-end boxes, both the top and bottom feature full overlapping flaps that are usually sealed with adhesive, creating a secure closure.

This structure serves as the foundation for numerous functional packaging styles, offering modifications for tear-strip openings, pour spouts, and integrated carrying handles.

Common uses

  • High-volume retail goods
  • Dry granular products
  • Tamper-evident pharmaceuticals
  • Multi-packs with handles

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Automated Retail and Tamper-Evident Packaging

Automated Cartoning

The full overlapping flaps are designed to be folded and glued by automated cartoning machinery. This makes the carton efficient for large production runs where speed and secure sealing are prioritized over manual assembly.

Tamper-Evident Retail Packaging

When the flaps are permanently glued shut, the carton cannot be opened without visible damage. This provides inherent tamper evidence for pharmaceuticals, cosmetics, and food products.

Sift-Resistant Dry Goods Packing

The full overlap of the major flaps, combined with the inner dust flaps, creates a tight seal that helps contain powders, grains, and seeds better than friction-fit tuck closures.

Multi-Pack and Heavy-Item Containment

With the addition of integrated handle variants, this structure serves as a grab-and-go package for heavier retail items or beverage multi-packs, combining a glued base with carrying convenience.

High-Volume Consumer Goods and Dry Foods

Dry Foods and Granular Products

When equipped with a pour spout variant, this carton is a strong fit for rice, sugar, seeds, or powdered detergents. The glued overlapping flaps help prevent sifting.

Pharmaceuticals and Health Goods

The glued closures offer a clear indication if the package has been opened, providing peace of mind for health and personal care products.

Consumer Electronics and Hardware

For heavier retail items, the glued bottom provides a stable base, while tear-strip variants offer a clean unboxing experience without requiring sharp tools.

Evaluating Tuck Ends or Crash Locks

Hand-Packing and Low-Volume Runs

If the fulfillment process relies on manual labor, applying glue or tape to overlapping flaps is slow and inconsistent. A reverse tuck end or straight tuck end carton is much faster for hand-packing.

Heavy Products Requiring Base Security

While glued flaps are secure, very heavy items may benefit from a crash-lock base or an auto-bottom carton to ensure the bottom does not fail under sudden impact.

Reusable or Reclosable Needs

If the consumer needs to open and close the carton frequently, a standard seal-end carton is not the best fit. Consider a tuck-end carton or a variant with a specific locking top closure.

Board, Grain, and Sealing Choices

Adhesive and Sealing Equipment

Check that the filling line is equipped with adhesive applicators capable of sealing full overlapping flaps. The board's coating should also be compatible with the chosen adhesive.

Grain Direction for Tear Features

If selecting a variant with a tear strip, the board's grain direction should run parallel to the perforations. Incorrect grain direction can cause the tear to veer off path, affecting the opening experience.

Board Caliper and Flap Overlap

Thicker board grades require careful adjustment of the crease offsets. Because the major flaps fully overlap, failing to account for board thickness will cause the sealed ends to bulge outward.

Dispensing and Opening Preferences

Determine how the consumer will interact with the product. Adding a pour spout or a tear-down strip changes the die-cutting requirements but greatly improves the user experience for specific goods.

Tear Strips, Spouts, and Handles

Integrated Pour Spouts

The carton can be modified with a side outfold spout for dispensing granular products. This requires precise die-cutting but adds practical consumer convenience without extra plastic components.

Tear-Down and Sideward Opening Strips

The side glue flap can be extended and perforated to create a tear strip. This allows the consumer to easily open the sealed carton, often creating a reclosable flip-top hood.

Carrying Handles and Reinforced Panels

The back panel can be extended and folded over to create a double-walled carrying handle. This modification changes the top closure and increases the overall blank size.

Board and packing details

Automated Cartoning Envelopes

When specifying this carton, ensure the flat dimensions and flap lengths match the magazine and flight chain requirements of the specific cartoning equipment.

Functional Variants

A10.10.03.03.47 (Pour Spout)

Features a reclosable triangular pour spout on the side panel, useful for dispensing dry, flowable goods.

A10.10.03.03.44 (Tear-Down Opening)

Utilizes an extended glue flap with a circular pull-tab, allowing the side seam to be torn downward for easy opening.

A10.10.03.03.64 (Carrying Handle)

Extends the back panel into a double-walled carrying handle, with a tuck flap securing the top opening.

A10.10.03.03.32 (Reverse Tuck End)

Replaces the glued overlapping flaps with reverse tuck flaps featuring friction-locking lugs, changing the carton to a glue-free closure.

Additional notes

Adhesive Compatibility

Ensure the chosen board coating is compatible with the adhesive used on the filling line to prevent seal failure.

Related Carton Styles

FAQs

Packing and Sealing

Can this carton be packed and sealed by hand?

It is generally not recommended for large volumes. The full overlapping flaps rely on adhesive to stay closed. Applying glue manually is slow and messy, making this carton better suited for automated filling lines.

Comparison

What is the difference between this and a tuck carton?

Overlapping glued flaps provide a more secure, tamper-evident seal and are highly efficient for high-speed automated cartoning. Tuck flaps are better for manual packing or if the consumer needs to easily reclose the box.

Modifications

How does the tear-strip opening work?

In variants with a tear strip, the side glue flap is extended and perforated. A small access hole on the outer panel allows the consumer to pull the strip, breaking the side seam to open the carton cleanly.

Materials

Does the board choice affect the pour spout or tear strip?

Yes. The board should have sufficient tear resistance so the spout or pull-tab does not rip off when pulled. The grain direction also plays a role in ensuring a straight, clean opening.

Inserts and Fit

Can this carton hold heavy products?

The bottom strength relies on the adhesive bond between the overlapping flaps. For very heavy items, a crash-lock bottom or an outer corrugated shipper may be worth evaluating.

Modifications

Are the carrying handles strong enough for heavy multi-packs?

The handle variant uses a double-walled extended panel for reinforcement. However, the exact weight capacity should be physically tested with the specific board grade and product.

Packing and Sealing

Is this carton sift-proof for fine powders?

While the overlapping flaps and inner dust flaps create a tight seal, ultra-fine powders may still sift through the corners. Physical testing is recommended to determine if an inner bag is necessary.

Materials

Why is grain direction important for this carton?

Grain direction affects how the carton folds and how tear features perform. For tear-strip variants, the grain should run parallel to the perforations to prevent the tear from wandering off path.
