Automated Cartoning and Retail Display
Automated Cartoning Lines

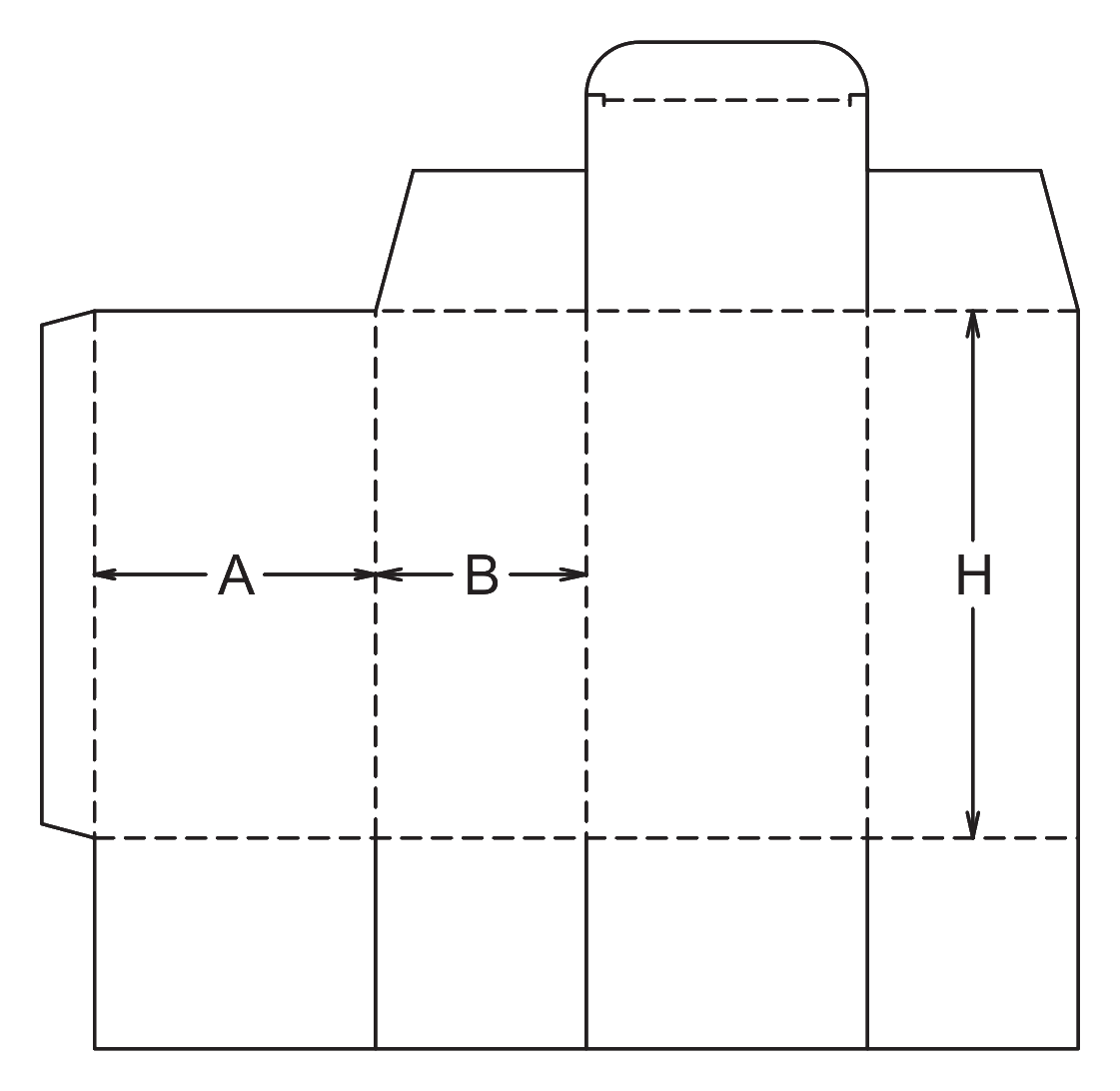

This carton is designed to be erected, filled, and sealed by machine. The full overlapping bottom flaps provide a flat, stable surface for the application of hot melt or cold glue, making it an efficient choice for automated packaging operations.
Retail Shelf Display
When sealed correctly, the overlapping base creates a flat, multi-layered bottom that allows the carton to stand securely on retail shelves. The clean tuck top provides a premium presentation for the consumer.
Tamper-Evident Retail Packaging
By adding a tear-strip to the top tuck flap, this carton can provide built-in tamper evidence without the need for external shrink wrap or security labels.
Lightweight Consumer Goods
For products that do not need heavy-duty corrugated protection, this folding carton offers a clean, printable surface and a secure base once glued.
High-Quantity Retail and Pharmaceutical Contexts
Pharmaceutical and Cosmetic Brands
These buyers often rely on automated filling lines and look for a carton that presents cleanly while keeping the product secure. The glued base supports the product weight, while the tuck top allows for easy opening and reclosing.
Dry Foods and Confectionery
For lightweight consumer goods packed in large quantities, this style offers a practical balance of material use and processing speed, provided the packing facility has the necessary gluing equipment.
Contract Co-Packing Facilities
Co-packers with automated bottom-gluing equipment often prefer this style for large runs because it runs predictably on automated equipment and avoids the manual labor of interlocking bases.
When to Compare Alternative Base Styles
Manual Hand-Packing Operations
If you are erecting and packing cartons by hand, applying glue or tape to the bottom of every box is slow and inefficient. A crash-lock base or a straight-tuck carton is usually a better choice for manual fulfillment.
Heavy or Bulky Products
While the overlapping base is strong, its integrity relies entirely on the adhesive seal. For very heavy items, a reinforced base or a different packaging style, such as a corrugated shipper, should be evaluated.
Fulfillment, Board, and Closure Choices
Bottom Sealing Method
Determine whether your fulfillment line will use hot melt glue, cold glue, or an external tape or label to seal the overlapping bottom flaps. This choice can affect the required surface coatings or varnishes on the board.
Board Grade and Caliper
The thickness of the paperboard affects both the friction fit of the top tuck flap and the flatness of the overlapping base. Very thick boards can cause the multi-layered bottom to become uneven, potentially affecting how the carton stands on a shelf.
Top Closure Security
Decide if the standard friction tuck is secure enough for your product, or if slit locks should be added to the tuck flap to prevent it from opening accidentally during handling.
Fulfillment Equipment Limits
Check the maximum and minimum flat-tube dimensions your cartoning equipment can handle, as the overlapping bottom requires specific folding and gluing sequences.
Tamper Evidence and Tuck Adjustments
Tamper-Evident Zipper Strips
The top closure can be modified to include a perforated tear-strip (as seen in the .27 variant). This provides built-in tamper evidence without the need for external shrink wrap or security labels.
Top Tuck Friction and Locks
The depth of the top tuck flap can be adjusted to increase or decrease opening friction. For added security, slit locks can be incorporated into the tuck flap to catch on the side dust flaps.
Dust Flap Modifications
The top dust flaps can be sloped or adjusted in height to accommodate specific product clearances or to change how the main cover flap rests when closed.
Board and packing details
Grain direction and panel bowing
For optimal performance on automated cartoning equipment and to prevent the main vertical panels from bowing outward, the paperboard grain should typically run horizontally around the perimeter of the carton.
