ECMA A60.21.00.03

Crash-Lock Retail Hanging Box

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

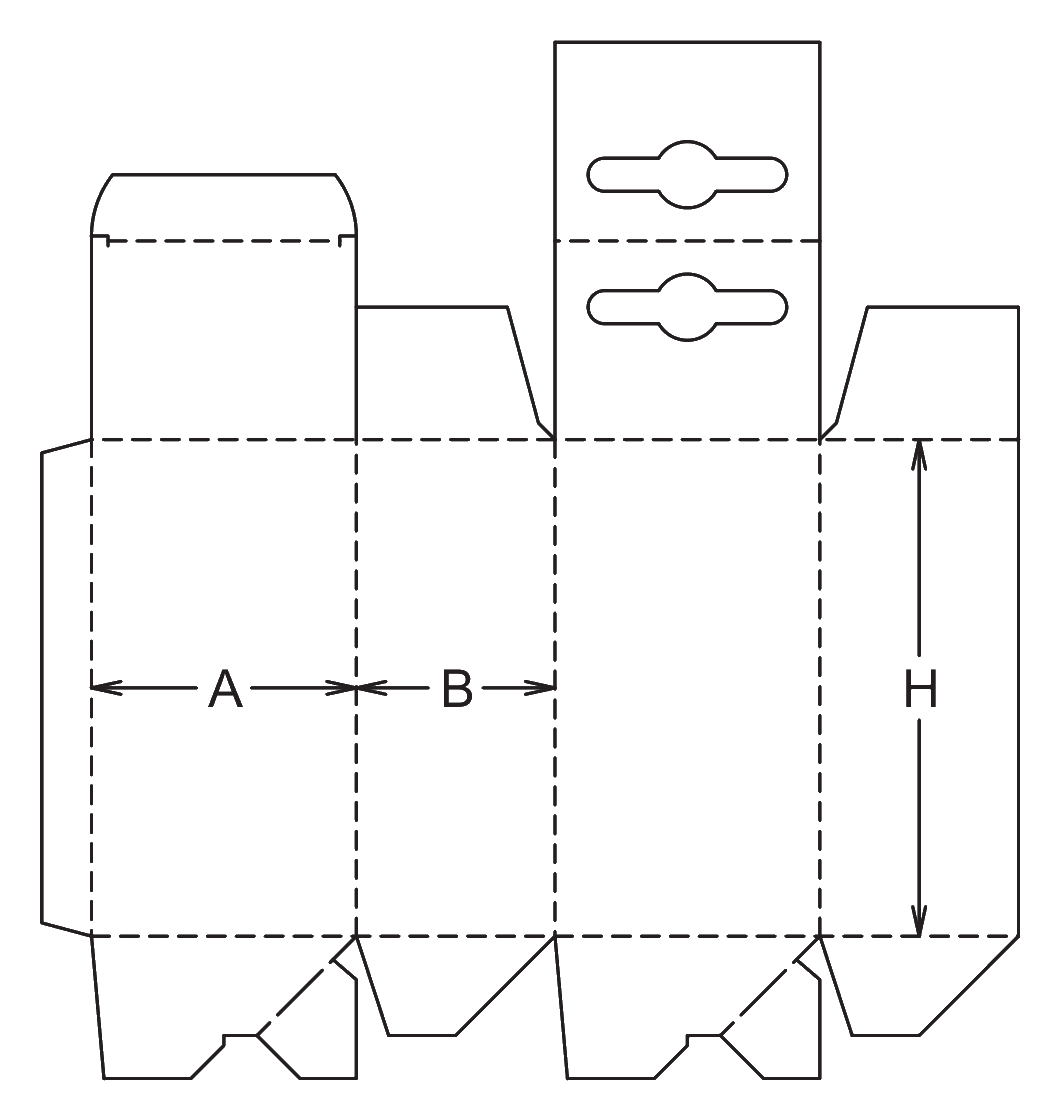

  • Extended back panel with die-cut hanger hole for pegboard display
  • Crash-lock base snaps open for rapid hand assembly
  • Fits lightweight retail goods to prevent hanger tear-out

About this product

This retail hanging carton combines a high-visibility display header with a crash-lock base that snaps open instantly. It is built for fast-paced manual packing environments where lightweight consumer goods need to be prepped quickly for pegboard displays.

The extended back panel features a die-cut hanger hole, keeping the product facing forward on the hook. Because the base requires pre-gluing by the converter, this style trades a slightly larger blank footprint and a specific gluing route for a reduction in hand-assembly time.

Common uses

  • High-volume cosmetics and personal care accessories
  • Lightweight electronics and charging cables
  • Small hardware or craft items sold on pegboards
  • Fast-turnaround promotional retail packaging

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail Pegboard Displays And Fast Hand Packing

High-volume manual packing for retail hooks

The crash-lock base is the primary advantage here. When operators squeeze the folded carton, the bottom interlocks automatically. This eliminates the need to fold and tuck bottom flaps by hand, making it a strong fit for fulfillment centers processing thousands of lightweight retail units.

Pegboard display for lightweight consumer goods

The extended back panel provides a clear billboard for branding above the product while keeping the item facing forward on the retail hook. This setup fits when the product is light enough that the die-cut hole will not tear under its own weight.

Hand-loaded kitting for multi-part accessories

Because the base forms a rigid floor instantly, operators can drop multiple small components, such as charging cables, adapters, and instruction inserts, into the open top without the carton collapsing or requiring bottom tape.

Shelf-ready presentation without secondary sealing

The combination of a pre-glued base and a secure top tuck flap means the carton can often be closed and placed directly on a display without needing clear wafer seals, provided the transit route does not expose it to rough handling.

Electronics Accessories, Cosmetics, And Consumer Goods

Cosmetics and personal care accessories

Small cosmetic bottles, makeup brushes, and grooming tools fit naturally into this carton. The extended header allows for prominent branding on crowded retail pegs, while the fast-erecting base keeps fulfillment labor low for high-volume product launches.

Mobile electronics and charging cables

Tech accessories often require pegboard hanging in electronics aisles. This carton provides enough rigidity to hold coiled cables or lightweight chargers, and the tuck top allows for easy loading of the product and its internal tray or insert.

Small hardware and craft supplies

For lightweight hardware components or craft items sold in multi-packs, this carton offers a cleaner presentation than a simple polybag. The crash-lock base keeps small, loose items from slipping through the bottom flaps during handling.

Comparing Tuck Bottoms And Heavy-Duty Trays

Heavy products that risk hanger tear-out

If the product is heavy, the concentrated stress on the hanger hole can cause the board to tear, or the weight may push through the unreinforced crash-lock base. For heavier items, consider a reinforced tray, a blister pack, or a carton with a reinforced fold-over header.

Short trial runs or automated filling lines

The crash-lock base requires specific 3-point gluing equipment during manufacturing, which can make very short prototype runs more complex to trial. In those cases, a tuck-bottom hanging box (A20.21.03.03) is easier to test. Additionally, the extended back panel and pre-glued base often interfere with top-load cartoning machinery, making this a hand-pack choice.

Board Stiffness, Hanger Hole Style, And Base Strength

Board grade and hanger hole tear resistance

The entire weight of the package hangs from a single die-cut hole. Selecting a stiff board grade, such as Solid Bleached Sulfate (SBS) or a high-caliper folding boxboard, helps prevent the header from bowing forward or tearing on the retail peg. The grain direction should run vertically to maximize the header's rigidity.

Center of gravity and carton depth

The depth of the carton and the placement of the hanger hole must be balanced against the product's center of gravity. If a heavy product sits too far forward in a deep carton, the entire package will tilt awkwardly on the retail peg rather than hanging straight.

Print layout on the extended header

Because folding cartons are typically printed on one side of the board, the back of the header, which faces the pegboard, will show the unprinted inside of the material. If this surface needs to be branded, a specific two-sided print run or a fold-over header design must be discussed.

Base strength and product fit

While the crash-lock base is fast to assemble, it relies on interlocking flaps rather than a solid panel. If the product has sharp edges or concentrated weight, it may require an internal pad or insert to distribute the load and prevent the base from bowing.

Hanger Hole Placement And Header Height

Header height and pegboard hole styles

The extended back panel can be adjusted in height to accommodate different branding requirements or pegboard spacing. The die-cut hole itself can be modified from a round punch to a wider Euro-hole (sombrero) style, depending on the retail fixtures where the product will be stocked.

Top flap locking mechanisms

The top tuck flap can be configured with simple friction locks for easy opening, or with slit locks that catch on the side dust flaps to provide more security against accidental opening during handling.

Dust flap shaping

The side dust flaps can be tapered or sloped to prevent them from binding against the product during closure, which is especially useful if the carton is tightly fitted around a rigid internal item.

Board and packing details

Master shipper packing and nesting

Because the extended header panel protrudes above the main carton body, these boxes do not stack cleanly on top of one another. When planning the outer master shipper, these cartons are typically packed in an alternating head-to-toe pattern to maximize space and prevent the headers from crushing during transit.

Additional notes

Header rigidity and grain direction

To prevent the extended back panel from flopping forward while hanging, the paperboard grain should run vertically parallel to the height of the carton.

Related Retail And Display Cartons

FAQs

Product fit and hanging weight

How much weight can this carton hold on a pegboard?

It depends entirely on the board grade and the hanger hole design. Lightweight items under a few ounces are generally safe. Heavier items require physical tear-testing to confirm the peg hook does not rip through the top of the header panel.

Packing and fulfillment

Does the crash-lock base require tape or glue during packing?

The base is pre-glued by the converter using a 3-point folder-gluer. It arrives flat and snaps into a locked position when the operator opens the carton, requiring no additional fastening for the bottom.

Shipping and route

Can this box be shipped directly in the mail?

The tuck top and exposed hanger panel can easily catch or open in a rough courier network. This carton must be packed inside a corrugated master shipper or mailer for parcel transit.

Production and tooling

Why might a tuck bottom be easier for a short trial run?

The crash-lock base requires specific 3-point gluing equipment during manufacturing. For very short prototype runs, a tuck bottom can be cut and folded without specialized gluing machinery, making it easier to test before committing to a high-volume auto-bottom order.

Print and presentation

Can the extended back panel be printed on both sides?

Because folding cartons are typically printed on one side of the board, the back of the header (which faces the pegboard) will show the unprinted inside of the material unless a specific two-sided print or fold-over header design is requested.

Packing and fulfillment

Will this carton work on an automated filling line?

The extended back panel and the pre-glued crash-lock base are designed for rapid hand assembly. They typically interfere with the feeding and closing mechanisms of automated cartoning equipment.

Product fit and hanging weight

What happens if the product sits too far forward in the carton?

If the center of gravity is too far forward, the carton will tilt awkwardly on the retail peg rather than hanging straight. The depth of the box and the placement of the hanger hole must be balanced to keep the presentation vertical.

Shipping and route

How should these cartons be packed into a master shipper?

Because the extended header panel protrudes above the main carton body, they do not stack cleanly. They are typically packed in an alternating head-to-toe pattern to maximize space and prevent the headers from crushing during transit.
